Nissan Qashqai J11. Manual - part 862

LOWER LINK

RSU-13

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

LOWER LINK

Exploded View

INFOID:0000000010297266

FOR 2WD GOM AND 4WD

Removal and Installation

INFOID:0000000010480374

REMOVAL

1.

Remove wheel and tire using power tool. Refer to

WT-63, "Exploded View"

.

2.

Remove connecting rod. Refer to

RSU-16, "Exploded View"

.

3.

Remove rear height sensor (if equipped). Refer to

EXL-171, "Removal and Installation"

.

4.

Set suitable jack under rear suspension arm to relieve the coil spring tension.

5.

Remove lower link, nut, and bolt from rear suspension arm with power tool.

6.

Remove lower link, nut, washer, and bolt from rear suspension member with power tool.

7.

Remove lower link protector (if necessary).

8.

Perform the inspection after removal. Refer to

RSU-14, "Inspection"

.

INSTALLATION

Installation is in the reverse order of removal.
• Perform final tightening of rear suspension member and axle installation position under unladen conditions

with tires on level ground.

• After installation, perform headlamp initialization. Refer to

EXL-76, "Work Procedure"

.

• Adjust the neutral position of the steering angle sensor. Refer to

BRC-66, "Work Procedure"

.

• Perform the inspection after installation. Refer to

RSU-14, "Inspection"

.

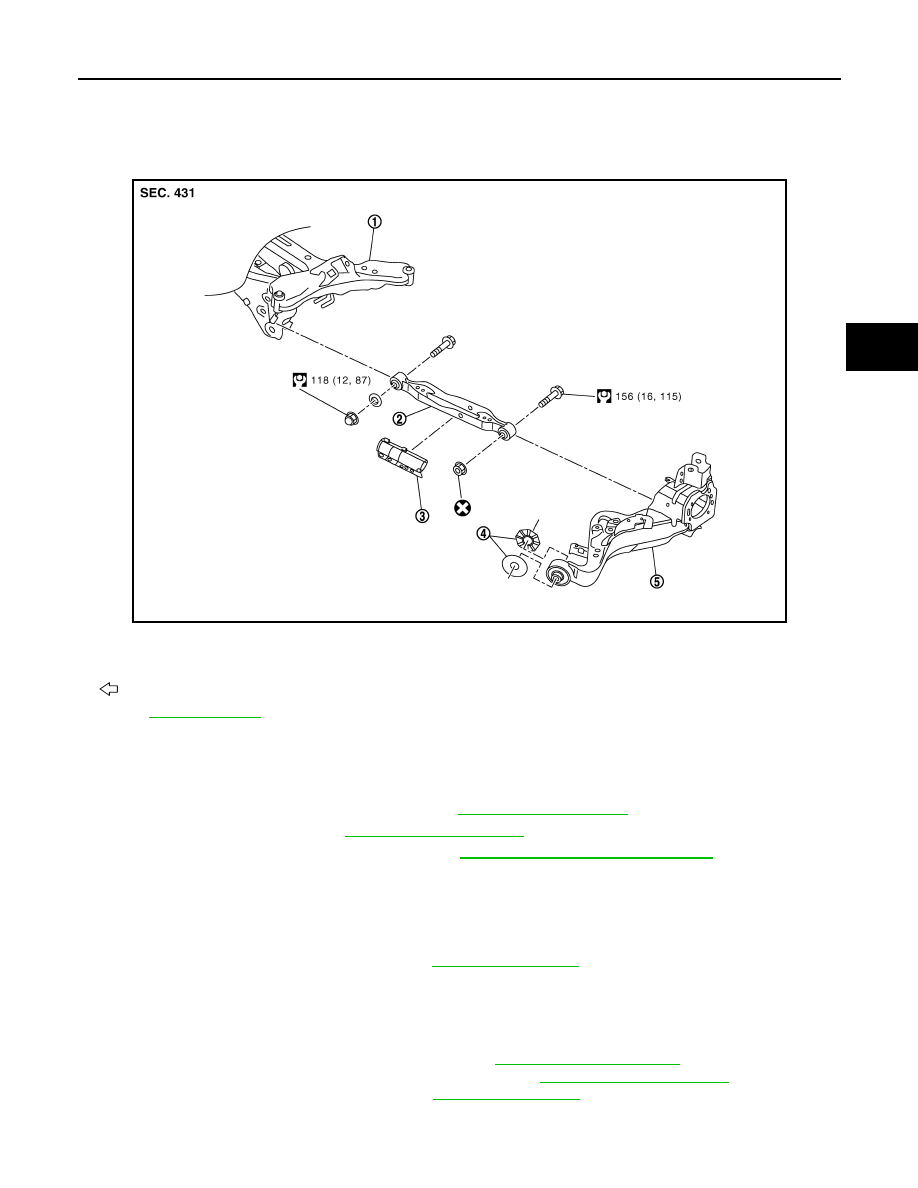

E1EIA0122GB

1.

Rear suspension member

2.

Lower link

3.

Lower link deflector

4.

Rubber washer (RLH/RH)

5.

Rear suspension arm

: Front

Refer to

GI-4, "Components"

 for symbols in the figure.

RSU-14

< REMOVAL AND INSTALLATION >

LOWER LINK

Inspection

INFOID:0000000010297268

INSPECTION AFTER REMOVAL

Check lower link and bushing for any deformation, cracks, or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel alignment. Refer to

RSU-5, "Wheel Alignment Inspection"

.

2.

Adjust neutral position of steering angle sensor. Refer to

BRC-66, "Work Procedure"

.

UPPER LINK

RSU-15

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

UPPER LINK

Exploded View

INFOID:0000000010297269

FOR 2WD GOM AND 4WD

Removal and Installation

INFOID:0000000010297270

REMOVAL

1.

Remove tires from vehicle.

2.

Set suitable jack under suspension arm to relieve the coil spring tension.

3.

Remove wheel sensor harness from suspension arm.

4.

Remove upper link from suspension arm.

5.

Remove upper link from suspension member.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member and axle installation position (rubber bushing), under

unladen conditions with tires on level ground.

Inspection

INFOID:0000000010297271

INSPECTION AFTER REMOVAL

Check upper link and bushing for any deformation, cracks, or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel alignment. Refer to

RSU-5, "Wheel Alignment Inspection"

.

2.

Adjust neutral position of steering angle sensor. Refer to

BRC-66, "Work Procedure"

.

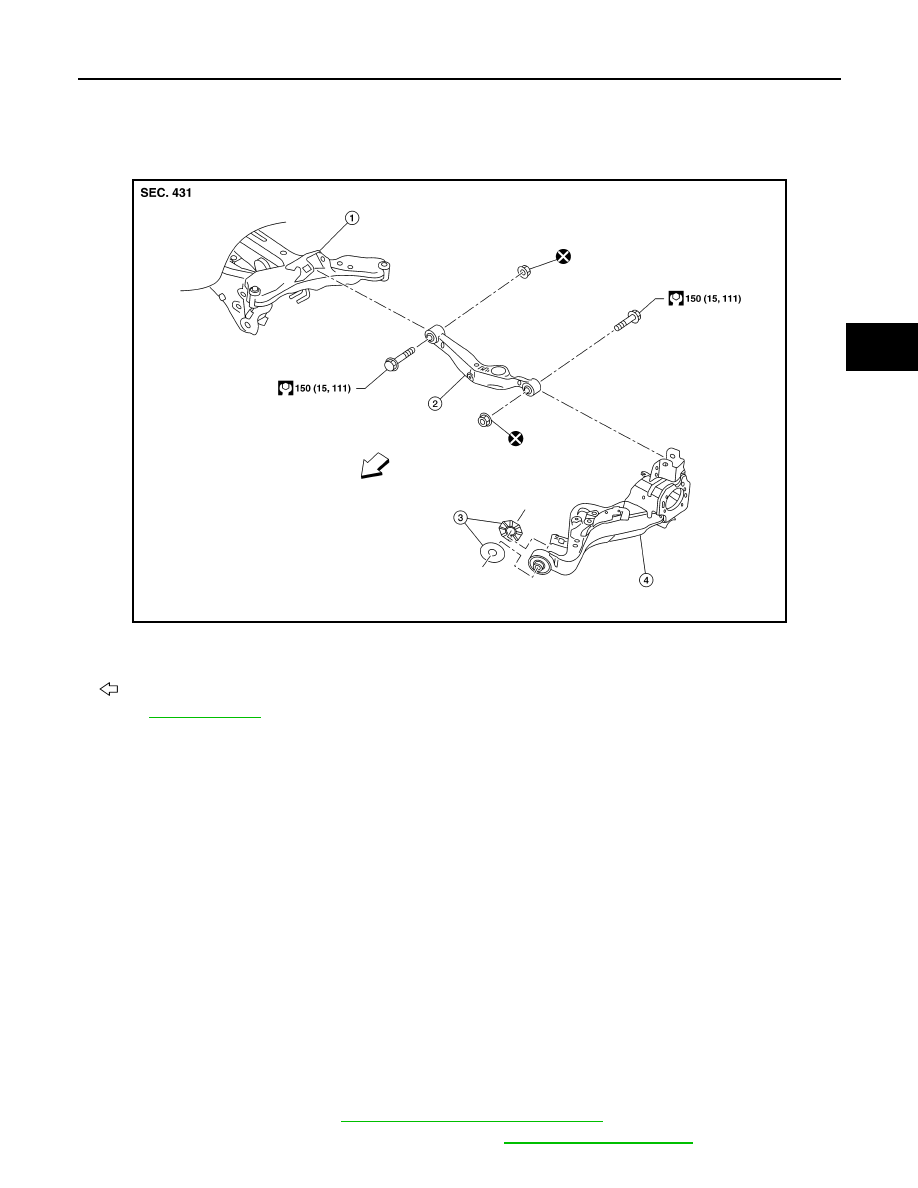

AWEIA0356ZZ

1.

Rear suspension member

2.

Upper link

3.

Rubber washer (LH/RH)

4.

Rear suspension arm

: Front

Refer to

GI-4, "Components"

 for symbols in the figure.

RSU-16

< REMOVAL AND INSTALLATION >

REAR STABILIZER

REAR STABILIZER

Exploded View

INFOID:0000000010297272

FOR 2WD GOM AND 4WD

Removal and Installation

INFOID:0000000010297273

REMOVAL

1.

Disconnect rear stabilizer links from rear stabilizer bar.

2.

Remove nuts on rear stabilizer clamp.

3.

Remove rear stabilizer bar from rear suspension member.

4.

Remove rear stabilizer bushings from rear stabilizer bar.

INSTALLATION

Install in the reverse order of removal.

Inspection

INFOID:0000000010297274

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer link, stabilizer bushing and stabilizer clamp for deformation, cracks or damage.
Replace it if necessary.

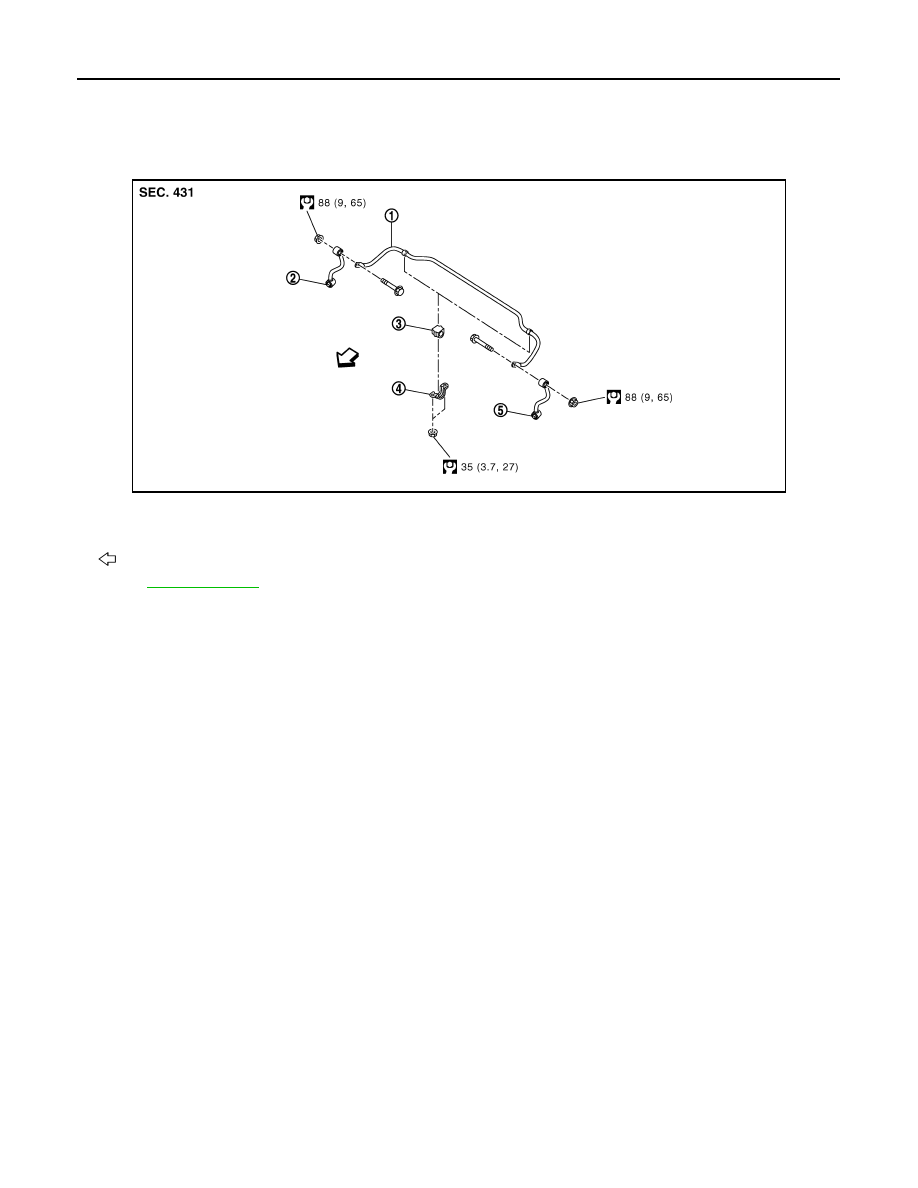

E1EIA0123GB

1.

Rear stabilizer bar

2.

Connecting rod (RH)

3.

Rear stabilizer bar bushing

4.

Rear stabilizer bar clamp

5.

Connecting rod (LH)

: Front

Refer to

GI-4, "Components"

 for symbols in the figure.
