Nissan Qashqai J11. Manual - part 827





DLN-224

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

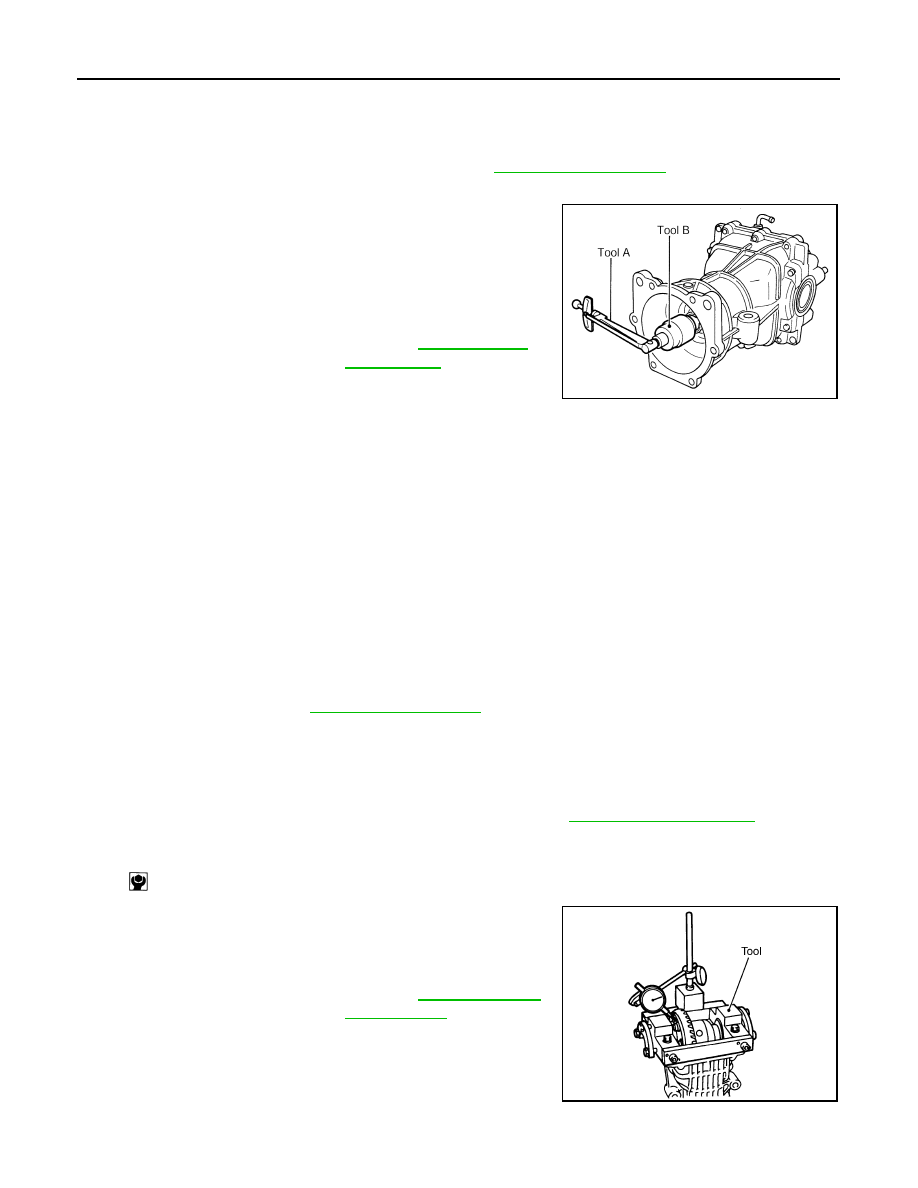

DRIVE PINION

Adjustment

INFOID:0000000010288421

TOTAL PRELOAD TORQUE

1.

Remove electric controlled coupling assembly. Refer to

DLN-210, "Disassembly"

.

2.

Rotate drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.

3.

Rotate drive pinion at least 20 times to check for smooth opera-
tion of the bearing.

4.

Fit drive pinion socket onto drive pinion spline. Measure the total
preload, using the preload gauge (A) (SST: 3127S000) and drive
pinion socket (B) (SST: KV38109500).

NOTE:
Total preload torque = Pinion bearing torque + Side bearing
torque

• If measured value is out of the specification, disassemble it to check and adjust each part. Adjust the pinion

bearing preload and side bearing preload.
Adjust the pinion bearing preload first, then adjust the side bearing preload.

DRIVE GEAR RUNOUT

1.

Remove rear cover. Refer to

DLN-214, "Disassembly"

.

2.

Following the procedure below, install a dummy cover set (SST: KV389L0010) to gear carrier.

a.

Set dummy cover shims to the right and left side bearing adjusting shims.

b.

Temporarily tighten dummy cover to gear carrier.

c.

Position dummy cover spacers to dummy cover.

d.

Tighten rear cover mounting bolts to the specified torque. Refer to

DLN-219, "Exploded View"

.

e.

Tighten dummy cover spacer mounting bolts evenly to the specified torque.

3.

Fit a dial indicator to the drive gear back face.

4.

Rotate the drive gear to measure runout.

• If the runout is outside of the repair limit, check drive gear

assembly condition; foreign material may be caught between
drive gear and differential case, or differential case or drive
gear may be deformed, etc.

CAUTION:

Replace drive gear and drive pinion as a set.

Standard

Total preload torque

: Refer to

DLN-229, "Pre-

load Torque"

.

When the preload torque is large

On pinion bearings:

Replace the collapsible spacer.

On side bearings:

Use thinner side bearing adjusting shims.

When the preload is small

On pinion bearings:

Tighten the drive pinion nut.

On side bearings:

Use thicker side bearing adjusting shims.

PDIA0048E

: 5.9 N·m (0.6 kg-m, 52 in-lb)

Limit

Drive gear back face
runout

: Refer to

DLN-229, "Drive

Gear Runout"

.

PDIA0050E

DRIVE PINION

DLN-225

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

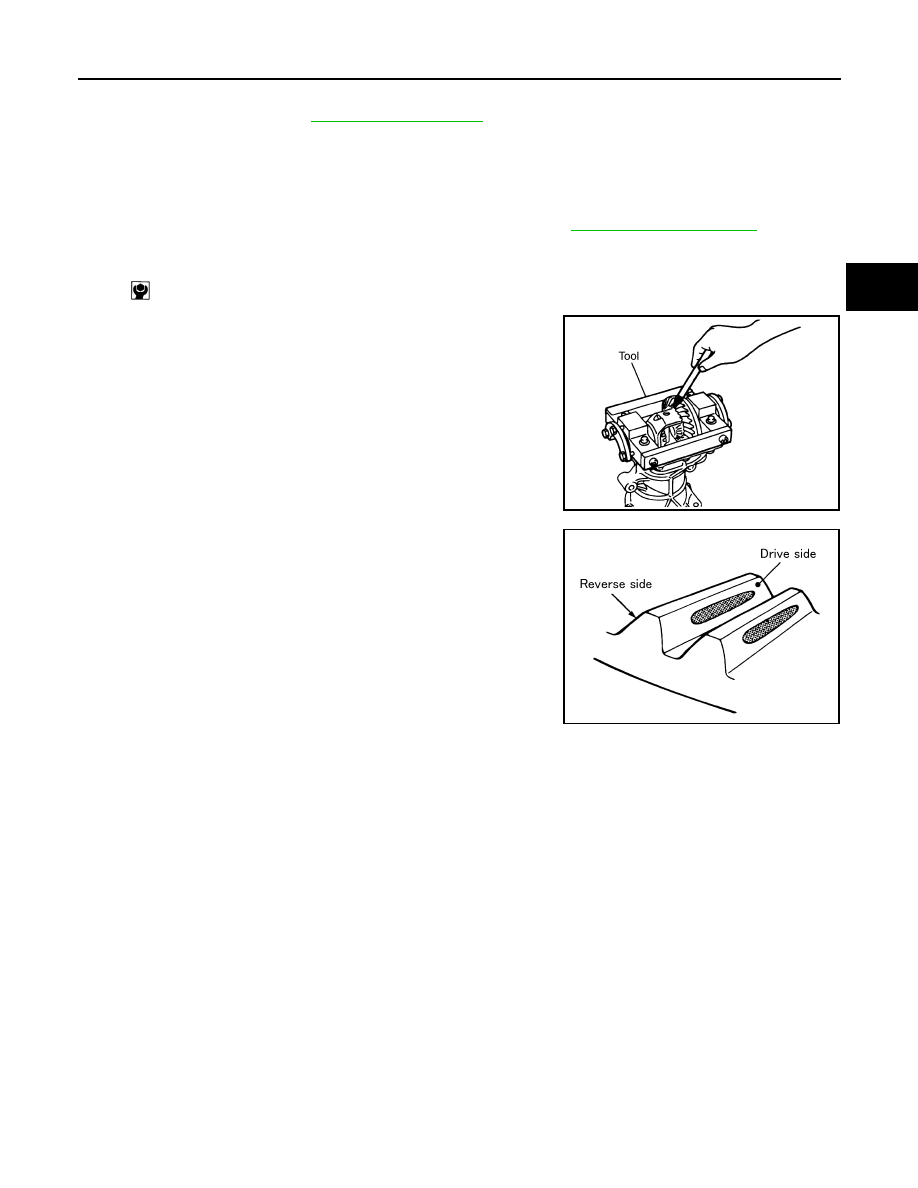

TOOTH CONTACT

1.

Remove rear cover. Refer to

DLN-214, "Disassembly"

.

2.

Following the procedure below, install a dummy cover set (SST: KV389L0010) to gear carrier.

a.

Set dummy cover shims to the right and left side bearing adjusting shims.

b.

Temporarily tighten dummy cover to gear carrier.

c.

Position dummy cover spacers to dummy cover.

d.

Tighten rear cover mounting bolts to the specified torque. Refer to

DLN-219, "Exploded View"

.

e.

Tighten dummy cover spacer mounting bolts evenly to the specified torque.

3.

Apply red lead to drive gear.

CAUTION:

Apply red lead to both the faces of 3 to 4 gears at 4 loca-
tions evenly spaced on drive gear.

4.

Rotate drive gear back and forth several times, check drive pin-
ion gear to drive gear tooth contact.

CAUTION:

Check tooth contact on drive side and reverse side.

: 5.9 N·m (0.6 kg-m, 52 in-lb)

PDIA0051E

SDIA0570E

DLN-226

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

DRIVE PINION

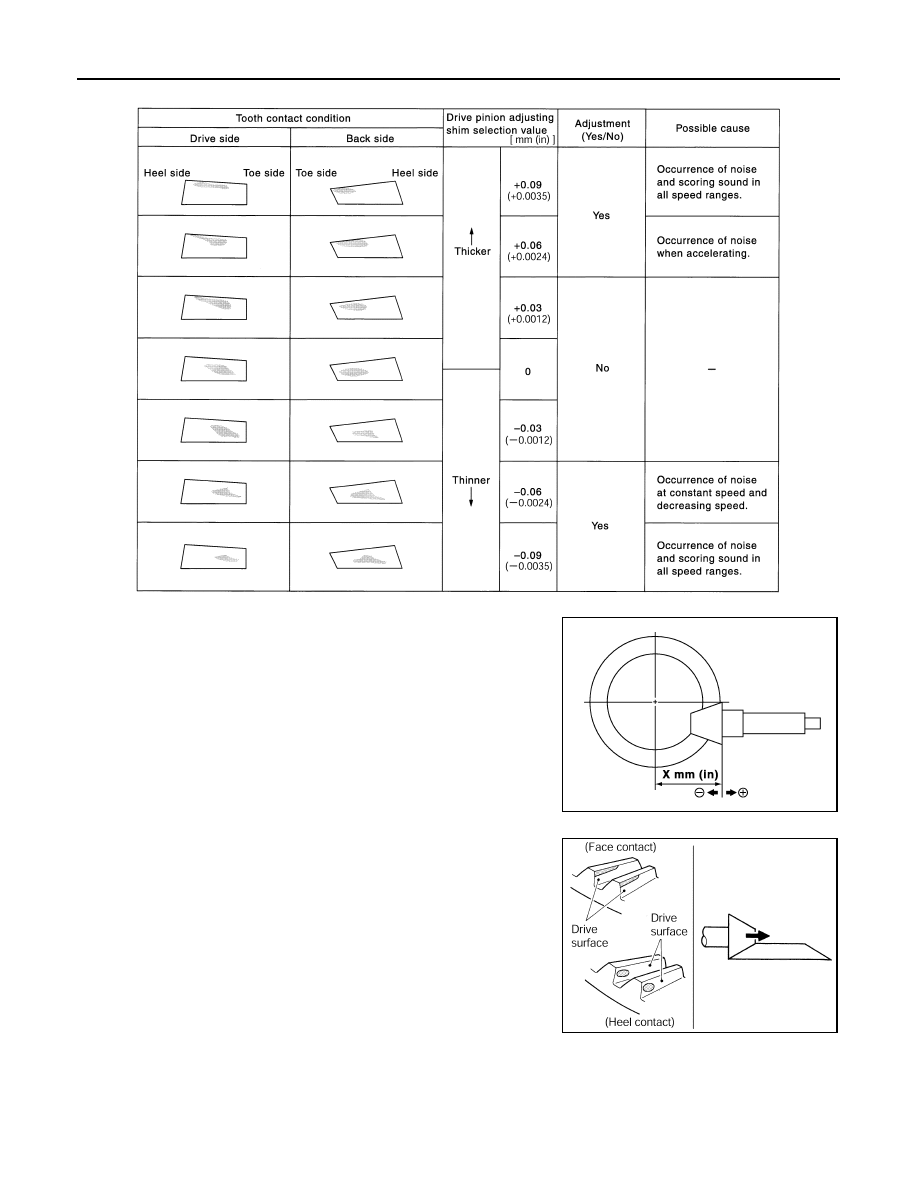

Tooth Contact Judgment Guide

5.

If tooth contact is improperly adjusted, follow the procedure
below to adjust the pinion height (dimension X).

• If the tooth contact is near the face (face contact), or near the

heel (heel contact), thicken drive pinion gear adjusting shim to
move drive pinion closer to drive gear.

SDIA2549E

SDIA0517E

PDIA0440E

DRIVE PINION

DLN-227

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

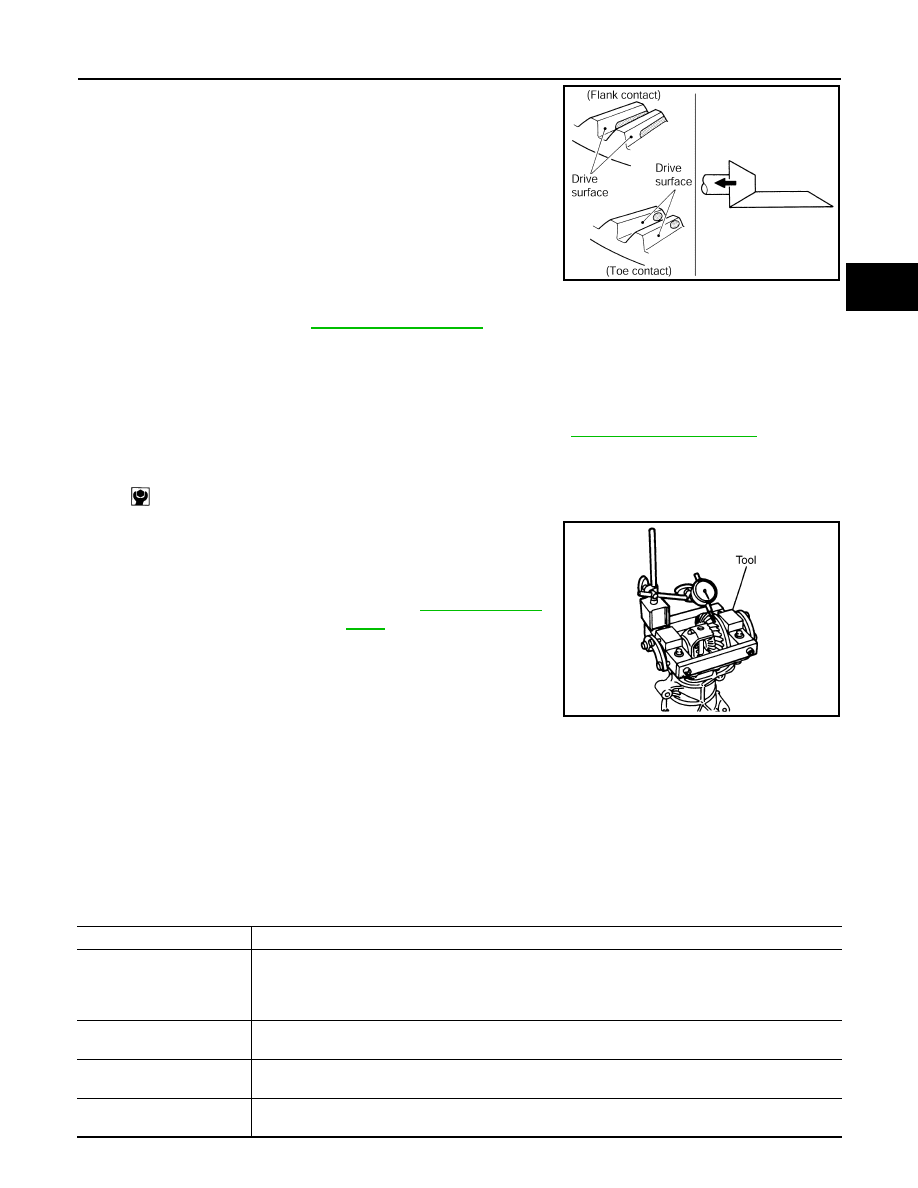

• If the tooth contact is near the flank (flank contact), or near the

toe (toe contact), thin drive pinion gear adjusting shim to move
drive pinion farther from drive gear.

BACKLASH

1.

Remove rear cover. Refer to

DLN-214, "Disassembly"

.

2.

Following the procedure below, install a dummy cover set (SST: KV389L0010) to gear carrier.

a.

Set dummy cover shims to the right and left side bearing adjusting shims.

b.

Temporarily tighten dummy cover to gear carrier.

c.

Position dummy cover spacers to dummy cover.

d.

Tighten rear cover mounting bolts to the specified torque. Refer to

DLN-219, "Exploded View"

.

e.

Tighten dummy cover spacer mounting bolts evenly to the specified torque.

3.

Fit a dial indicator to the drive gear face to measure the back-
lash.

• If the backlash is outside of the specified value, change the

thickness of side bearing adjusting shims.

Inspection After Disassembly

INFOID:0000000010288422

Clean up the disassembled parts. Then, inspect if the parts are worn or damaged. If so, follow the measures
below.

PDIA0441E

: 5.9 N·m (0.6 kg-m, 52 in-lb)

Standard

Backlash

: Refer to

DLN-229, "Back-

lash"

.

When the backlash is large:

Make drive gear back adjusting shims thicker, and drive
gear front adjusting shims thinner.

When the backlash is small:

Make drive gear back adjusting shims thinner, and
drive gear front adjusting shims thicker.

PDIA0049E

Content

Conditions and Measures

Hypoid gear

• If the gear teeth do not mesh or line-up correctly, determine the cause and adjust or replace as nec-

essary.

• If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new

drive gear and drive pinion as a set.

Bearing

If any chipped (by friction), pitted, worn, rusted or scratched mark, or unusual noise from the bearing is
observed, replace as a bearing assembly (as a new set).

Side gear and Pinion mate
gear

• If any cracks or damage on the surface of the tooth is found, replace.
• If any worn or chipped mark on the contact sides of the thrust washer is found, replace.

Side gear thrust washer and
pinion mate thrust washer

If it is chipped (by friction), damaged, or unusually worn, replace.
