Nissan Qashqai J11. Manual - part 825





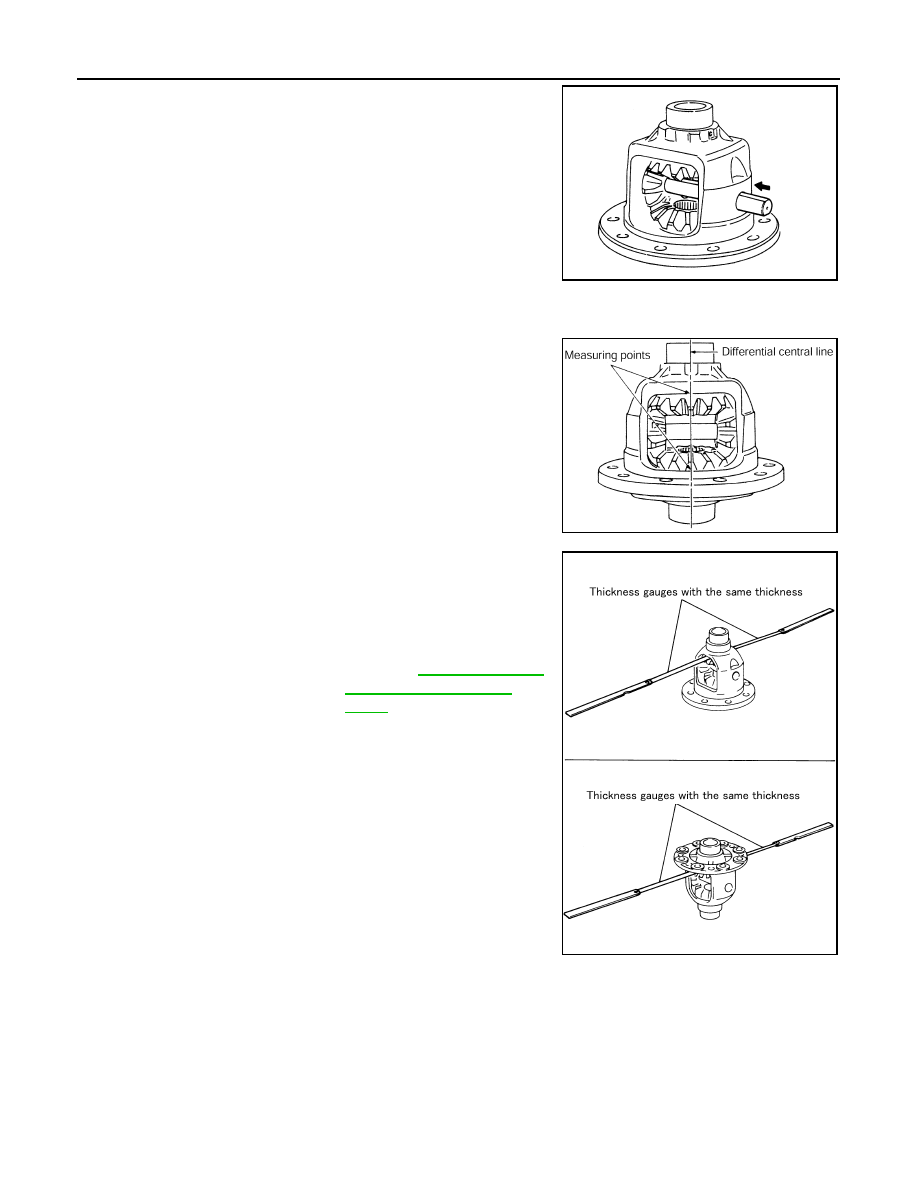

DLN-216

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

DIFFERENTIAL ASSEMBLY

4.

Align the lock pin holes on differential case with shaft, and install
pinion mate shaft.

5.

Measure side gear end play following the procedure below, and select the appropriate side gear thrust
washers.

a.

Place differential case straight up so that side gear to be mea-
sured comes upward.

b.

Using thickness gauges, measure the clearance between side
gear back and differential case at 3 different positions, while
rotating side gear. Average the 3 readings, and then measure
the clearance. (Measure the clearance of the other side as well.)

CAUTION:

To prevent side gear from tilting, insert thickness gauges
with the same thickness from both sides.

c.

If the back clearance is outside the specification, use a thicker/
thinner side gear thrust washer to adjust.

CAUTION:

Select a side gear thrust washer for right and left individu-
ally.

SDIA0037J

PDIA0460E

Standard

Side gear back clearance

: Refer to

DLN-229, "Differ-

ential Side Gear Clear-
ance"

.

When the back clearance is large:

Use a thicker thrust washer.

When the back clearance is small:

Use a thinner thrust washer.

SDIA0583E

DIFFERENTIAL ASSEMBLY

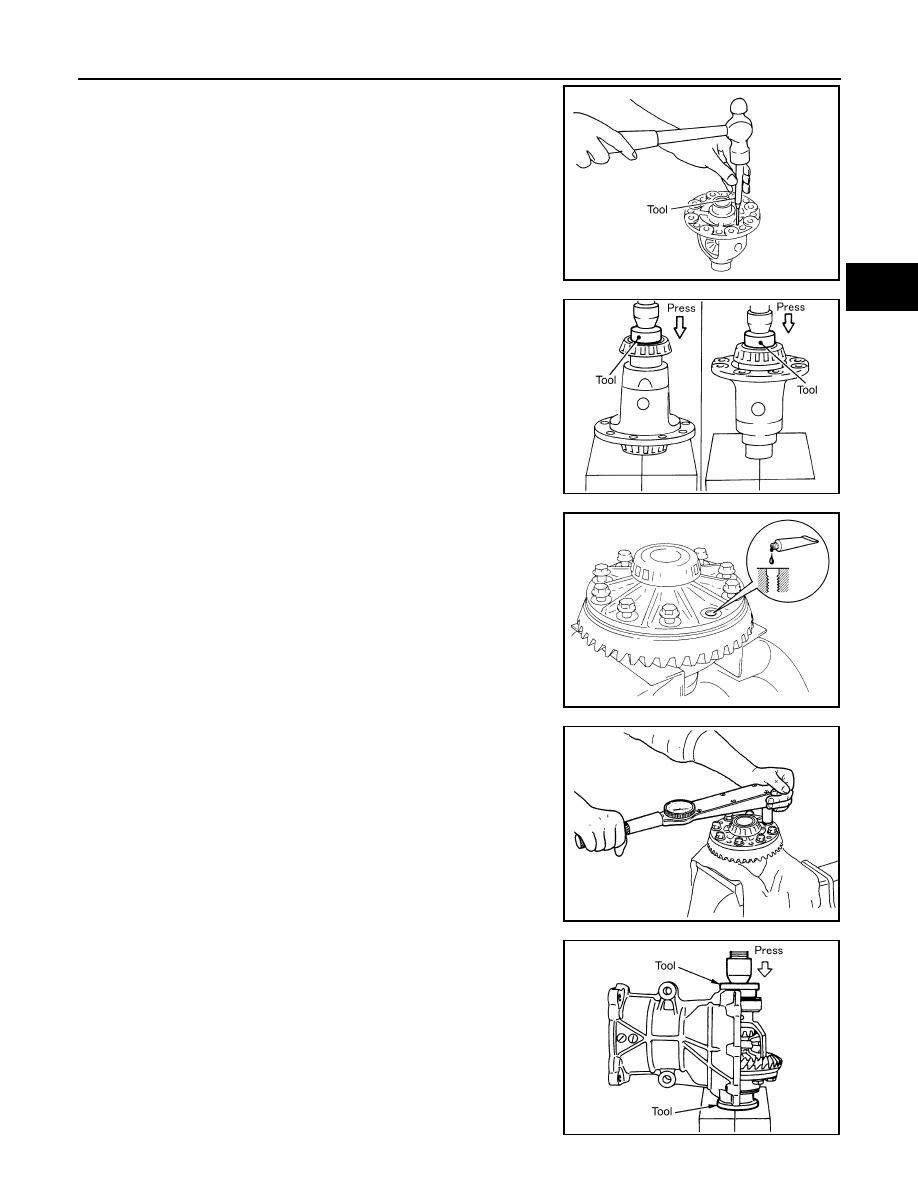

DLN-217

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

6.

Drive a lock pin into pinion mate shaft, using the pin punch
(commercial service tool).

CAUTION:

Never reuse lock pin.

7.

Press side bearing inner races to differential case, using the drift
(commercial service tool).

CAUTION:

Never reuse side bearing inner races.

8.

Apply locking sealant into the thread hole of drive gear.

CAUTION:

The drive gear back and threaded holes shall be cleaned
and decreased sufficiently.

9.

Install drive gear to the differential case, and then tighten to the
specified torque.

10. Apply gear oil to side bearings, and install new side bearing

adjusting shims (2 pieces for one side) with the same thickness
as the ones installed prior to disassembly or re-install the old
ones, with side bearing outer race to differential case.
If side bearing adjusting shims have been already selected, use
them.

CAUTION:

Never reuse side bearing outer race.

11. Set the drifts (commercial service tool) to the right and left side

bearing adjusting shims individually. Compress differential case
assembly and side bearing to install gear carrier assembly to dif-
ferential case assembly.

CAUTION:

• The drift shall be placed on the center of the adjusting

shims.

• The pressure shall be as low as possible to install differ-

ential assembly into gear carrier assembly. The maximum
pressure shall be 10 kN (1 ton, 1.0 Imp ton).

• If the adjusting shims are installed by tapping, the gear

carrier may be damaged. Avoid tapping.

PDIA0062E

PDIA0052E

SPD554

PDIA0466E

PDIA0064E

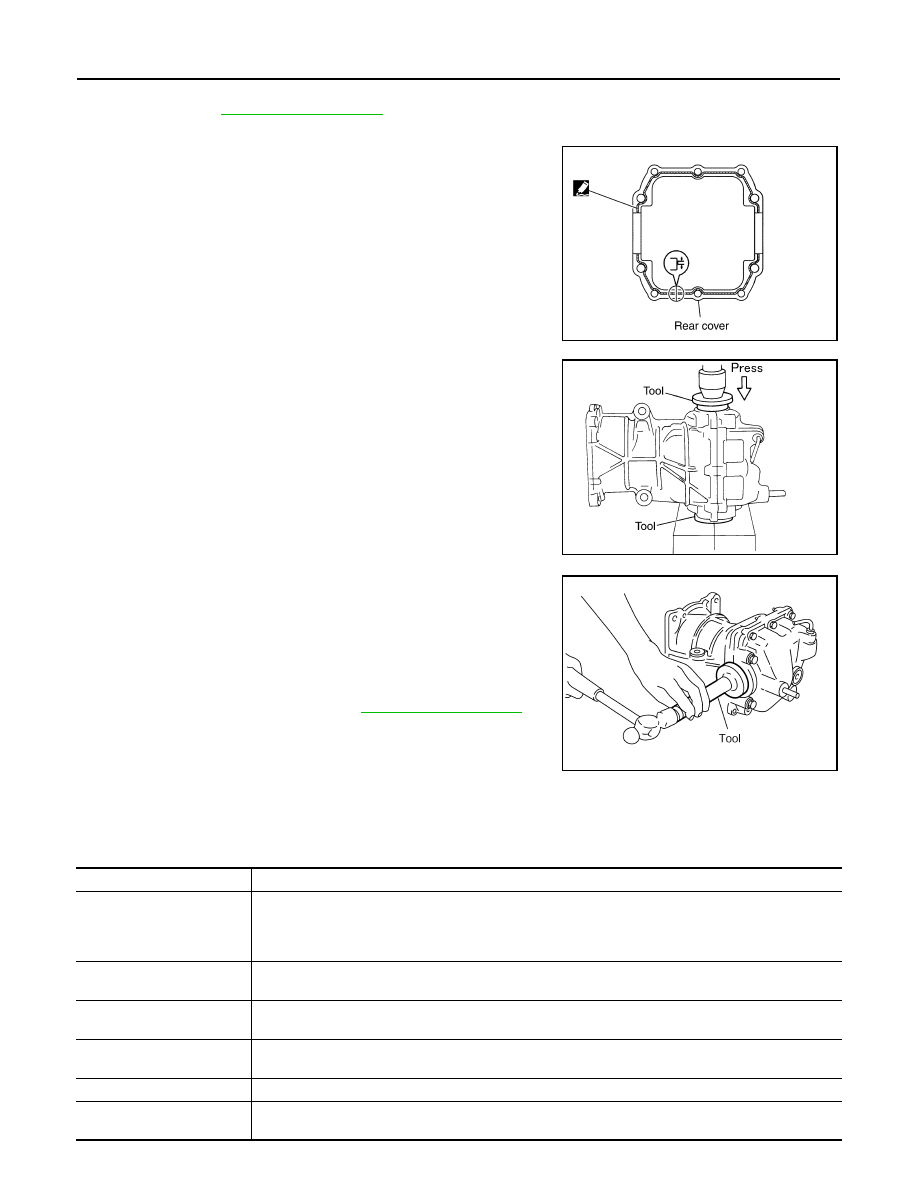

DLN-218

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

DIFFERENTIAL ASSEMBLY

12. Install dummy cover set, check and adjust drive gear runout, tooth contact, backlash, and total preload

torque. Refer to

DLN-224, "Adjustment"

.

13. Remove dummy cover set.

14. Apply liquid gasket to mating surface of rear cover. Overlap both

ends of the bead for at least 3 mm (0.12 in).

CAUTION:

Remove old gasket adhering to the mounting surfaces.
Also remove any moisture, oil, or foreign material adhering
to the mounting surfaces.

15. Set the drifts (commercial service tool) to the right and left side

bearing adjusting shims individually. Compress differential case
assembly and side bearing to install rear cover.

CAUTION:

• The drift shall be placed on the center of the adjusting

shims.

• The pressure shall be as low as possible to install the rear

cover. The maximum pressure shall be 10 kN (1 ton, 1.0
Imp ton).

• If rear cover is forced in by tapping, rear cover may be

damaged by adjusting shims. Avoid tapping.

16. Tighten rear cover mounting bolts to the specified torque.

17. Using the drift (SST: KV38100200), drive side oil seals until it

becomes flush with the carrier end.

CAUTION:

• Never reuse oil seals.
• When installing, do not incline oil seals.
• Apply multi-purpose grease onto oil seal lips, and gear oil

onto the circumference of oil seal.

18. Check total preload torque. Refer to

DLN-224, "Adjustment"

.

Inspection After Disassembly

INFOID:0000000010288417

Clean up the disassembled parts. Then, inspect if the parts are worn or damaged. If so, follow the measures
below.

PDIA0447E

PDIA0065E

PDIA0448E

Content

Conditions and Measures

Hypoid gear

• If the gear teeth do not mesh or line-up correctly, determine the cause and adjust or replace as nec-

essary.

• If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new

drive gear and drive pinion as a set.

Bearing

If any chipped (by friction), pitted, worn, rusted or scratched mark, or unusual noise from the bearing is
observed, replace as a bearing assembly (as a new set).

Side gear and Pinion mate
gear

• If any cracks or damage on the surface of the tooth is found, replace.
• If any worn or chipped mark on the contact sides of the thrust washer is found, replace.

Side gear thrust washer and
pinion mate thrust washer

If it is chipped (by friction), damaged, or unusually worn, replace.

Differential case

If any wear or crack on the contact sides of the differential case is found, replace.

Companion flange

If any chipped mark (about 0.1 mm, 0.004 in) or other damage on the contact sides of the lips of the com-
panion flange is found, replace.

DRIVE PINION

DLN-219

< UNIT DISASSEMBLY AND ASSEMBLY >

[REAR FINAL DRIVE: R145]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

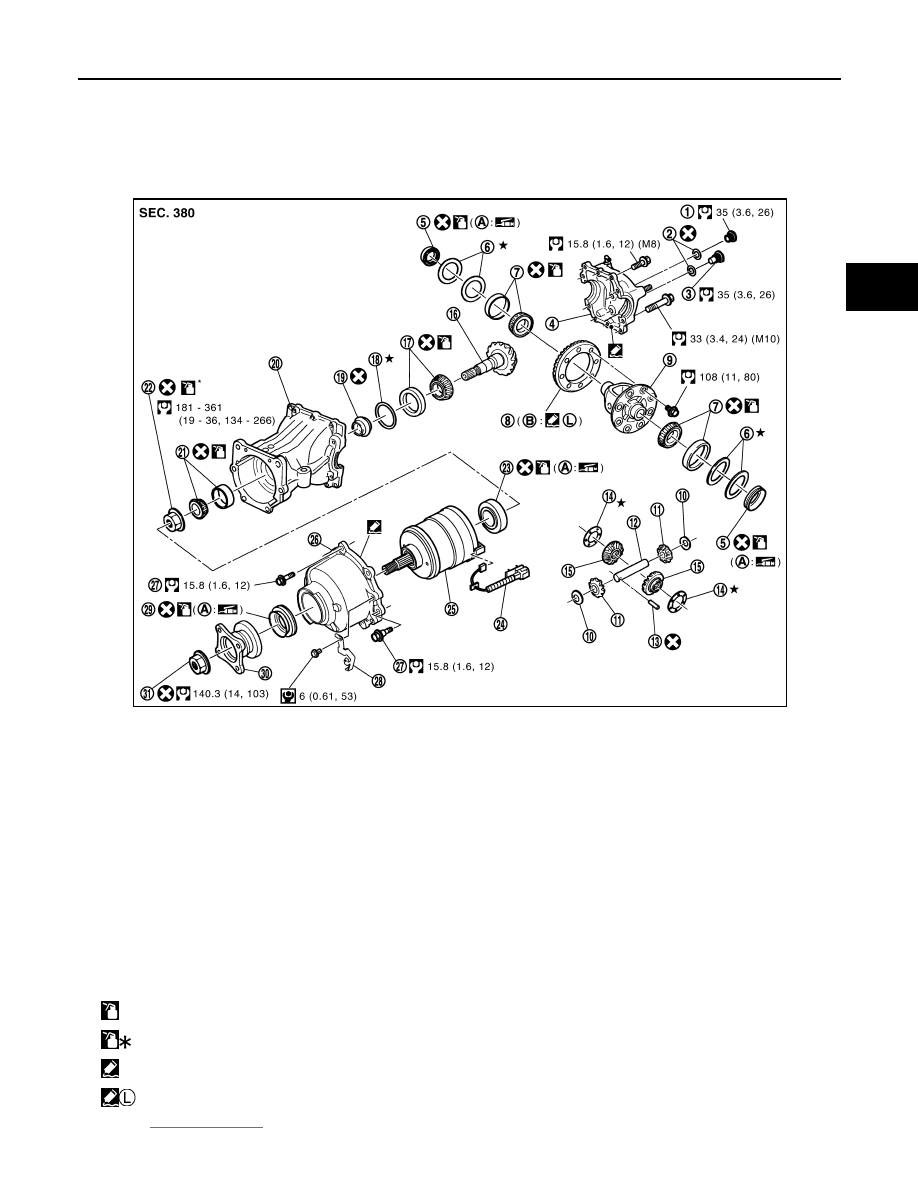

DRIVE PINION

Exploded View

INFOID:0000000010288418

R9M

1.

Filler plug

2.

Gasket

3.

Drain plug

4.

Rear cover

5.

Side oil seal

6.

Side bearing adjusting shim

7.

Side bearing

8.

Drive gear

9.

Differential case

10. Pinion mate thrust washer

11.

Pinion mate gear

12. Pinion mate shaft

13. Lock pin

14. Side gear thrust washer

15. Side gear

16. Drive pinion

17. Pinion rear bearing

18. Drive pinion adjusting shim

19. Collapsible spacer

20. Gear carrier

21. Pinion front bearing

22. Drive pinion nut

23. Center oil seal

24. 4WD solenoid harness

25. Electric controlled coupling

26. Coupling cover

27. Reamer bolt

28. Connector bracket

29. Front oil seal

30. Companion flange

31. Companion flange lock nut

A: Oil seal lip

B: Screw hole

: Apply gear oil.

: Apply anti-corrosive oil.

: Apply Genuine Liquid Gasket, Three Bond 1217 or equivalent.

: Apply Genuine Medium Strength Thread Locking Sealant, Three Bond 1322B or equivalent.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDID0006GB
