ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

TM-503

< BASIC INSPECTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

>> GO TO 3.

3.

ERASE CVT FLUID DEGRADATION LEVEL DATA

With CONSULT

1.

Select “WORK SUPPORT” in “TRANSMISSION”.

2.

Select “CONFORM CVTF DETERIORTN”.

3.

Touch “Clear”.

>> GO TO 4.

4.

BLEED ELECTRIC OIL PUMP

Refer to

TM-507, "Work Procedure"

.

>> WORK END

TM-504

< BASIC INSPECTION >

[CVT: RE0F10G]

ADDITIONAL SERVICE WHEN REPLACING TCM AND TRANSAXLE ASSEM-

BLY

ADDITIONAL SERVICE WHEN REPLACING TCM AND TRANSAXLE AS-
SEMBLY

Description

INFOID:0000000010499205

When replacing TCM and transaxle assembly as a set, perform the following work.

TCM PROGRAMMING

• Since vehicle specifications are not yet written in a new TCM, it is necessary to write them with CONSULT.

CAUTION:

When replacing TCM, save TCM data on CONSULT before removing TCM.

WRITING TCM DATA

• TCM performs accurate control by retrieving data (inherent characteristic value) of each solenoid. For this

reason, after replacing TCM and transaxle assembly, it is necessary to write new data in TCM.

CALIBRATION OF G SENSOR

• TCM stores calibration data (inherent characteristic value) of G sensor to provide accurate control. There-

fore, it is required to perform calibration of G sensor after the replacement of TCM.

BLEEDING OF ELECTRIC OIL PUMP

• The electric oil pump suctions oil from the oil pan through the sub-strainer. If air is contained in the sub-

strainer, oil pressure cannot be generated and it is necessary to bleed air.

Work Procedure

INFOID:0000000010499206

1.

SAVE TCM DATA (VEHICLE SPECIFICATIONS)

With CONSULT

1.

Turn ignition switch OFF.

2.

Turn ignition switch ON.

3.

Select “Re/programming, Configuration”.

4.

Select “AT/CVT”.
NOTE:
If “AT/CVT” is not displayed and TCM data cannot be saved on CONSULT, GO TO 2.

5.

Select “Programming”.

6.

Save TCM data on CONSULT according to the CONSULT display.

>> GO TO 2.

2.

REPLACE TCM AND TRANSAXLE ASSEMBLY

Replace TCM and transaxle assembly. Refer to

TM-625, "Removal and Installation"

 (TCM),

TM-653,

"Removal and Installation"

 (Transaxle assembly).

CAUTION:

ADDITIONAL SERVICE WHEN REPLACING TCM AND TRANSAXLE ASSEM-

BLY

TM-505

< BASIC INSPECTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Write down the serial number of new transaxle assembly.

>> GO TO 3.

3.

WRITE TCM DATA (VEHICLE SPECIFICATIONS)

NOTE:
Write data of vehicle specifications in TCM according to the following instructions:

With CONSULT

1.

Select “Programming”.

2.

Perform programming according to the CONSULT display.

>> GO TO 4.

4.

WRITE TCM DATA (IP CHARACTERISTICS VALUE)

NOTE:
Write data of new solenoid in TCM according to the following instructions:

With CONSULT

1.

Turn ignition switch ON.

2.

Insert the supplied CD into CONSULT. Refer to CONSULT operation manual.

3.

Select “Work Support” in “TRANSMISSION”.

4.

Select “WRITE IP CHARA - REPLACEMENT AT/CVT”.

5.

Check that the serial number displayed on CONSULT screen and those written in the memo agree.

6.

Write data in TCM according to the instructions on the CONSULT screen.
NOTE:
When writing is complete, the shift position indicator of the combination meter displays P.

>> GO TO 5.

5.

CALIBRATE G SENSOR

Refer to

TM-506, "Work Procedure"

.

>> GO TO 6.

6.

BLEED ELECTRIC OIL PUMP

Refer to

TM-507, "Work Procedure"

.

>> WORK END

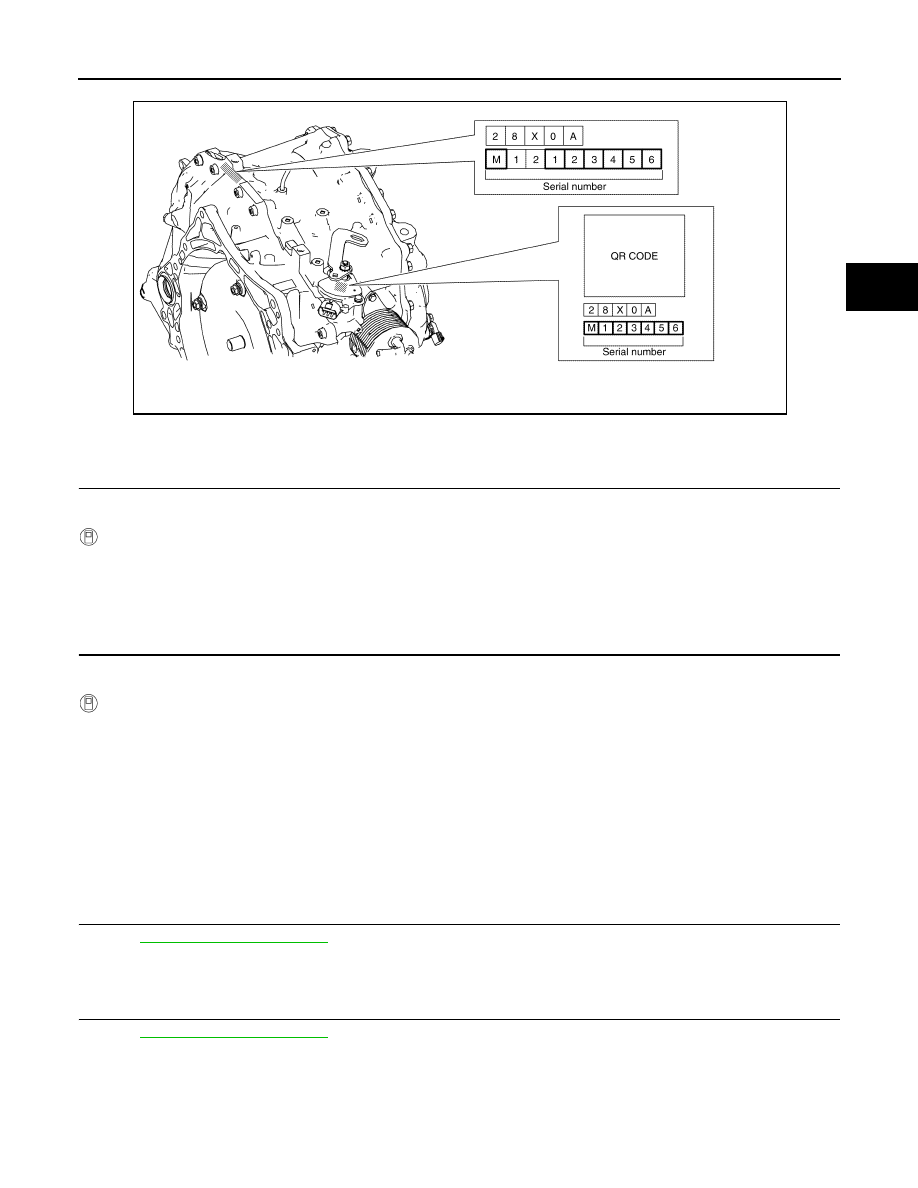

JSDIA4208GB

TM-506

< BASIC INSPECTION >

[CVT: RE0F10G]

CALIBRATION OF G SENSOR

CALIBRATION OF G SENSOR

Description

INFOID:0000000010327504

TCM stores calibration data (inherent characteristic value) of G sensor to provide accurate control. Therefore,
it is required to perform calibration of G sensor after the following work is performed.
• Removal/installation or replacement of G sensor
• Replacement of TCM

Work Procedure

INFOID:0000000010327505

1.

PREPARATION BEFORE CALIBRATION PROCEDURE

1.

Park the vehicle on a level surface.

2.

Adjust air pressure of all tires to the specified pressure. Refer to

WT-66, "Tire Air Pressure"

.

>> GO TO 2.

2.

CALIBRATE G SENSOR

With CONSULT

1.

Turn ignition switch ON.

CAUTION:

Never start engine.

2.

Select “Work Support” in “TRANSMISSION”.

3.

Select “G SENSOR CALIBRATION”.

4.

Touch “Start”.

CAUTION:

Never swing the vehicle during “G sensor calibration”.

Is “COMPLETED” displayed?

YES

>> GO TO 3.

NO

>> Perform steps 1 and 2 again.

3.

CHECK DTC

With CONSULT

1.

Turn ignition switch OFF and wait for 10 seconds.

2.

Turn ignition switch ON.

3.

Select “Self Diagnostic Results” in “TRANSMISSION”.

Is “P1586” or “P1588” detected?

YES

>> Go to

TM-485, "DTC Index"

.

NO

>> Calibration end
