DIAGNOSIS AND REPAIR WORK FLOW

TM-499

< BASIC INSPECTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Climate con-
ditions

Irrelevant

Weather

†

 Clear

†

 Cloud

†

 Rain

†

 Snow

†

 Others

)

Temperature

†

 Hot

†

 Warm

†

 Cool

†

 Cold

†

 Temperature (Approx.

°

C/

°

F)

Relative humidity

†

 High

†

 Moderate

†

 Low

Transaxle condition

†

 In cold-start

†

 During warm-up (approx.

°

C/

°

F)

†

 After warm-up

†

Engine speed:

rpm

Road conditions

†

 Urban area

†

 Suburb area

†

 Highway

†

 Mountainous road (uphill or downhill)

Operating condition, etc.

Irrelevant

†

 When engine starts

†

 During idling

†

 During driving

†

 During acceleration

†

 At constant speed driving

†

 During deceleration

†

 During cornering (RH curve or LH curve)

Other conditions

Question sheet

Customer's
name

MR/MS

Registration
number

Initial year
registration

Year

Month

day

Vehicle type

Chassis No.

Storage date

Year

Month

day

Engine

Mileage

km/mile

TM-500

< BASIC INSPECTION >

[CVT: RE0F10G]

ADDITIONAL SERVICE WHEN REPLACING TCM

ADDITIONAL SERVICE WHEN REPLACING TCM

Description

INFOID:0000000010245572

Always perform the following items when the TCM is replaced.

TCM PROGRAMMING

• Since vehicle specifications are not yet written in a new TCM, it is necessary to write them with CONSULT.

CAUTION:

When replacing TCM, save TCM data on CONSULT before removing TCM.

SAVING AND WRITING OF TCM DATA

• TCM performs accurate control by retrieving data (inherent characteristic value) of each solenoid. For this

reason, it is necessary to save data of current TCM in CONSULT before replacing the TCM. After this, the
saved data must be written in new TCM.

CALIBRATION OF G SENSOR

• TCM stores calibration data (inherent characteristic value) of G sensor to provide accurate control. There-

fore, it is required to perform calibration of G sensor after the replacement of TCM.

BLEEDING OF ELECTRIC OIL PUMP

• If TCM is replaced, air bleeding of the electric oil pump memorized in TCM is reset. The data monitor dis-

plays “INCOMP”. It is necessary to bleed air to “COMP” the value.

Work Procedure

INFOID:0000000010245573

1.

SAVE TCM DATA (IP CHARACTERISTICS VALUE)

NOTE:
Save necessary data stored in TCM in CONSULT according to the following instructions:

With CONSULT

1.

Turn ignition switch OFF and wait for 10 seconds.

2.

Turn ignition switch ON.

3.

Select “Work Support” in “TRANSMISSION”.

4.

Select “READ IP CHARA - REPLACEMENT TCM”.

5.

Import data according to the instructions on the CONSULT screen.

>> GO TO 2.

2.

SAVING TCM DATA (VEHICLE SPECIFICATIONS)

With CONSULT

1.

Turn ignition switch OFF.

2.

Turn ignition switch ON.

3.

Select “Re/programming, Configuration”.

4.

Select “AT/CVT”.
NOTE:
If “AT/CVT” is not displayed and TCM data cannot be saved on CONSULT, GO TO 3.

5.

Select “Programming”.

6.

Save TCM data on CONSULT according to the CONSULT display.

>> GO TO 3.

3.

REPLACE TCM

1.

Turn ignition switch OFF and wait for 10 seconds.

2.

Replace the TCM. Refer to

TM-625, "Removal and Installation"

.

>> GO TO 4.

4.

WRITE TCM DATA (VEHICLE SPECIFICATIONS)

With CONSULT

1.

Select “Programming”.

ADDITIONAL SERVICE WHEN REPLACING TCM

TM-501

< BASIC INSPECTION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

2.

Perform programming according to the CONSULT display.

>> GO TO 5.

5.

WRITE TCM DATA (IP CHARACTERISTICS VALUE)

NOTE:
Write data saved in CONSULT into a new TCM according to the following instructions:

With CONSULT

1.

Turn ignition switch OFF and wait for 10 seconds.

2.

Turn ignition switch ON.

3.

Select “Work Support” in “TRANSMISSION”.

4.

Select “WRITE IP CHARA - REPLACEMENT TCM”.

5.

Write data saved in CONSULT in TCM according to the instructions on the CONSULT screen.

>> GO TO 6.

6.

CALIBRATE G SENSOR

Refer to

TM-506, "Work Procedure"

.

>> GO TO 7.

7.

BLEED ELECTRIC OIL PUMP

Refer to

TM-507, "Work Procedure"

.

>> WORK END

TM-502

< BASIC INSPECTION >

[CVT: RE0F10G]

ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

Description

INFOID:0000000010245574

Perform the following work after the transaxle assembly is replaced.

ERASING AND WRITING TCM DATA

• TCM performs accurate control by retrieving data (inherent characteristic value) of each solenoid. For this

reason, after replacing transaxle assembly, it is necessary to erase data stored in TCM and write new data.

ERASING OF CVT FLUID DEGRADATION LEVEL DATA

• TCM records the degradation level of the CVT fluid calculated from the vehicle driving status. Therefore, if

the transaxle assembly is replaced, it is necessary to erase the CVT fluid degradation level data recorded by
TCM.

BLEEDING OF ELECTRIC OIL PUMP

• The electric oil pump suctions oil from the oil pan through the sub-strainer. If air is contained in the sub-

strainer, oil pressure cannot be generated and it is necessary to bleed air.

Work Procedure

INFOID:0000000010245575

1.

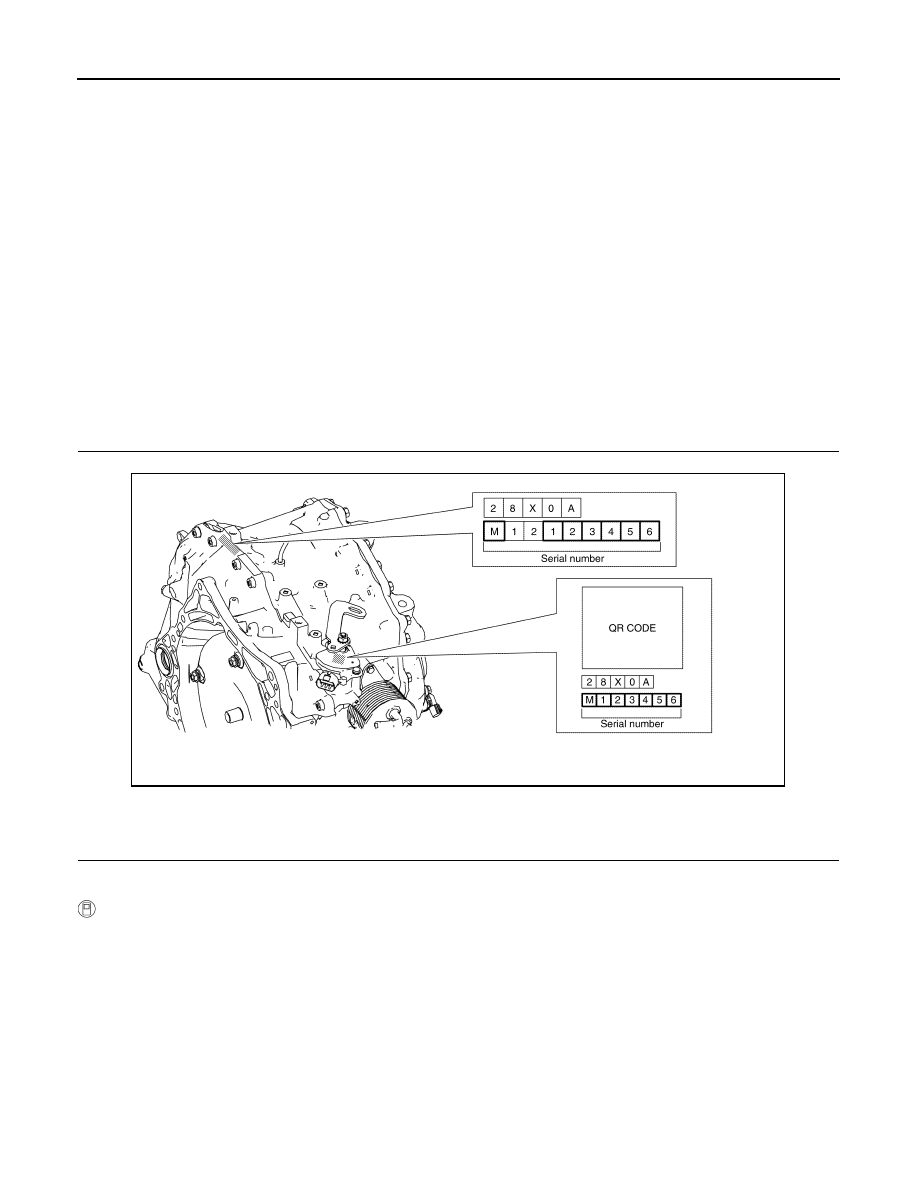

CHECK THE SERIAL NUMBER (PART 1)

Write down the serial number of new transaxle assembly.

>> GO TO 2.

2.

WRITE TCM DATA (IP CHARACTERISTICS VALUE)

NOTE:
Write data of new solenoid in TCM according to the following instructions:

With CONSULT

CAUTION:

When the work is interrupted, obtain data again from the supplied CD.
1.

Shift the selector lever to the P position.

2.

Turn ignition switch OFF and wait for 10 seconds.

3.

Turn ignition switch ON.

4.

Insert the supplied CD into CONSULT. Refer to CONSULT operation manual.

5.

Select “Work Support” in “TRANSMISSION”.

6.

Select “WRITE IP CHARA - REPLACEMENT AT/CVT”.

7.

Check that the serial number displayed on CONSULT screen and those written in the memo agree.

8.

Write data in TCM according to the instructions on the CONSULT screen.
NOTE:
When writing is complete, the shift position indicator of the combination meter displays P.

JSDIA4208GB
