ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

TM-283

< BASIC INSPECTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

With CONSULT

1.

Select “WORK SUPPORT” in “TRANSMISSION”.

2.

Select “CONFORM CVTF DETERIORTN”.

3.

Touch “Clear”.

>> WORK END

TM-284

< BASIC INSPECTION >

[CVT: RE0F10D]

ADDITIONAL SERVICE WHEN REPLACING TCM AND TRANSAXLE ASSEM-

BLY

ADDITIONAL SERVICE WHEN REPLACING TCM AND TRANSAXLE AS-
SEMBLY

Description

INFOID:0000000010589263

When replacing TCM and transaxle assembly as a set, perform the following work.

TCM PROGRAMMING

• Since vehicle specifications are not yet written in a new TCM, it is necessary to write them with CONSULT.

CAUTION:

When replacing TCM, save TCM data on CONSULT before removing TCM.

WRITING TCM DATA

• TCM performs accurate control by retrieving data (inherent characteristic value) of each solenoid. For this

reason, after replacing TCM and transaxle assembly, it is necessary to write new data in TCM.

Work Procedure

INFOID:0000000010589264

1.

SAVE TCM DATA (VEHICLE SPECIFICATIONS)

With CONSULT

1.

Turn ignition switch OFF.

2.

Connect all of disconnected connectors.

3.

Turn ignition switch ON.

4.

Select “Re/programming, Configuration”.

5.

Select “AT/CVT”.
NOTE:
If “AT/CVT” is not displayed and TCM data cannot be saved on CONSULT, GO TO 2.

6.

Select “Programming”.

7.

Save TCM data on CONSULT according to the CONSULT display.

>> GO TO 2.

2.

REPLACE TCM AND TRANSAXLE ASSEMBLY

1.

Turn ignition switch OFF and wait for 10 seconds.

2.

Replace TCM and transaxle assembly. Refer to

TM-391, "Removal and Installation"

 (TCM),

TM-415,

"Removal and Installation"

 (Transaxle assembly).

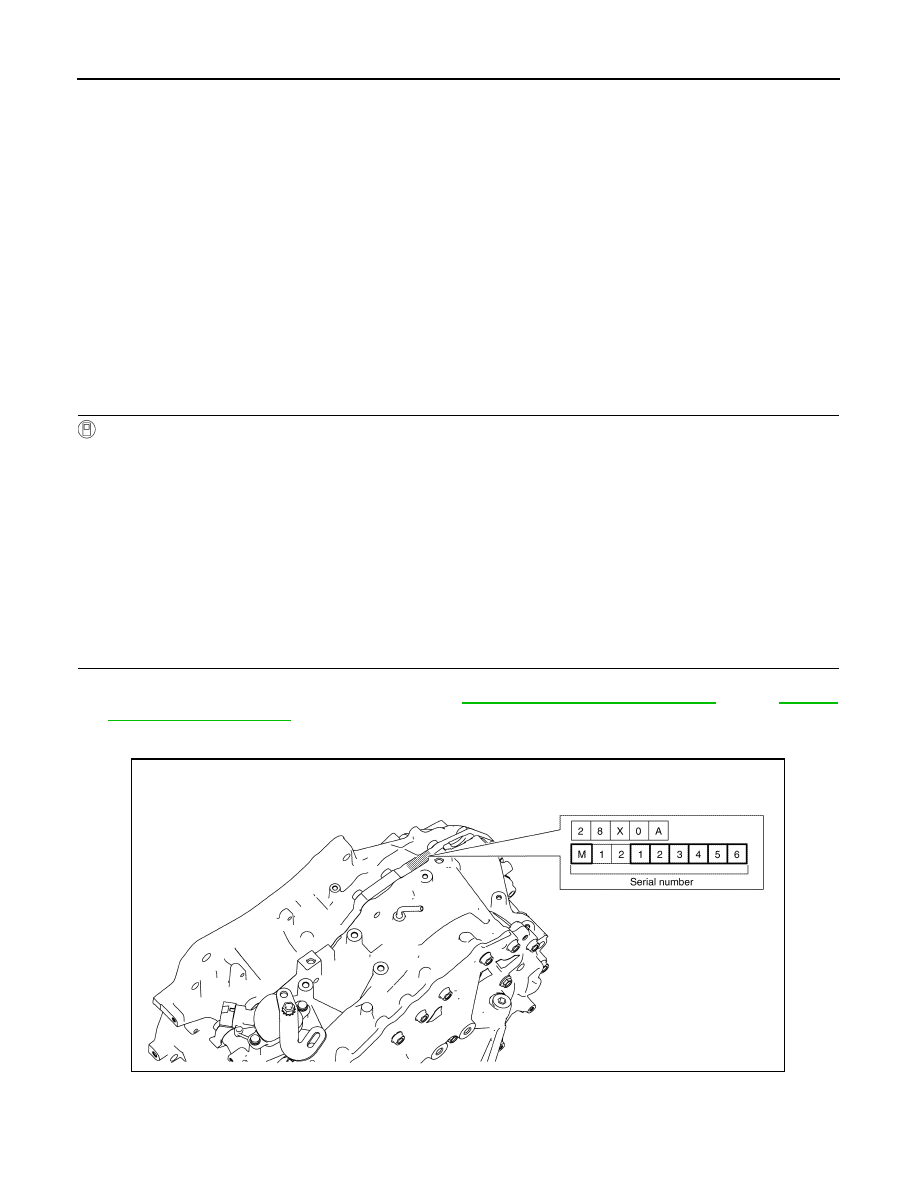

CAUTION:

Write down the serial number of new transaxle assembly.

>> GO TO 3.

JSDIA6075GB

ADDITIONAL SERVICE WHEN REPLACING TCM AND TRANSAXLE ASSEM-

BLY

TM-285

< BASIC INSPECTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

3.

WRITE TCM DATA (VEHICLE SPECIFICATIONS)

NOTE:
Write data saved in CONSULT into a new TCM according to the following instructions:

With CONSULT

1.

Select “Programming”.

2.

Perform programming according to the CONSULT display.

>> GO TO 4.

4.

WRITE TCM DATA (IP CHARACTERISTICS VALUE)

NOTE:
Write data of new solenoid in TCM according to the following instructions:

With CONSULT

CAUTION:

When the work is interrupted, obtain data again from the supplied CD.
1.

Shift the selector lever to the P position.

2.

Turn ignition switch OFF and wait for 10 seconds.

3.

Turn ignition switch ON.

4.

Insert the supplied CD into CONSULT.

5.

Select “Work Support” in “TRANSMISSION”.

6.

Select “WRITE IP CHARA - REPLACEMENT AT/CVT”.

7.

Check that the serial number displayed on CONSULT screen and those written in the memo agree.

8.

Write data in TCM according to the instructions on the CONSULT screen.
NOTE:
When writing is complete, the shift position indicator of the combination meter displays P.

>> WORK END

TM-286

< BASIC INSPECTION >

[CVT: RE0F10D]

STALL TEST

STALL TEST

Work Procedure

INFOID:0000000010589265

INSPECTION

1.

Check the engine oil level. Replenish if necessary. Refer to

LU-22, "Inspection"

.

2.

Check for leak of the CVT fluid. Refer to

TM-378, "Inspection"

.

3.

Drive for about 10 minutes to warm up the vehicle so that the CVT fluid temperature is 50 to 80

°

C (122 to

176

°

F).

4.

Be sure to apply the parking brake and block the tires.

5.

Start the engine, depress the brake pedal and put the selector lever to the D position.

6.

While depressing the brake pedal, depress the accelerator pedal gradually.

7.

Read the stall speed quickly. Then, release your foot from the accelerator pedal quickly.

CAUTION:

Do not depress the accelerator pedal for 5 seconds or more during the test.

8.

Place the selector lever in the N position.

9.

Cool the CVT fluid.

CAUTION:

Run the engine with the idle speed for at least 1 minute.

10. Put the selector lever to the R position and perform Step 6 to Step 9 again.

NARROWING-DOWN MALFUNCTIONING PARTS

O: Within the stall speed standard value.

H: Stall speed is higher than the standard value.

L: Stall speed is lower than the standard value.

Stall speed

: Refer to

TM-421, "Stall Speed"

.

Selector lever position

Possible cause

D

R

Stall speed

H

O

• Forward  clutch

O

H

• Reverse brake

L

L

• Engine
• Torque converter one way clutch

H

H

• Line pressure is low.
• Primary pulley
• Secondary pulley
• Steel belt
