STRUCTURE AND OPERATION

TM-235

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

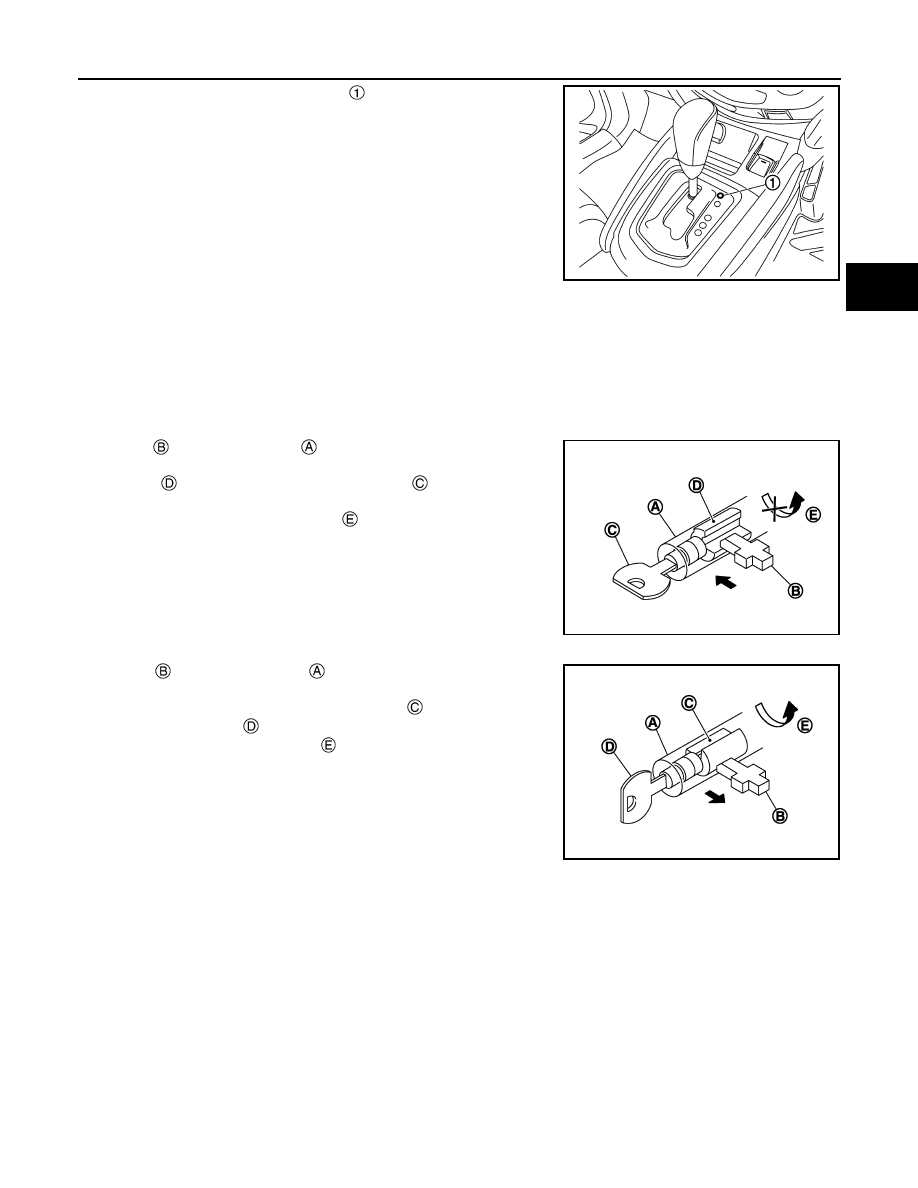

Press the shift lock release button

with suitable tool.

Press and hold the selector lever knob button and move the
selector lever from “P” position to other positions while press the
shift lock release button.

KEY LOCK SYSTEM

KEY LOCK SYSTEM : System Description

INFOID:0000000010928186

KEY LOCK MECHANISM

The key is not set to LOCK when the selector lever is not selected to P position. This prevents the key from
being removed from the key cylinder.

Key lock status

The slider

in the key cylinder

is moved to the left side of the fig-

ure when the selector lever is in any position other than P position.
The rotator

that rotates together with the key

cannot be rotated

for this reason. The key cannot be removed from the key cylinder
because it cannot be turned to LOCK

Key unlock status

The slider

in the key cylinder

is moved to the right side of the

figure when the selector lever is in P position and the finger is
removed from the selector button. The rotator

can be rotated for

this reason. The key

can be removed from the key cylinder

because it can be turned to LOCK

JSDIA5409ZZ

JPDIA0108ZZ

JPDIA0109ZZ

TM-236

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

SYSTEM

SYSTEM

CVT CONTROL SYSTEM

CVT CONTROL SYSTEM : System Description

INFOID:0000000010589235

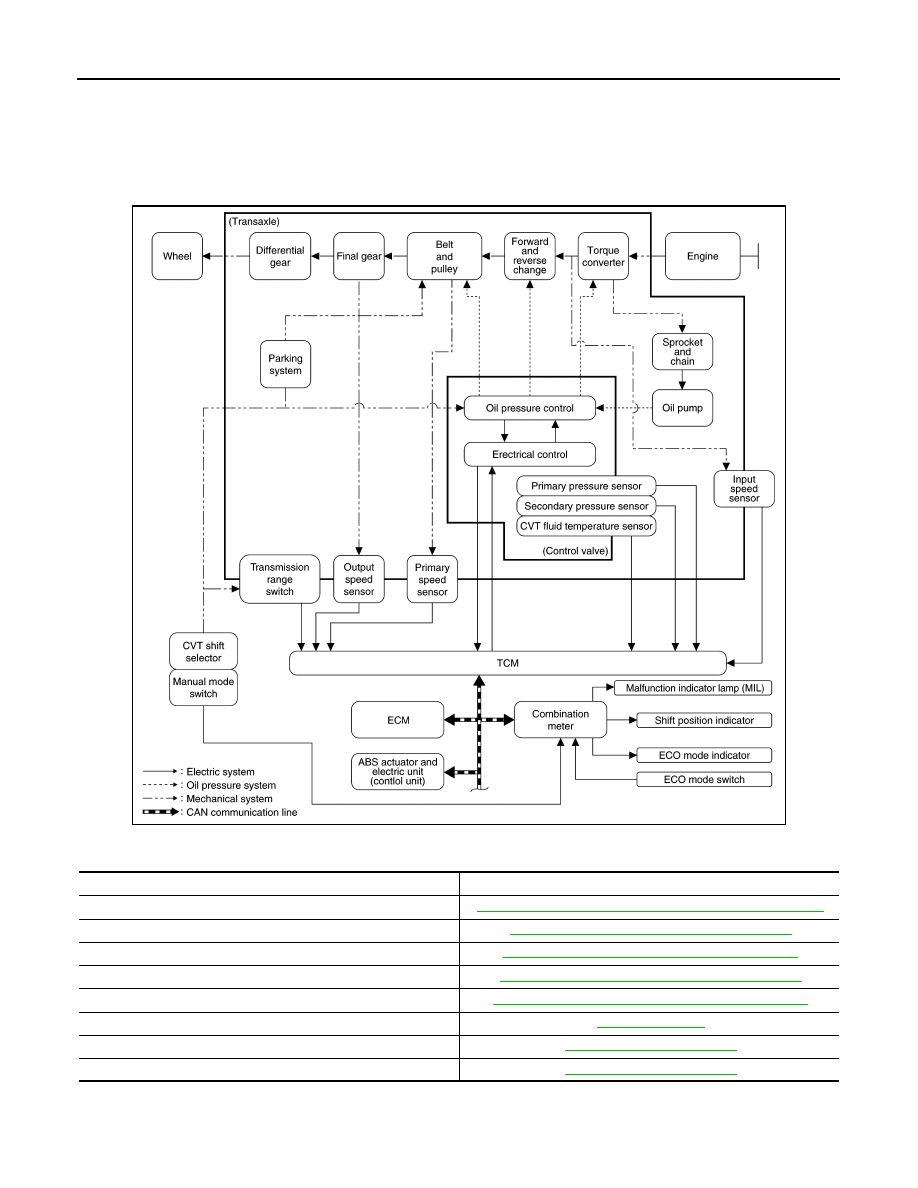

SYSTEM DIAGRAM

MAIN CONTROL CONTENTS OF TCM

*: With ECO mode switch

LIST OF CONTROL ITEMS AND INPUT/OUTPUT

JSDIA5257GB

Controls

Reference

Line pressure control

TM-241, "LINE PRESSURE CONTROL : System Description"

Shift control

TM-242, "SHIFT CONTROL : System Description"

Select control

TM-245, "SELECT CONTROL : System Description"

Lock-up control

TM-246, "LOCK-UP CONTROL : System Description"

ECO mode control*

TM-246, "ECO MODE CONTROL : System Description"

Fail-safe

TM-263, "Fail-safe"

Self-diagnosis function

TM-251, "CONSULT Function"

Communication function with CONSULT

TM-251, "CONSULT Function"

SYSTEM

TM-237

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

*: If these input/output signals show errors, TCM activates the fail-safe function.

CVT CONTROL SYSTEM : Fail-safe

INFOID:0000000010661335

TCM has a fail-safe mode. The mode functions so that operation can be continued even if the signal circuit of
the main electronically controlled input/output parts is damaged.
If the vehicle shows following behaviors including “poor acceleration”, a malfunction of the applicable system
is detected by TCM and the vehicle may be in a fail-safe mode. At this time, check the DTC code and perform
inspection and repair according to the malfunction diagnosis procedures.

Fail-safe function

Control Item

Line pressure

control

Shift control

Select control

Lock-up con-

trol

Fail-safe func-

tion*

Input

Engine torque signal
(CAN communication)

Engine speed signal
(CAN communication)

Accelerator pedal position signal
(CAN communication)

Closed throttle position signal
(CAN communication)

Stop lamp switch signal
(CAN communication)

Primary pressure sensor

Secondary pressure sensor

CVT fluid temperature sensor

Primary speed sensor

Output speed sensor

Input speed sensor

Transmission range switch

Manual mode switch signal
(Manual mode signal, non-manual
mode signal, manual mode upshift
signal, manual mode downshift sig-
nal)
(CAN communication)

Output

Line pressure solenoid valve

Primary pressure solenoid valve

Torque converter clutch solenoid
valve

Secondary pressure solenoid valve

Select solenoid valve

Shift position indicator
(CAN communication)

DTC

Vehicle behavior

Conditions of vehicle

P062F

Not changed from normal driving

—

P0705

• Shift position indicator on combination meter is not dis-

played

• Selector shock is large
• Start is slow
• Acceleration is slow
• Lock-up is not performed

—

TM-238

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

SYSTEM

P0706

• Shift position indicator on combination meter is not dis-

played

• Selector shock is large
• Start is slow
• Acceleration is slow
• Lock-up is not performed

—

P0712

• Start is slow
• Acceleration is slow

Engine coolant temperature when engine start:
Temp.

≥

C (50

• Selector shock is large
• Start is slow
• Acceleration is slow

Engine coolant temperature when engine start:

−

C (

−

≤

Temp. < 10

C (50

• Selector shock is large
• Start is slow
• Acceleration is slow

Engine coolant temperature when engine star:
Temp. <

−

C (

−

P0713

• Start is slow
• Acceleration is slow

Engine coolant temperature when engine start:
Temp.

≥

C (50

• Selector shock is large
• Start is slow
• Acceleration is slow

Engine coolant temperature when engine start:

−

C (

−

≤

Temp. < 10

C (50

• Selector shock is large
• Start is slow
• Acceleration is slow

Engine coolant temperature when engine star:
Temp. <

−

C (

−

P0715

• Start is slow
• Acceleration is slow
• Lock-up is not performed
• Manual mode is not activated

—

P0717

• Start is slow
• Acceleration is slow
• Lock-up is not performed

—

P0740

• Start is slow
• Acceleration is slow
• Lock-up is not performed

—

P0743

• Start is slow
• Acceleration is slow
• Lock-up is not performed

—

P0744

• Start is slow
• Acceleration is slow
• Lock-up is not performed

—

P0746

• Selector shock is large
• Start is slow
• Acceleration is slow
• Lock-up is not performed

—

P0776

• Selector shock is large
• Start is slow
• Acceleration is slow
• Lock-up is not performed
• Vehicle speed is not increased

When a malfunction occurs on the low oil pressure side

• Selector shock is large
• Start is slow
• Acceleration is slow
• Lock-up is not performed

When a malfunction occurs on the high oil pressure side

P0778

• Selector shock is large
• Start is slow
• Acceleration is slow
• Lock-up is not performed

—

DTC

Vehicle behavior

Conditions of vehicle
