FINAL DRIVE

TM-67

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FINAL DRIVE

Exploded View

INFOID:0000000010288471

Refer to

TM-38, "Exploded View"

.

Disassembly

INFOID:0000000010288472

1.

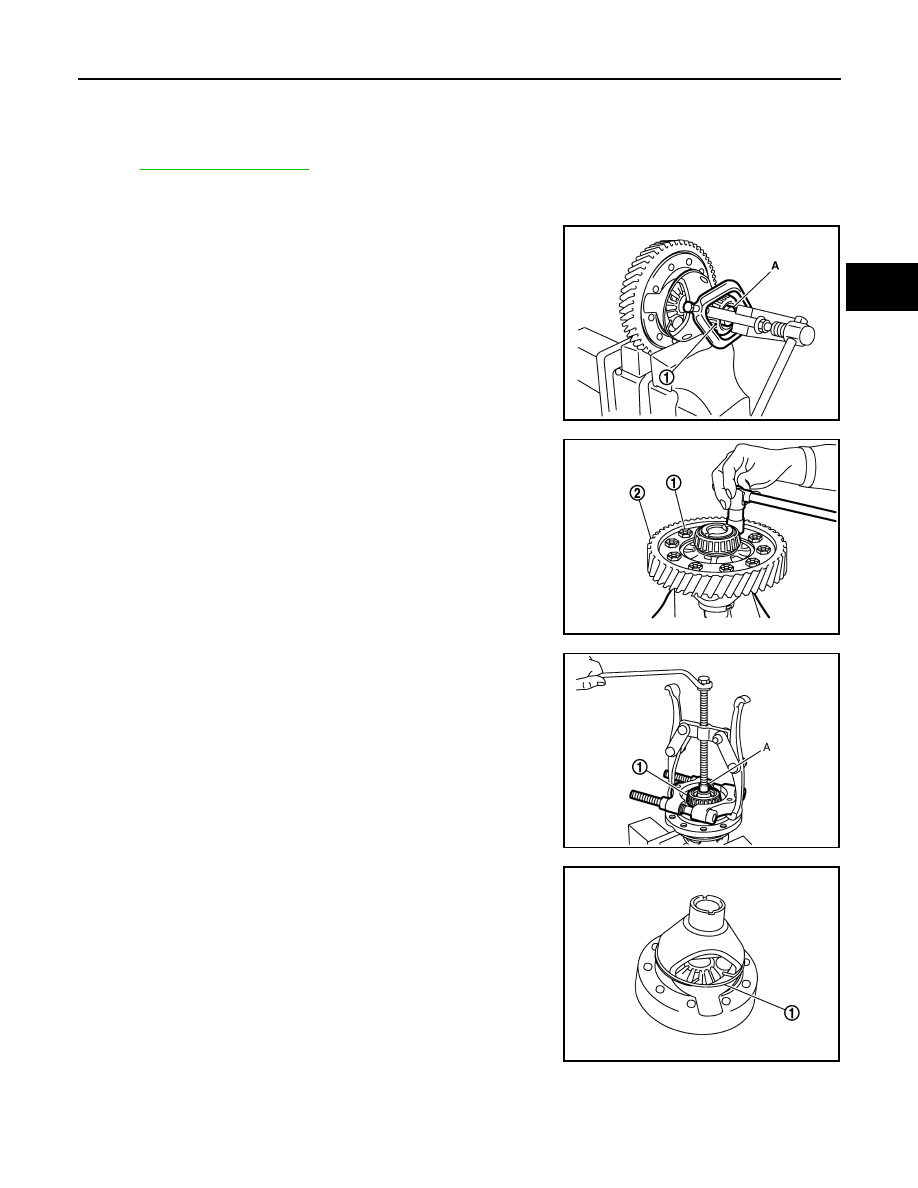

Remove differential side bearing inner race (clutch housing side)
(1) using the drift (A) [SST: ST33061000] and a puller.

2.

Remove speedometer drive gear.

3.

Remove final gear mounting bolts (1), and then separate the
final gear (2) from differential case.

4.

Remove differential side bearing inner race (transaxle case
side) (1) using the drift (A) [Commercial service tool] and a suit-
able puller.

5.

Remove lock ring (1) from differential case.

6.

Remove pinion mate shaft, pinion mate gears, side gears and
thrust washer from differential case.

Assembly

INFOID:0000000010288473

1.

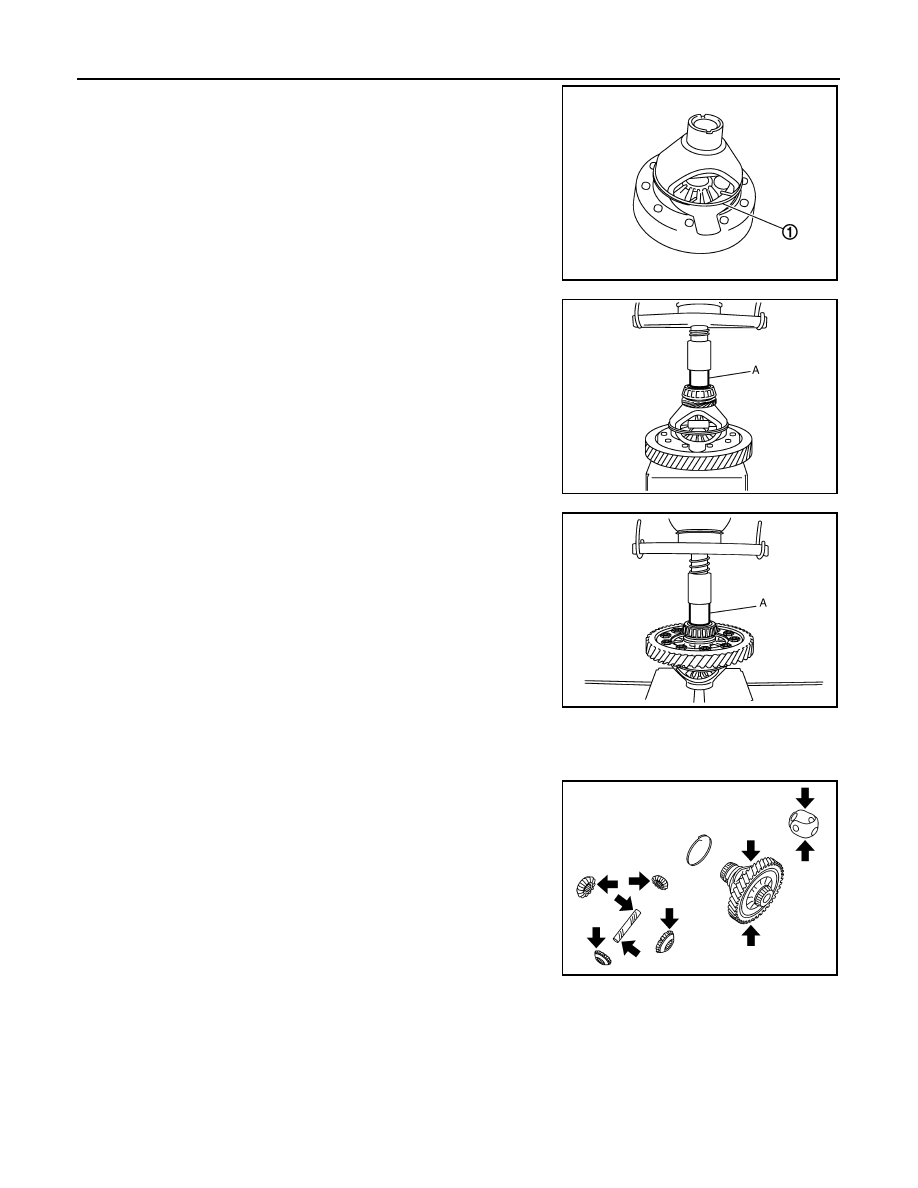

Install pinion mate shaft, pinion mate gears, side gears and thrust washer into differential case.

PCIB1767E

PCIB1766E

JPDIC0114ZZ

PCIB1764E

TM-68

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

FINAL DRIVE

2.

Install lock ring (1) onto differential case.

CAUTION:

Make sure that lock ring is securely installed in the groove.

3.

Install final gear into differential case, and tighten final gear
mounting bolts to the specified torque.

4.

Install speedometer drive gear onto differential case.

5.

Press-fit the differential side bearing inner race (clutch housing
side) onto the differential case using the drift (A) [Commercial
service tool] and press.

CAUTION:

Replace differential side bearing inner race and differential
side bearing outer race as a set.

6.

Press-fit the differential side bearing inner race (transaxle case
side) onto the differential case using the drift (A) [Commercial
service tool] and press.

CAUTION:

Replace differential side bearing inner race and differential
side bearing outer race as a set.

Inspection

INFOID:0000000010288474

GEAR, WASHER, SHAFT AND CASE

Check side gears, thrust washer, pinion mate shaft, pinion mate
gears, lock ring and differential case. If necessary, replace with a
new one.

BEARING

PCIB1764E

JPDIC0115ZZ

JPDIC0116ZZ

PCIB0977J

FINAL DRIVE

TM-69

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

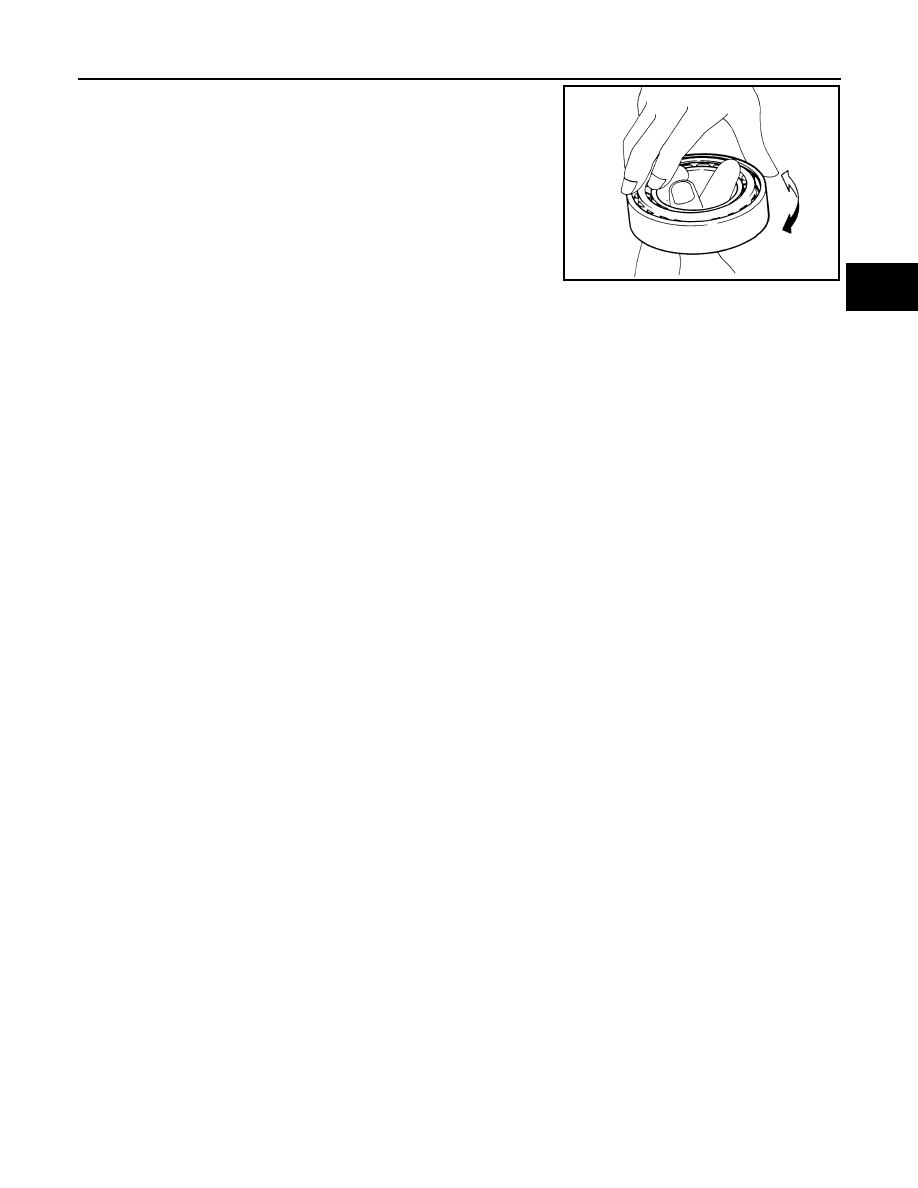

Check for bearing damage and rough rotation. If necessary, replace
with a new one.

CAUTION:

When replacing tapered roller bearing, replace outer and inner
races as a set.

SPD715

TM-70

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

SHIFT FORK AND FORK ROD

SHIFT FORK AND FORK ROD

Exploded View

INFOID:0000000010288475

Refer to

TM-38, "Exploded View"

.

Disassembly

INFOID:0000000010288476

Refer to

TM-43, "Disassembly"

 for disassembly procedure.

Assembly

INFOID:0000000010288477

Refer to

TM-49, "Assembly"

 for assembly procedure.

Inspection

INFOID:0000000010288478

FORK ROD AND SHIFT FORK

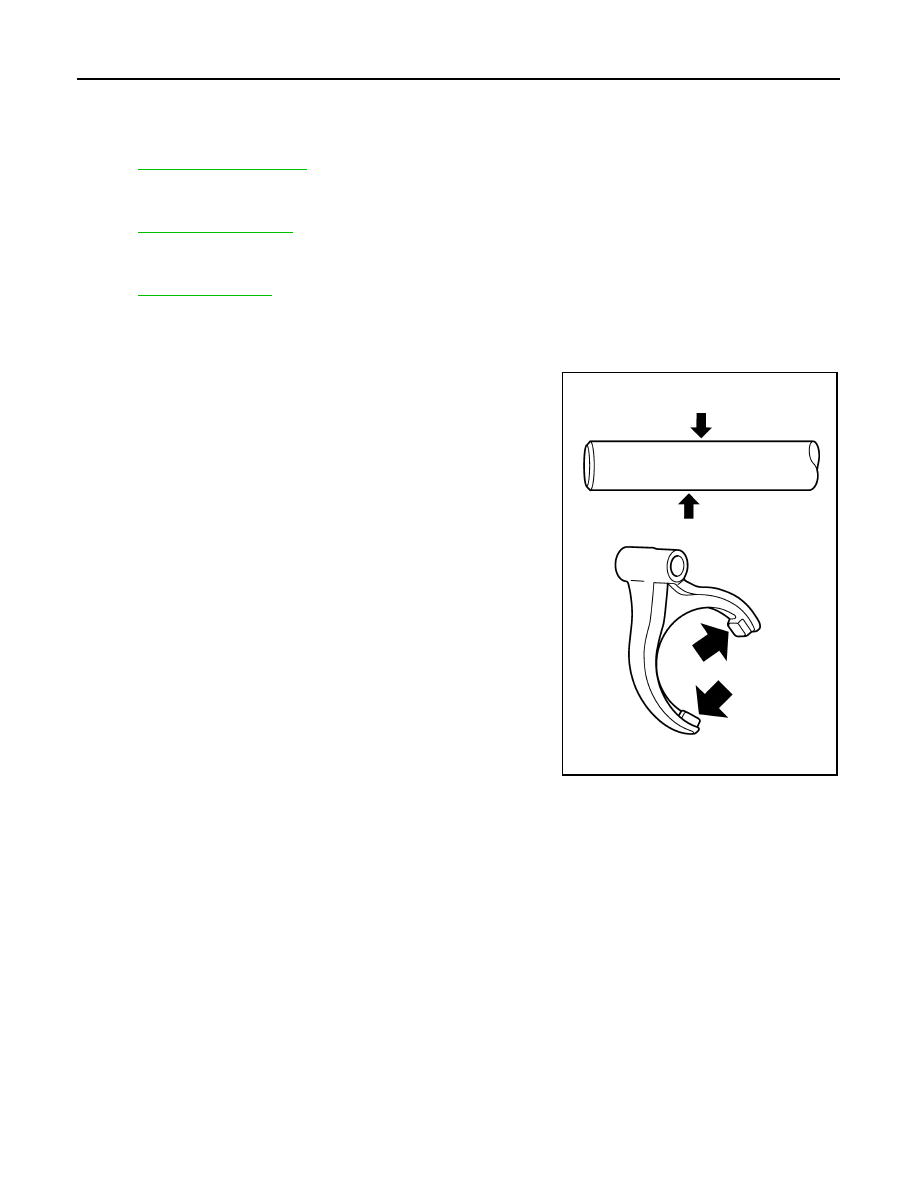

Check contact surface and sliding surface of fork rod and shift fork
for wear, damage, and bend. Replace if necessary.

SCIA7785E
