CONTROL LINKAGE

TM-31

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

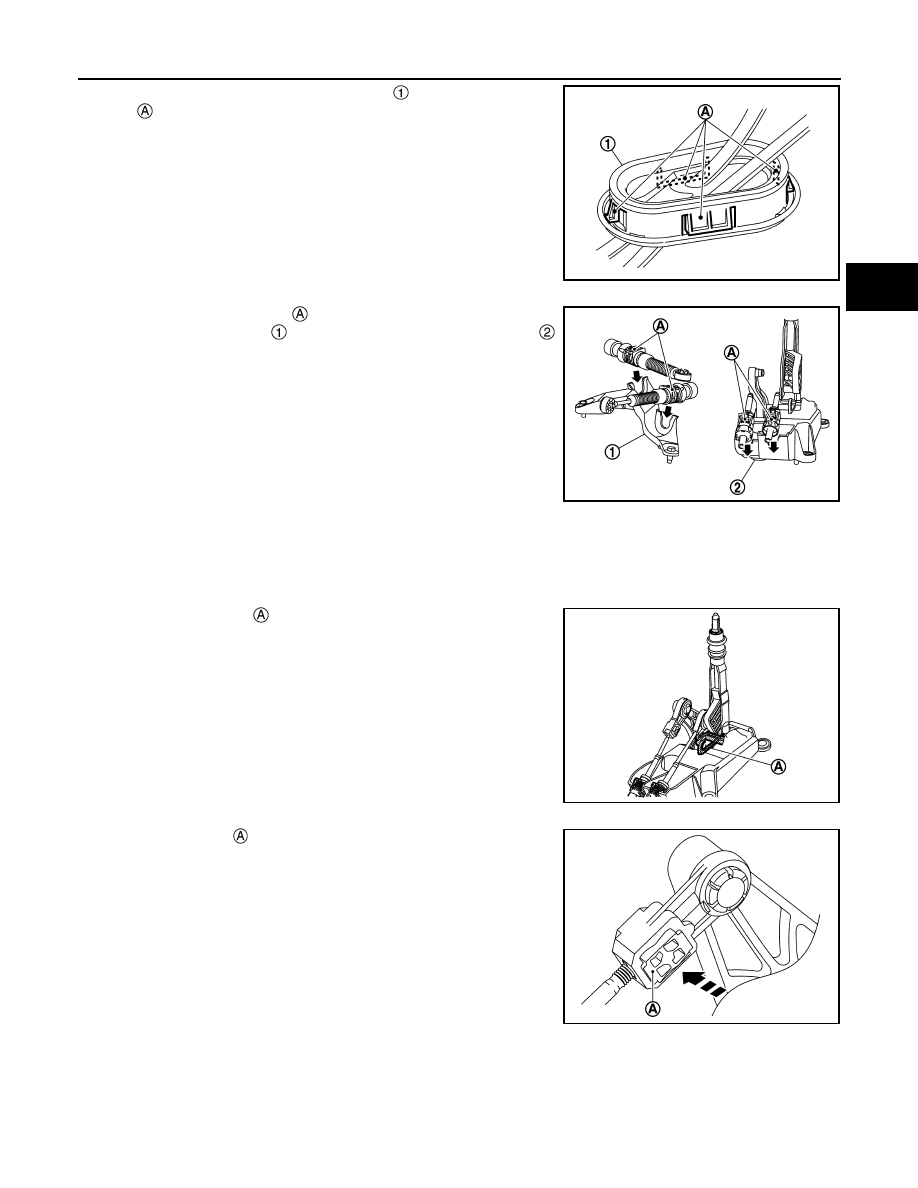

• From under the vehicle, press grommet

 into place until the

pawls

securely.

CAUTION:

Check that pulling down on the grommet does not fall out it.

• Insert the each socket part

 of cable until it reaches the cable

mounting bracket (M/T)

 and M/T shift selector assembly

securely.

CAUTION:

Check that pulling up on the socket does not disconnect it.

• Install select cable (M/T shift selector assembly side), as per the following procedure.

When M/T shift selector assembly is replaced with new one:

1.

Install the select cable to the M/T shift selector assembly.

2.

Shift the shift lever to the neutral position.

3.

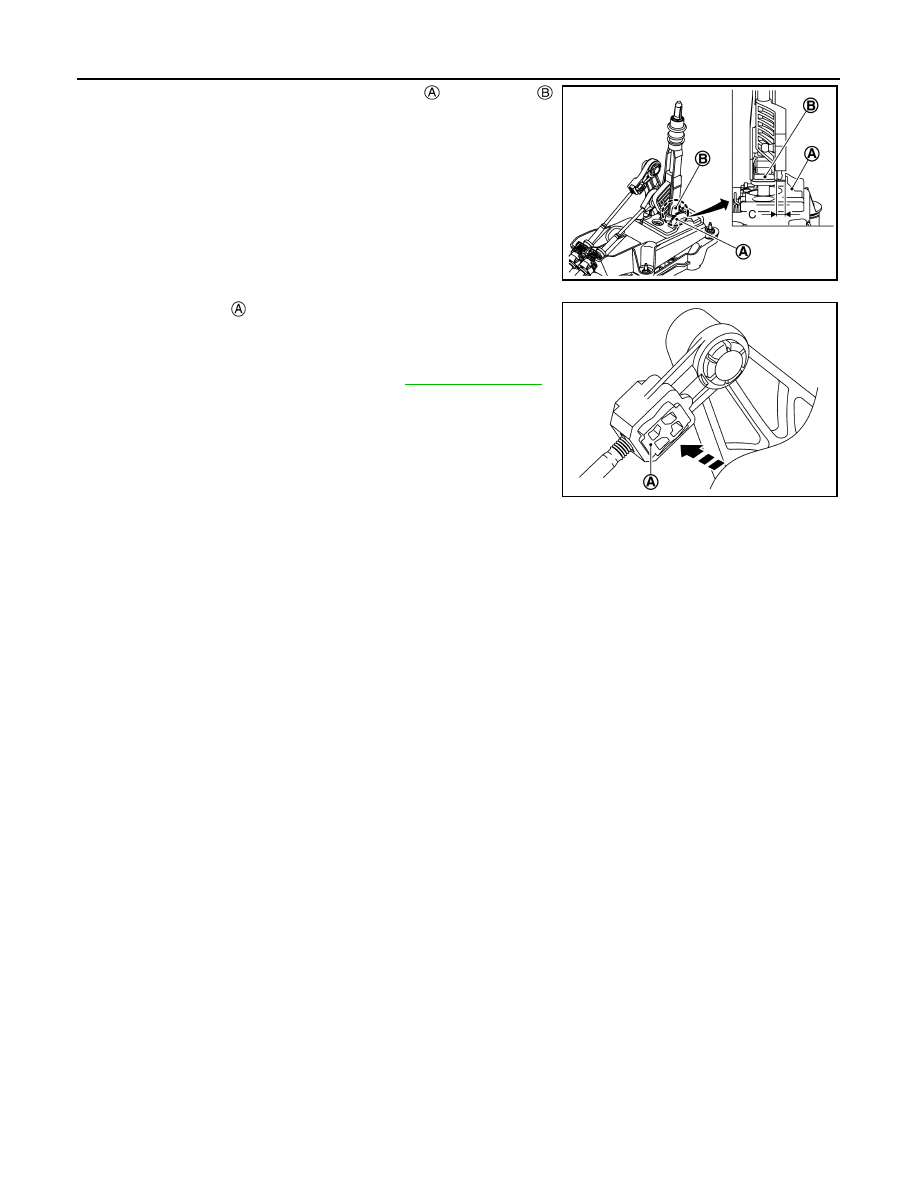

Install the lock pin

 to the M/T shift selector assembly as

shown in the figure.

CAUTION:

Select cable cannot be adjusted accurately without using
the lock pin.

4.

Check that shift lever does not move in the direction of the
select. If it moves, re-install lock pin.

5.

Push the stopper

 until it reaches the select cable.

6.

Remove the lock pin from M/T shift selector assembly.

7.

Shift shift lever to each gear position to check that there are no
bindings. If any, re-install select cable with lock pin.

When M/T shift selector assembly is reused or without lock pin:

1.

Install the select cable to the M/T shift selector assembly.

2.

Shift the shift lever to the 4th gear position.

JPDIC0844ZZ

JSDIA5773ZZ

JSDIA5774ZZ

JSDIA5775ZZ

TM-32

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

CONTROL LINKAGE

3.

Adjust the clearance (C) between the stopper

 and the lever

to the standard value.

4.

Push the stopper

 until it reaches the select cable.

5.

Shift shift lever to each gear position to check that there are no
bindings. If any, re-install select cable and re-adjust the clear-
ance.

• Perform inspection after installation. Refer to

TM-32, "Inspection"

.

Inspection

INFOID:0000000010735675

INSPECTION AFTER INSTALLATION

• When the shift lever is shifted to each position, check that the shift lever moves smoothly (no-hook up, no-

noise, no-backlash and non-contact to other parts). If any malfunction is detected, repair the malfunctioning
parts or replace cable assembly.

• When the shift lever is shifted to reverse gear side and 5th-6th side, confirm the shift lever returns to neutral

position. When the shift lever does not return to the neutral position smoothly, check M/T shift selector
assembly and select cable condition. If any malfunction is detected, repair or replace the malfunctioning
part.

Clearance

: 3.8 – 4.0 mm (0.150 – 0.157 in)

JSDIA5777ZZ

JSDIA5775ZZ

SIDE OIL SEAL

TM-33

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SIDE OIL SEAL

Exploded View

INFOID:0000000010288448

Refer to

TM-38, "Exploded View"

.

Removal and Installation

INFOID:0000000010288449

REMOVAL

1.

Remove front drive shafts. Refer to

FAX-22, "Removal and Installation (LH)"

 or

FAX-26, "Removal and

Installation (RH)"

.

2.

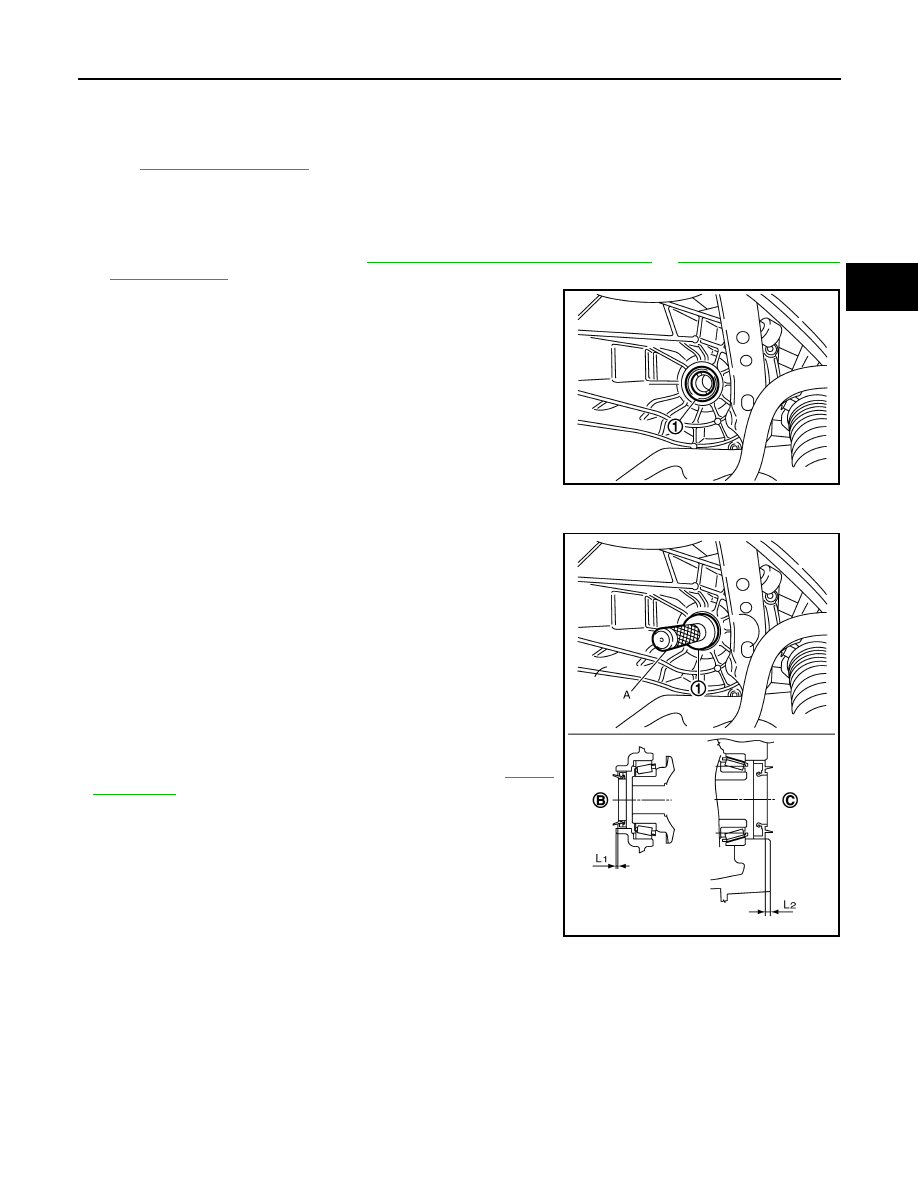

Remove differential side oil seals (1) using a suitable tool.

CAUTION:

Never damage transaxle case and clutch housing.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Install differential side oil seals (1) to clutch housing and transaxle

case using the drift (A) [SST: KV38100300].

CAUTION:

• Never reuse differential side oil seal.
• When installing, never incline differential side oil seal.
• Never damage clutch housing and transaxle case.

•  Check oil level and oil leakage after installation. Refer to

TM-24,

"Inspection"

.

SCIA7625E

B

: Transaxle case side

C

: Clutch housing side

Dimension “L

1

: 1.2 - 1.8 mm (0.047 - 0.071 in)

Dimension “L

2

: 2.7 - 3.3 mm (0.106 - 0.130 in)

JPDIC0120ZZ

TM-34

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

AIR BREATHER HOSE

AIR BREATHER HOSE

Exploded View

INFOID:0000000010288453

Removal and Installation

INFOID:0000000010288454

REMOVAL

Refer to the figure for removal procedure.

CAUTION:

When removing air breather hose, be sure to hold two way connector securely.

INSTALLATION

Refer to the figure for installation procedure.
• When installing air breather hose on two way connector, aim paint mark face toward the vehicle front.
• When installing air breather hose on two way connector, push it until it hits transaxle case.
• When installing air breather hose to air cleaner case, make sure that clip are fully inserted.

CAUTION:

Make sure air breather hose is not collapsed or blocked due to folding or bending when installed.

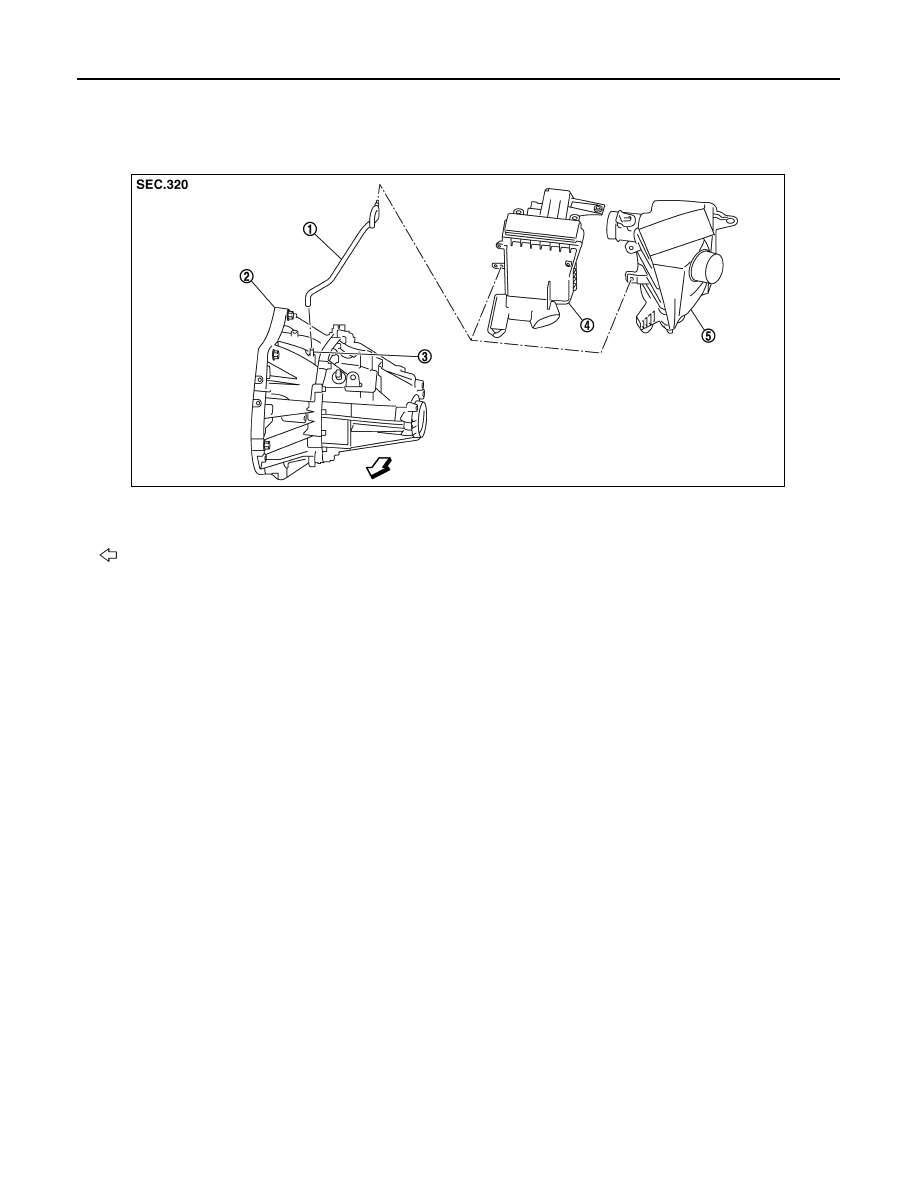

1.

Air breather hose

2.

Transaxle assembly

3.

Two way connector

4.

Air cleaner case (MR20DE)

5.

Air cleaner case (K9K)

: Vehicle front

JPDIC0052ZZ
