EC9-404

< REMOVAL AND INSTALLATION >

[R9M]

VACUUM LINES

REMOVAL AND INSTALLATION

VACUUM LINES

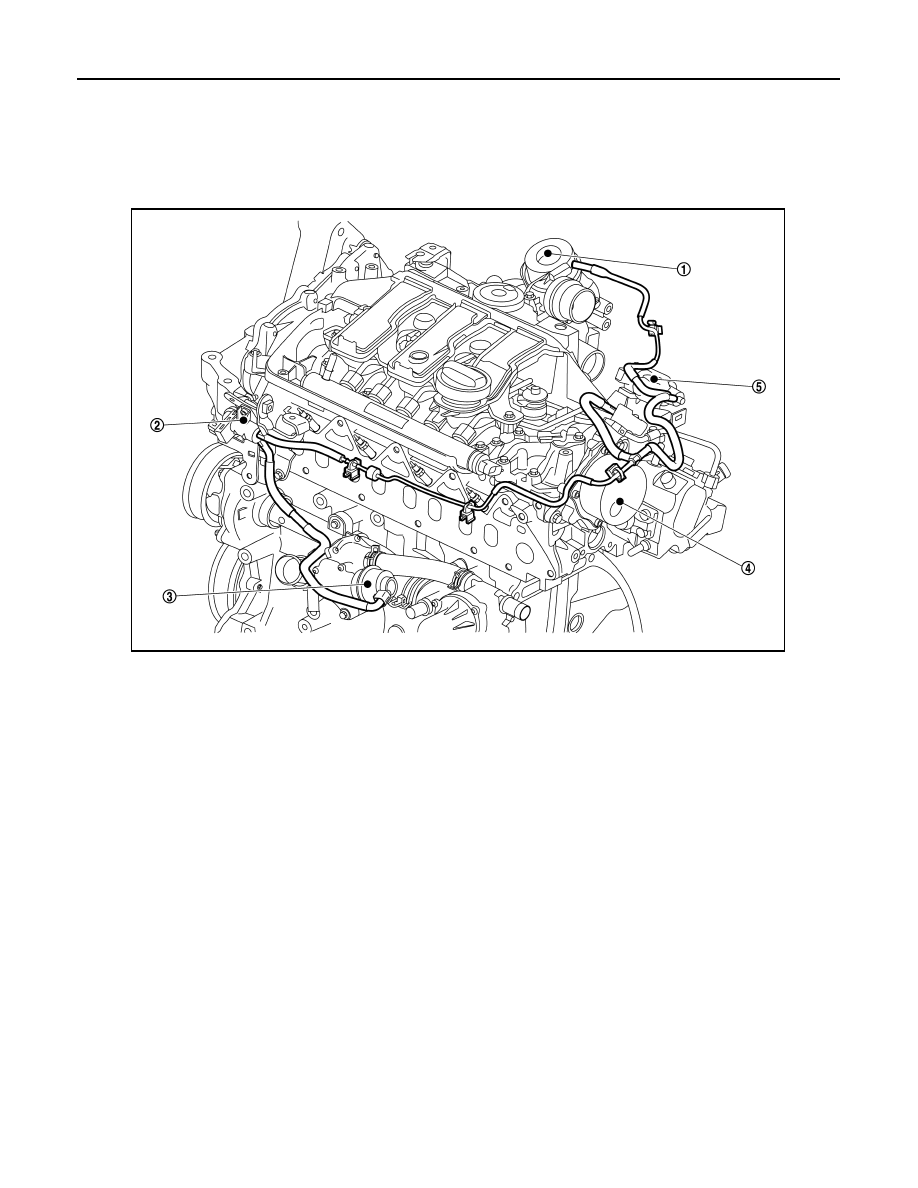

Vacuum Layout

INFOID:0000000010309428

CAUTION:

Do not use soapy water or any type of solvent while installing vacuum hose.

1.

TC boost control actuator

2.

Engine coolant bypass valve control
solenoid valve

3.

Engine coolant bypass valve control
actuator

4.

Vacuum pump

5.

TC boost control solenoid valve

JSBIA4746ZZ

ECM

EC9-405

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

ECM

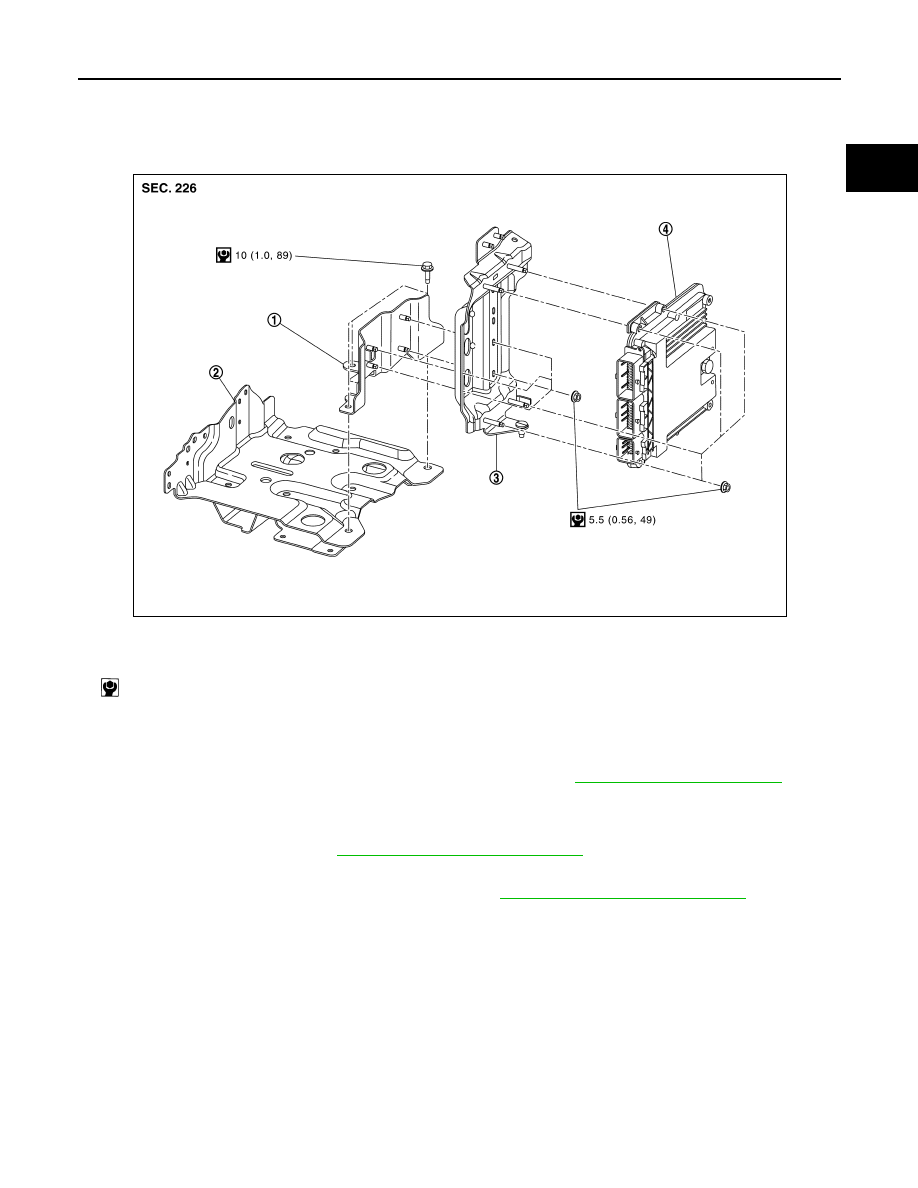

Exploded View

INFOID:0000000010309429

Removal and Installation

INFOID:0000000010309430

CAUTION:

Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to

EC9-144, "Work Procedure"

.

REMOVAL

1.

Disconnect battery negative terminal.

2.

Remove air duct (inlet). Refer to

EM-380, "Removal and Installation"

.

3.

Disconnect ECM harness connectors.

4.

Remove battery, battery cover and battery tray. Refer to

PG-155, "Removal and Installation"

.

5.

Remove bracket A with ECM.

6.

Remove ECM from bracket B.

INSTALLATION

Install in the reverse order of removal.

1.

Battery mounting bracket

2.

Bracket A

3.

Bracket B

4.

ECM

: N·m (kg-m, in-lb)

JSBIA5191GB

EC9-406

< REMOVAL AND INSTALLATION >

[R9M]

GLOW CONTROL UNIT

GLOW CONTROL UNIT

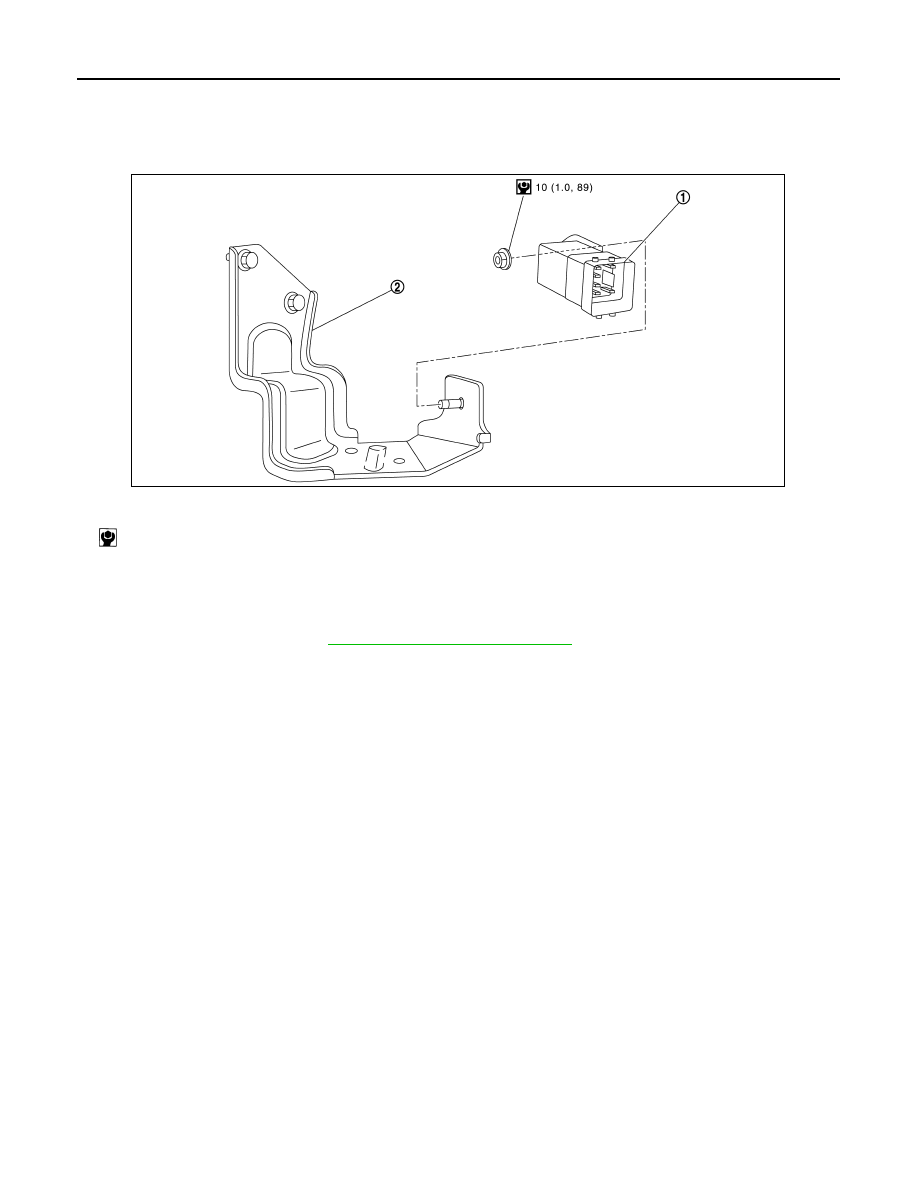

Exploded View

INFOID:0000000010500754

Removal and Installation

INFOID:0000000010500755

REMOVAL

1.

Remove front bumper. Refer to

EXT-19, "Removal and Installation"

.

2.

Disconnect glow control unit harness connector.

3.

Remove glow control unit from bracket.

INSTALLATION

Install in the reverse order of removal.

1.

Glow control unit

2.

Bracket

: N·m (kg-m, in-lb)

JSBIA5215GB

THERMOPLUNGER CONTROL UNIT

EC9-407

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

THERMOPLUNGER CONTROL UNIT

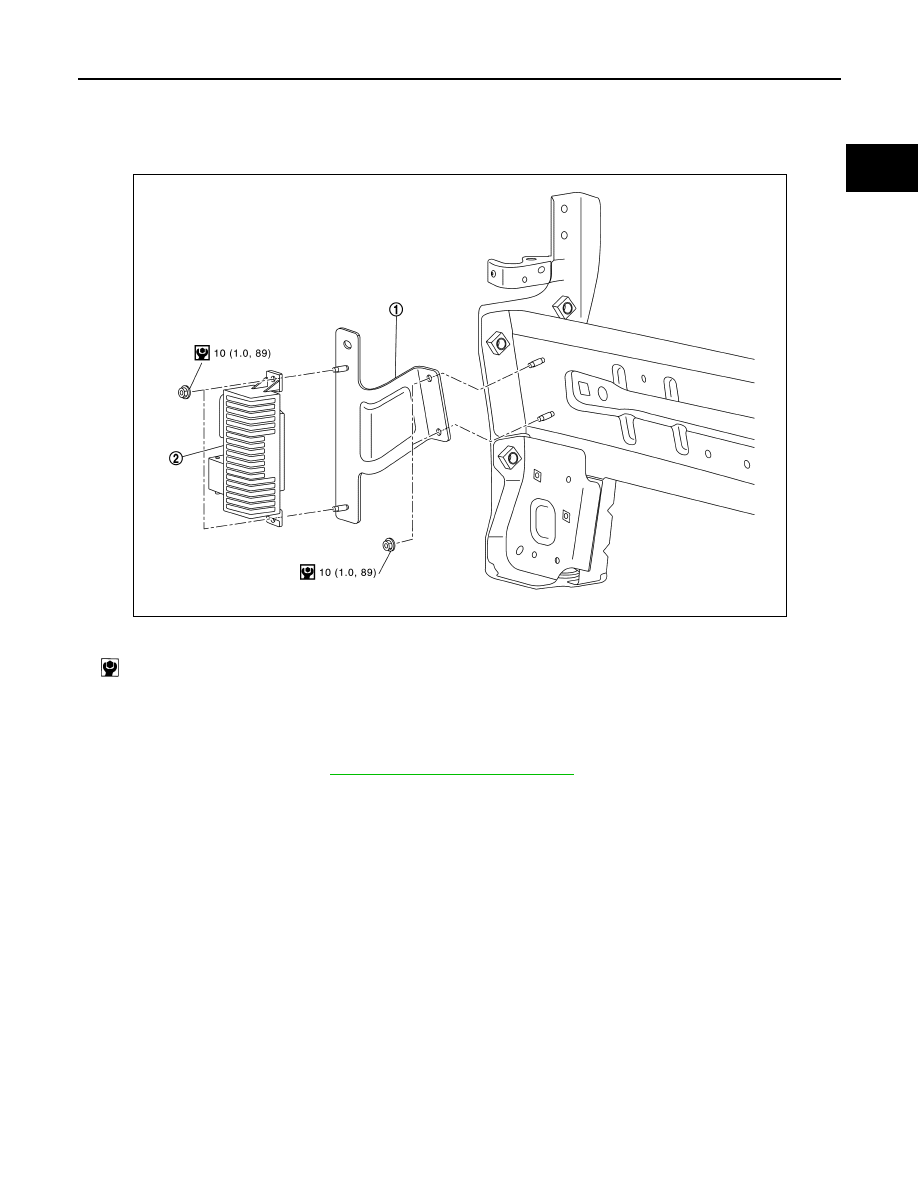

Exploded View

INFOID:0000000010309431

Removal and Installation

INFOID:0000000010309432

REMOVAL

1.

Remove front bumper. Refer to

EXT-19, "Removal and Installation"

.

2.

Disconnect thermoplunger control unit harness connector.

3.

Remove thermoplunger control unit from bracket.

INSTALLATION

Install in the reverse order of removal.

1.

Bracket

2.

Thermoplunger control unit

: N·m (kg-m, in-lb)

JSBIA5217GB
