P1217 ENGINE OVER TEMPERATURE

ECM-321

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

ECM

N

P

O

P1217 ENGINE OVER TEMPERATURE

DTC Description

INFOID:0000000010703012

DTC DETECTION LOGIC

NOTE:
ECM controls cooling fan to the maximum speed when receives the signal abnormality of each sensor, CAN
and IPDM E/R,  and severed wire short circuit abnormality.
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.

CAUTION:

When a malfunction is indicated, be sure to exchange the coolant and engine oil.
1.

Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio.

2.

After refilling coolant, run engine to ensure that no water-flow noise is emitted.

POSSIBLE CAUSE

• Harness or connectors (Cooling fan circuit is open or shorted.)
• IPDM E/R
• Cooling fan relay
• Cooling fan motor
• Cooling fan
• Radiator hose
• Radiator
• Radiator cap
• Water pump
• Thermostat
• Water control valve
• Amount of engine coolant

FAIL-SAFE

PERFORM DTC CONFIRMATION PROCEDURE

1.

CHECK DTC PRIORITY

If DTC P1217 is displayed with DTC UXXXX or P0607, first perform the trouble diagnosis for DTC UXXXX or
P0607.

Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

ECM-93, "DTC Index"

.

NO

>> GO TO 2.

2.

PERFORM COMPONENT FUNCTION CHECK-1

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P1217

ENG OVER TEMP
(Engine over temperature)

Engine coolant temperature reaches an abnormally high temperature.

Engine operating condition in fail-safe mode

Fail safe mode

Vehicle behavior

Others

Engine speed will not rise more than 1,800rpm due to the fuel cut.

ECM-322

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

P1217 ENGINE OVER TEMPERATURE

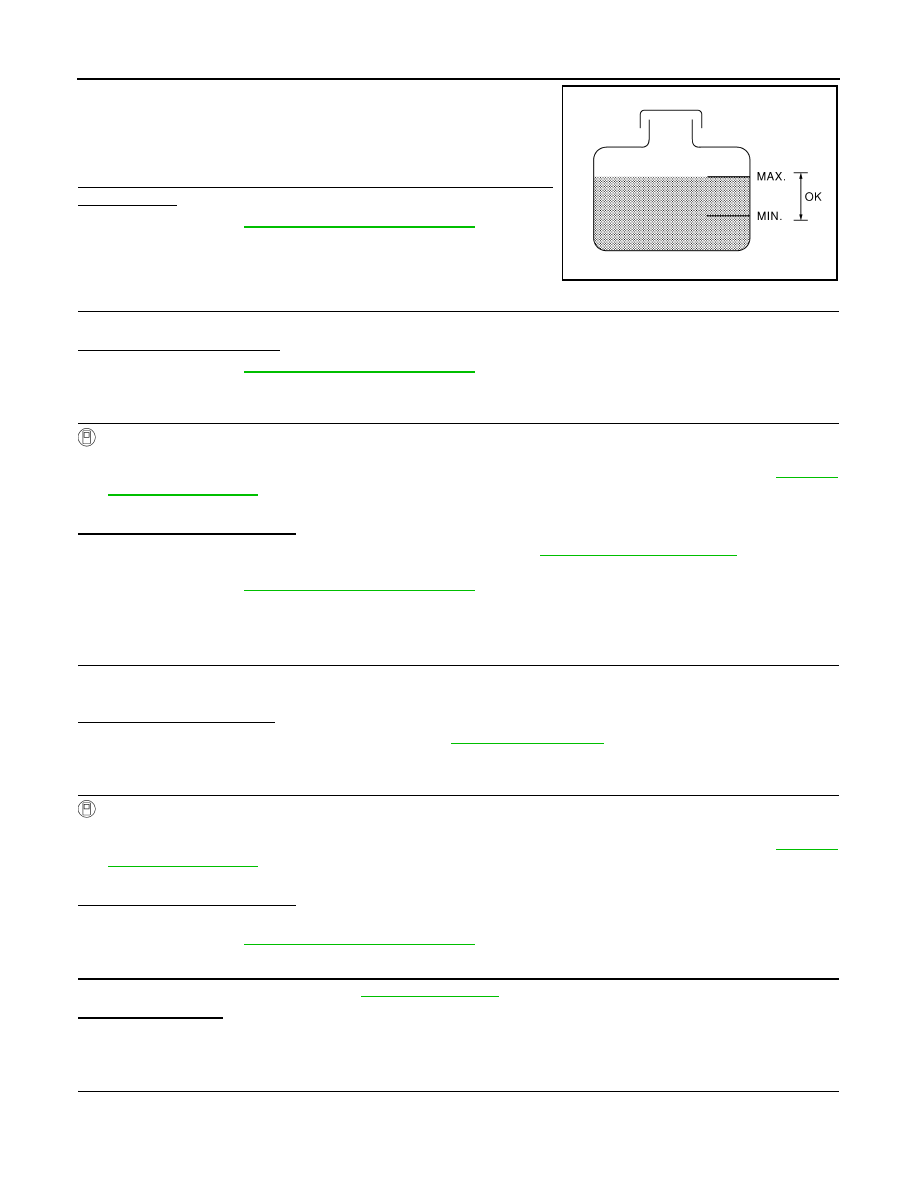

Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
NOTE:
Use component function check to check the overall function of the
cooling fan. During this check, a DTC might not be confirmed.
Is the coolant level in the reservoir tank and/or radiator below the
proper range?

YES

>> Proceed to

ECM-322, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM COMPONENT FUNCTION CHECK-2

Confirm whether customer filled the coolant or not.

Did customer fill the coolant?

YES

>> Proceed to

ECM-322, "Diagnosis Procedure"

.

NO

>> GO TO 4.

4.

PERFORM COMPONENT FUNCTION CHECK-3

With CONSULT

1.

Turn ignition switch ON.

2.

Select “FAN DUTY CONTROL” in “ACTIVE TEST” mode of “ENGINE” using CONSULT. Refer to

ECM-65,

"CONSULT Function"

.

3.

Check that cooling fan speed varies according to the percentage.

Is the inspection result normal?

YES-1 >> To check malfunction symptom before repair: Refer to

GI-41, "Intermittent Incident"

.

YES-2 >> Confirmation after repair: INSPECTION END
NO

>> Proceed to

ECM-322, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010703013

1.

CHECK DTC PRIORITY

If DTC P1217 is displayed with DTC UXXXX or P0607, first perform the trouble diagnosis for DTC UXXXX or
P0607.
Is applicable DTC detected?

YES

>> Perform diagnosis of applicable. Refer to

ECM-93, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK COOLING FAN OPERATION

With CONSULT

1.

Turn ignition switch ON.

2.

Select “FAN DUTY CONTROL” in “ACTIVE TEST” mode of “ENGINE” using CONSULT. Refer to

ECM-65,

"CONSULT Function"

.

3.

Check that cooling fan speed varies according to the percentage.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Proceed to

ECM-396, "Diagnosis Procedure"

.

3.

CHECK COOLING SYSTEM FOR LEAK-1

Check cooling system for leak. (Refer to

CO-38, "Inspection"

.)

Is leakage detected?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

CHECK COOLING SYSTEM FOR LEAK-2

Check the following for leak.
• Hose
• Radiator

SEF621W

P1217 ENGINE OVER TEMPERATURE

ECM-323

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

ECM

N

P

O

• Water pump

>> Repair or replace malfunctioning part.

5.

CHECK RADIATOR CAP

Check radiator cap. (Refer to

CO-42, "Inspection"

)

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace radiator cap. Refer to

CO-43, "Exploded View"

.

6.

CHECK THERMOSTAT

Check thermostat. (Refer to

CO-52, "Inspection"

.)

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace thermostat. Refer to

CO-51, "Removal and Installation"

.

7.

CHECK WATER CONTROL VALVE

Check water control valve. (Refer to

CO-54, "Inspection"

.)

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace water control valve. Refer to

CO-53, "Removal and Installation"

.

8.

CHECK ENGINE COOLANT TEMPERATURE SENSOR

Check engine coolant temperature sensor. (Refer to

ECM-187, "Component Inspection"

.)

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace engine coolant temperature sensor. Refer to

CO-53, "Exploded View"

.

9.

OVERHEATING CAUSE ANALYSIS

If the cause cannot be isolated, check the

CO-36, "Troubleshooting Chart"

.

>> INSPECTION END

ECM-324

< DTC/CIRCUIT DIAGNOSIS >

[MR20DD]

P1225 TP SENSOR

P1225 TP SENSOR

DTC Description

INFOID:0000000010703014

DTC DETECTION LOGIC

POSSIBLE CAUSE

Electric throttle control actuator (TP sensor 1 and 2)

FAIL-SAFE

Not applicable

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure
before conducting the next test.
1.

Turn ignition switch OFF and wait at least 10 seconds.

2.

Turn ignition switch ON.

3.

Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Turn ignition switch OFF and wait at least 10 seconds.

3.

Turn ignition switch ON.

4.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Proceed to

ECM-324, "Diagnosis Procedure"

.

NO-1

>> To check malfunction symptom before repair: Refer to

GI-41, "Intermittent Incident"

.

NO-2

>> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000010703015

1.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Turn ignition switch OFF.

2.

Remove the intake air duct. Refer to

EM-147, "Removal and Installation"

.

3.

Check if foreign matter is caught between the throttle valve and the housing

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Remove the foreign matter and clean the electric throttle control actuator inside, then perform

throttle valve closed position learning. Refer to

ECM-128, "Work Procedure"

.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

Replace electric throttle control actuator. Refer to

EM-149, "Removal and Installation"

.

>> INSPECTION END

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

P1225

CTP LEARNING-B1
(Closed throttle position learning bank 1)

Closed throttle position learning value is excessively low.
