CHASSIS MAINTENANCE

MA-115

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

Unit: mm (in)

EXHAUST SYSTEM

EXHAUST SYSTEM : Inspection

INFOID:0000000010355390

Check exhaust pipes, muffler, and mounting for improper attach-
ment, leakage, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

CVT FLUID (RE0F10G)

CVT FLUID (RE0F10G) : Inspection

INFOID:0000000010508834

FLUID LEAKAGE

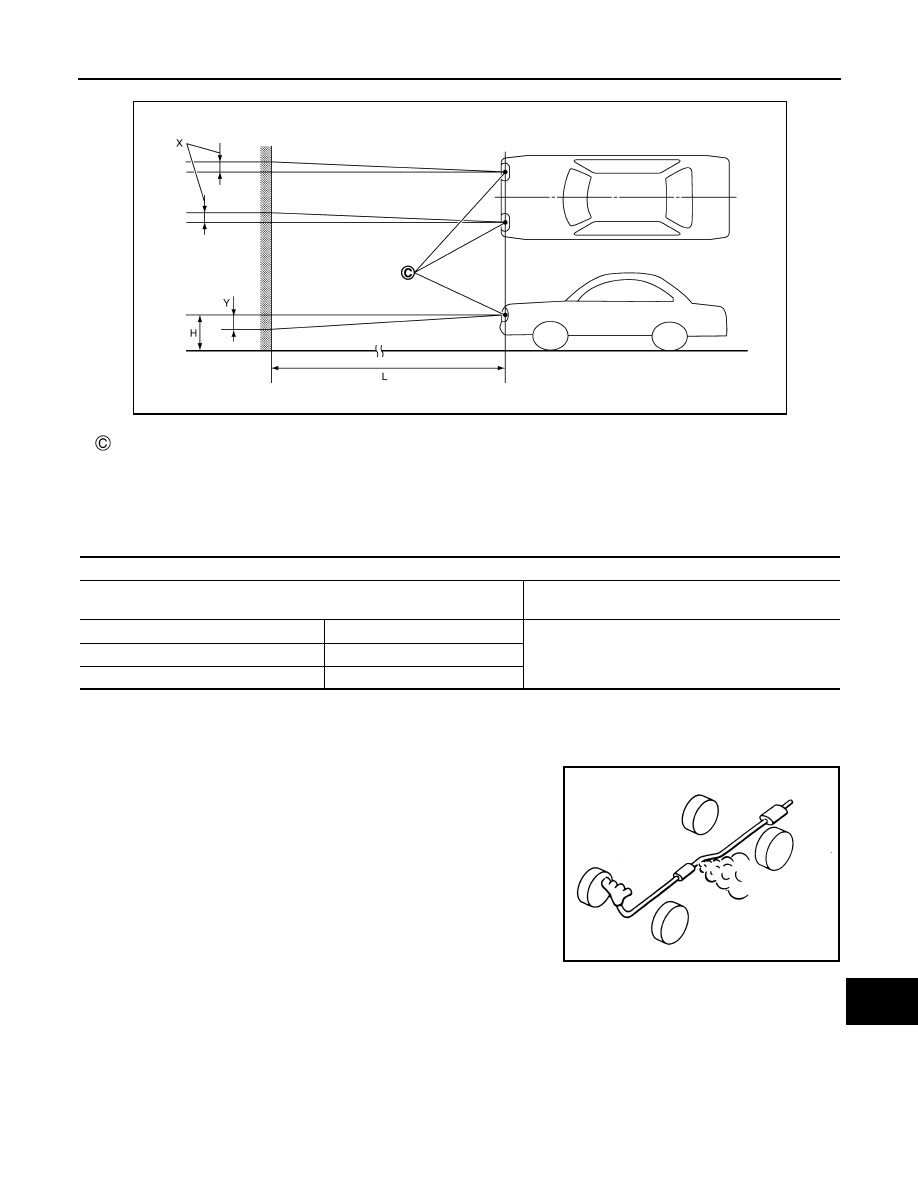

Vertical center line of headlamp H.

Horizontal center line of headlamp

L.

Distance from headlamp center to screen

X.

Aiming adjustment area
(Lateral)

Y.

Aiming adjustment area
(Vertical)

Distance from headlamp center to screen (L)

: 10 m (32.8 ft)

Aiming adjustment area

Vertical direction (Y)

(Lower side from headlamp center height)

Lateral direction (X)

(Right side from headlamp center line)

Highest light axis

100 (3.94)

0 - 100 (3.94)

Target light axis

100 (3.94)

Lowest light axis

130 (5.12)

JSLIA0031ZZ

SMA211A

MA-116

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (K9K)

ENGINE OIL : Draining

INFOID:0000000011497401

WARNING:

• Be careful not to burn yourself, as the engine oil is hot.
• Prolonged and repeated contact with used engine oil may cause skin cancer: try to avoid direct skin

contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as soon as
possible.

1.

Put vehicle horizontally.

2.

Warm up engine, and check for oil leakage from engine components.

3.

Stop engine and wait for 10 minutes.

4.

Loosen oil filler cap.

5.

Remove drain plug and then drain engine oil.

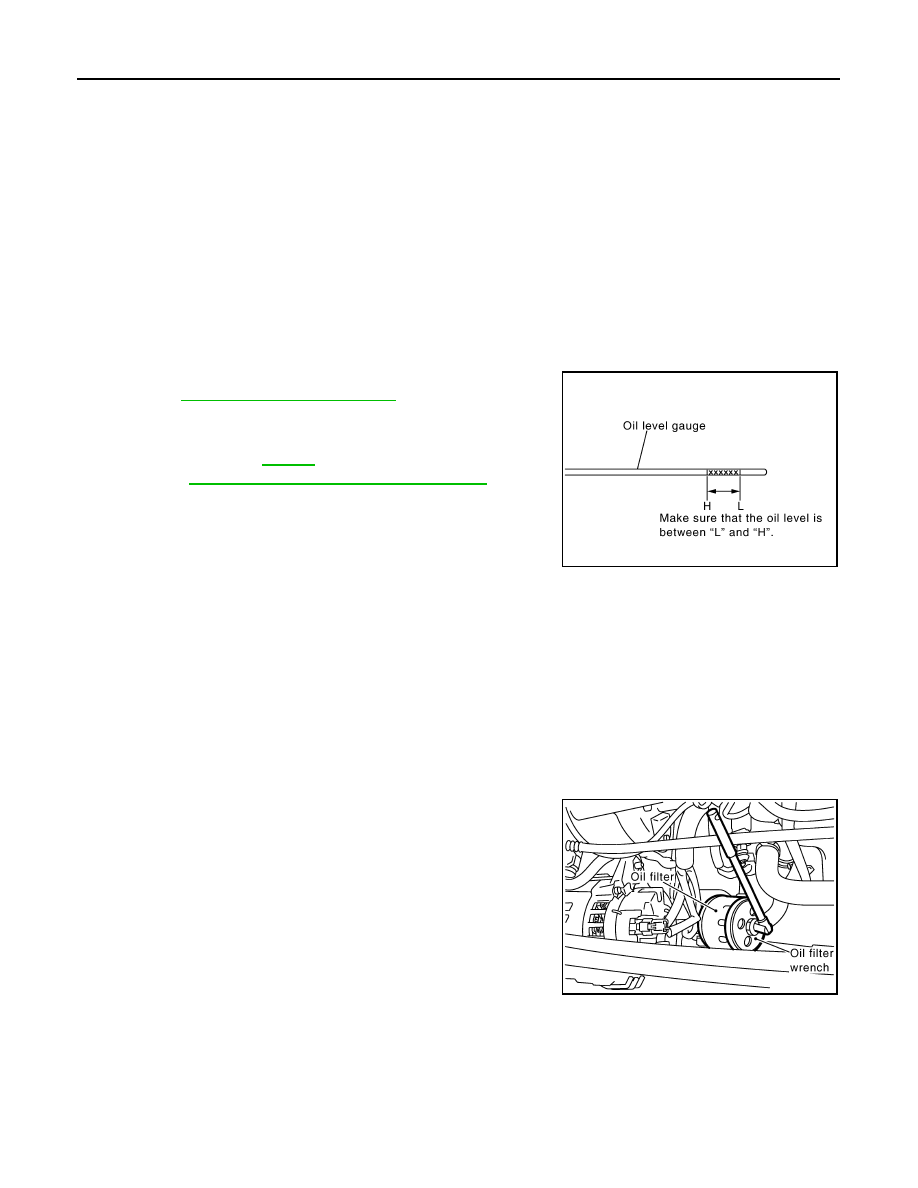

ENGINE OIL : Refilling

INFOID:0000000011497402

1.

Refill with new engine oil.
• Refer  to

MA-64, "Fluids and Lubricants"

.

• The refill capacity depends on the oil temperature and drain time.

Use these specifications for reference only.
Always use the dipstick to the determine when the proper amount
of oil is in the engine.

CAUTION:

• Be sure to clean drain plug and install with new washer.
• The refill capacity depends on the oil temperature and drain time. Use these specifications for ref-

erence only.
Always use the dipstick to the determine when the proper amount of oil is in the engine.

2.

Warm up engine and check area around drain plug and oil filter for oil leakage.

3.

Stop engine and wait for 10 minutes.

4.

Check oil level.

OIL FILTER

OIL FILTER : Replacement

INFOID:0000000011497404

1.

Using an oil filter wrench [SST: KV113C0010 (Mot. 1329)],
remove oil filter.

CAUTION:

• Be careful not to get burned when the engine and engine

oil are hot.

• When removing, prepare a shop cloth to absorb any oil

leakage or spillage.

• Do not allow engine oil to adhere to the drive belts.
• Completely wipe off any oil that adhere to the engine and

the vehicle.

2.

Remove foreign materials adhering to the oil filter installation
surface.

3.

Install oil filter bracket to oil cooler.

CAUTION:

Install oil filter bracket, positioning lug in the hole of oil cooler.

Oil capacity (Approximate)

: Refer to

LU-57,

"Periodical Maintenance Specification"

.

MBIB0548E

MBIB0551E

ENGINE MAINTENANCE (K9K)

MA-117

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

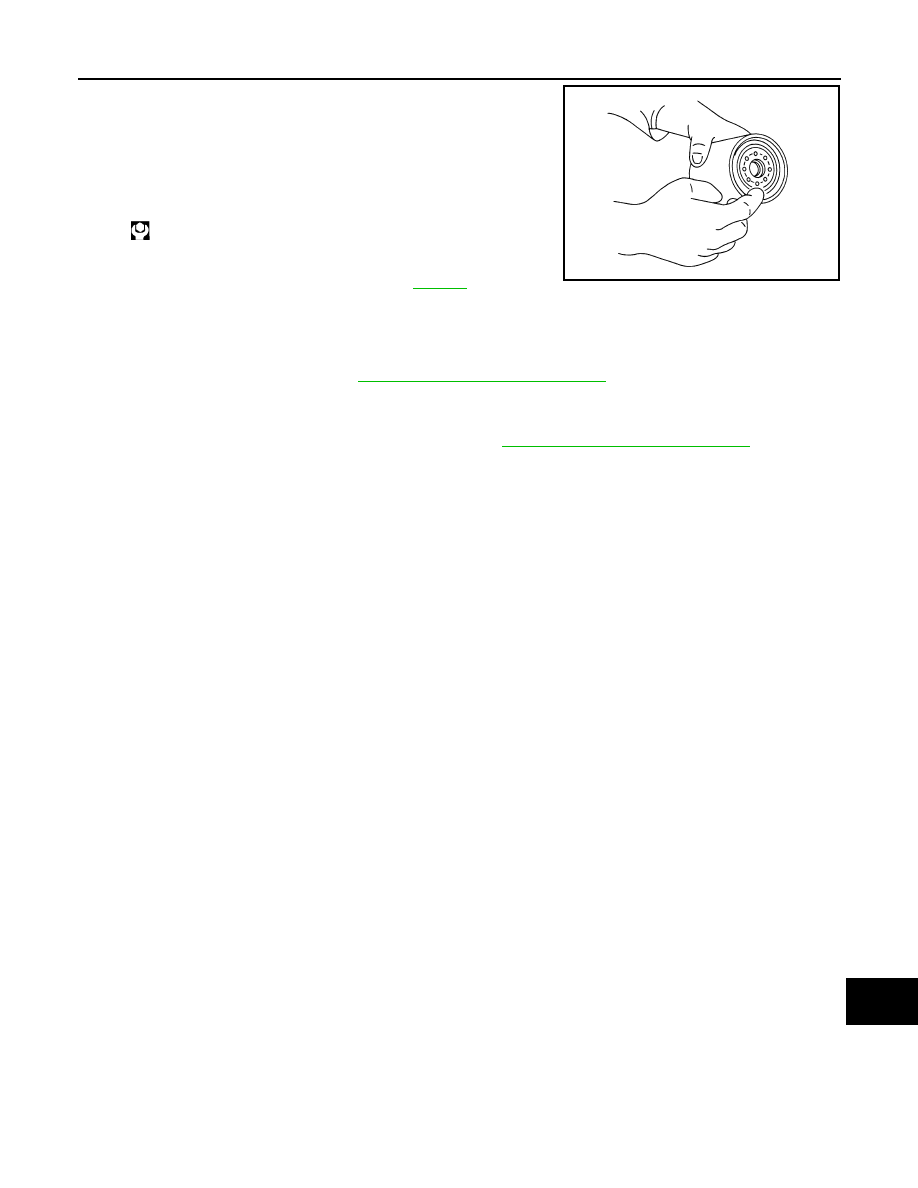

4.

Apply engine oil to the oil seal contact surface of the new oil fil-
ter.

5.

Install the oil filter until it comes into contact with the oil seal on
the engine bracket.

6.

Using an oil filter wrench [SST: KV113C0010 (Mot. 1329)],
tighten oil filter.

7.

After warming up the engine, check for engine oil leakage.

8.

Check oil level and add engine oil. Refer to

MA-115

.

OIL FILTER : Inspection

INFOID:0000000011497405

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

MA-115, "ENGINE OIL : Inspection"

.

2.

Start the engine, and check there is no leak of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

MA-115, "ENGINE OIL : Inspection"

.

: 14 N·m (1.4 kg-m, 10 ft-lb)

SMA010

MA-118

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

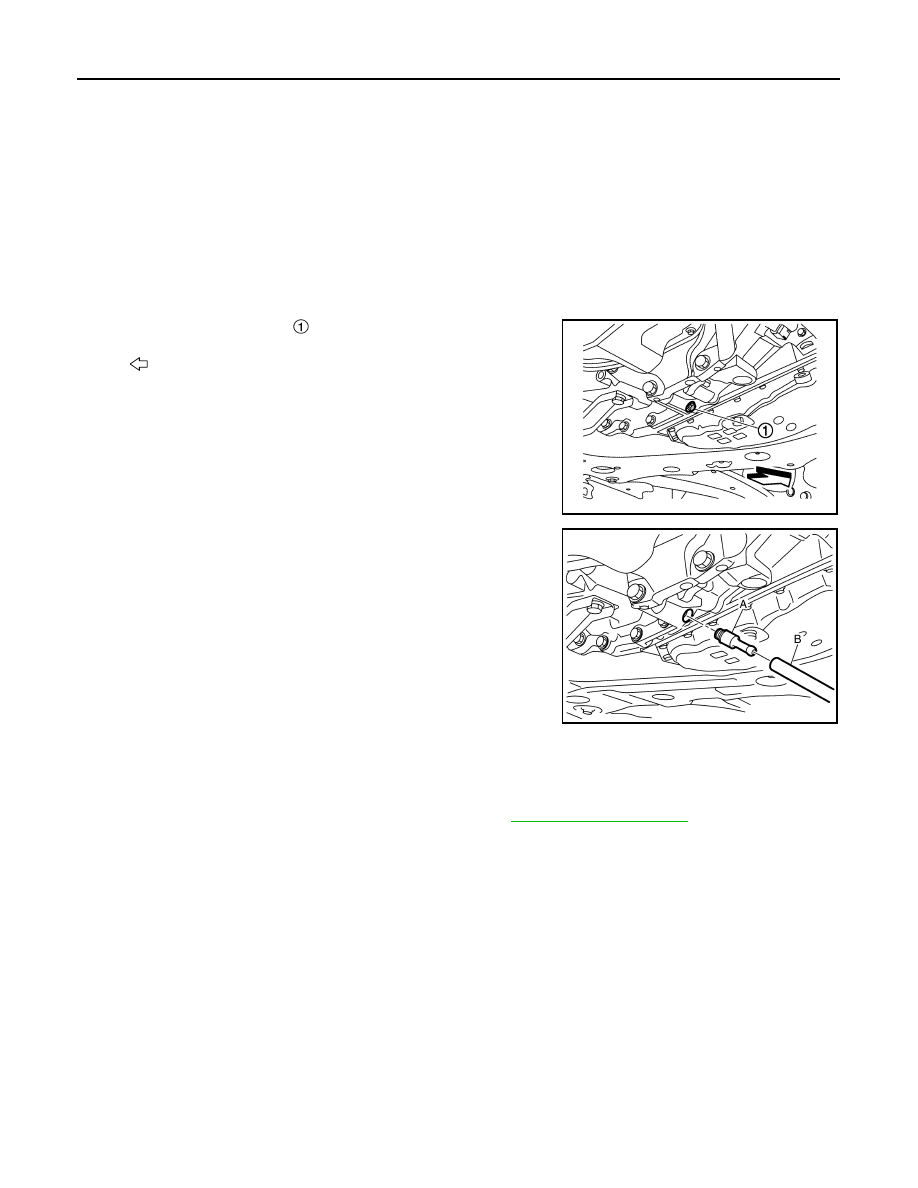

1.

Check that the selector lever is in the “P” position, then completely engage the parking brake.

2.

Start the engine.

3.

Adjust the CVT fluid temperature to be approximately 40

°

C (104

°

F).

NOTE:
The CVT fluid is largely affected by temperature. Therefore be sure to use CONSULT and check the
“FLUID TEMP” under “TRANSMISSION” in “Data Monitor” while adjusting.

4.

While depressing the brake pedal, shift the selector lever to the entire position from “P” to “D”, and shift it
to the “P” position.
NOTE:
Hold the lever at each position for 5 seconds.

5.

Lift up the vehicle.

6.

Check that there is no CVT fluid leakage.

7.

Remove the overflow plug

 from converter housing.

8.

Install the charging pipe set (KV311039S0) (A) into the overflow
plug hole.

CAUTION:

Tighten the charging pipe by hand.

9.

Install the ATF changer hose (B) to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging
pipe until it stops.

10. Fill approximately 0.5 liter (1/2 lmp qt) of the CVT fluid.

11. Remove the ATF changer hose from the charging pipe, and

check that the CVT fluid drains out from the charging pipe. If it
does not drain out, perform charging again.

CAUTION:

Perform this work with the vehicle idling.

12. When the flow of CVT fluid slows to a drip, remove the charging pipe from the converter housing.

13. Tighten the overflow plug to the specified torque. Refer to

TM-629, "Exploded View"

.

CAUTION:

Never reuse O-ring.

14. Lift down the vehicle.
15. Stop the engine.

CVT FLUID (RE0F10D)

CVT FLUID (RE0F10D) : Inspection

INFOID:0000000010735721

FLUID LEAKAGE

: Vehicle front

JSDIA3714ZZ

JSDIA3713ZZ
