2.

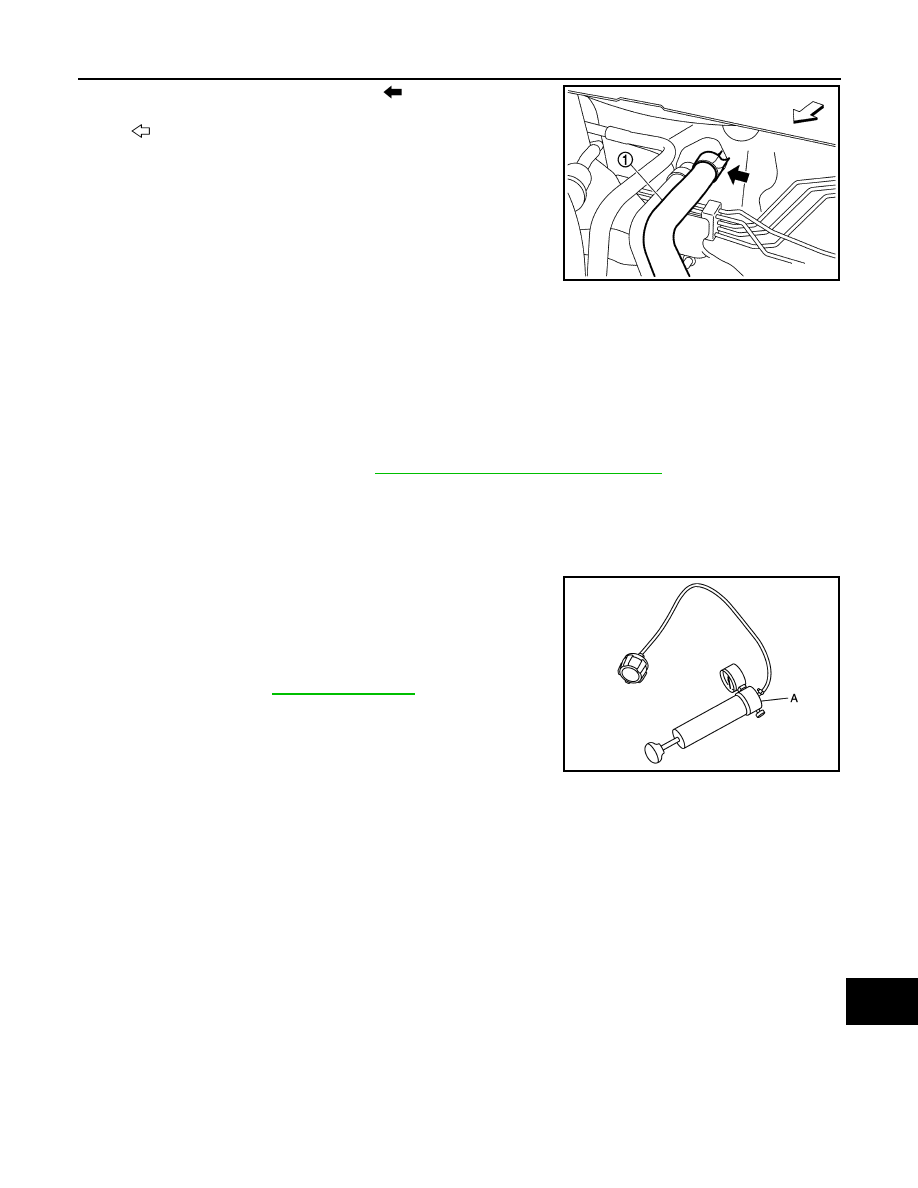

Disconnect heater hose (1) at position (

) in the figure.

• Enhance heater as high as possible.

3.

Fill reservoir tank with water.
• When engine coolant over flows disconnected heater hose, connect heater hose, and continue filling the

engine coolant.

4.

Install radiator cap.

5.

Run the engine and warm it up to normal operating temperature.

6.

Rev the engine two or three times under no-load.

7.

Stop the engine and wait until it cools down.

8.

Drain water from the system. Refer to

MA-108, "ENGINE COOLANT : Draining"

.

9.

Repeat steps 1 through 8 until clear water begins to drain from radiator.

RESERVOIR TANK CAP

RESERVOIR TANK CAP : Inspection

INFOID:0000000011497413

• Fit the adapter to the reservoir tank cap tester [SST: — (M.S. 554-

07)] (A) as shown.

• When connecting the reservoir tank cap to the reservoir tank cap

tester, apply water or LLC to the reservoir tank cap seal part.

• Check reservoir tank cap relief pressure.

• Replace the reservoir tank cap if the engine coolant passes

through it, or if any fur signs is detected.

CAUTION:

When installing reservoir tank cap, thoroughly wipe out the res-
ervoir tank filler neck to remove any waxy residue or foreign
material.

RADIATOR

RADIATOR : Inspection

INFOID:0000000011497415

Check radiator for mud or clogging. If necessary, clean radiator as follows.

CAUTION:

• Never bend or damage the radiator fins.
• When radiator is cleaned without removal, remove all surrounding parts such as radiator fan, radia-

tor shroud and horns. Then tape the harness and connectors to prevent water from entering.

1.

Apply water by hose to the back side of the radiator core vertically downwards.

2.

Apply water again to all radiator core surface once per minute.

3.

Stop washing if any stains no longer flow out from the radiator.

4.

Blow air into the back side of radiator core vertically downwards.

• Use compressed air lower than 490 kPa (4.9 bar 5 kg/cm

2

, 71psi) and keep distance more than 30 cm (11.8

in).

5.

 Blow air again into all the radiator core surface once per minute until no water sprays out.

FUEL LINES

: Vehicle front

JPBIA4208ZZ

Standard: Refer to

CO-137, "Radiator"

.

E1BIA0057ZZ

MA-112

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

CHASSIS MAINTENANCE

HEADLAMP AIMING ADJUSTMENT (LED TYPE - LHD)

HEADLAMP AIMING ADJUSTMENT (LED TYPE - LHD) : Aiming Adjustment Proce-
dure

INFOID:0000000010355387

1.

Place the screen.
NOTE:
• Stop the vehicle at the perpendicular angle to the wall.
• Set the screen so that it is perpendicular to a level load surface.

2.

Face the vehicle squarely toward the screen and make the distance between the headlamp center and
the screen 10 m (32.8 ft).

3.

Start the engine and illuminate the headlamp (LO).
NOTE:
Block light from the headlamp that is not being adjusted with a thick fabric or another object, so that it
does not reach the adjustment screen.

CAUTION:

Never cover lens surface with tape, etc. because it is made from plastic.

4.

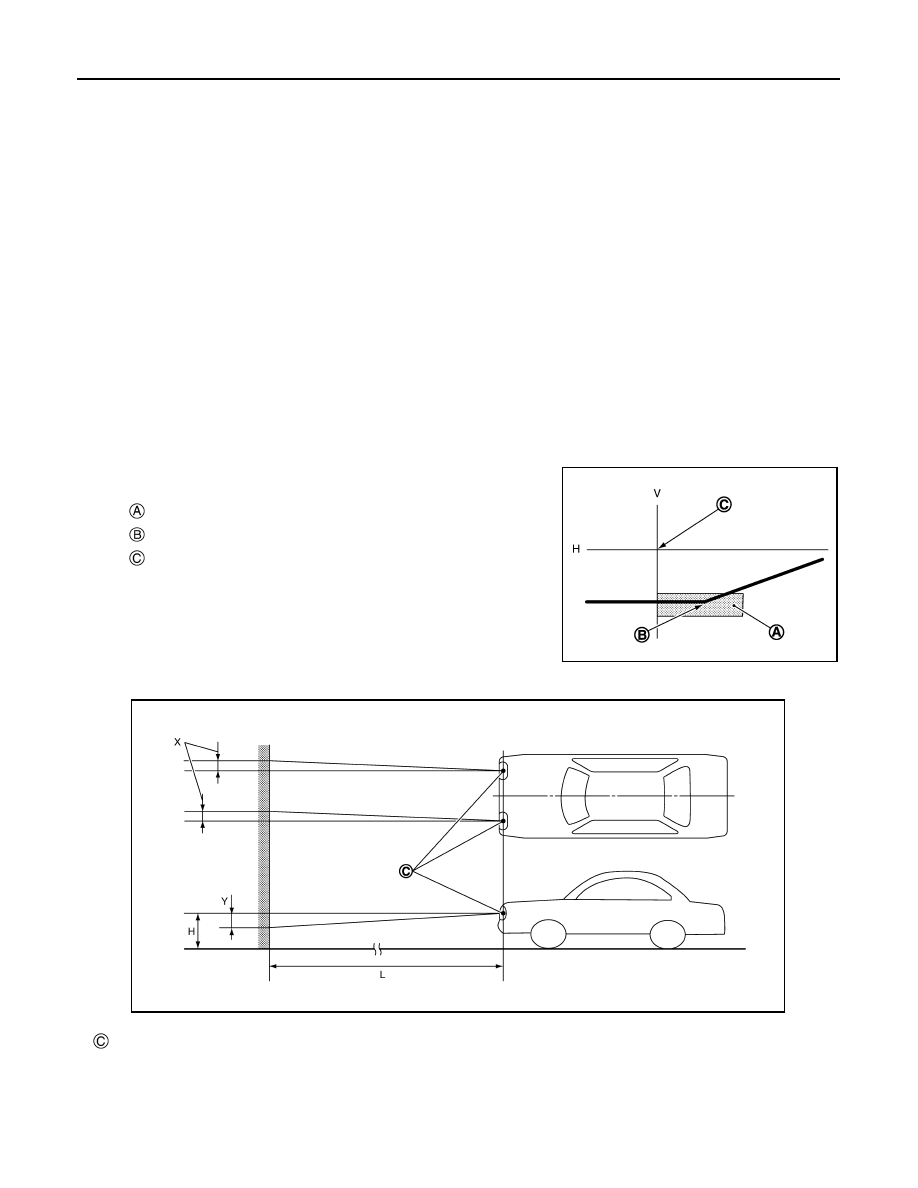

Use the aiming adjustment screw to adjust the elbow point projected by the low beams on the screen, so
that it is within the aiming adjustment area.
Low beam distribution on the screen

Aiming adjustment area

Elbow point

Headlamp center

H.

Horizontal center line of headlamp

V.

Vertical center line of headlamp

JSLIA0030ZZ

Vertical center line of headlamp H.

Horizontal center line of headlamp

L.

Distance from headlamp center to screen

X.

Aiming adjustment area
(Lateral)

Y.

Aiming adjustment area
(Vertical)

Distance from headlamp center to screen (L)

: 10 m (32.8 ft)

JSLIA0031ZZ

ENGINE MAINTENANCE (K9K)

MA-113

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

3.

Disconnect fuel filter connector.

4.

Remove fuel filter.

INSTALLATION

1.

Note the following, and install in the reverse order of removal.
• After installation, bleed air from fuel line. Refer to

MA-113, "FUEL FILTER : Air Bleeding"

.

CAUTION:

Never bend or twist the fuel tube during installation and removal.

FUEL FILTER : Water Draining

INFOID:0000000011497418

1.

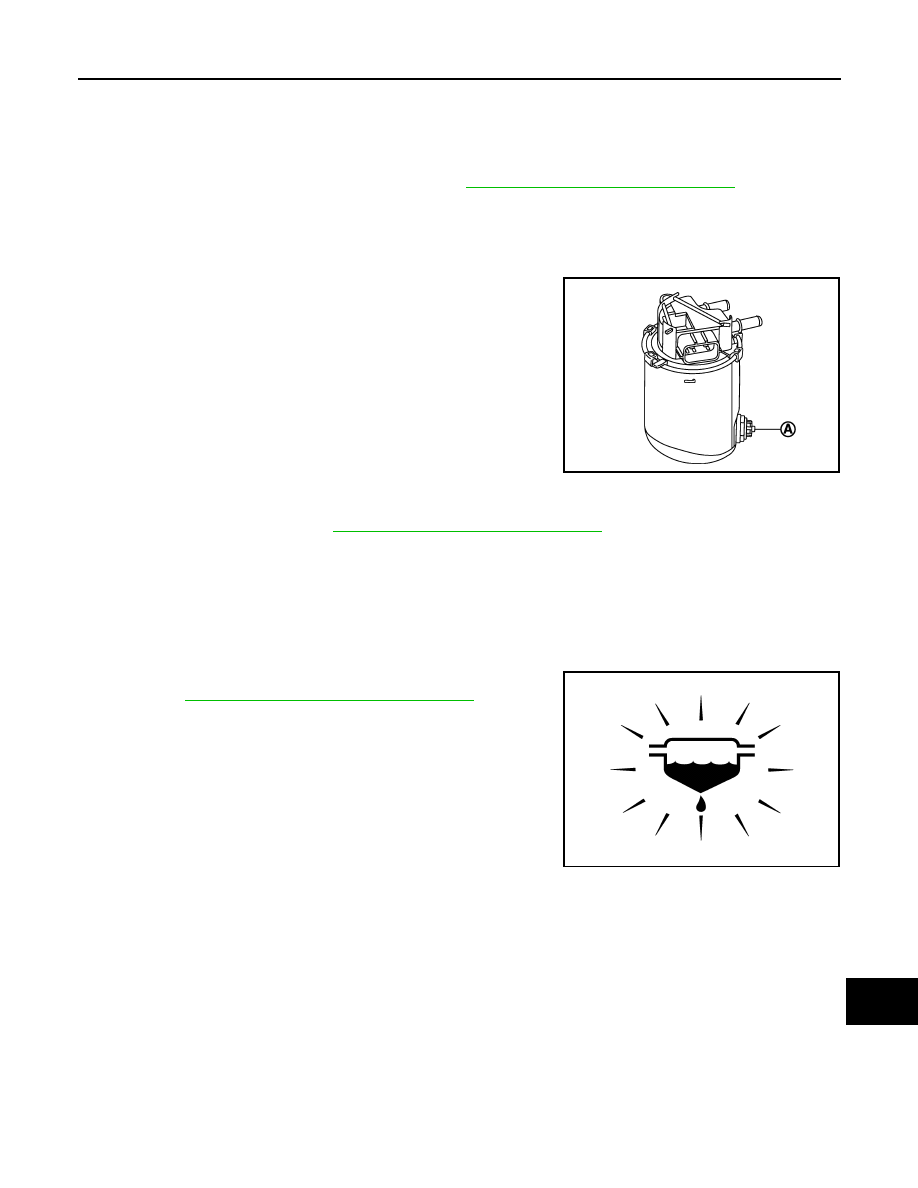

Connect drain hose (suitable hose) to the end of drain plug (A).

2.

Prepare a tray at the drain plug open end.

3.

Loosen drain plug, and operate priming bulb to drain water from
fuel filter.

CAUTION:

• Water in filter is drained with fuel. Prepare larger capacity

pan than fuel filter volume.

• Drained water is mixed with fuel. Prevent fuel from adher-

ing to rubber parts such as engine mounting insulator.

4.

After draining, close drain plug by hand.

CAUTION:

If drain plug is tightened excessively, it may be damaged
and fuel will leak. Never use tools to tighten drain plug.

5.

Bleed air in fuel piping. Refer to

MA-113, "FUEL FILTER : Air Bleeding"

.

6.

Start engine and check there is no fuel leakage.

FUEL FILTER : Air Bleeding

INFOID:0000000011497419

1.

Degassing from the diesel circuit is automatic.

FUEL FILTER : Fuel Filter Sensor (With Fuel Filter Warning)

INFOID:0000000011497420

• Drain water from fuel filter, when the fuel filter warning lamp turns

ON. Refer to

MA-113, "FUEL FILTER : Water Draining"

.

FUEL FILTER : Inspection

INFOID:0000000011497421

INSPECTION AFTER INSTALLATION

Check that there is no fuel leakage at connections in the following steps.
• Start engine and rev it up and check that there is no fuel leakage at connections.

AIR CLEANER FILTER

AIR CLEANER FILTER : Removal and Installation

INFOID:0000000011497394

REMOVAL

E1BIA0637ZZ

PBIC2664E

MA-114

< PERIODIC MAINTENANCE >

ENGINE MAINTENANCE (K9K)

1.

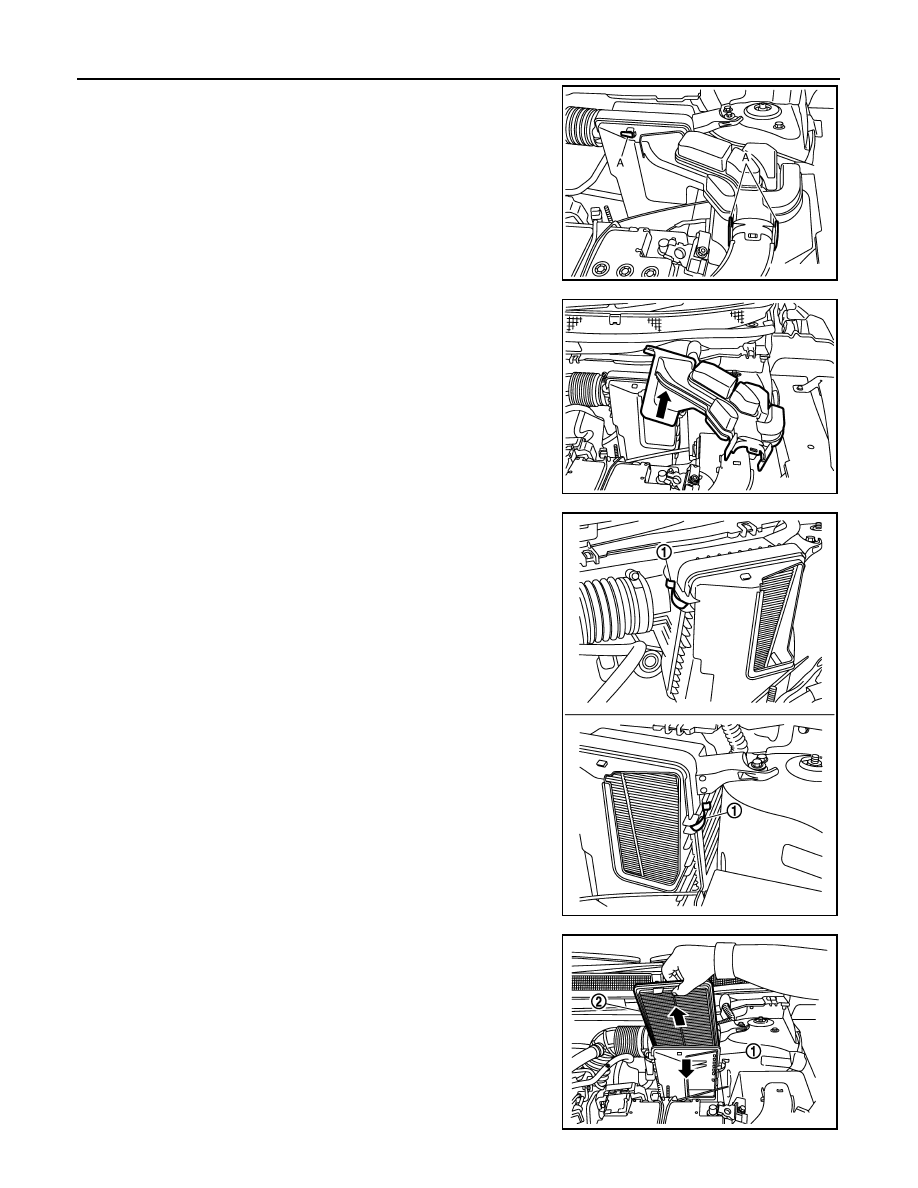

Press the points (A) to separate air resonator from air duct and
air cleaner filter unit.

2.

Remove air resonator following the arrow.

3.

Unhook clips (1) on the air cleaner filter holder.

4.

Separate air cleaner filter holder (1) from air cleaner filter unit
and remove air cleaner filter (2).

E1BIA1002ZZ

E1BIA1003ZZ

E1BIA1004ZZ

E1BIA1005ZZ
