FRONT CAMERA UNIT

• Perform the camera aiming every time the front camera unit is removed and installed. Refer to

DAS-

87, "Work Procedure"

.

DAS

DISTANCE SENSOR

DAS-203

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

DISTANCE SENSOR

Exploded View

INFOID:0000000010416945

Removal and Installation

INFOID:0000000010416946

REMOVAL

1.

Remove front bumper fascia. Refer to

EXT-19, "Removal and Installation"

.

2.

Disconnect distance sensor connector.

3.

Remove distance sensor mounting bolts, and then remove distance sensor from distance sensor bracket.

CAUTION:

Never give an impact to the distance sensor.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform additional service when replacing distance sensor. Refer to

DAS-86, "Work Procedure"

.

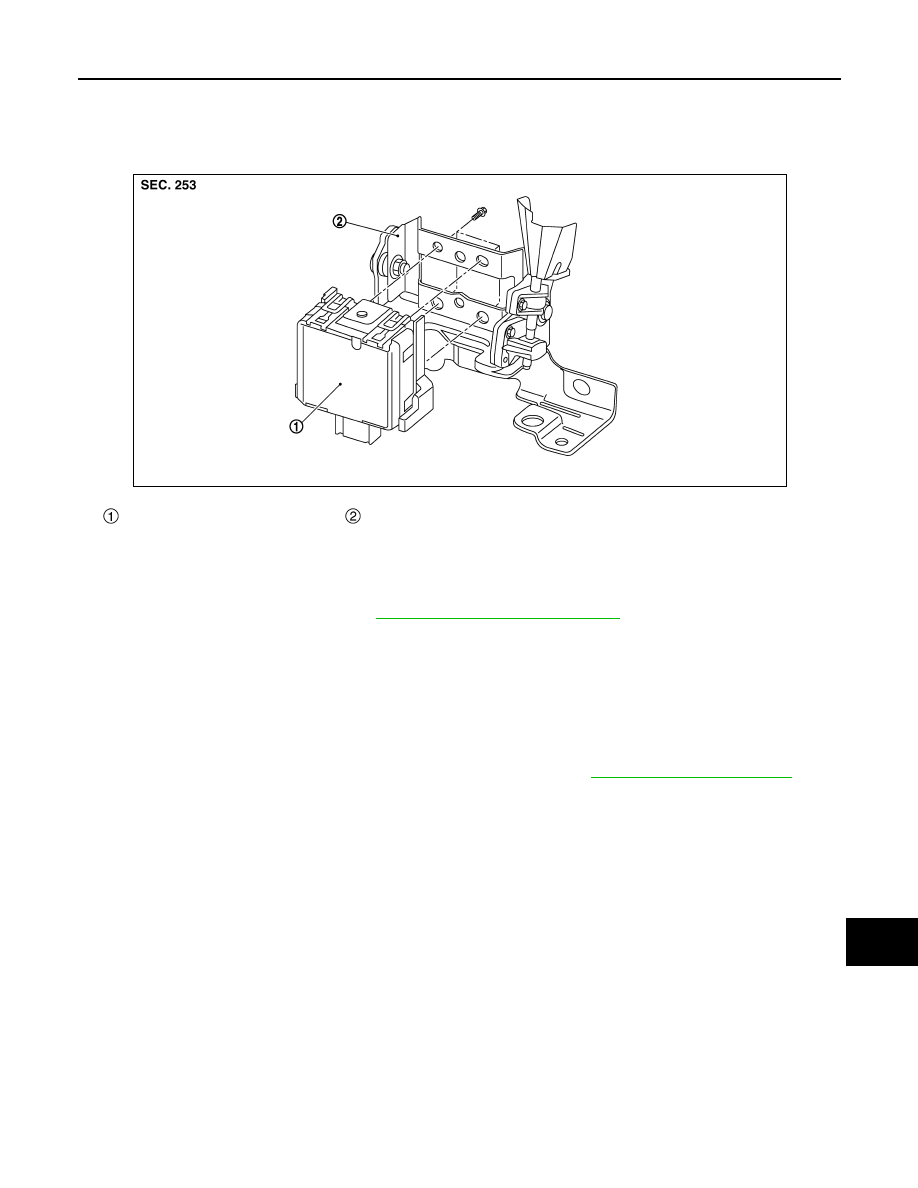

Distance sensor

Distance sensor bracket

JMOIA0059ZZ

DAS-204

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

BSW INDICATOR

BSW INDICATOR

Removal and Installation

INFOID:0000000010416948

REMOVAL

1.

Remove door mirror corner finisher. Refer to

MIR-31, "Removal and Installation"

.

2.

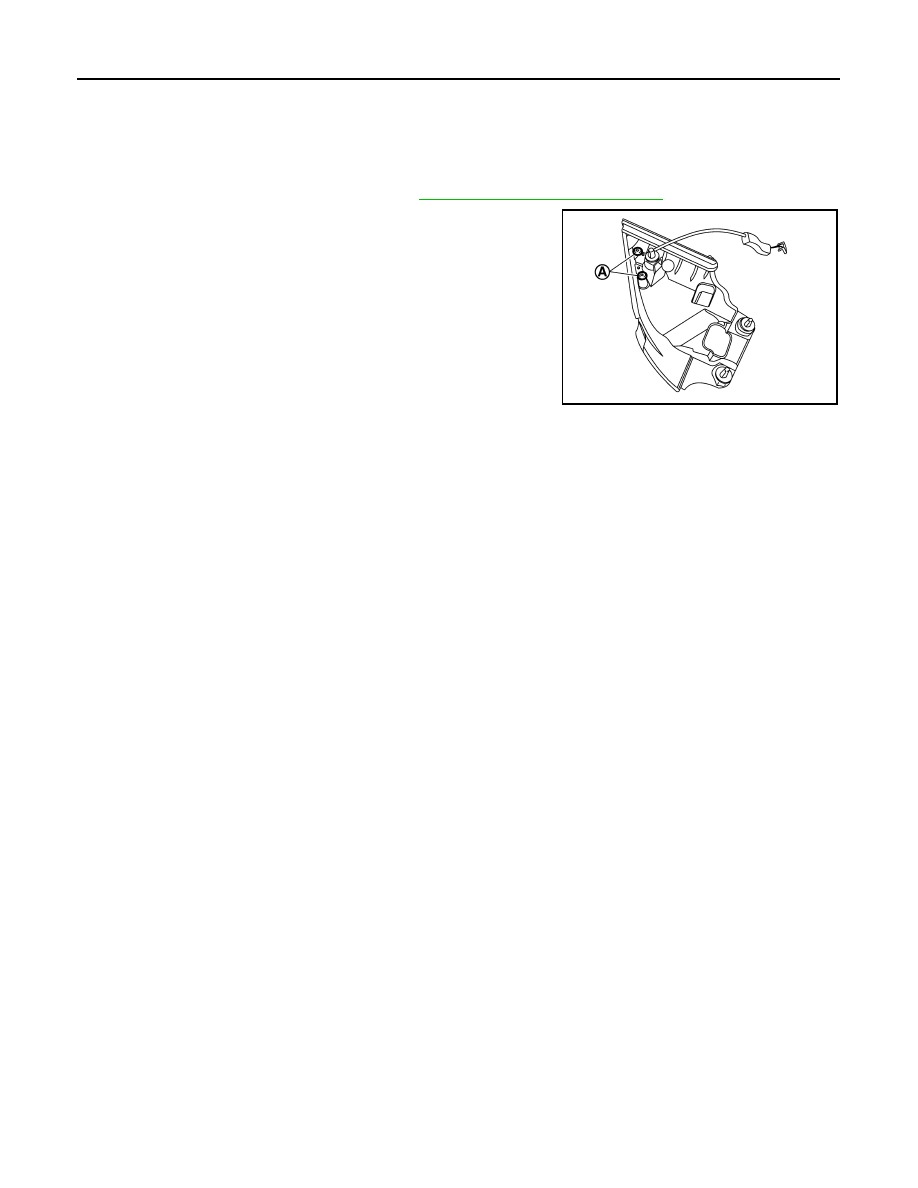

Remove BSW indicator mounting screws (A), and then remove
BSW indicator from door mirror corner finisher.

INSTALLATION

Installation is in the reverse order of removal.

JSOIA1395ZZ

DAS

WARNING SYSTEMS BUZZER

DAS-205

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

WARNING SYSTEMS BUZZER

Exploded View

INFOID:0000000010416952

Removal and Installation

INFOID:0000000010416953

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect warning systems buzzer connector.

3.

Remove warning systems buzzer from bracket on the back of the instrument lower panel LH.

INSTALLATION

Installation is in the reverse order of removal.

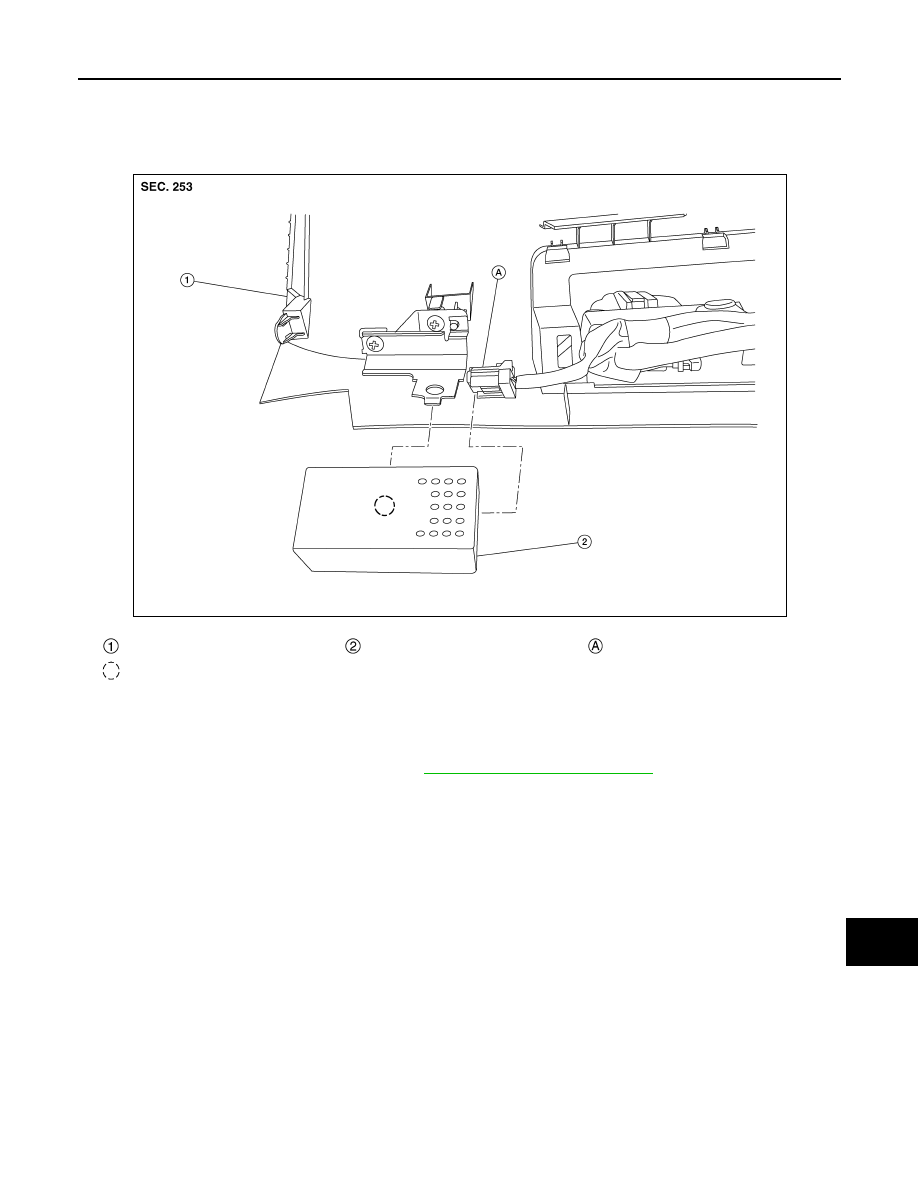

Instrument lower panel LH

Warning systems buzzer

Warning systems buzzer connector

Pawl

AWOIA0075ZZ
