DAS-198

< SYMPTOM DIAGNOSIS >

[DRIVER ASSISTANCE SYSTEM]

SYSTEM SETTINGS CANNOT BE TURNED ON/OFF IN VEHICLE INFORMATION

DISPLAY

SYSTEM SETTINGS CANNOT BE TURNED ON/OFF IN VEHICLE INFOR-
MATION DISPLAY

Description

INFOID:0000000010416938

The system setting cannot be turned ON/OFF in the combination meter information display using the steering
switch.

Diagnosis Procedure

INFOID:0000000010416939

1.

CHECK DRIVER ASSISTNCE SYSTEM SETTING

1.

Ignition On.

2.

Check that the driver assistance system setting can be turned ON/OFF in the combination meter informa-
tion display using the steering switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> GO TO 2.

2.

CHECK STEERING SWITCH CIRCUIT

Check the steering switch. Refer to

MWI-71, "Diagnosis Procedure"

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connector.

3.

CHECK STEERING SWITCH RESISTANCE

Check the steering switch resistance. Refer to

MWI-71, "Component Inspection"

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-80, "Removal and Installation"

.

NO

>> Replace steering switch. Refer to

AV-261, "Removal and Installation"

.

DAS

NORMAL OPERATING CONDITION

DAS-199

< SYMPTOM DIAGNOSIS >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

NORMAL OPERATING CONDITION

Description

INFOID:0000000010416942

PRECAUTIONS FOR LANE DEPARTURE WARNING (LDW)

CAUTION:

• The LDW system is only a warning device to inform the driver of a potential unintended lane depar-

ture. It will not steer the vehicle or prevent loss of control. It is the driver’s responsibility to stay
alert, drive safely, keep the vehicle in the traveling lane, and be in control of the vehicle at all times.

• The rear view camera may not detect properly under the following conditions:
- When towing a trailer.
- When strong light enters the rear view camera. (For example, direct sunlight or headlight from the

rear)

- When ambient brightness changes instantly. (For example, when the vehicle enters or exits a tunnel

or passes under a bridge.)

• Automatic washer and blower may not be able to secure detection capability when excessive dirt

adheres on the camera lens.

• LDW system may not function properly under the following conditions:
• Excessive noise (e.g. audio system volume, open vehicle window) will interfere with the chime

sound, and it may not be heard.

• The rear view camera may not be able to detect properly under the following conditions:
- On roads where there are multiple parallel lane markers; lane markers that are faded or not painted

clearly; yellow painted lane markers; non-standard lane markers; or lane markers covered with
water, dirt, snow, etc.

- On roads where the discontinued lane markers are still detectable.
- On roads where there are sharply contrasting objects, such as shadows, snow, water, wheel ruts,

seams or lines remaining after road repairs. (The LDW system could detect these items as lane
markers.)

- On roads where the traveling lane merges or separates.
- When the vehicle

s traveling direction does not align with the lane marker.

- When the road surface is very dark due to scarce ambient light or impaired tail lamp.
• When driving on curved road, warning will be late on the outside of the curve due to the nature of the

system.

PRECAUTIONS FOR BLIND SPOT WARNING (BSW)

CAUTION:

• The BSW system is not a replacement for proper driving procedure and is not designed to prevent

contact with vehicles or objects. When changing lanes, always use the side and rear mirrors and
turn and look in the direction you will move to ensure it is safe to change lanes. Never rely solely on
the BSW system.

• The rear camera may not detect properly under the following conditions:
- When towing a trailer.
- When strong light enters the rear camera. (For example, direct sunlight or headlight from the rear)
- When ambient brightness changes instantly. (For example, when the vehicle enters or exits a tunnel

or passes under a bridge.)

• Automatic washer and blower may not be able to secure detection capability when excessive dirt

adheres on the camera lens.

• The camera unit may not be able to detect when certain objects are present such as:
- Pedestrians, bicycles, animals
- Several types of vehicles such as motorcycles
- Oncoming vehicles
- A vehicle approaching rapidly from behind.
- A vehicle which your vehicle overtakes rapidly.
• The rear camera may not be able to detect property when your vehicle travels beside the middle sec-

tion of a vehicle with long wheelbase(e.g. trailer truck, semi-trailer, tractor).

• The rear camera detection zone is designed based on a standard lane width. When driving in a wider

lane, the camera unit may not detect vehicles in an adjacent lane. When driving in a narrow lane, the
camera unit may detect vehicles driving two lanes away.

DAS-200

< SYMPTOM DIAGNOSIS >

[DRIVER ASSISTANCE SYSTEM]

NORMAL OPERATING CONDITION

• The rear camera is designed to ignore most stationary objects, however objects such as guardrails,

walls, foliage and parked vehicles may occasionally be detected. This is a normal operating condi-
tion.

• The rear camera may detect reflection image of vehicles or roadside objects that are not actually in

the detection zone, especially when the road is wet.

PRECAUTIONS FOR MOVING OBJECT DETECTION

CAUTION:

• The Moving Object Detection system is not a replacement for proper driving procedure and is not

designed to prevent contact with vehicles or objects. When backing up. always look in the direction
driver will move to ensure it is safe to proceed. Never rely solely on the Moving Object Detection
system.

• Using the Moving Object Detection system under some road or weather condition could lead to

improper system operation. Always rely on driver’s own steering and braking operation to avoid
accidents.

• The Moving Object Detection system may not provide a warning for vehicles that pass through the

detection zone quickly.

• Do not use the Moving Object Detection system when towing a trailer.
• Excessive noise (e.g., audio system volume, open vehicle window) will interfere with the chime

sound, and it may not be heard.

- Pedestrians, bicycles, animals.
- A vehicle passing at a speed greater than approximately 24km/h (15 MPH).
• A rear view camera may not detect approaching vehicles in certain situations:
- When the vehicle parked aside obstruct the beam of the rear view camera.
- When the vehicle is parked in an angled parking space.
- When the vehicle is parked on an inclined ground.
- When the vehicle turns around into your vehicle’s aisle.
- When the angle formed by your vehicle and approaching vehicle is small.
• Severe weather or road spray conditions may reduce the ability of the radar to detect other vehicles.
• The rear view camera system may not detect:
- Small or moving object.
- Wedge-shaped objects.
- Object closer to the bumper than 30 cm (10 inch).
- Thin objects such as rope, wire, chain, etc.
• Do not use the MOD system under the following conditions because the system may not function

properly:

- When driving with a tire that is not the within normal tire condition (example: tire wear, low pressure,

spare tire, chain, non-standard wheels).

- When the vehicle is equipped with non-original brake parts or suspension parts.

PRECAUTIONS FOR DRIVER ATTENTION ALERT

CAUTION:

This is not a system to assist driving while tired. Driving while tired may lead to a serious accident. Be
sure to have sufficient rest before driving, and drive safely.

PRECAUTIONS FOR TRAFFIC SIGN RECOGNITION

CAUTION:

• There are limitations to the do not enter sign detection function. Be careful to observe traffic signs,

etc. and drive safely.

• Detection may not be possible depending on the vehicle status, driving conditions, traffic environ-

ment, weather conditions, and the condition of the sign.

• Under conditions such as the following, detection of do not enter sign is delayed and detection may

not be possible.

- A portion of the sign is hidden and obscured by a tree, dirt, etc.
- The shape of the sign is changed due to the sign being bent, etc.
- The do not enter sign is around a corner or on a curve.
- The vehicle is traveling at a fast speed.
• Depending on certain conditions, it may not be possible to hear the warning sound due to outside

noises.

DAS

FRONT CAMERA UNIT

DAS-201

< REMOVAL AND INSTALLATION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

REMOVAL AND INSTALLATION

FRONT CAMERA UNIT

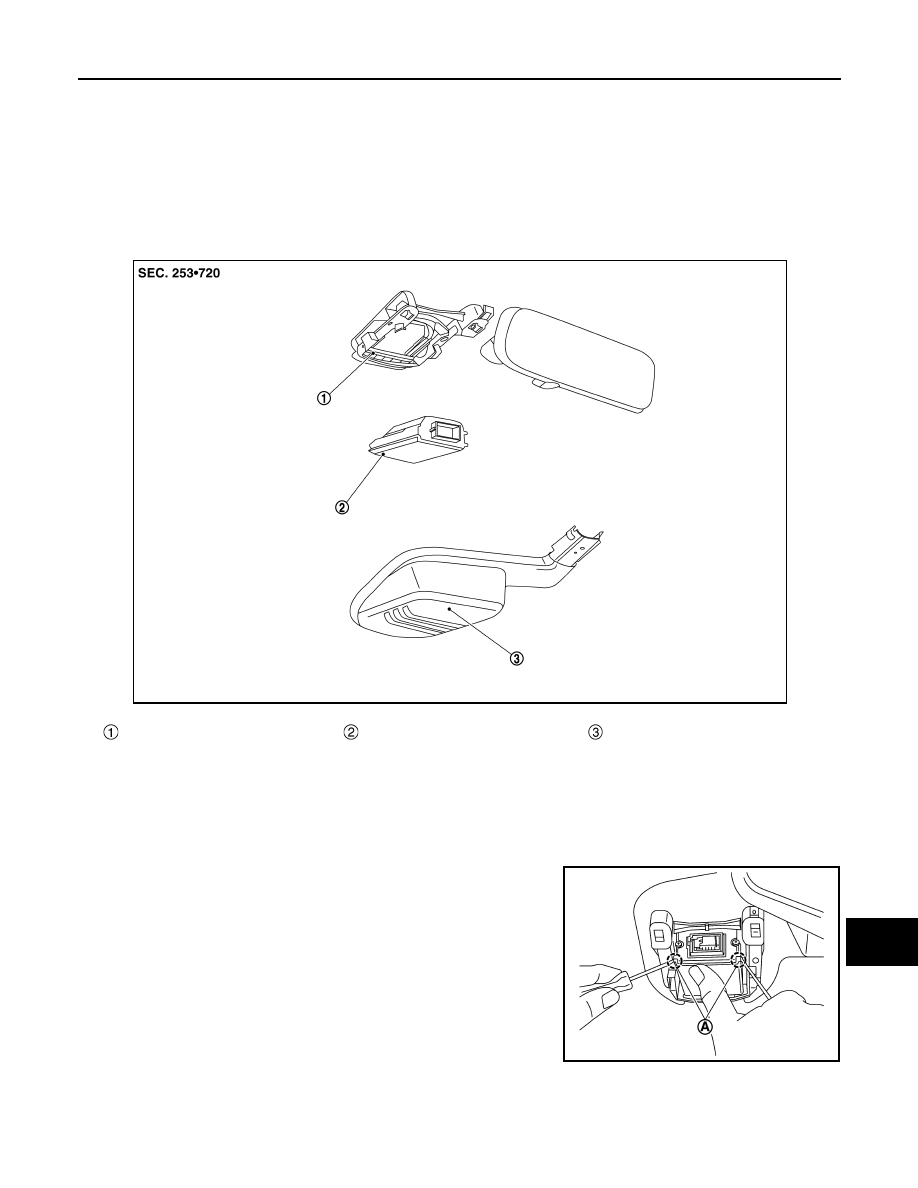

Exploded View

INFOID:0000000010416943

CAUTION:

• Never remove front camera unit bracket from windshield glass.
• The front camera unit bracket must be replaced together with windshield glass as an assembly.

Removal and Installation

INFOID:0000000010416944

REMOVAL

1.

Remove front camera unit cover.

2.

Disconnect front camera unit connector.

3.

Release front camera unit fixing pawls (A) using removal tool,
and then remove front camera unit from front camera unit
bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Never give an impact to the front camera unit.

Front camera unit bracket

Front camera unit

Front camera unit cover

JSOIA1358ZZ

JSOIA1359ZZ
