Nissan Qashqai J11. Manual - part 2118

AV

NAVIGATION SYSTEM

AV-161

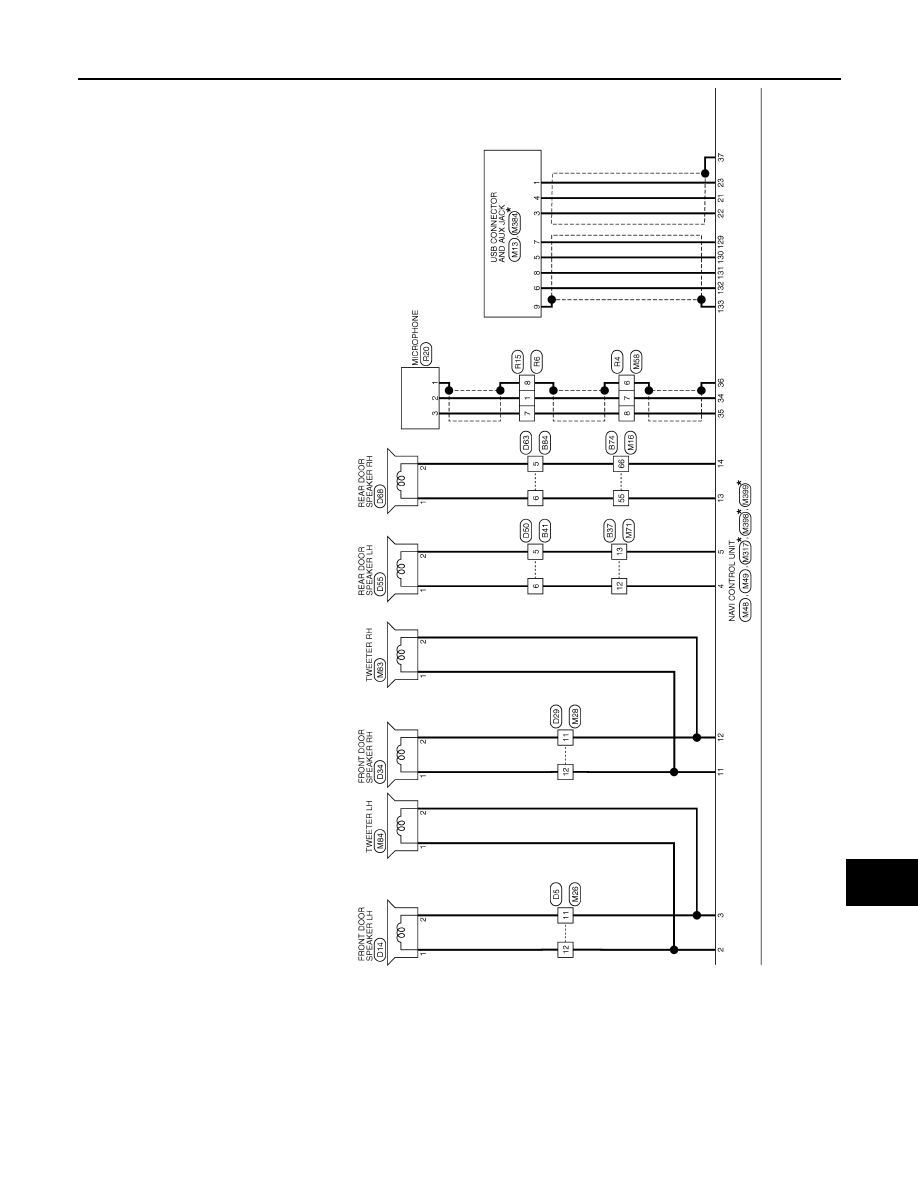

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWD1351GB

AV-162

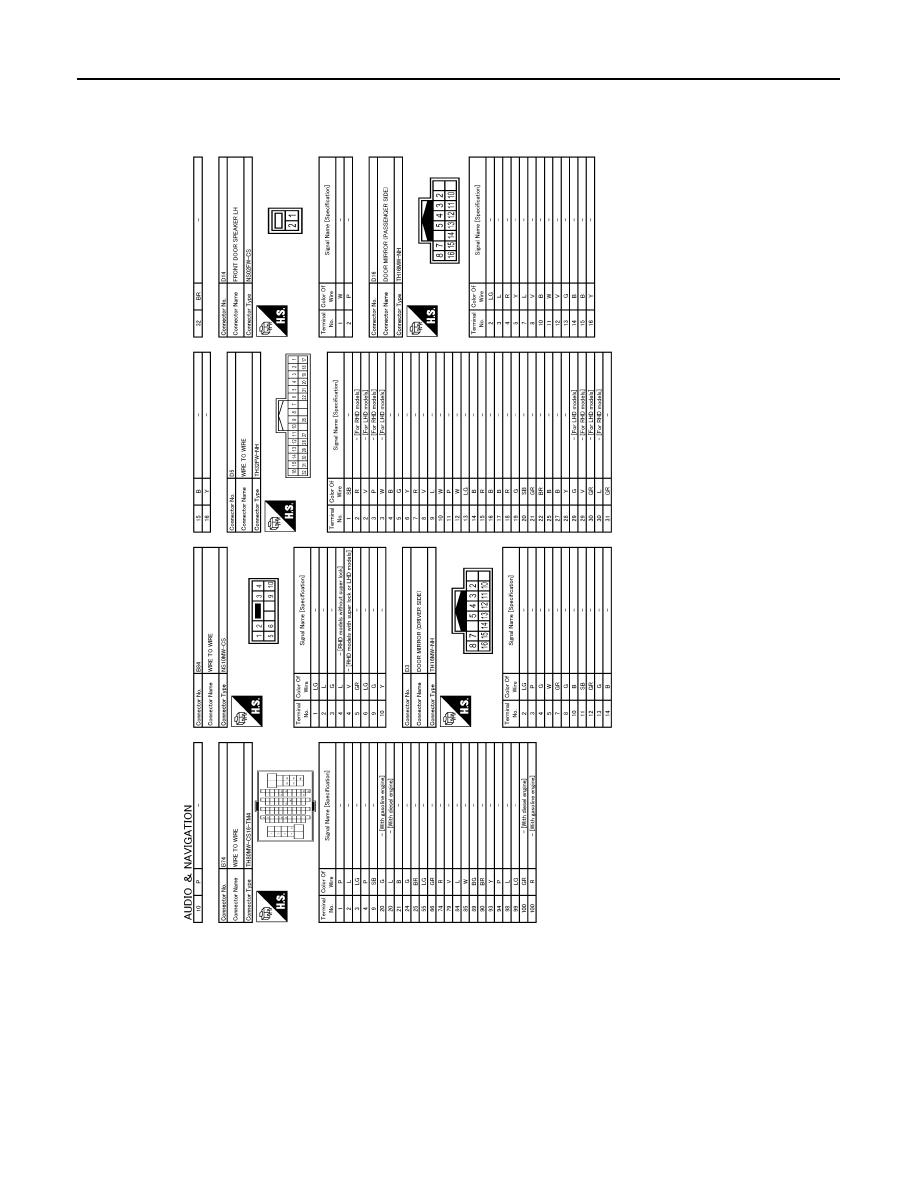

< WIRING DIAGRAM >

[NAVIGATION]

NAVIGATION SYSTEM

JRNWD1352GB

AV

NAVIGATION SYSTEM

AV-163

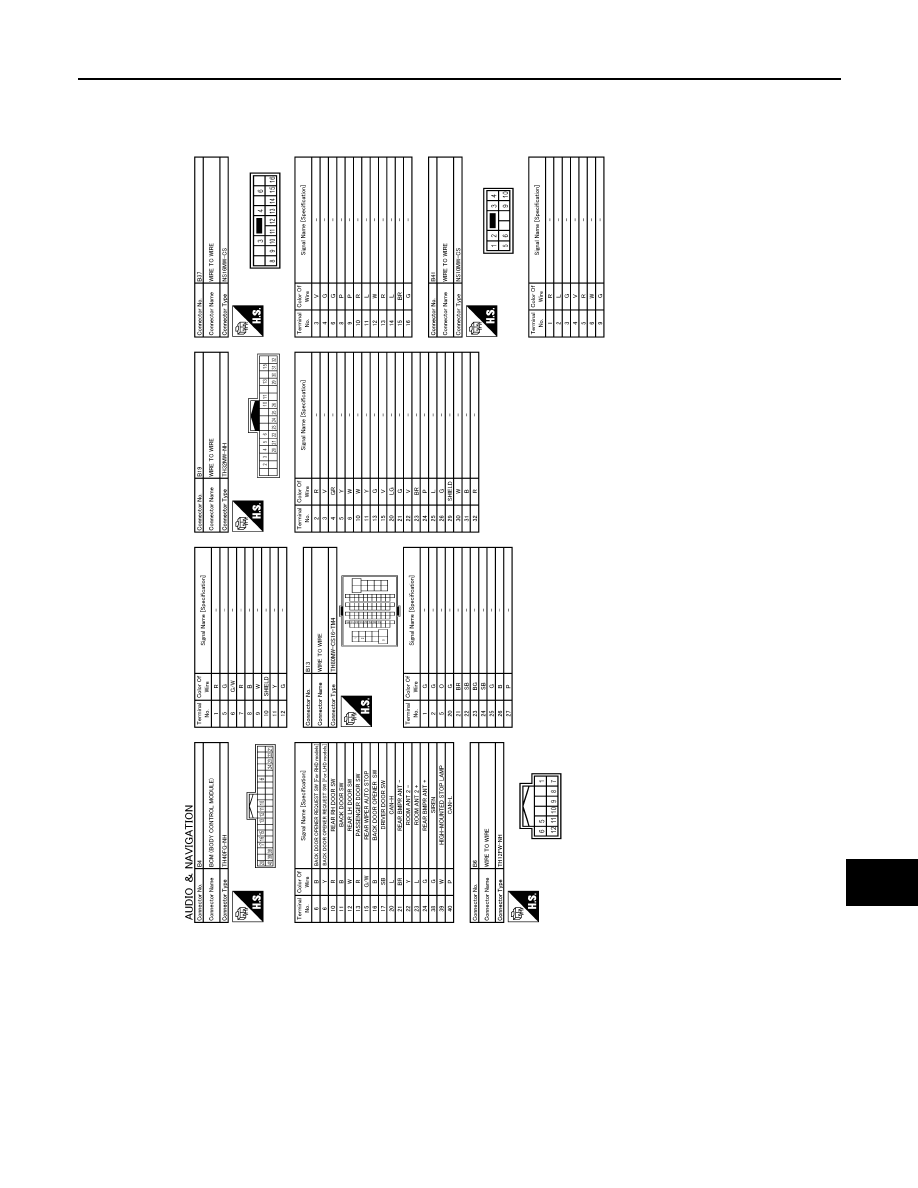

< WIRING DIAGRAM >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWD1433GB

AV-164

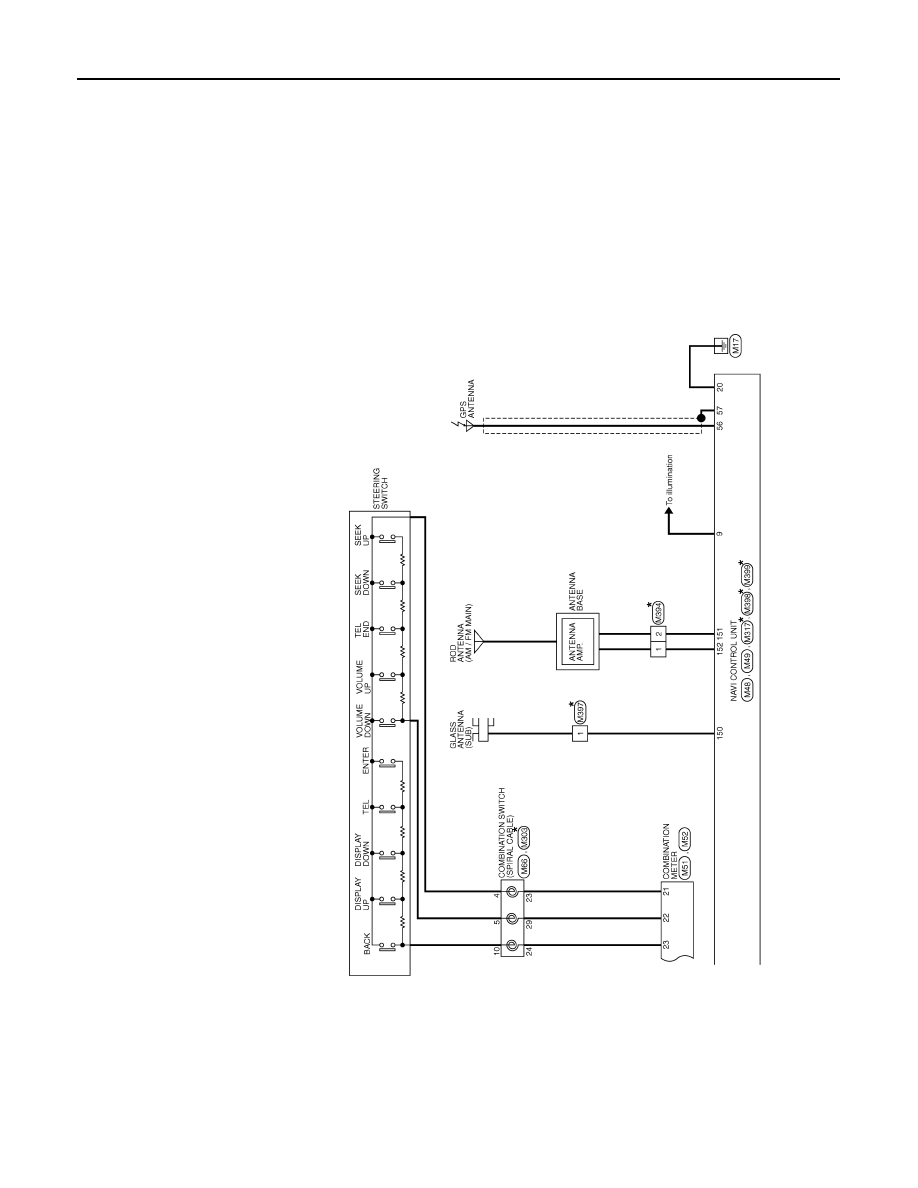

< WIRING DIAGRAM >

[NAVIGATION]

NAVIGATION SYSTEM

JRNWD1434GB
