AV

SYSTEM

AV-137

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• AV control unit outputs to cellular phone with Bluetooth

®

 communication as a TEL voice signal.

• Voice sound is then heard at the other party.

When Receiving A Call

• Voice sound is input to own cellular phone from the other party.
• TEL voice signal is input to AV control unit by establishing Bluetooth

®

 communication from cellular phone,

and the signal is output to front speakers.

AROUND VIEW MONITOR FUNCTION

• This system is equipped with wide-angle cameras on the front, rear and right and left door mirrors.
• Images from front view, rear view, front-side view (RH side), and birds-eye view are displayed to monitor the

vehicle surroundings.

• Around view monitor control unit expands the image received from each camera to create each view.
• In front view and rear view, the vehicle width, distance lines and predictive course lines are displayed.
• In front-side view, the vehicle distance guiding line and vehicle width guiding line are displayed.
• Birds-eye view converts the images from the cameras into an overhead view and displays the status of the

vehicle on the display. The vehicle icon that is displayed in the birds-eye view is depicted by the around view
monitor control unit.

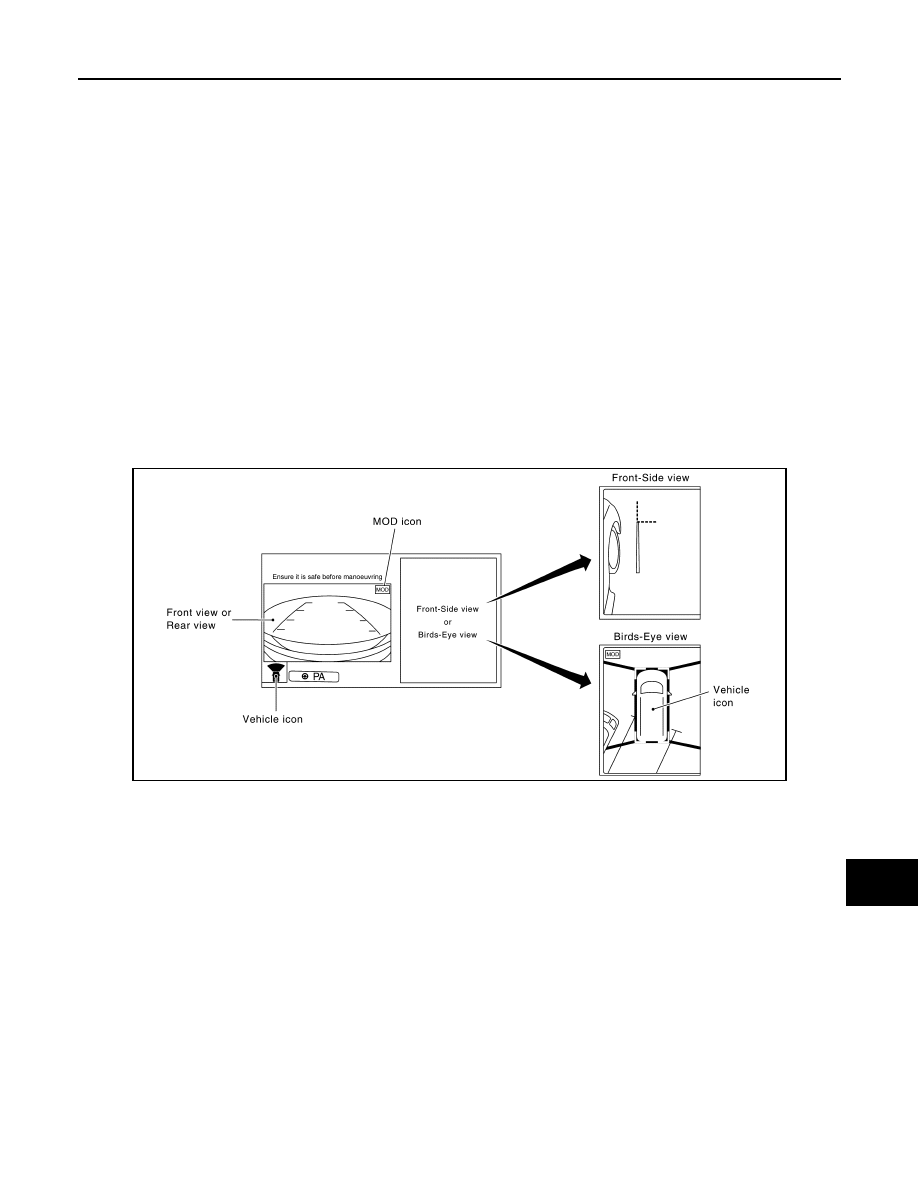

Display

The around view monitor combines and displays travel direction view (front or rear), front-side view and birds-
eye view.

Operation

• The around view monitor operates by pressing the CAMERA switch on the AV control unit or by shifting the

selector lever to the R (reverse) position.

• When the selector lever is in any position other than R (reverse) and the CAMERA switch is pressed, the

screen displays front travel direction view and birds-eye view. Pressing the CAMERA switch again changes
birds-eye view to front-side view

• When the selector lever is placed in R (reverse), the screen displays rear travel direction view and birds-eye

view. Pressing the CAMERA switch changes birds-eye view to front-side view

• In birds-eye view, the blind spot area is displayed in black to show the border of the camera images. In addi-

tion, red fixed lines are displayed in the 4 corners of the vehicle icon. After pressing the CAMERA switch for
the first time or placing the selector lever in R (reverse) for the first time, the blind spot area is highlighted in
yellow for 3 seconds and the red fixed lines blink five times.

• With the selector lever in any position other than R (reverse), the around view monitor screen display is can-

celled 3 minutes after pressing the CAMERA switch. The screen returns to the AV control unit display.

• With the selector lever in R (reverse) position, the around view monitor screen display remains on con-

stantly. To return to the AV control unit display, place the selector lever is in any position other than R
(reverse).

• If camera image calibration is incomplete, the applicable camera position is indicated as an error on the

birds-eye view display.
NOTE:

JSNIA7214GB

AV-138

< SYSTEM DESCRIPTION >

[NAVIGATION]

SYSTEM

Calibration is necessary when replacing each camera or when replacing around view monitor control unit.

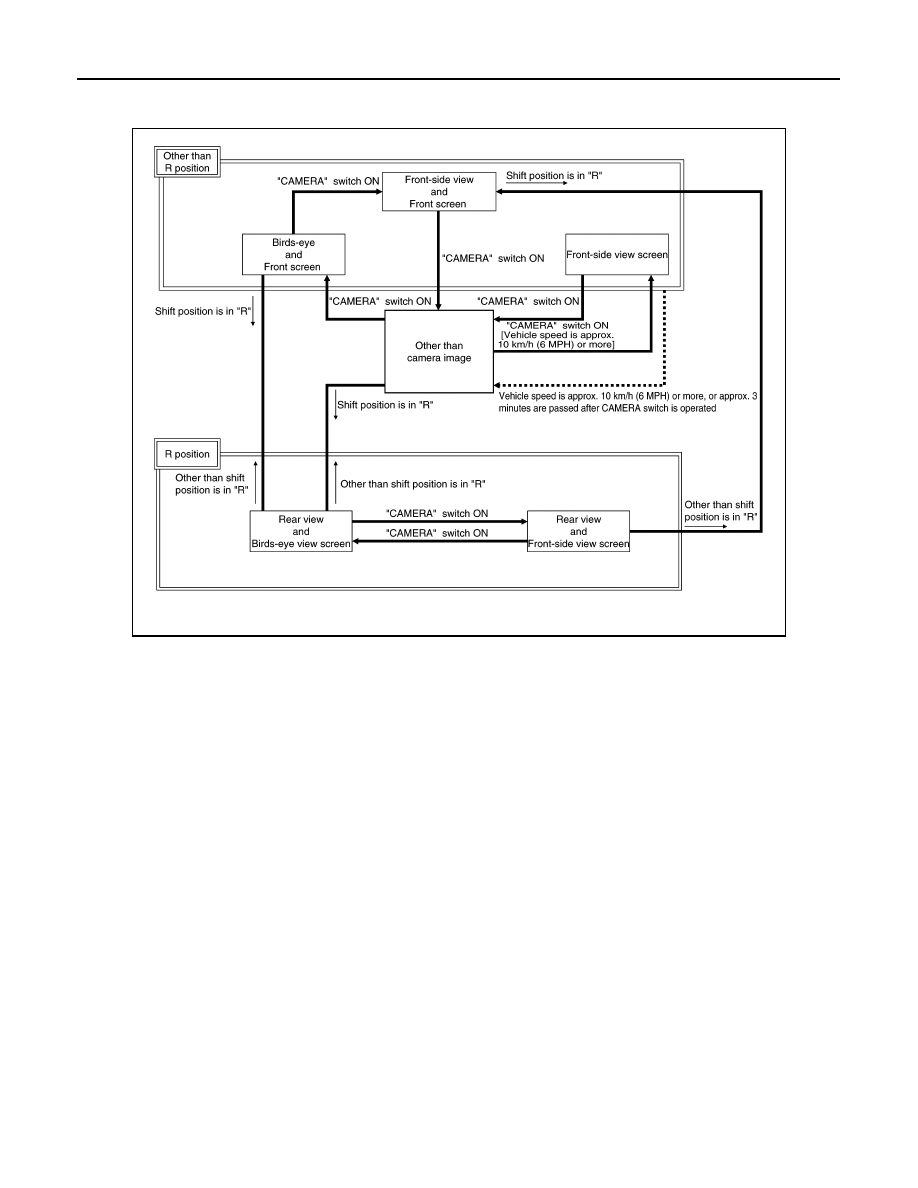

Around view monitor screen transition

Front View

• The front view image improves the visibility of obstacles in front of the vehicle and assists driving by display-

ing images from birds-eye view and front-side view.

• The front view image displays the vehicle width guiding line and vehicle distance guiding line, in addition to

the predictive course line according to the steering angle.

• If the steering angle is within approximately 90 degrees, the predictive course lines on the left/right side are

displayed. If the steering angle exceeds approximately 90 degrees, only the predictive course line on the
outside is displayed (opposite side of steering direction).

• The around view monitor control unit receives the steering angle signal from steering angle sensor via CAN

communication, and controls the direction and distance of the predictive course line.

• ON/OFF setting of predictive course line can be performed using CONSULT.

JSNIA7215GB

AV

SYSTEM

AV-139

< SYSTEM DESCRIPTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

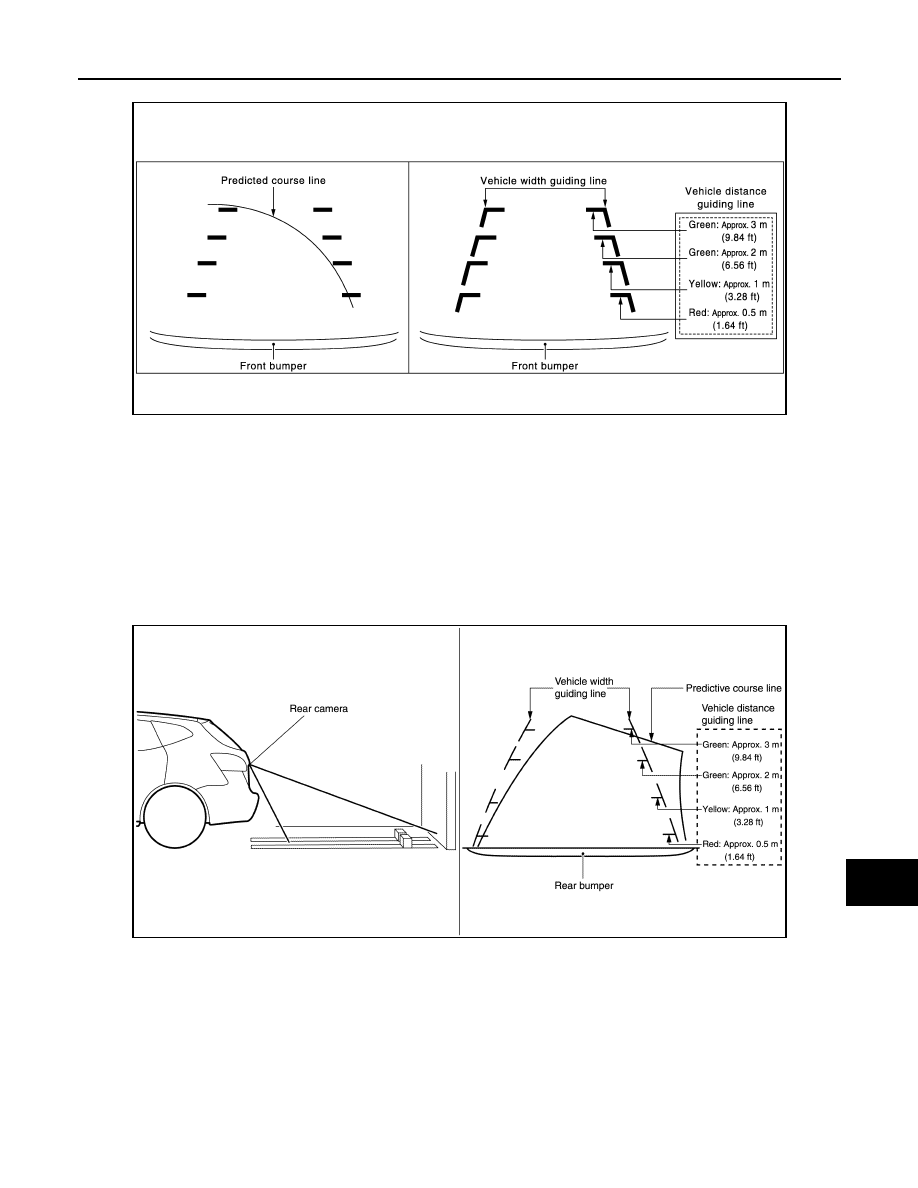

Front view guiding lines

Rear View

• The rear view image improves the visibility of obstacles in the rear of the vehicle and assists backing and

parking by displaying images from birds-eye view and front side view.

• The rear view image displays the vehicle width guiding line and vehicle distance guiding line, in addition to

the predictive course line according to the steering angle.
NOTE:
The predictive course line is not displayed at the steering neutral position.

• The around view monitor control unit receives the steering angle signal from steering angle sensor via CAN

communication, and controls the direction and distance of the predictive course line.

• ON/OFF setting of predictive course line can be performed using CONSULT.

Rear view guiding lines

Front-Side View

• The front-side view image improves the visibility of obstacles in the front RH side of the vehicle and assists

backing and parking.

• The front-side view image displays the vehicle distance guiding line and vehicle width guiding line.

JSNIA0770GB

JSNIA4567GB

AV-140

< SYSTEM DESCRIPTION >

[NAVIGATION]

SYSTEM

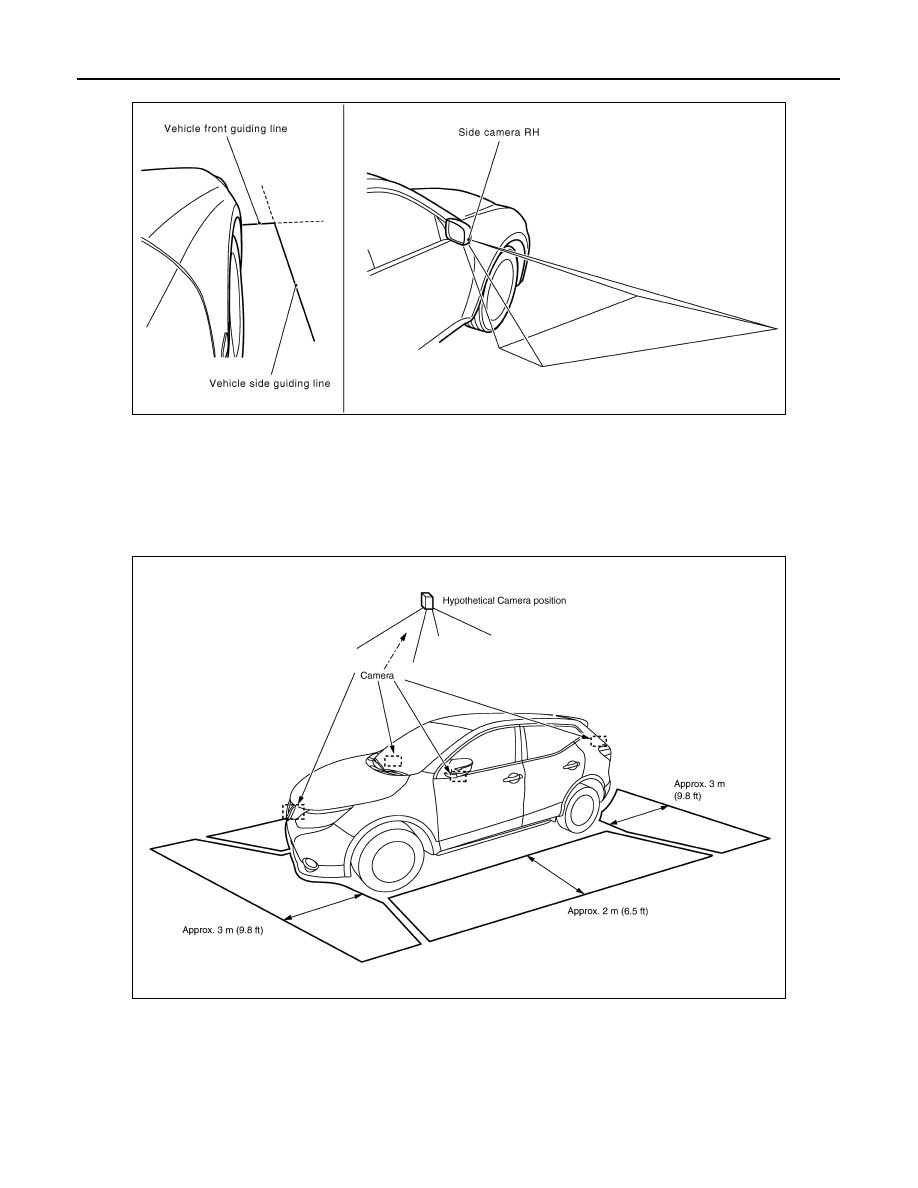

Front-side view area and guiding line

Birds-Eye View

• The birds-eye view image improves the visibility of obstacles all around the vehicle and assists backing and

parking.

• The images from the four cameras are converted into an overhead view, and the surroundings of the vehicle

are displayed.

• The blind spot area is displayed on the image to specify the boundary of the four cameras.

Birds-Eye view display image

JSNIA0771GB

E1NIA0076GB
