< SYSTEM DESCRIPTION >

[WITH PARKING SPACE MEASUREMENT]

SYSTEM

SYSTEM

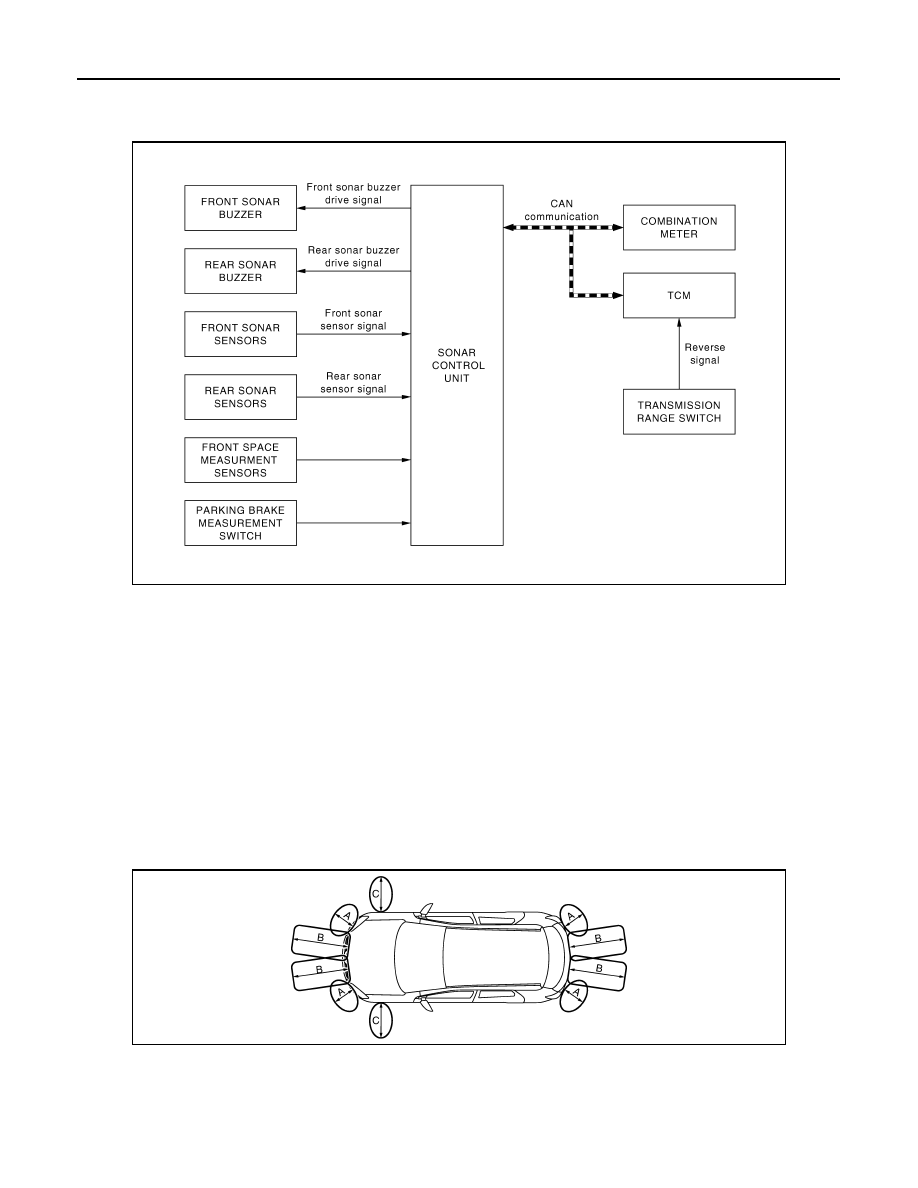

System Diagram

INFOID:0000000010478022

System Description

INFOID:0000000010478023

• The sonar sensor installed to the rear bumper detects obstacles around the bumper.
• The distance between a bumper and obstacles is informed to the driver with different frequency of buzzer.

Activation condition

The rear sensor activates and outputs the warning buzzer in the following conditions.
• Reverse signal ON (Power supply)
• Obstacle detection

Obstacle detection distance

• The sonar control unit controls the obstacle detection distance. The detection distance differs between the

corner sensor and the center sensor.

• Obstacle detection distance is indicated by a variable beep frequency.

Obstacle detection range image

NOTE:

• When an obstacle and distance of a bumper approach to less than 30 cm (11.8 in), a buzzer sound becomes a continuous sounds.

E1FIA0097GB

E1NIA0094ZZ

A.

Approx. 60 cm (23.6 in)

B.

Approx. 180 cm (70.9 in)

C.

Space measurement sensors Ap-
prox. 45 cm (17.7 in) (if equipped)

SN

SYSTEM

SN-59

< SYSTEM DESCRIPTION >

[WITH PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

• The nearest sensor from the detected obstacle applies the buzzer output frequency if plural sensors detect any obstacle simulta-

neously.

SN-60

< SYSTEM DESCRIPTION >

[WITH PARKING SPACE MEASUREMENT]

DIAGNOSIS SYSTEM (SONAR CONTROL UNIT)

DIAGNOSIS SYSTEM (SONAR CONTROL UNIT)

CONSULT Function

INFOID:0000000010478024

APPLICATION ITEMS

CONSULT can display each diagnostic item using the diagnostic test modes shown as follows:

ECU IDENTIFICATION

Displays the part number of sonar control unit.

SELF-DIAGNOSTIC RESULTS

For details, refer to

SN-65, "DTC Index"

.

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

Direct Diagnostic Mode

Description

Ecu Identification

The sonar control unit part number is displayed.

Self Diagnostic Result

The sonar control unit self diagnostic results are displayed.

Data Monitor

The sonar control unit input/output data is displayed in real time.

Active Test

The sonar control unit activates outputs to test components.

Work support

The settings for sonar control unit functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing sonar control unit.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

Monitor Item

Description

VEHICLE SPEED [mph/km/h]

Indicates vehicle speed signal received from combination meter on CAN communication line.

SONAR C/U POWER SUPPLY [V]

Indicates condition of supply voltage signal to sonar control unit.

SENSOR VOLTAGE [V]

Indicates condition of voltage signal to sonar sensors.

DETECTION MODE [Mode 1/Mode 2]

Indicates condition of display detection mode.

SONAR TEMPORARY OFF [Yes/No]

Indicates condition of sonar system.

SONAR PERMANENT OFF [Yes/No]

Indicates condition of sonar system.

P N RANGE [On/Off]

Indicates condition of selector lever P (park) or N (neutral) position.

REVERSE RANGE [On/Off]

Indicates condition of transmission range switch R (reverse) position.

SHRT DST FRM RR SENS [cm/in]

Indicates distance to obstacle.

SHRT DST FRM FR SENS [cm/in]

COR[RL] [cm/in]

COR[RR] [cm/in]

COR[FL] [cm/in]

COR[FR] [cm/in]

RVRB TIME COR[RL] [ms/sec]

RVRB TIME COR[RR] [ms/sec]

RVRB TIME COR[FL] [ms/sec]

RVRB TIME COR[FR] [ms/sec]

Test Item

Description

FRONT BUZZER

This test is able to check front buzzer operation [On/Off].

REAR BUZZER

This test is able to check rear buzzer operation [On/Off].

SN

DIAGNOSIS SYSTEM (SONAR CONTROL UNIT)

SN-61

< SYSTEM DESCRIPTION >

[WITH PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CONFIGURATION

Refer to

SN-78, "CONFIGURATION (SONAR CONTROL UNIT) : Description"

.

CAN DIAG SUPPORT MNTR

Refer to

SN-65, "DTC Index"

.

Support Item

Setting

Description

VOLUME SETTING

Vol.1

Allows you to set volume of warning tone.

Low

Vol.3

Middle

Vol.5

High

Off

TRAILER HITCH DETECTION
RANGE ADJUSTMENT

Qu

Allows you to adjust rear sonar sensors for trailer towing.

UP

DOWN

Qd
