SN-50

< REMOVAL AND INSTALLATION >

[WITHOUT PARKING SPACE MEASUREMENT]

SONAR CONTROL UNIT

SONAR CONTROL UNIT

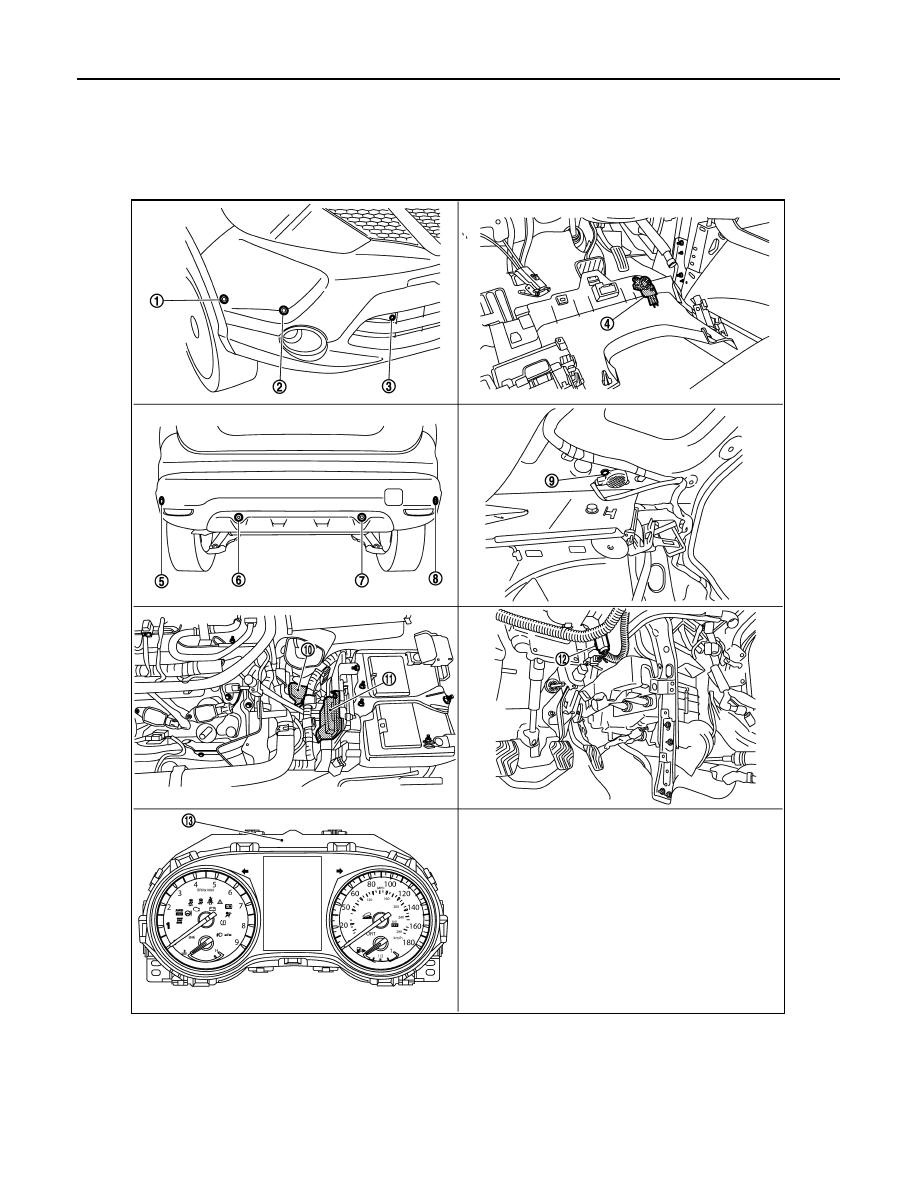

Exploded View

INFOID:0000000010478777

E1NIA0092ZZ

1.

Front Space measurement sensor LH

*

2.

Front sonar outer sensor LH

3.

Front sonar inner sensor LH

4.

Front sonar buzzer (view of back side
of instrument lower panel LH)

5.

Rear sonar outer sensor RH

6.

Rear sonar inner sensor RH

7.

Rear sonar inner sensor LH

8.

Rear sonar outer sensor LH

9.

Rear sonar buzzer (view with parcel
shelf removed)

SN

SONAR CONTROL UNIT

SN-51

< REMOVAL AND INSTALLATION >

[WITHOUT PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

*: Only for models with Parking Space Measurement sensors

Removal and Installation

INFOID:0000000010478778

REMOVAL

1.

Remove the instrument lower panel LH. Refer to

IP-12, "Exploded View"

.

2.

Check the location of the Sonar Control Unit. Refer to

SN-6, "Component Parts Location"

.

3.

Disconnect the harness connector  from the Sonar Control Unit.

4.

Remove the screw from the sonar control unit and remove.

INSTALLATION

Installation is in the reverse order of removal.

10.

Transmission range switch (view with
front air duct removed)

11.

TCM (view with front air duct removed) 12.

Sonar control unit (view with instru-
ment lower panel LH removed)

13.

Combination meter

SN-52

< REMOVAL AND INSTALLATION >

[WITHOUT PARKING SPACE MEASUREMENT]

BUZZER

BUZZER

BUZZER

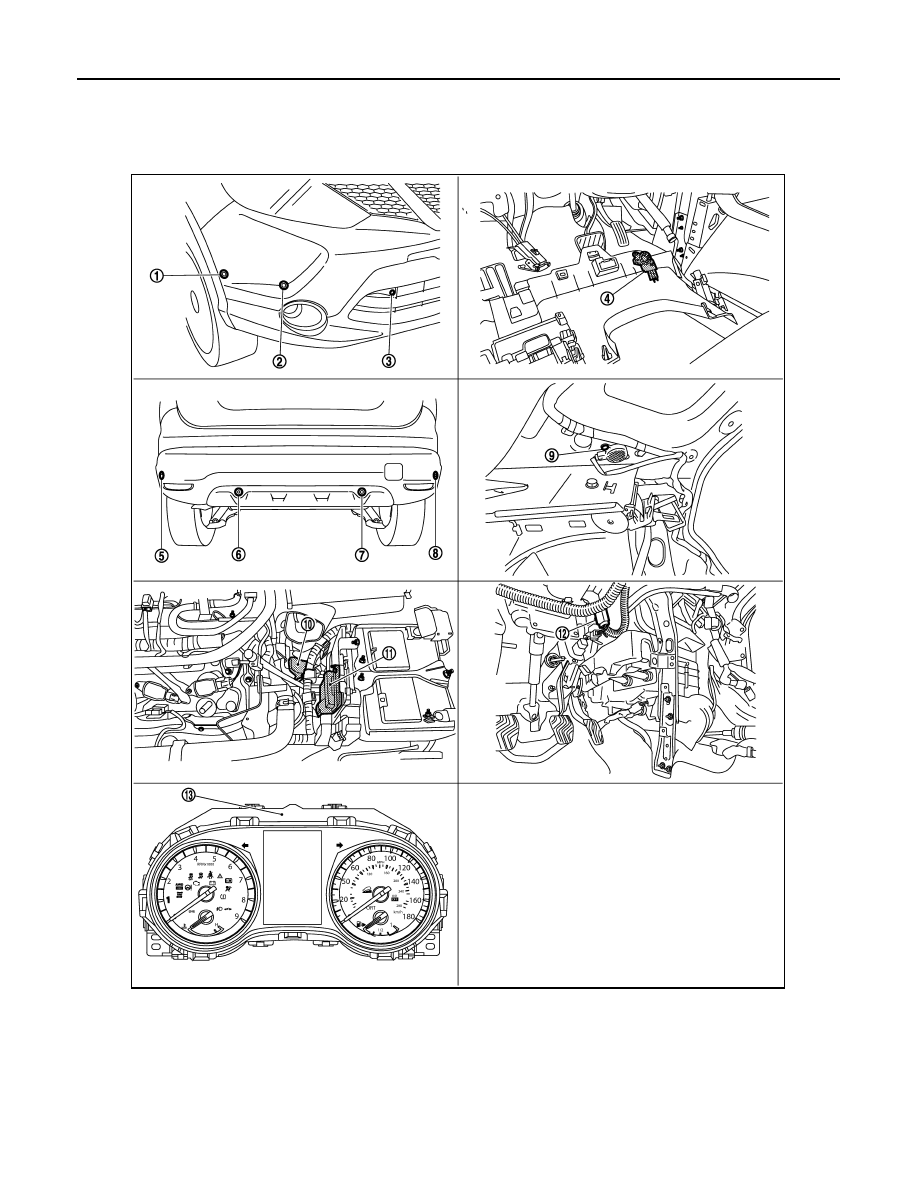

BUZZER : Exploded View

INFOID:0000000010478779

E1NIA0092ZZ

1.

Front Space measurement sensor LH

*

2.

Front sonar outer sensor LH

3.

Front sonar inner sensor LH

4.

Front sonar buzzer (view of back side
of instrument lower panel LH)

5.

Rear sonar outer sensor RH

6.

Rear sonar inner sensor RH

7.

Rear sonar inner sensor LH

8.

Rear sonar outer sensor LH

9.

Rear sonar buzzer (view with parcel
shelf removed)

SN

BUZZER

SN-53

< REMOVAL AND INSTALLATION >

[WITHOUT PARKING SPACE MEASUREMENT]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

*: Only for models with Parking Space Measurement sensors

BUZZER : Removal and Installation - Front

INFOID:0000000010478780

REMOVAL

1.

Remove the instrument lower panel LH. Refer to

IP-12, "Exploded View"

.

2.

Check the location of the Front Buzzer. Refer to

SN-52, "BUZZER : Exploded View"

.

3.

Remove the screw from the Front Buzzer and remove.

INSTALLATION

Installation is in the reverse order or removal.

BUZZER : Removal and Installation - Rear

INFOID:0000000010478781

REMOVAL

1.

Remove the rear parcel shelf finisher. Refer to

INT-29, "Luggage side trim"

.

2.

Check the location of the Rear Buzzer. Refer to

SN-52, "BUZZER : Exploded View"

3.

Disconnect the harness connector from the rear buzzer.

4.

Remove the clips and the rear buzzer.

INSTALLATION

Installation is in the reverse order of removal.

10.

Transmission range switch (view with
front air duct removed)

11.

TCM (view with front air duct removed) 12.

Sonar control unit (view with instru-
ment lower panel LH removed)

13.

Combination meter
