Nissan Qashqai J11. Manual - part 2038





MWI-88

< UNIT DISASSEMBLY AND ASSEMBLY >

COMBINATION METER

UNIT DISASSEMBLY AND ASSEMBLY

COMBINATION METER

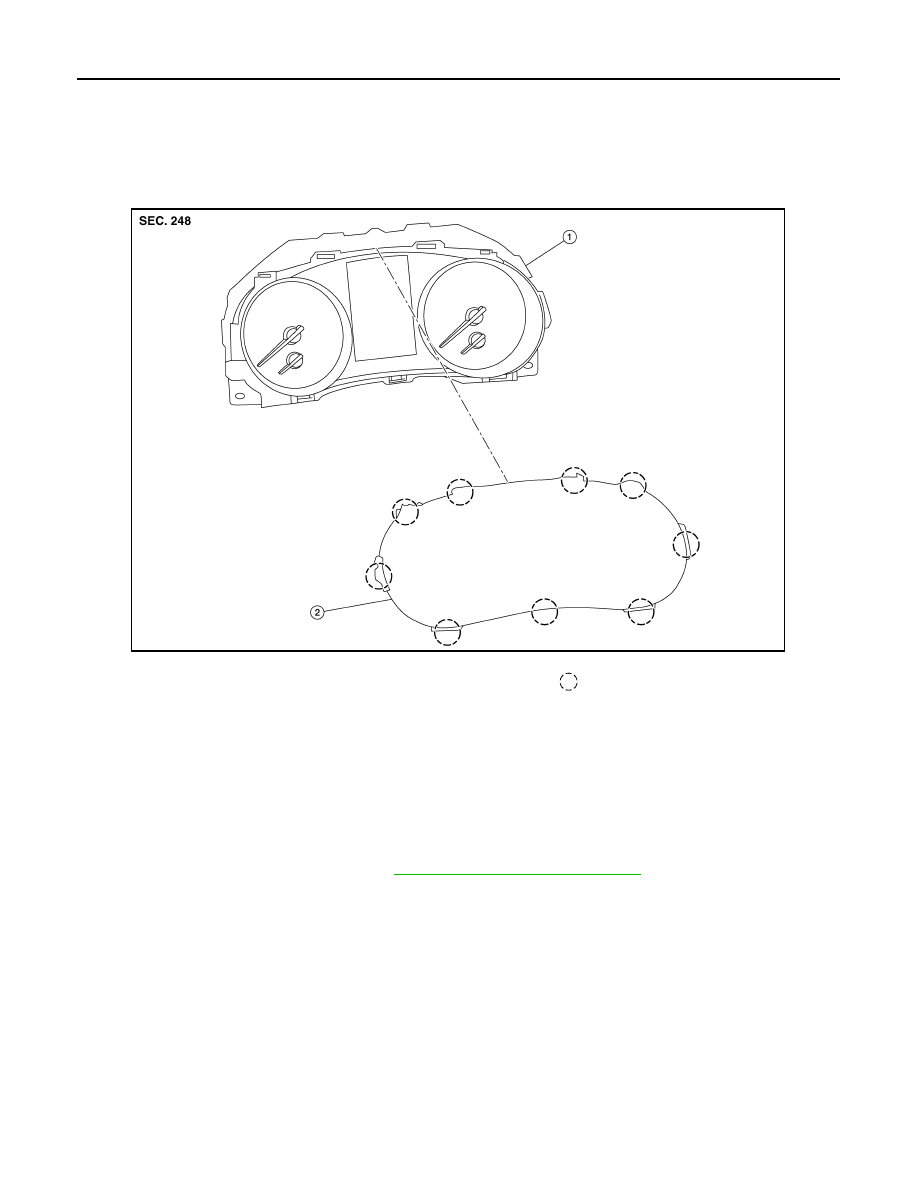

Exploded View

INFOID:0000000010330006

Disassembly and Assembly

INFOID:0000000010330007

CAUTION:

• Do not touch the display, pointer, inside of combination meter or the printed area of the dial during

disassembly or assembly.

• Keep away from magnetic sources.
• Do not damage the combination meter lens.

DISASSEMBLY

1.

Remove the combination meter. Refer to

MWI-86, "Removal and Installation"

.

2.

Release pawls and remove the combination meter lens.

ASSEMBLY

Assembly is in the reverse order of disassembly.

1.

Combination meter

2.

Combination meter lens

Pawl

ALNIA1609ZZ

WCS

WCS-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

WCS

A

O

P

CONTENTS

WARNING CHIME SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precautions for Removing Battery Terminal  .............

3

SYSTEM DESCRIPTION  ..............................

5

COMPONENT PARTS  ........................................

5

Component Parts Location ........................................

5

Combination Meter ....................................................

6

SYSTEM ..............................................................

7

WARNING CHIME SYSTEM  .......................................

7

WARNING CHIME SYSTEM : System Description

......

7

WARNING CHIME SYSTEM : Fail-safe ....................

8

LIGHT REMINDER WARNING CHIME  .......................

8

LIGHT REMINDER WARNING CHIME : Light Re-
minder Warning .......................................................
..

8

PARKING BRAKE RELEASE WARNING CHIME ......

9

PARKING BRAKE RELEASE WARNING CHIME
: Parking Brake Release Warning Chime ................
..

9

SEAT BELT REMINDER WARNING CHIME  ............

10

SEAT BELT REMINDER WARNING CHIME :
Seat belt Warning ....................................................

10

KEY WARNING CHIME .............................................

11

KEY WARNING CHIME : Key Warning Chime  .......

11

DIAGNOSIS SYSTEM (COMBINATION
METER) ..............................................................

13

Description ..............................................................

13

CONSULT Function (METER/M&A)  .......................

15

DIAGNOSIS SYSTEM (BCM) (WITH INTELLI-
GENT KEY SYSTEM) .........................................

18

COMMON ITEM  .........................................................

18

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

18

BUZZER .....................................................................

18

BUZZER : CONSULT Function (BCM - BUZZER)
(With Intelligent Key System)  ..................................

19

DIAGNOSIS SYSTEM (BCM) (WITHOUT IN-
TELLIGENT KEY SYSTEM)  .............................

20

COMMON ITEM  .........................................................

20

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

20

BUZZER .....................................................................

20

BUZZER : CONSULT Function (BCM - BUZZER)
(Without Intelligent Key System) .............................

21

ECU DIAGNOSIS INFORMATION ..............

22

COMBINATION METER  ...................................

22

Reference Value ......................................................

22

Fail-safe ...................................................................

28

DTC Index  ...............................................................

29

BCM (BODY CONTROL MODULE)  .................

30

List of ECU Reference .............................................

30

WIRING DIAGRAM  ......................................

31

WARNING CHIME SYSTEM .............................

31

Wiring Diagram ........................................................

31

BASIC INSPECTION  ...................................

38

DIAGNOSIS AND REPAIR WORK FLOW  .......

38

Work Flow ................................................................

38

DTC/CIRCUIT DIAGNOSIS  .........................

40

POWER SUPPLY AND GROUND CIRCUIT  ....

40

COMBINATION METER  ............................................

40

WCS-2

COMBINATION METER : Diagnosis Procedure  ....

40

BCM (BODY CONTROL SYSTEM) (WITH INTEL-
LIGENT KEY SYSTEM)  ...........................................
.

40

BCM (BODY CONTROL SYSTEM) (WITH INTEL-
LIGENT KEY SYSTEM) : Diagnosis Procedure  ....
.

40

BCM (BODY CONTROL SYSTEM) (WITHOUT IN-
TELLIGENT KEY SYSTEM)  ....................................
.

41

BCM (BODY CONTROL SYSTEM) (WITHOUT
INTELLIGENT KEY SYSTEM) : Diagnosis Proce-
dure .......................................................................
.

41

METER BUZZER CIRCUIT ................................

43

Description ..............................................................

43

Component Function Check  ...................................

43

Diagnosis Procedure .............................................

43

SEAT BELT BUCKLE SWITCH SIGNAL CIR-
CUIT ...................................................................

44

Description ..............................................................

44

Component Function Check .................................

44

Diagnosis Procedure .............................................

44

Component Inspection ............................................

45

PARKING BRAKE SWITCH SIGNAL CIR-
CUIT ...................................................................

46

Component Function Check  ...................................

46

Diagnosis Procedure  ..............................................

46

Component Inspection ............................................

47

KEY SWITCH SIGNAL CIRCUIT (WITHOUT
INTELLIGENT KEY)  ..........................................

48

Description ..............................................................

48

Component Function Check ..................................

48

Diagnosis Procedure ..............................................

48

Component Inspection  ............................................

49

SYMPTOM DIAGNOSIS  ............................

50

WARNING CHIME SYSTEM SYMPTOMS ........

50

Symptom Table .......................................................

50

THE PARKING BRAKE RELEASE WARNING
CONTINUES SOUNDING, OR DOES NOT
SOUND ..............................................................

51

Description ..............................................................

51

Diagnosis Procedure ...............................................

51

THE SEAT BELT REMINDER WARNING
CONTINUES SOUNDING, OR DOES NOT
SOUND ..............................................................

52

Description ..............................................................

52

Diagnosis Procedure ...............................................

52

THE LIGHT REMINDER WARNING DOES
NOT SOUND ......................................................

53

Description ..............................................................

53

Diagnosis Procedure ...............................................

53

THE KEY WARNING DOES NOT SOUND
(WITHOUT INTELLIGENT KEY)  .......................

54

Description ..............................................................

54

Diagnosis Procedure ...............................................

54

WCS

PRECAUTIONS

WCS-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010519162

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000010519172

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

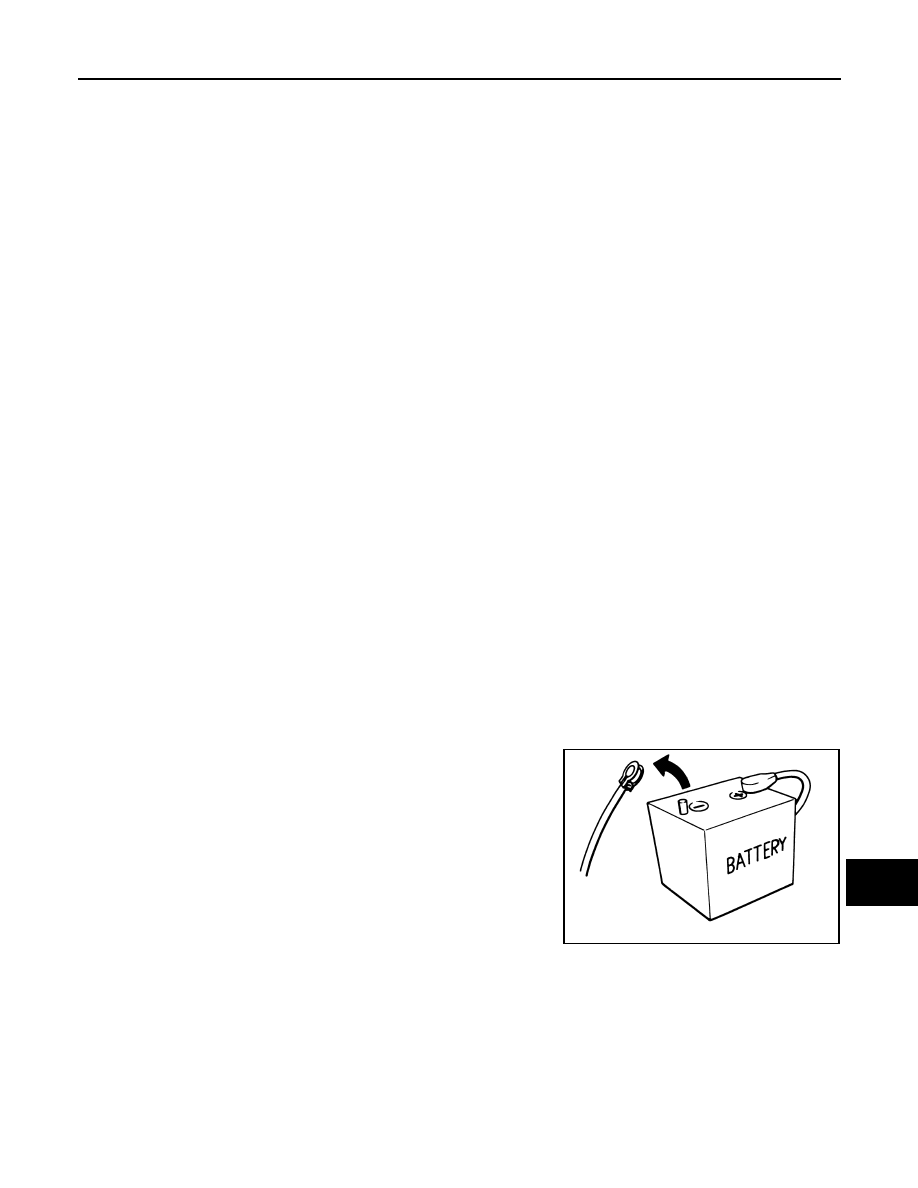

SEF289H
