Nissan Qashqai J11. Manual - part 2036





MWI-80

< REMOVAL AND INSTALLATION >

COMBINATION METER

REMOVAL AND INSTALLATION

COMBINATION METER

Removal and Installation

INFOID:0000000010330004

REMOVAL

1.

Disconnect the negative battery terminal. refer to

PG-154, "Exploded View"

.

2.

Remove the cluster lid A. Refer to

IP-12, "Exploded View"

.

3.

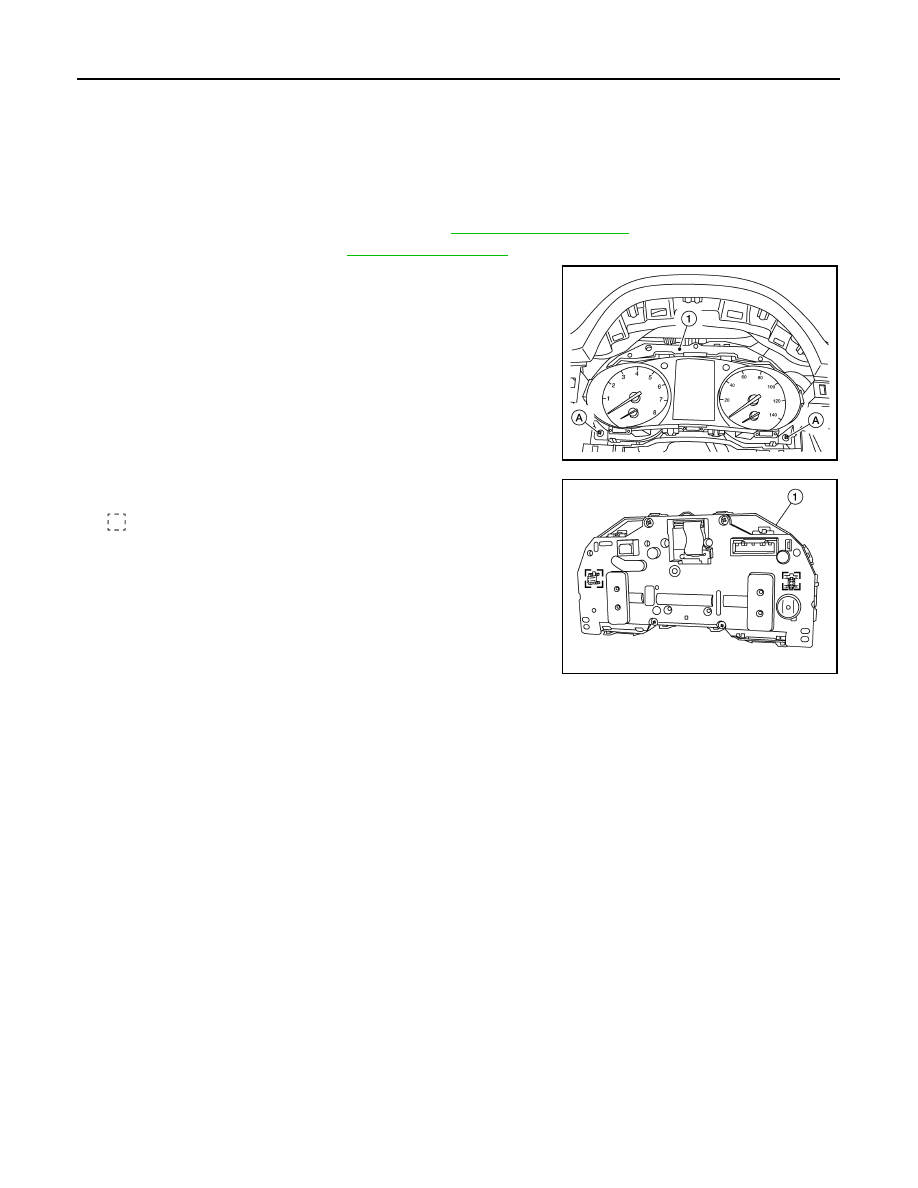

Remove screws (A), from the combination meter (1).

4.

Release the clips and remove the combination meter (1) from
the instrument panel.

: Clips

5.

Disconnect the harness connectors from the combination meter
and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1607ZZ

ALNIA1608ZZ

MWI

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

MWI-81

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

Description

INFOID:0000000010330001

• The ambient air temperature display flashes and the ambient air temperature is not displayed.
• The displayed air ambient temperature is higher than the actual temperature.
• The displayed air ambient temperature is lower than the actual temperature.

Diagnosis Procedure

INFOID:0000000010330002

1.

CHECK AMBIENT SENSOR SIGNAL CIRCUIT

Check the ambient sensor signal circuit. Refer to

MWI-74, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK AMBIENT SENSOR

Perform a unit check for the ambient sensor. Refer to

MWI-74, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace combination meter.

NO

>> Replace ambient sensor. Refer to

HAC-130, "Removal and Installation"

.

MWI-82

< UNIT DISASSEMBLY AND ASSEMBLY >

COMBINATION METER

UNIT DISASSEMBLY AND ASSEMBLY

COMBINATION METER

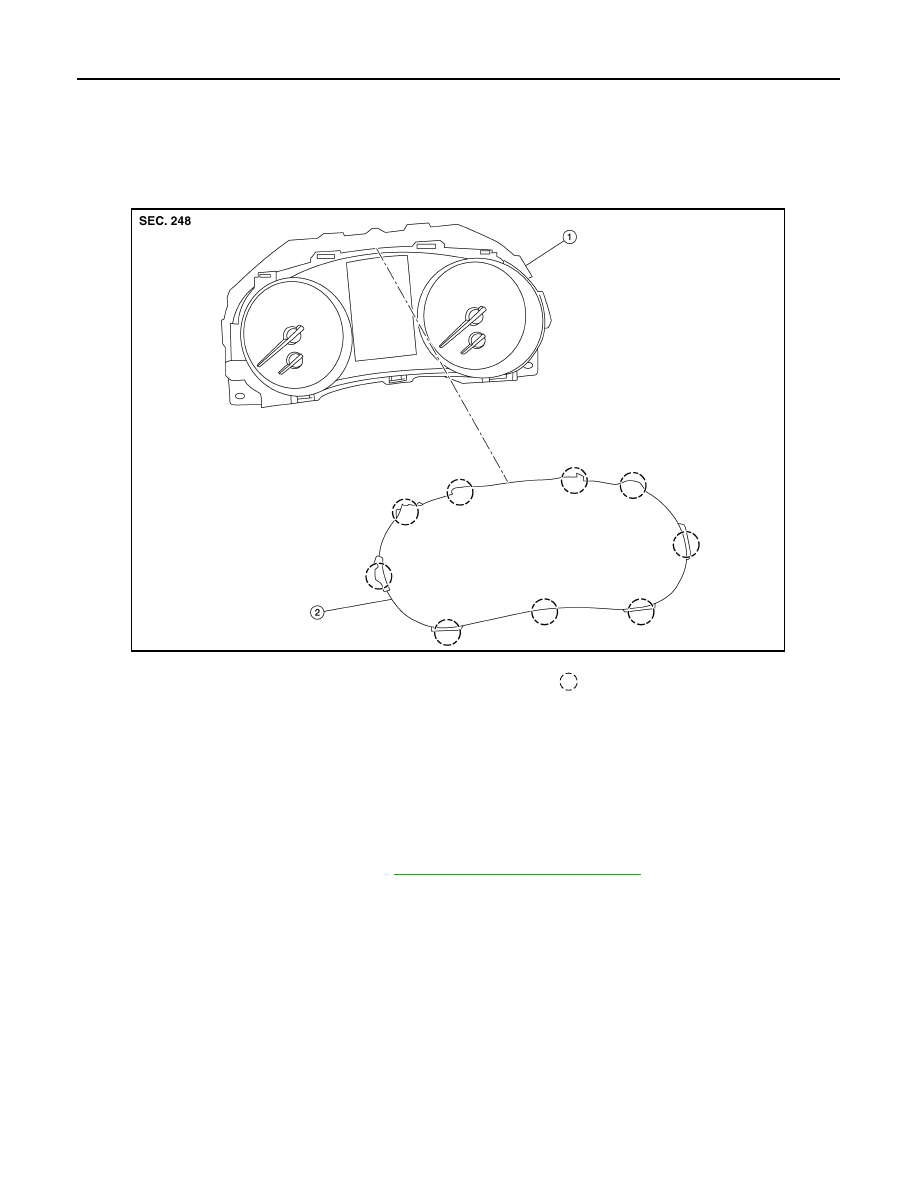

Exploded View

INFOID:0000000010330006

Disassembly and Assembly

INFOID:0000000010330007

CAUTION:

• Do not touch the display, pointer, inside of combination meter or the printed area of the dial during

disassembly or assembly.

• Keep away from magnetic sources.
• Do not damage the combination meter lens.

DISASSEMBLY

1.

Remove the combination meter. Refer to

MWI-80, "Removal and Installation"

.

2.

Release pawls and remove the combination meter lens.

ASSEMBLY

Assembly is in the reverse order of disassembly.

1.

Combination meter

2.

Combination meter lens

Pawl

ALNIA1609ZZ

MWI

THE METER CONTROL SWITCH IS INOPERATIVE

MWI-83

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE METER CONTROL SWITCH IS INOPERATIVE

Description

INFOID:0000000010435901

The meter control switches are inoperative when pressed.

Diagnosis Procedure

INFOID:0000000010435902

1.

CHECK METER CONTROL SWITCH SIGNAL

Check the meter control switch signal. Refer to

MWI-75, "Diagnosis Procedure"

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connector.

2.

CHECK METER CONTROL SWITCH

Check the meter control switch. Refer to

MWI-76, "Component Inspection"

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-86, "Removal and Installation"

.

NO

>> Replace meter control switch. Refer to

MWI-87, "Removal and Installation"

.
