MWI-24

< SYSTEM DESCRIPTION >

SYSTEM (METER SYSTEM)

• When all the following operating conditions are satisfied, the combination meter displays a tire warning on

the information display by an interrupt.

• The combination meter judges showing/hiding of “tire warning”, according to the signals below:

Other (Maintenance)

• When all the following operating conditions are satisfied, the combination meter displays a other warning on

the information display by an interrupt.

• The combination meter judges showing/hiding of “other warning”, according to the signals below:

Meter Illumination Control Indication

The level of brightness is displayed by operating the illumination control switch on the meter.

SETTING

Warning indication timing, unit, language, and time can be set.

Clock

This function is used for adjusting the clock and switching the clock display between Show and Hide, in addi-
tion to the display method between 12 hours and 24 hours.

Units

Setting values for unit items can be adjusted to meet the user's needs.

Operating condition

Ignition switch

ON

Mileage

More than value set in “SETTING”

Signal name

Signal path

Ignition signal

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Operating condition

Ignition switch

ON

Mileage

More than value set in “SETTING”

Signal name

Signal path

Ignition signal

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

Setting item

Setting range

Clock

Set clock

24 Hr

0:00 - 23:59

12 Hr

0:00 - 11:59

24/12 Hr

24 Hr

12 Hr

Clock ON/OFF

ON

OFF

MWI

SYSTEM (METER SYSTEM)

MWI-25

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Maintenance

Setting values for service, tire, and other maintenance items can be adjusted to meet the user's needs.

Alert

Setting values for travel time, and low ambient temperature can be adjusted to meet the user's needs.

Language

Setting values for language items can be adjusted to meet the user's needs.

Factory

Settings can be reset.

Settings-reject Indication

• Regarding settings-reject indications, “SETTING CAN BE OPERATED WHEN STOPPED” is shown on the

information display when indication conditions are satisfied.

• When reaching 5 km/h (3.1 MPH) after accelerating from a stopping condition, a settings-reject indication is

displayed.

• When reaching less than 1 km/h (0.6 MPH) after decelerating from 5 km/h (3.1 MPH), a settings-reject indi-

cation is cancelled to allow settings.

• The combination meter judges a vehicle condition based on the following signals and displays a settings-

reject indication on the information display.

Setting item

Unit

Temperature

Deg C

Deg F

Dist. / Fuel

Miles, MPG

km, l/100 km

km, km/l

Setting item

Setting range

Maintenance

Service

No setting, 500 km - 30,000 km

(No setting, 250 mile - 18,500 mile)

Tire

No setting, 500 km - 30,000 km

(No setting, 250 mile - 18,500 mile)

Other

No setting, 500 km - 30,000 km

(No setting, 250 mile - 18,500 mile)

Setting item

Setting range

Setting unit

Alert

Driver alert

No setting, 30 min - 360 min

30 min

Outside temp
(Low temp)

ON/OFF

Setting item

Language

English

French

Espanol

Signal name

Signal path

Ignition signal

Vehicle speed signal

ABS actuator and electric unit (control unit)

 Combination meter

MWI-26

< SYSTEM DESCRIPTION >

SYSTEM (METER SYSTEM)

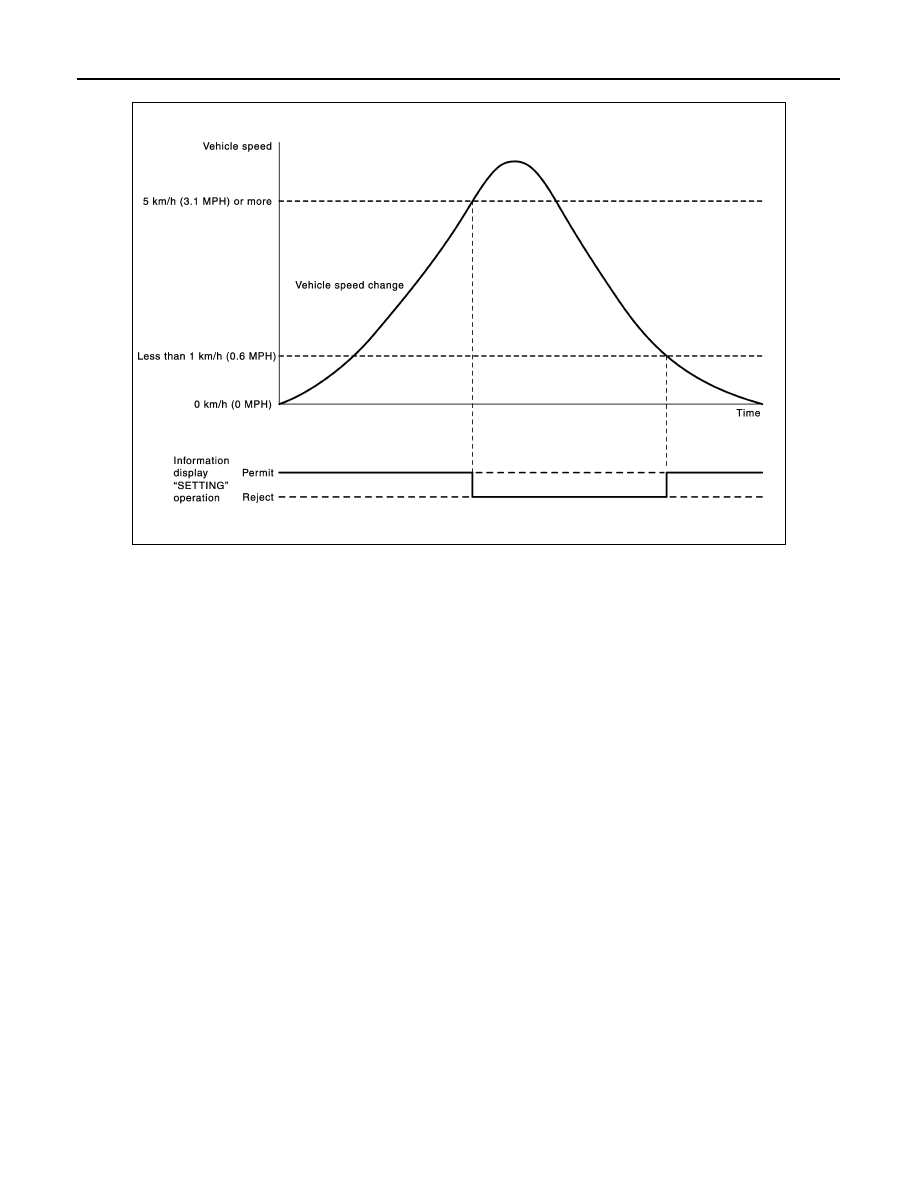

TIMING CHART

JSNIA2408GB

MWI

OPERATION

MWI-27

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

OPERATION

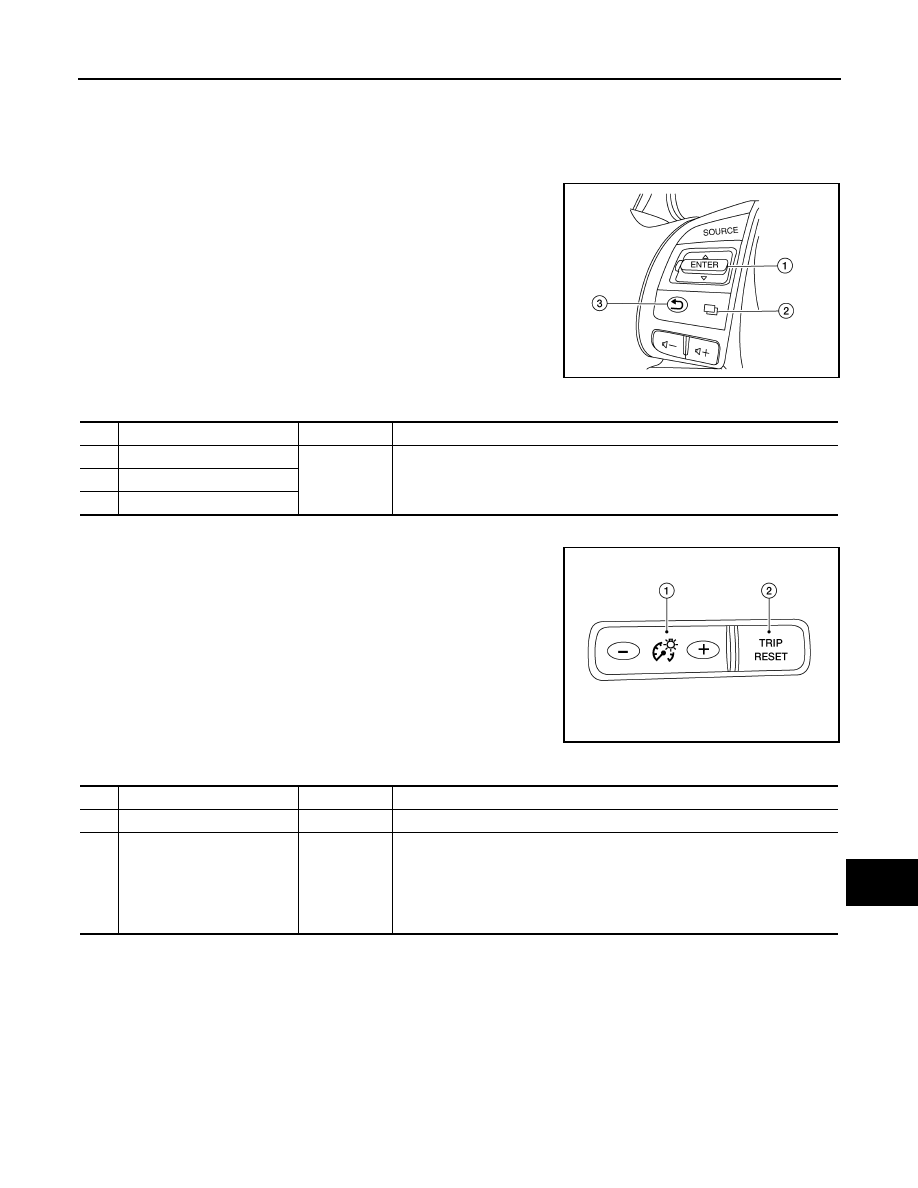

Switch Name and Function

INFOID:0000000010435910

STEERING SWITCH

METER CONTROL SWITCH

AWNIA3392ZZ

No.

Switch name

Operation

Description

1.

Enter/Up/Down switch

Press

The information display settings can be changed.

2.

Display switch

3.

Back switch

AWNIA3393ZZ

No.

Switch name

Operation

Description

1.

Illumination control switch

Press

An illuminance level of the back light of the combination meter can be adjusted.

2.

Trip reset switch

Press

• The trip meter can be switched between A and B.
• Trip meter A/B can be reset by pressing and holding the trip reset switch.
• A trip computer value displayed on the information display can be reset by

pressing and holding the trip reset switch for 1 second or more.

• All trip computer values can be reset by pressing and holding the trip reset

switch for 3 seconds or more.
