COMPONENT PARTS

Always confirm the lever is fully released (loosened) before attempting to disconnect or connect these
connectors to avoid damage to the connector housing or terminals.

Standardized Relay

INFOID:0000000010464058

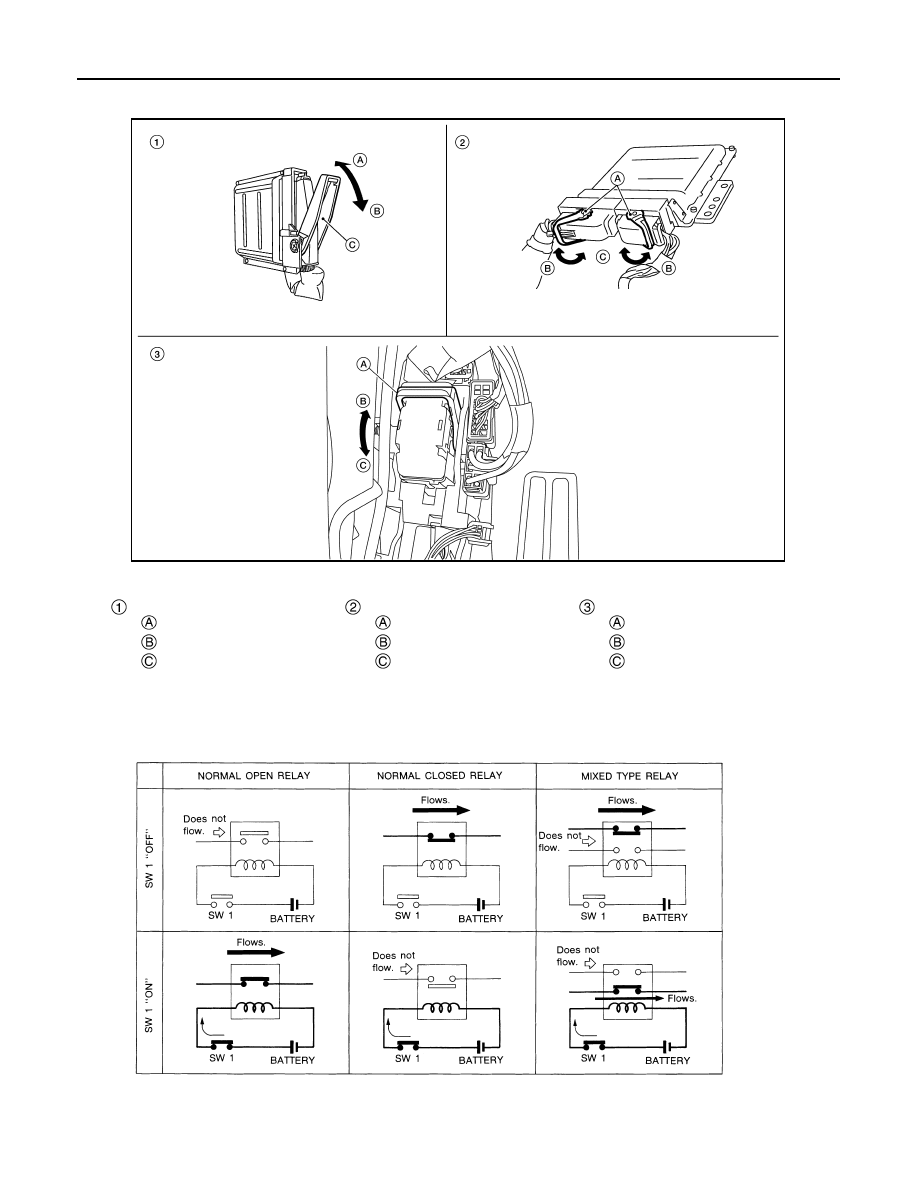

NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS

Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

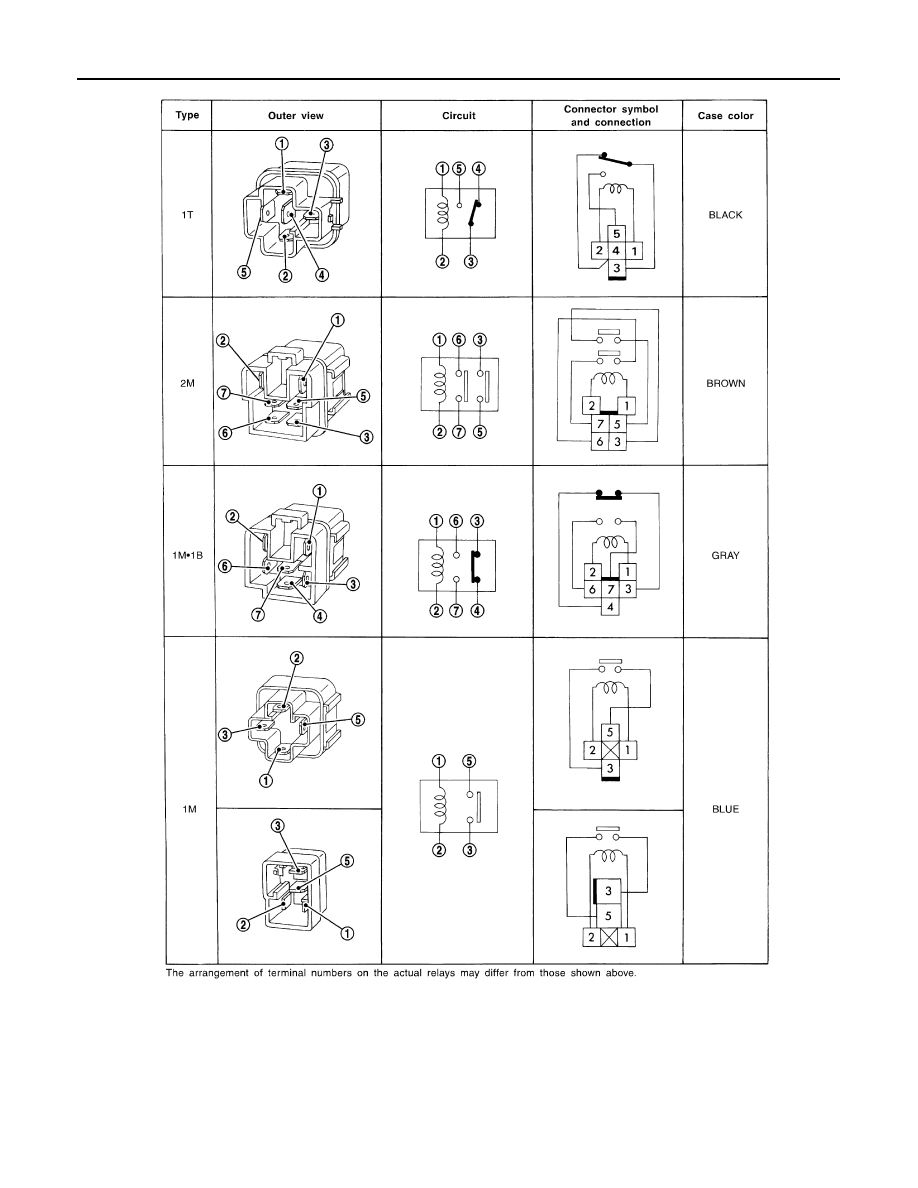

TYPE OF STANDARDIZED RELAYS

LKIA0670E

Control unit with single lever

 Fasten

 Loosen

 Lever

Control unit with dual levers

 Levers

 Fasten

 Loosen

SMJ connector

 Lever

 Fasten

 Loosen

SEL881H

PG

COMPONENT PARTS

PG-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

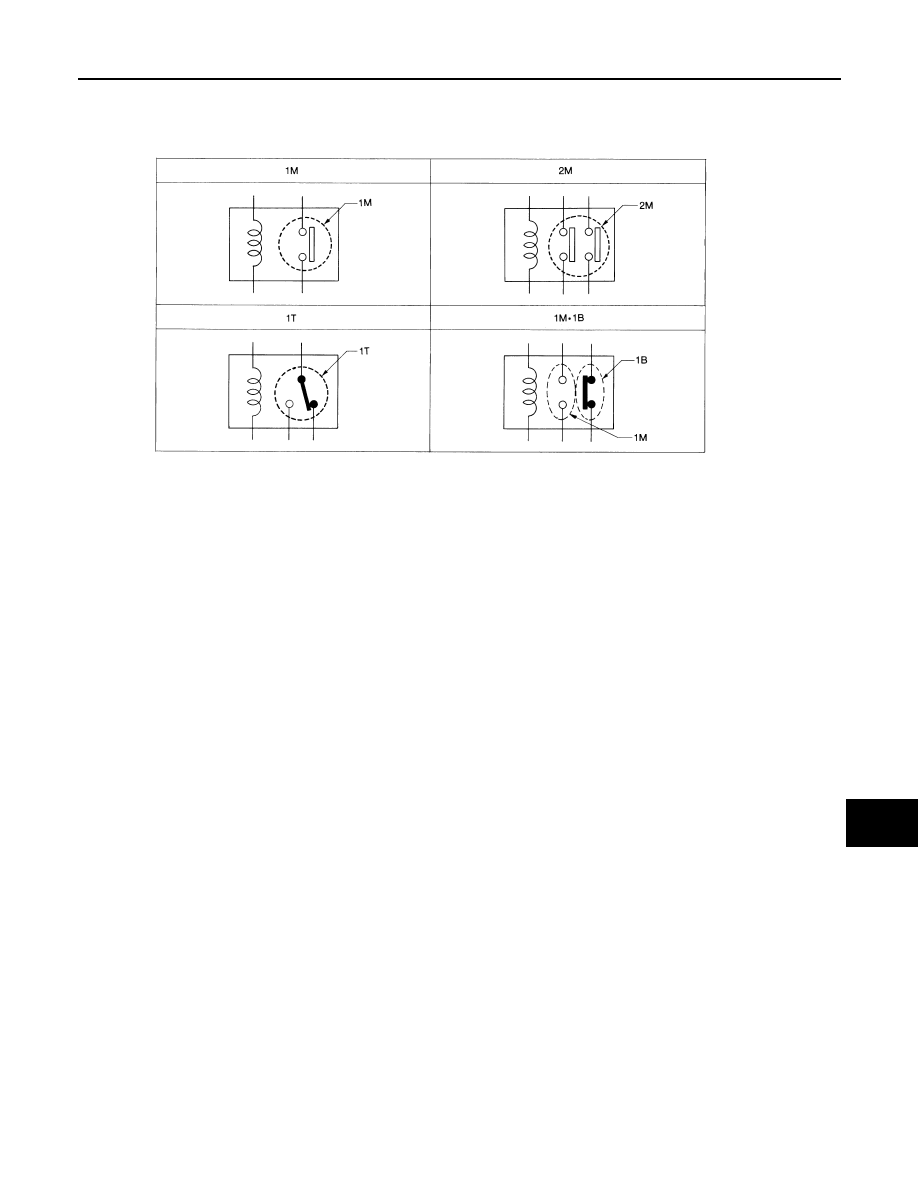

1M ···················· 1 Make

2M      ···················· 2 Make

1T ···················· 1 Transfer

1M·1B ···················· 1 Make 1 Break

SEL882H

PG-10

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SEL188W

PG

POWER SUPPLY ROUTING CIRCUIT

PG-11

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

WIRING DIAGRAM

POWER SUPPLY ROUTING CIRCUIT

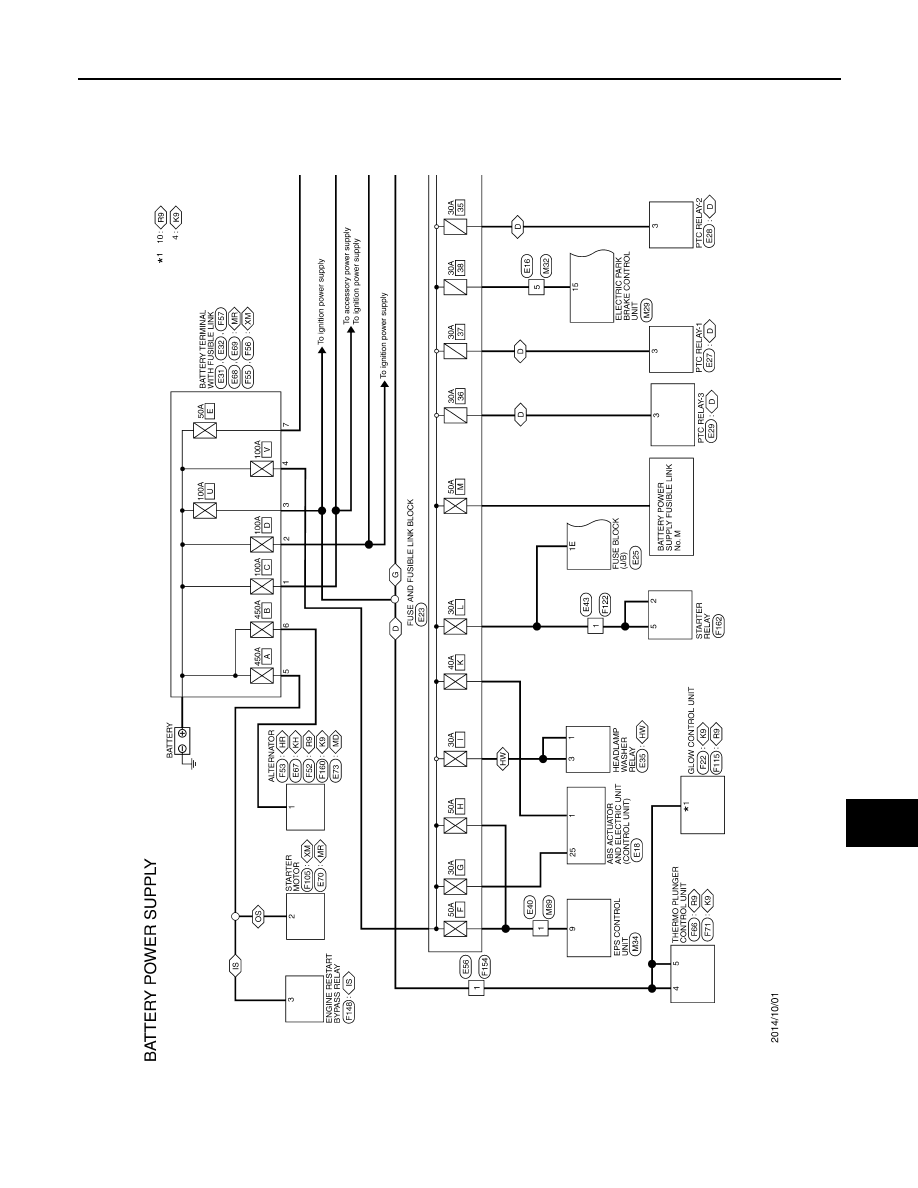

Wiring Diagram - BATTERY POWER SUPPLY -

INFOID:0000000010464059

JRMWG7412GB
