Nissan Qashqai J11. Manual - part 195

ECH-78

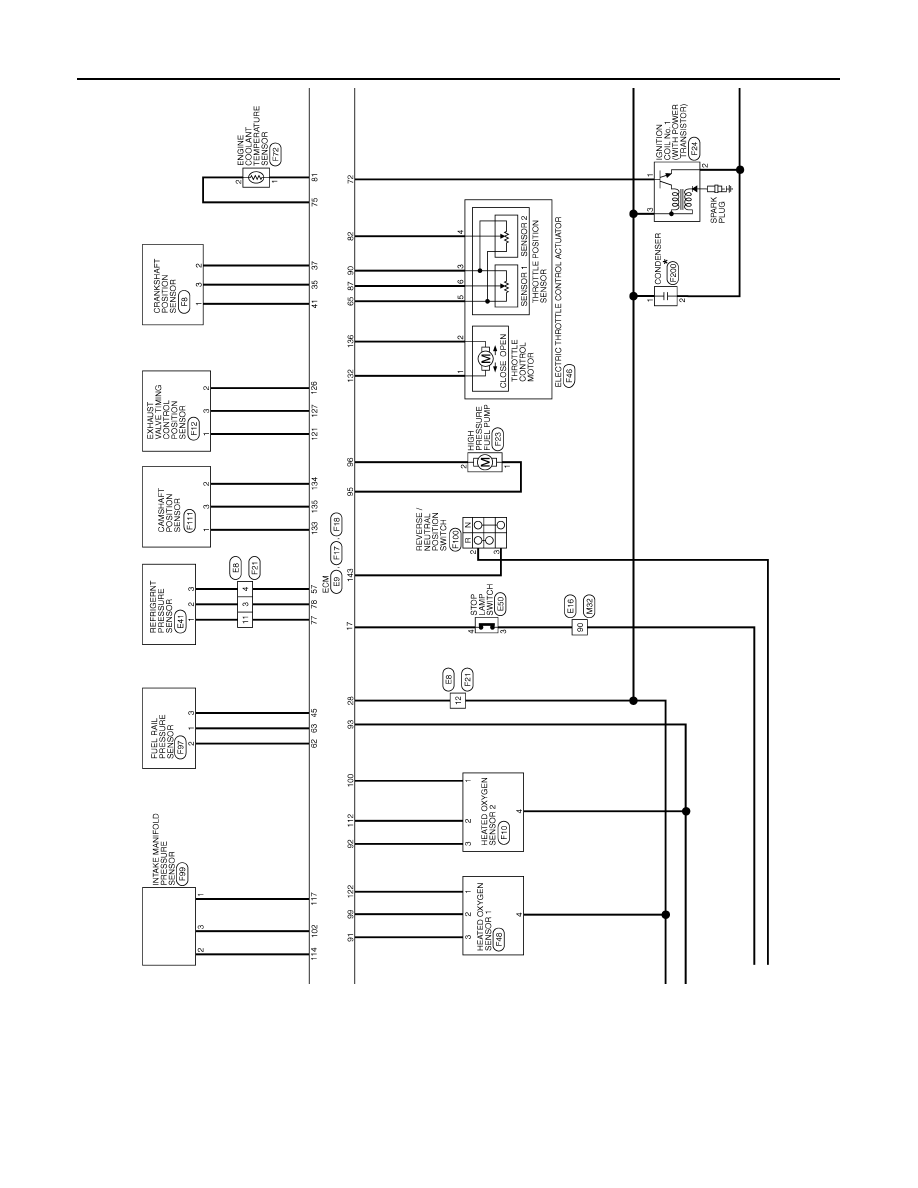

< WIRING DIAGRAM >

[HRA2DDT]

ENGINE CONTROL SYSTEM

JRBWC5922GB

ENGINE CONTROL SYSTEM

ECH-79

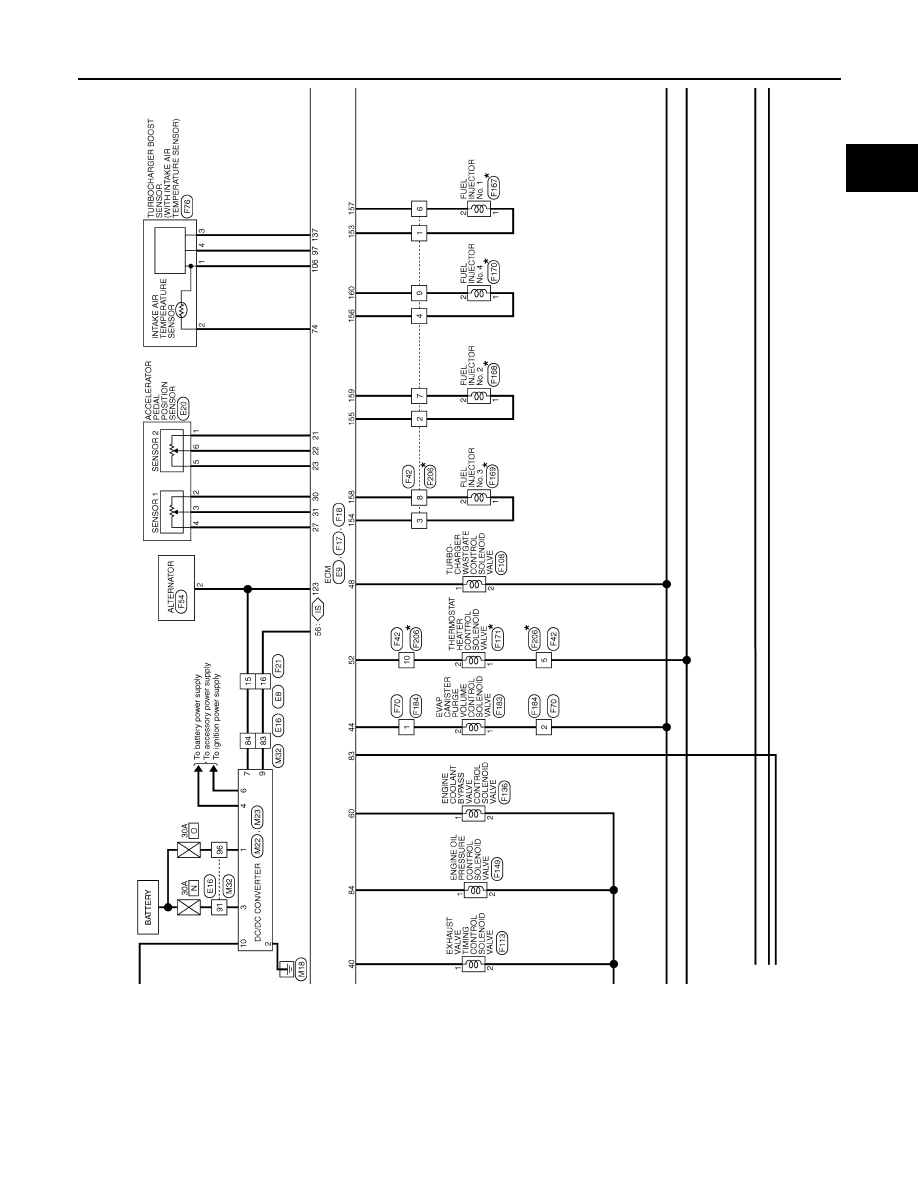

< WIRING DIAGRAM >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

JRBWC5923GB

ECH-80

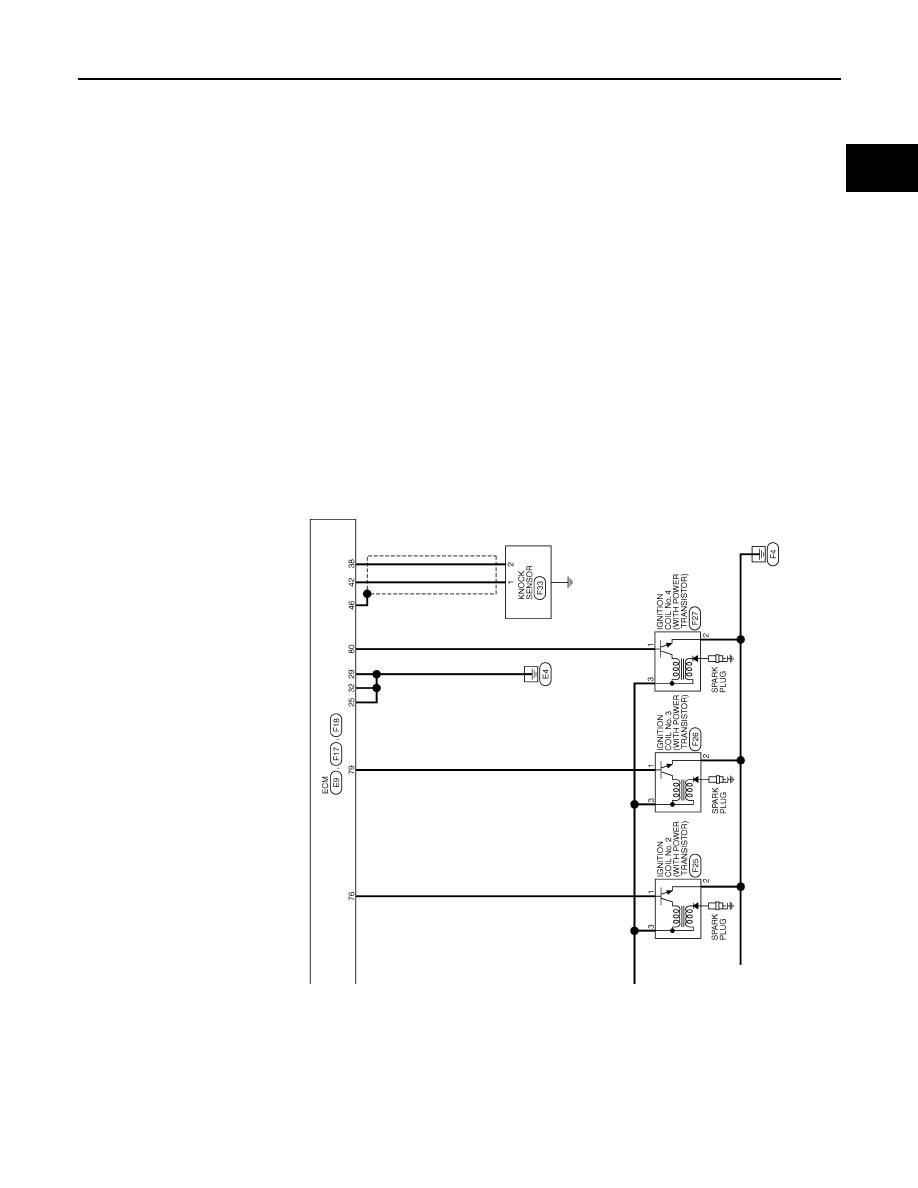

< WIRING DIAGRAM >

[HRA2DDT]

ENGINE CONTROL SYSTEM

JRBWC5924GB

ENGINE CONTROL SYSTEM

ECH-81

< WIRING DIAGRAM >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

JRBWC5925GB
