PCS-4

< PRECAUTION >

[IPDM E/R]

PRECAUTIONS

5.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

PCS

COMPONENT PARTS

PCS-5

< SYSTEM DESCRIPTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM DESCRIPTION

COMPONENT PARTS

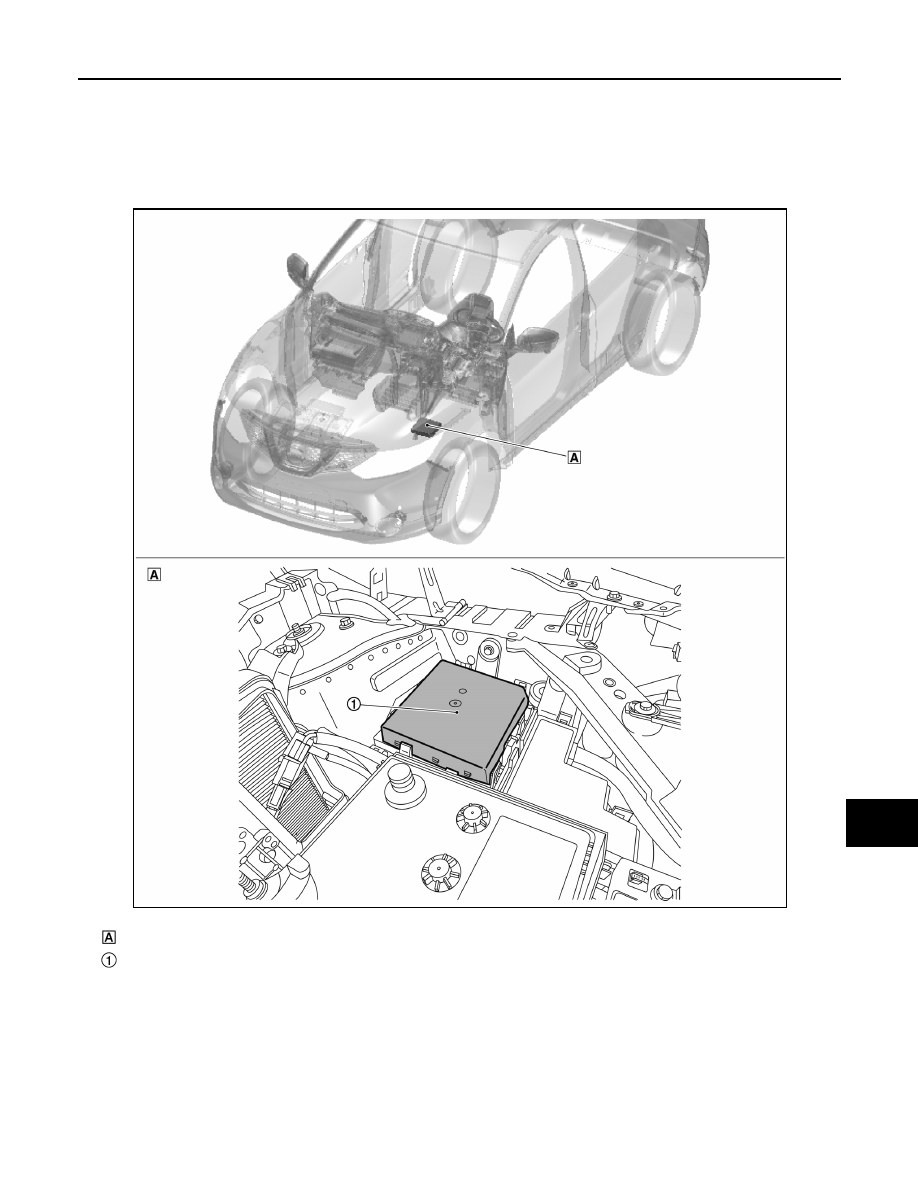

Component Parts Location

INFOID:0000000010434014

Engine room (LH)

IPDM E/R

JMMIA1775ZZ

PCS-6

< SYSTEM DESCRIPTION >

[IPDM E/R]

COMPONENT PARTS

Smart FET

INFOID:0000000010499320

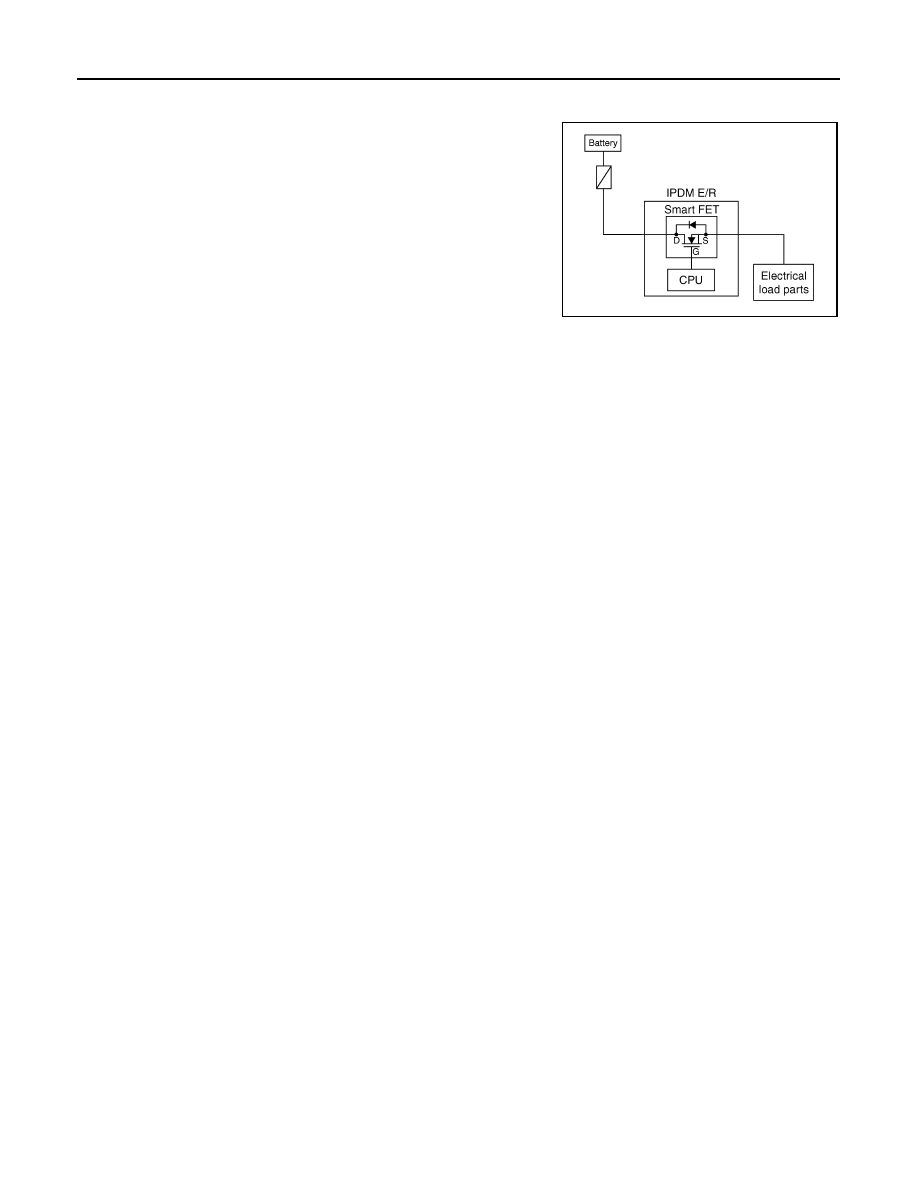

Smart FET, that uses MOS field effect transistor, is adopted for each
lamps control.
NOTE:
A MOS field effect transistor is a transistor in which the gate is com-
posed of a metal-oxide-semiconductor (MOS). Field effect transistor
is controlled by voltage, while ordinary transistor is controlled by cur-
rent. Electrode of field effect transistor is called source, drain, or
gate, while electrode of ordinary transistor is called emitter, collector,
or base.

JMMIA1785GB

PCS

SYSTEM

PCS-7

< SYSTEM DESCRIPTION >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM

RELAY CONTROL SYSTEM

RELAY CONTROL SYSTEM : System Description

INFOID:0000000010434015

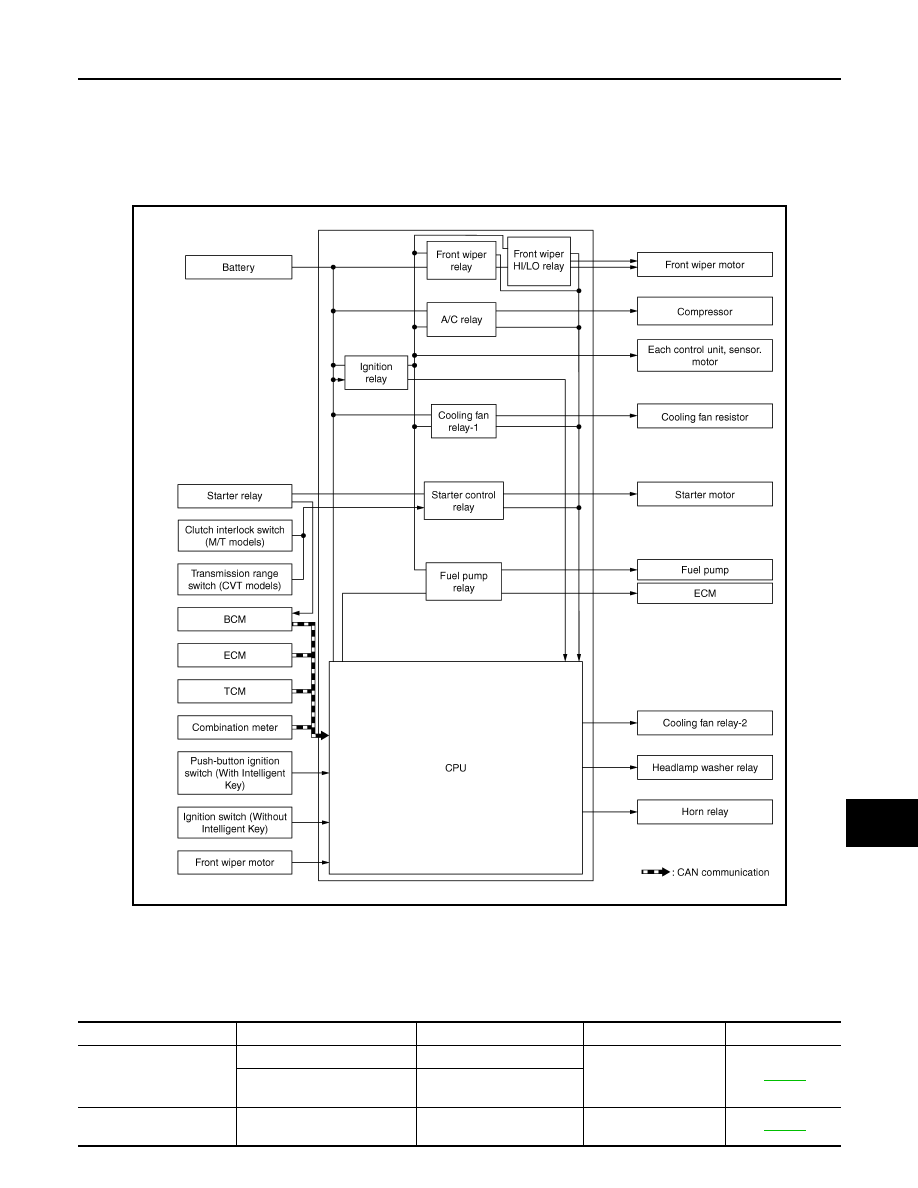

SYSTEM DIAGRAM

DESCRIPTION

IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input sig-
nals from various sensors and the request signals received from control units via CAN communication.
NOTE:
To prevent to the parts, IPDM E/R integrated relays cannot be removed.

JMMIA1777GB

Control relay

Input/output

Transmit unit

Control part

Reference page

• Front wiper relay
• Front wiper HI/LO relay

Front wiper request signal

BCM (CAN)

Front wiper motor

WW-10

Front wiper stop position sig-
nal

Front wiper motor

Headlamp washer relay

Headlamp washer request
signal

BCM (CAN)

Headlamp washer
pump

WW-19
