Nissan Qashqai J11. Manual - part 1840

BCS-86

< ECU DIAGNOSIS INFORMATION >

BCM

144

(BG)

Ground

Battery power sup-
ply (Turn signal
lamp)

Input

Power position OFF

9 – 16 V

145

(GR)

Ground

Battery power sup-
ply (Stop lamp)

Input

Power position OFF

9 – 16 V

146

(B)

Ground

—

Power position OFF

0 V

147

(B)

Ground

—

Power position OFF

0 V

148

(BR)

Ground

Driver door UN-
LOCK

Output

Driver door

UNLOCK (Actuator is acti-
vated)

9 – 16 V

Other than UNLOCK (Ac-
tuator is not activated)

0 V

149*

(W)

Ground

Super lock (Front
door)

Output

Super lock actu-
ator (Front door)

Activated

9 – 16 V

Not activated

0 V

151

(R)

Ground

Battery power sup-
ply (Rear door lock
actuator)

Input

Power position OFF

9 – 16 V

152

(LG)

Ground

Battery power sup-
ply (Rear wiper)

Input

Power position OFF

9 – 16 V

156

(V)

Ground

Clutch interlock
switch

Input

Clutch interlock
switch

OFF (Clutch pedal is de-
pressed)

9 – 16 V

ON (Clutch pedal is not
depressed)

0 – 0.5 V

157

(LG)

Ground

Stop lamp switch 2

Input

Stop lamp
switch

OFF (Brake pedal is not
depressed)

0 V

ON (Brake pedal is de-
pressed)

9 – 16 V

158
(W)

Ground

Stop lamp switch 1

Input

Power position
ON

Stop lamp switch OFF
(Brake pedal is not de-
pressed) (MR engine
models with CVT)

0 V

Stop lamp switch ON
(Brake pedal is de-
pressed) (Except for MR
engine models with CVT)

Stop lamp switch ON
(Brake pedal is de-
pressed) (MR engine
models with CVT)

9 – 16 V

Stop lamp switch OFF
(Brake pedal is not de-
pressed) (Except for MR
engine models with CVT)

159

(R)

Ground

Clutch pedal posi-
tion switch

Input

Clutch pedal po-
sition switch

OFF (Clutch pedal is de-
pressed)

9 – 16 V

ON (Clutch pedal is not
depressed)

0 – 0.5 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

−

Signal name

Input/

Output

BCS

BCM

BCS-87

< ECU DIAGNOSIS INFORMATION >

*1: LHD models
*2: RHD models
*3: With Intelligent Key system
*4: Without Intelligent Key system
*5: Without Intelligent Key system except for MR engine or with Intelligent Key system
*6: Without Intelligent Key system for MR engine

164*

(Y)

Ground

Intelligent Key warn-
ing buzzer

Output

Intelligent Key
warning buzzer

Sounding
NOTE:
The pulse cycle changes
depending on buzzer
sounds.

Not sounding

0 – 0.5 V

166*

(P)

Ground

Steering lock unit
power supply

Input

Power position

OFF or ACC

9 – 16 V

0 – 0.5 V

167

(BR)

Ground

Turn signal LH out-
put (Front)

Output

Power position
ON

Turn signal switch OFF

0 V

Turn signal switch LH

6.5 V

(Turn signal lamp turn on: 9 - 16

168

(GR)

Ground

Turn signal RH out-
put (Front)

Output

Power position
ON

Turn signal switch OFF

0 V

Turn signal switch RH

6.5 V

(Turn signal lamp turn on: 9 - 16

170

(L)

Ground

PTC relay-3 control

Output

PTC heater

“HIGH” operation

9 – 16 V

Other than above

0 – 0.1 V

171

(G)

Ground

Starter relay control

Output

Starter motor

At engine cranking

9 – 16 V

Other than above

0 – 0.1 V

172
(W)

Ground

PTC relay-1 control
signal

Output

PTC heater

OFF

9 – 16 V

“LOW”, “MID” or “HIGH”
operation

0 – 0.1 V

173

(BG)

Ground

PTC relay-2 control
signal

Output

PTC heater

“MID” or “HIGH” operation

0 – 0.1 V

Except above

9 – 16 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

−

Signal name

Input/

Output

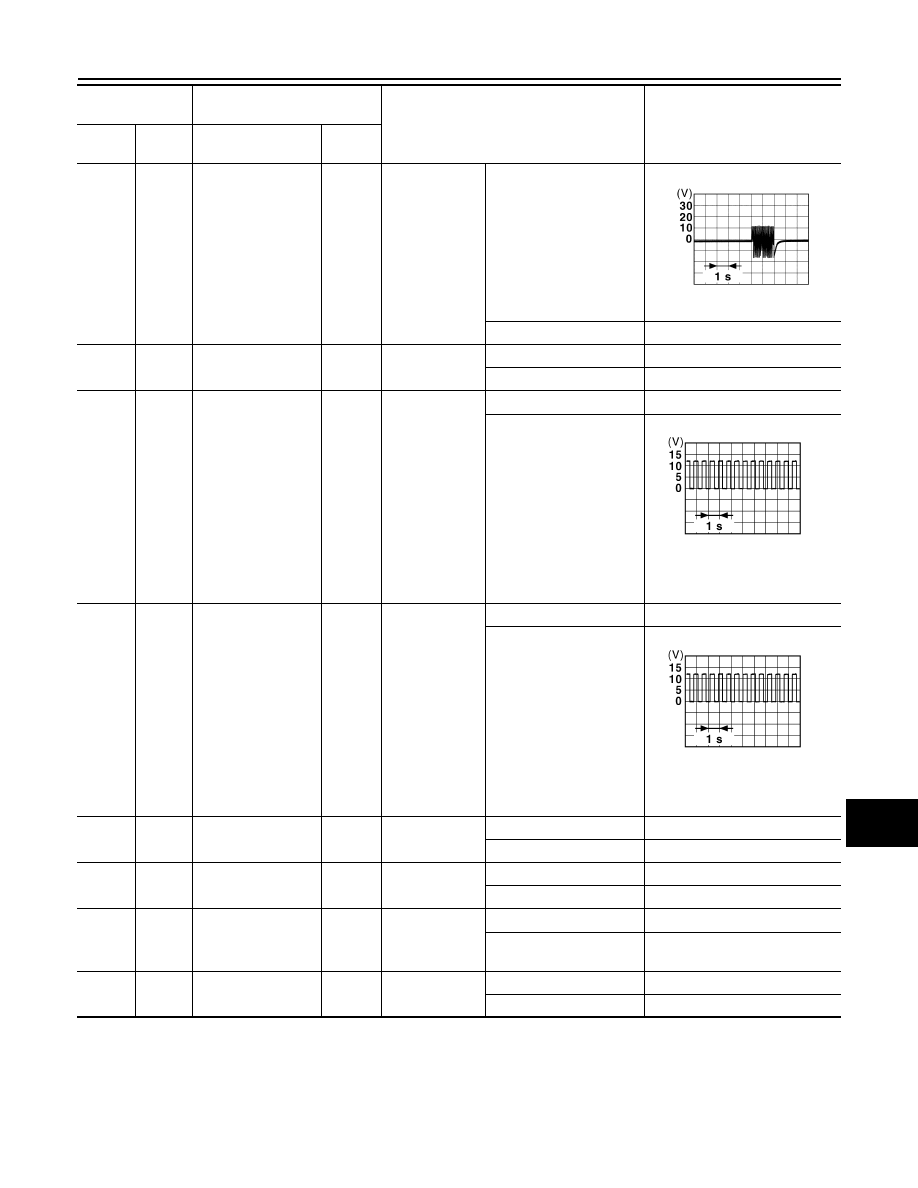

JMMIA1702GB

PKID0926E

BCS-88

< ECU DIAGNOSIS INFORMATION >

BCM

Fail-safe

INFOID:0000000010378018

FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC are detected.

REAR WIPER MOTOR PROTECTION

BCM detects the rear wiper stopping position according to the rear wiper stop position signal.
When the rear wiper stop position signal does not change for more than 5 seconds while driving the rear
wiper, BCM stops power supply to protect the rear wiper motor.

Condition of cancellation

More than 1 minute is passed after the rear wiper stop.

Turn rear wiper switch OFF.

Operate the rear wiper switch or rear washer switch.

FAIL-SAFE CONTROL OF COMBINATION SWITCH READING FUNCTION CAUSED BY LOW
POWER SUPPLY VOLTAGE

Display contents of CONSULT

Fail-safe

B2190–00: NATS ANTENNA AMP

Inhibit engine cranking

B2191–00: DIFFERENCE OF KEY

Inhibit engine cranking

B2192–00: ID DISCORD BCM-ECM

Inhibit engine cranking

B2193–00: CHAIN OF BCM-ECM

Inhibit engine cranking

B2195–00: ANTI-SCANNING

Inhibit engine cranking

B2196–00: DONGLE NG

Inhibit engine cranking

B2198–00: NATS ANTENNA AMP

Inhibit engine cranking

B2557–00: VEHICLE SPEED

Inhibit steering lock

B2602–00: SHIFT POSITION

Inhibit steering lock

B2604–00: PNP/CLUTCH SW

Inhibit steering lock

B2608–00: STARTER RELAY

Inhibit engine cranking

B260F–00: ENG STATE SIG LOST

Inhibit engine cranking

B26F1–00: IGN RELAY OFF

Inhibit engine cranking

B26F2–00: IGN RELAY ON

Inhibit engine cranking

B27D4–00: BCM - S/L SENSOR CIRCUIT

Inhibit steering unlock

B27D5–00: S/L SENSOR TEST OUTPUT

Inhibit steering unlock

B27D6–00: S/L CAN COMM CIRCUIT

Inhibit steering lock

B27D7–00: S/L PWR RELAY

Inhibit steering lock

B27D8–00: S/L VEHICLE SPEED MALFUNCTION

Inhibit steering lock

B27D9–00: S/L IGN MALFUNCTION

Inhibit steering lock/unlock

B27DA–00: IPDM CAN COMM CIRCUIT

Inhibit steering lock

B27DC–00: S/L POWER SUPPLY

Inhibit steering lock

B27DD–00: BCM - S/L ID DISCORD

Inhibit steering lock

B27DE–00: S/L MECHANICAL MALFUNCTION

Inhibit steering lock

B27DF–00: S/L HIGH LEVEL MALFUNCTION

Inhibit steering lock/unlock

B27E0–00: S/L LOW LEVEL MALFUNCTION

Inhibit steering lock

B27E1–00: S/L SAFETY CIRCUIT

Inhibit steering lock

B27E5–00: S/L IGN OFF POSITION

Inhibit steering lock

B27E6–00: S/L ANTI-SCAN MODE

Inhibit steering lock

B27E8–00: S/L UNDETERMINED LOCK POS

Inhibit steering lock

U0415: VEHICLE SPEED

Inhibit steering lock

BCS

BCM

BCS-89

< ECU DIAGNOSIS INFORMATION >

If voltage of battery power supply lower, BCM maintains combination switch reading to the status when input
voltage is less than approximately 9 V.
NOTE:
When voltage of battery power supply is approximately 9 V or more, combination switch reading function
returns to normal operation.

DTC Inspection Priority Chart

INFOID:0000000010378019

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.

Priority

DTC

B2562–00: LOW VOLTAGE

• U1000–00: CAN COMM
• U1010–00: CONTROL UNIT (CAN)

• B2190–00: NATS ANTENNA AMP
• B2191–00: DIFFERENCE OF KEY
• B2192–00: ID DISCORD BCM-ECM
• B2193–00: CHAIN OF BCM-ECM
• B2195–00: ANTI-SCANNING
• B2196–00: DONGLE NG
• B2198–00: NATS ANTENNA AMP

• B2556–00: PUSH-BTN IGN SW
• B2557–00: VEHICLE SPEED
• B2602–00: SHIFT POSITION
• B2604–00: PNP/CLUTCH SW
• B2608–00: STARTER RELAY
• B260F–00: ENG STATE SIG LOST
• B261A–00: PUSH-BTN IGN SW
• B261F–00: ASCD CNCL/CLTCH SW
• B2620–00: NEUTRAL SW
• B26E8–00: CLUTCH SW
• B26F1–00: IGN RELAY OFF
• B26F2–00: IGN RELAY ON
• B26FC–00: KEY REGISTRATION
• B27D1–00: START CUT RELAY OFF
• B27D2–00: START CUT RELAY ON
• B27D3–00: S/L THERMAL PROTECTION
• B27D4–00: BCM - S/L SENSOR CIRCUIT
• B27D5–00: S/L SENSOR TEST OUTPUT
• B27D6–00: S/L CAN COMM CIRCUIT
• B27D7–00: S/L PWR RELAY
• B27D8–00: S/L VEHICLE SPEED MALFUNCTION
• B27D9–00: S/L IGN MALFUNCTION
• B27DA–00: IPDM CAN COMM CIRCUIT
• B27DB–00: S/L IGN OFF
• B27DC–00: S/L POWER SUPPLY
• B27DD–00: BCM - S/L ID DISCORD
• B27DE–00: S/L MECHANICAL MALFUNCTION
• B27DF–00: S/L HIGH LEVEL MALFUNCTION
• B27E0–00: S/L LOW LEVEL MALFUNCTION
• B27E1–00: S/L SAFETY CIRCUIT
• B27E3–00: S/L KEY NOT REGISTRATION
• B27E4–00: S/L REGISTRATION STATUS
• B27E5–00: S/L IGN OFF POSITION
• B27E6–00: S/L ANTI-SCAN MODE
• B27E7–00: S/L UNDETERMINED UNLOCK POS
• B27E8–00: S/L UNDETERMINED LOCK POS
• U0415–00: VEHICLE SPEED

• B2621–00: INSIDE ANTENNA
• B2622–00: INSIDE ANTENNA
