Nissan Qashqai J11. Manual - part 1820





BCS-6

< PRECAUTION >

PRECAUTIONS

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

BCS

COMPONENT PARTS

BCS-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM DESCRIPTION

COMPONENT PARTS

BODY CONTROL SYSTEM

BODY CONTROL SYSTEM : Component Parts Location

INFOID:0000000010377986

RHD MODELS

LHD MODELS

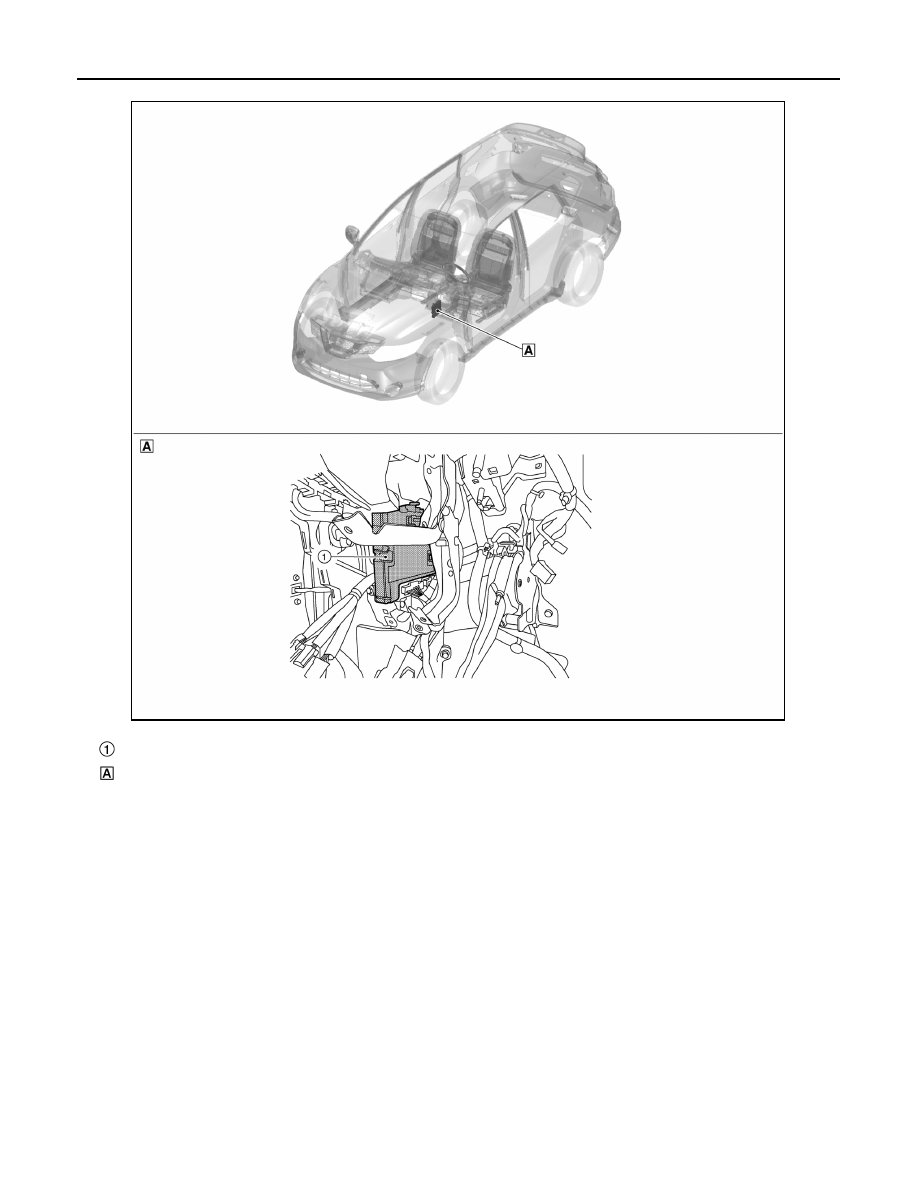

BCM

Behind of glove box

JMMIA1751ZZ

BCS-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

POWER CONSUMPTION CONTROL SYSTEM

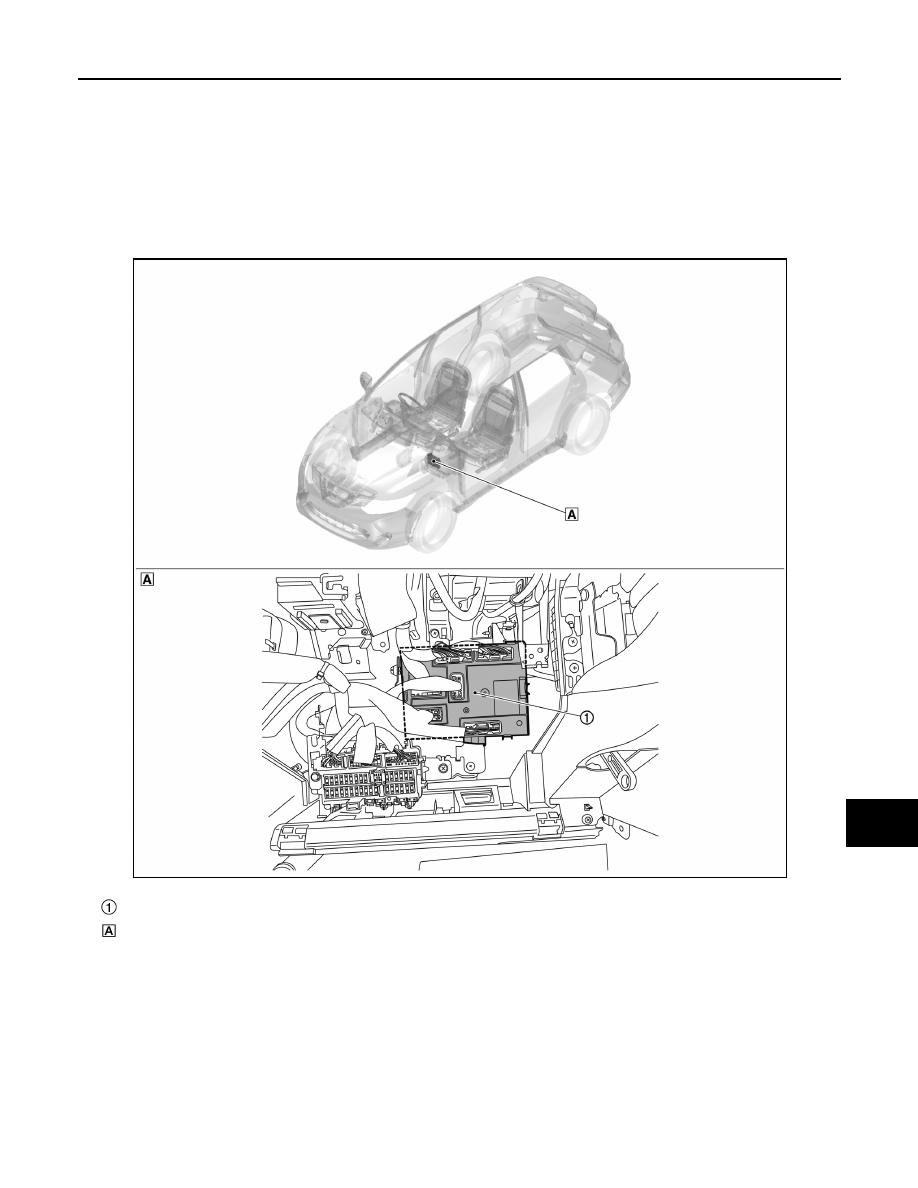

BCM

Behind of instrument panel (LH)

JMMIA1766ZZ

BCS

COMPONENT PARTS

BCS-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER CONSUMPTION CONTROL SYSTEM : Component Parts Location

INFOID:0000000010377987

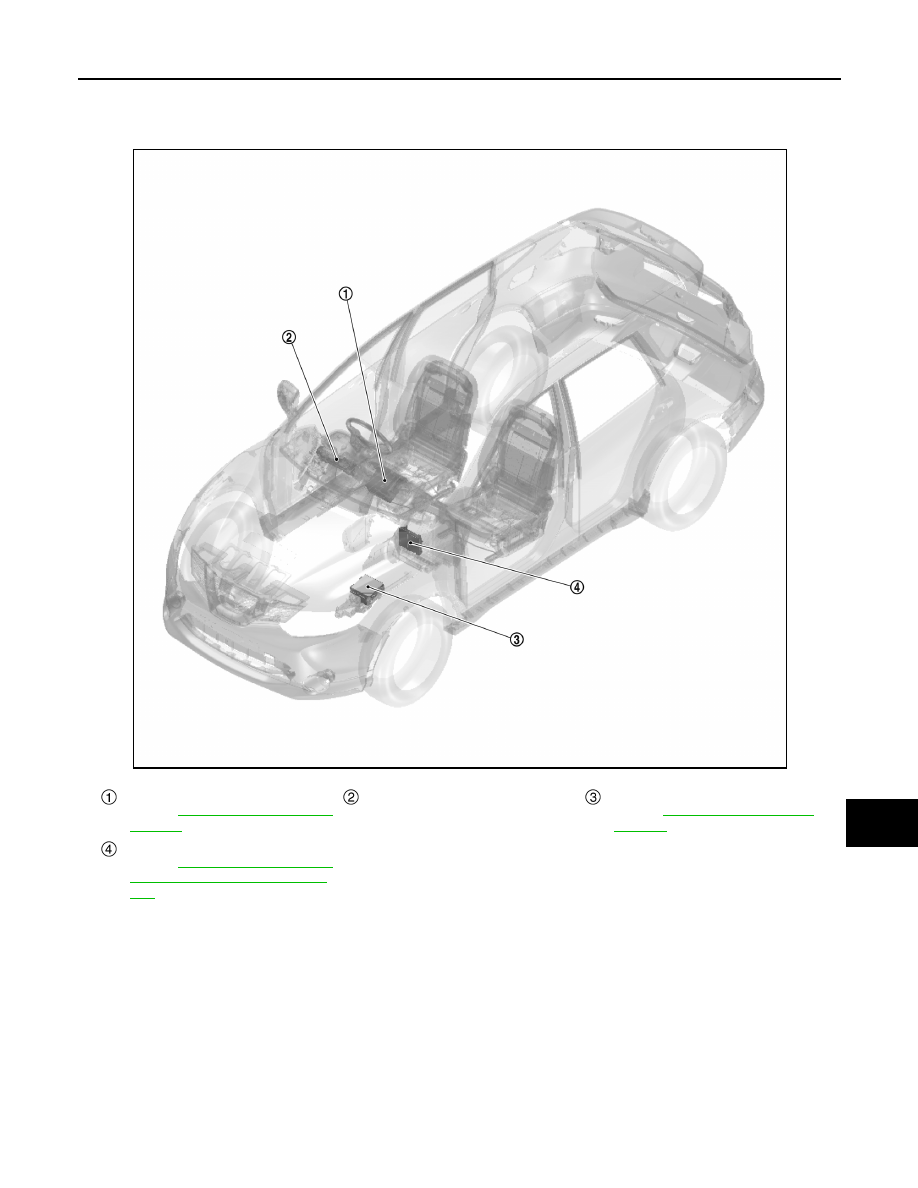

AV control unit
Refer to

AV-128, "Component Parts

Location"

.

Combination meter

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

.

BCM
Refer to

BCS-7, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

.

JMMIA1752ZZ
