Nissan Qashqai J11. Manual - part 1818

PWO

POWER SOCKET

PWO-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

WIRING DIAGRAM

POWER SOCKET

Wiring Diagram

INFOID:0000000010437042

JRMWG7330GB

PWO-6

< WIRING DIAGRAM >

POWER SOCKET

JRMWG7331GB

PWO

POWER SOCKET

PWO-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

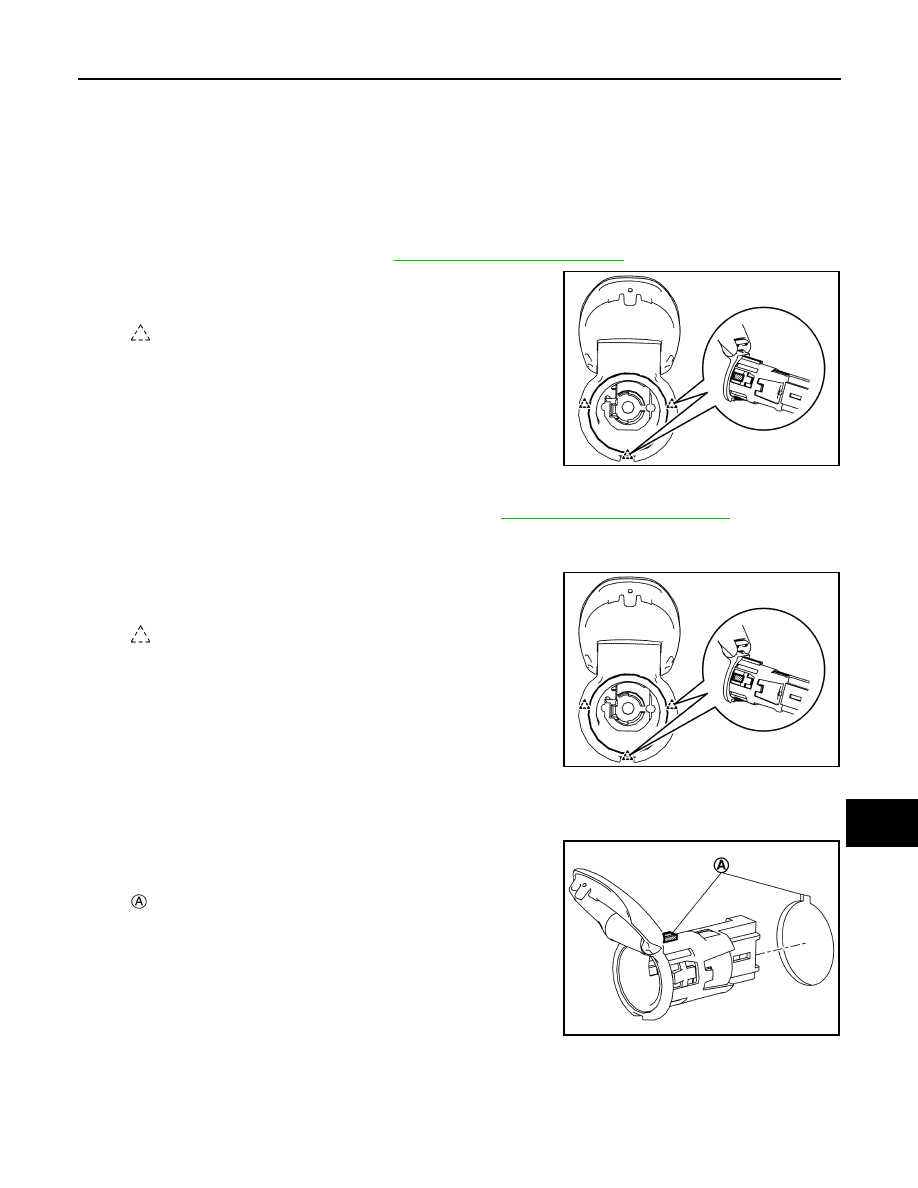

REMOVAL AND INSTALLATION

POWER SOCKET

Removal and Installation

INFOID:0000000010437043

REMOVAL

Instrument Panel Side

1.

Remove upper console finisher. Refer to

IP-19, "Removal and Installation"

.

2.

Press power socket pawl from back of upper console finisher to
remove power socket.

Center Console Side

1.

Remove center console rear finisher assembly. Refer to

IP-19, "Removal and Installation"

.

2.

Disconnect power socket harness connector.

3.

Fully open console lid.

4.

Press power socket pawl from back of console box to remove
power socket.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Align the cut outs of power socket and center console assem-
bly.

: Pawl

JSMIA1116ZZ

: Pawl

JSMIA1116ZZ

: Cut out

JSMIA1119ZZ

BCS

BCS-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

BCS

A

O

P

N

CONTENTS

BODY CONTROL SYSTEM

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Precautions for Removing Battery Terminal  .............

4

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................

5

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

5

SYSTEM DESCRIPTION  ..............................

7

COMPONENT PARTS  ........................................

7

BODY CONTROL SYSTEM  ........................................

7

BODY CONTROL SYSTEM : Component Parts
Location .....................................................................

7

POWER CONSUMPTION CONTROL SYSTEM  .........

8

POWER CONSUMPTION CONTROL SYSTEM :
Component Parts Location ........................................

9

SYSTEM .............................................................

10

BODY CONTROL SYSTEM  ......................................

10

BODY CONTROL SYSTEM : System Description

....

10

BODY CONTROL SYSTEM : Fail-safe ...................

12

COMBINATION SWITCH READING SYSTEM  .........

13

COMBINATION SWITCH READING SYSTEM :
System Description  .................................................

13

SIGNAL BUFFER SYSTEM  ......................................

16

SIGNAL BUFFER SYSTEM : System Description

....

17

POWER CONSUMPTION CONTROL SYSTEM  .......

17

POWER CONSUMPTION CONTROL SYSTEM :
System Description  .................................................

18

SHIPPING MODE CONTROL SYSTEM ....................

19

SHIPPING MODE CONTROL SYSTEM : System
Description ..............................................................

20

DIAGNOSIS SYSTEM (BCM)  ............................

21

COMMON ITEM  .........................................................

21

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM)  .....................................................

21

DOOR LOCK ..............................................................

22

DOOR LOCK : Information  ......................................

22

DOOR LOCK : CONSULT Function (BCM -
DOOR LOCK) (Type 1)  ...........................................

22

DOOR LOCK : CONSULT Function (BCM -
DOOR LOCK) (Type 2)  ...........................................

23

DOOR LOCK : CONSULT Function (BCM -
DOOR LOCK) (Type 3)  ...........................................

24

DOOR LOCK : CONSULT Function (BCM -
DOOR LOCK) (Type 4)  ...........................................

25

DOOR LOCK : CONSULT Function (BCM -
DOOR LOCK) (Type 5)  ...........................................

26

DOOR LOCK : CONSULT Function (BCM -
DOOR LOCK) (Type 6)  ...........................................

27

MULTI REMOTE ENT  ................................................

28

MULTI REMOTE ENT : CONSULT Function
(BCM - MULTI REMOTE ENT) (Type 3)  .................

28

MULTI REMOTE ENT : CONSULT Function
(BCM - MULTI REMOTE ENT) (Type 4)  .................

30

MULTI REMOTE ENT : CONSULT Function
(BCM - MULTI REMOTE ENT) (Type 6)  .................

32

REAR WINDOW DEFOGGER  ...................................

33

REAR WINDOW DEFOGGER : CONSULT Func-
tion (BCM - REAR DEFOGGER) .............................

33

BUZZER .....................................................................

34

BUZZER : CONSULT Function (BCM - BUZZER)
(With Intelligent Key System)  ..................................

34

BUZZER : CONSULT Function (BCM - BUZZER)
(Without Intelligent Key System) .............................

34

INT LAMP ...................................................................

35

INT LAMP : CONSULT Function (BCM - INT
LAMP) ......................................................................

35

HEADLAMP ...............................................................

36
