Nissan Qashqai J11. Manual - part 1816

HRN-4

< WIRING DIAGRAM >

HORN

WIRING DIAGRAM

HORN

Wiring Diagram

INFOID:0000000010339333

JRLWD2046GB

HORN

HRN-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

JRLWE4201GB

HRN-6

< WIRING DIAGRAM >

HORN

JRLWE4202GB

HORN

HRN-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

REMOVAL AND INSTALLATION

HORN

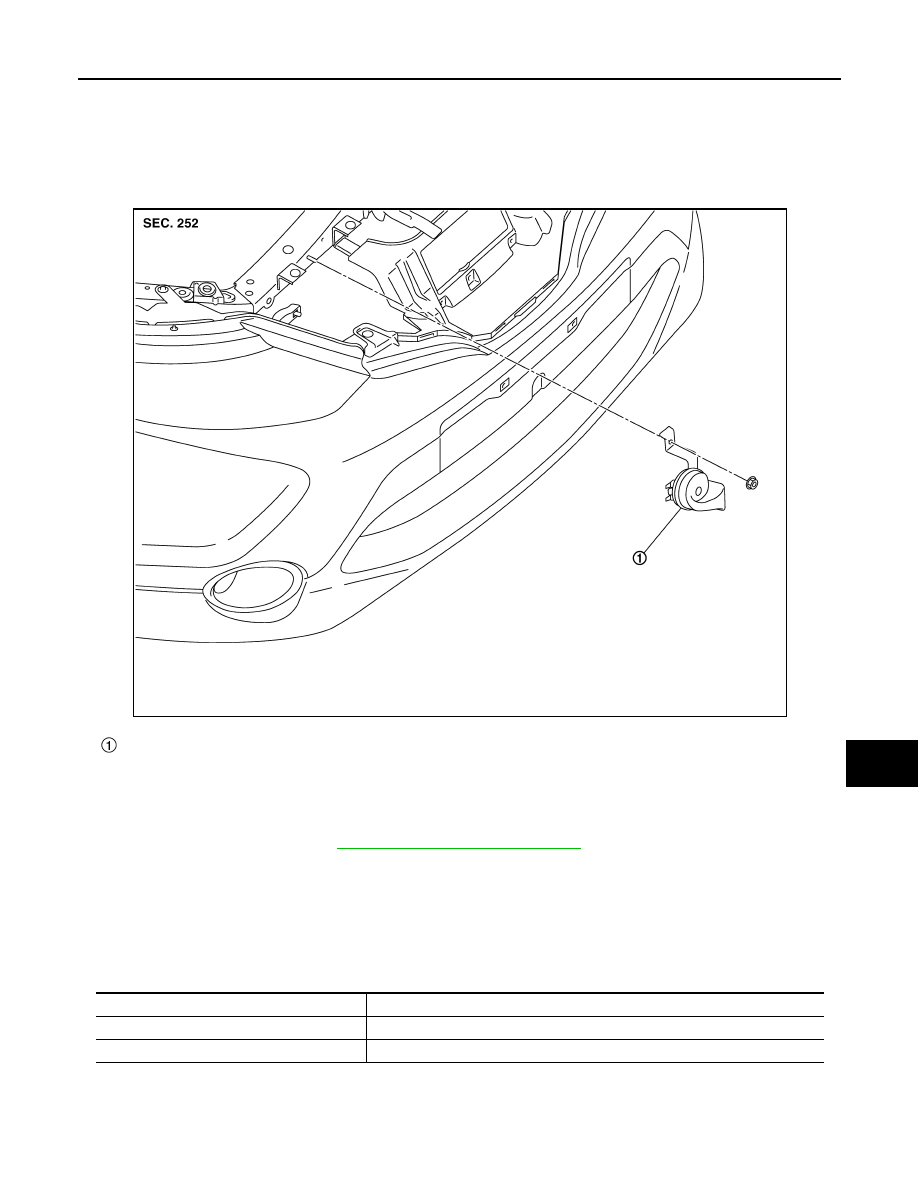

Exploded View

INFOID:0000000010339334

Removal and Installation

INFOID:0000000010339335

REMOVAL

1.

Remove the front grille. Refer to

EXT-25, "Removal and Installation"

.

2.

Disconnect the horn connectors.

3.

Remove the horn mounting bolt, and remove the horn.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Be careful to connect power supply harness connector and ground harness connector normally.

Horn

JMLIA5105ZZ

Harness connector

Horn

Brown

Power supply (terminal with brown plastic base)

Black

Ground (terminal located on horn bracket)
