DIAGNOSIS SYSTEM (BCM)

DEF-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

Monitor Item

Description

PUSH SW

Indicates [On/Off] condition of push switch

REAR DEF SW

Displays “Press (On)/other (Off)” status determined with the rear window defogger switch

Test Item

Description

REAR DEFOGGER

Rear window defogger operates when “On” on CONSULT screen is touched

DEF-12

< ECU DIAGNOSIS INFORMATION >

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000010434114

ECU

Reference

BCM

BCS-64, "Reference Value"

BCS-88, "Fail-safe"

BCS-89, "DTC Inspection Priority Chart"

BCS-90, "DTC Index"

REAR WINDOW DEFOGGER SYSTEM

DEF-13

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

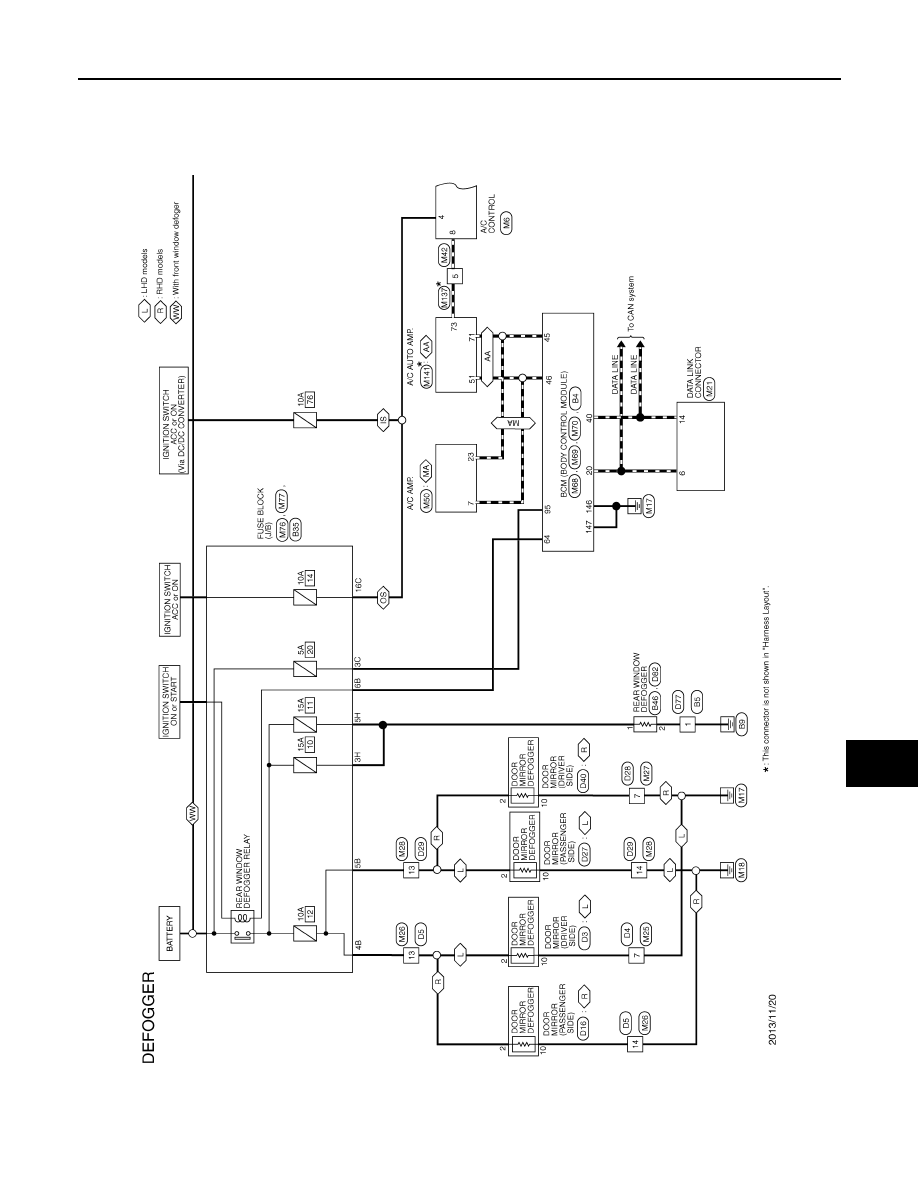

WIRING DIAGRAM

REAR WINDOW DEFOGGER SYSTEM

Wiring Diagram

INFOID:0000000010434115

JRLWD2044GB

DEF-14

< WIRING DIAGRAM >

REAR WINDOW DEFOGGER SYSTEM

JRLWD2045GB
