SYSTEM

System Description

INFOID:0000000010434110

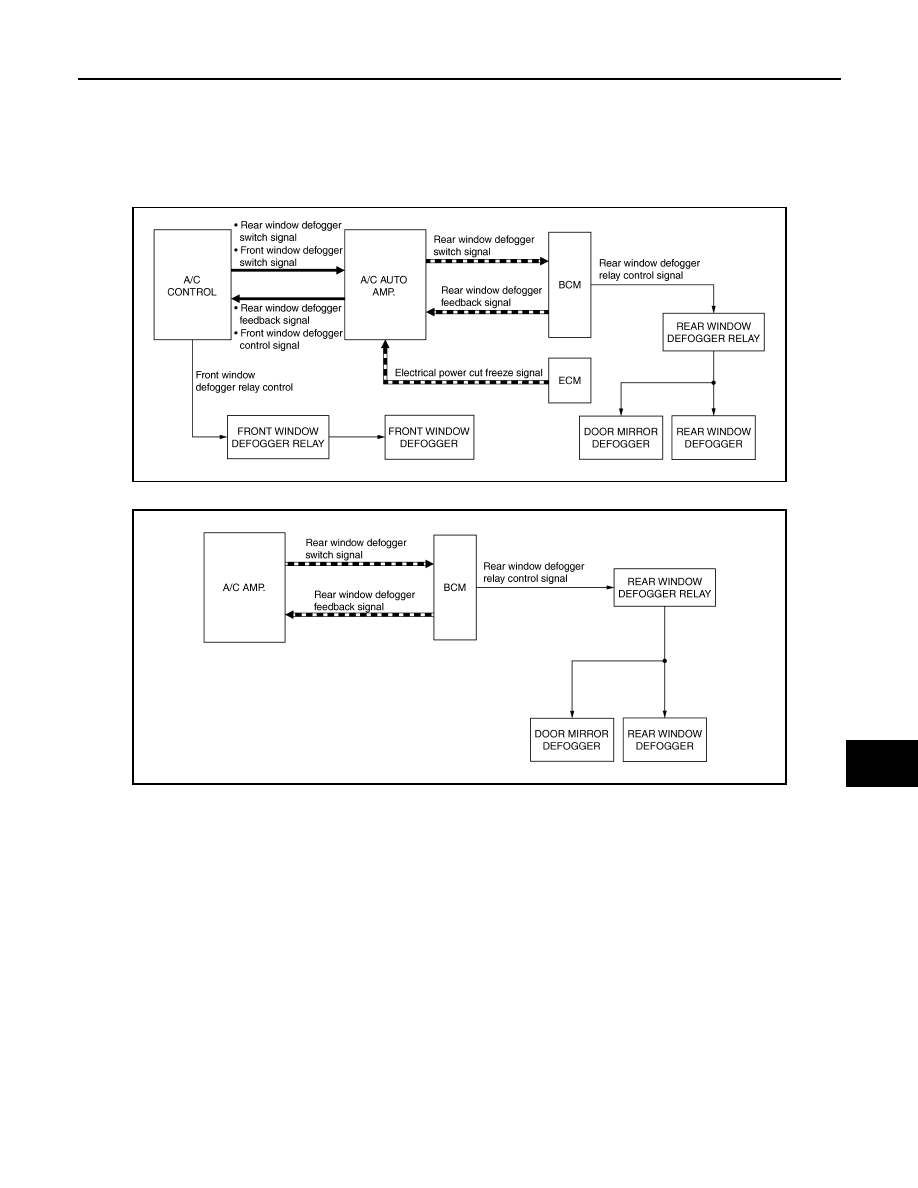

SYSTEM DIAGRAM

Automatic Air Conditioning System

Except Automatic Air Conditioning System

REAR WINDOW DEFOGGER FUNCTION

• Turn rear window defogger switch ON when the ignition switch turns ON. Then integral switch (rear window

defogger switch) transmits rear window defogger switch signal to display control unit via communication line.
Display control unit transmits rear window defogger switch signal to BCM via CAN communication.

• BCM turns rear window defogger relay ON and transmits rear window defogger control signal to IPDM E/R

via CAN communication when rear window defogger switch signal is received.

• Rear window defogger and door mirror defogger are supplied with power and operate when rear window

defogger relay turns ON.

• IPDM E/R transmits rear window defogger control signal to display control unit via CAN communication.
• Display control unit transmit rear window defogger feedback signal to integral switch (rear window defogger

switch) via communication line, then rear window defogger indicator is illuminated.

REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER TIMER FUNCTION

• BCM turns rear window defogger relay ON for approximately 15 minutes when rear window defogger switch

turns ON. It makes rear window defogger, door mirror defogger.

• Timer is canceled after pressing rear window defogger switch again during timer operation. Then BCM turns

rear window defogger relay OFF. The same reaction also occurs during timer operation, if the ignition switch
is turned OFF.

FRONT WINDOW DEFOGGER FUNCTION

JMLIA5216GB

JMLIA5217GB

DEF-8

< SYSTEM DESCRIPTION >

SYSTEM

• Turns ON front window defogger switch (Front window defogger switch is on A/C control) while ignition

switch is ON, then front window defogger relay is controlled by A/C control to turn front window defogger
ON.

• Front window defogger turns OFF when any of the following condition is detected.
- Battery voltage is under 6 V (Front window defogger turns ON when battery voltage is 10 V or more).
- Electrical power cut freeze signal (permission) is not received from ECM.
- Vehicle power consumption is large.
• Front window defogger turns OFF when vehicle power consumption is large while front window defogger is

operating.

• Front window defogger turns OFF temporarily when rear window defogger is turned ON.
• Front window defogger turns ON again when rear window defogger timer is 4 minutes left. At this time when

vehicle power consumption is large, front window defogger relay LH and RH may turns ON alternately each
10 seconds.

• Front window defogger turns OFF when rear window defogger timer is expired

DIAGNOSIS SYSTEM (BCM)

DEF-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010434112

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:
*: This item is displayed, but not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Trunk lid open

TRUNK

×

Rear window defogger

REAR DEFOGGER

×

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

IVIS - NATS

IMMU

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Combination switch

COMB SW

×

RAP

RETAINED PWR

×

AIR CONDITONER*

×

Signal buffer system

SIGNAL BUFFER

×

×

Vehicle security

THEFT ALM

×

×

×

TPMS

AIR PRESSURE MONITOR

×

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Body control system

BCM

×

DEF-10

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

REAR WINDOW DEFOGGER

REAR WINDOW DEFOGGER : CONSULT Function (BCM - REAR DEFOGGER)

INFOID:0000000010434113

WORK SUPPORT

*

: Factory setting

DATA MONITOR

CONSULT screen item

Indication/Unit

Description

Vehicle Speed

km/h

Vehicle speed of the moment a particular DTC is detected

Odo/Trip Meter

km

Total mileage (Odometer value) of the moment a particular DTC is detected

Vehicle Condition

SLEEP>LOCK

Power position status of
the moment a particular
DTC is detected

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “LOCK”)

SLEEP>OFF

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “OFF”.)

LOCK>ACC

While turning power supply position from “LOCK” to “ACC”

ACC>ON

While turning power supply position from “ACC” to “IGN”

RUN>ACC

While turning power supply position from “RUN” to “ACC” (Vehicle
is stopping and selector lever is except P position.)

CRANK>RUN

While turning power supply position from “CRANKING” to “RUN”
(From cranking up the engine to run it)

RUN>URGENT

While turning power supply position from “RUN“ to “ACC” (Emer-
gency stop operation)

ACC>OFF

While turning power supply position from “ACC” to “OFF”

OFF>LOCK

While turning power supply position from “OFF” to “LOCK”

OFF>ACC

While turning power supply position from “OFF” to “ACC”

ON>CRANK

While turning power supply position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “OFF”.) to low power consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “LOCK”.) to low power consumption mode

LOCK

Power supply position is “LOCK” (Ignition switch OFF with steer-
ing is locked.)

OFF

Power supply position is “OFF” (Ignition switch OFF with steering
is unlocked.)

ACC

Power supply position is “ACC” (Ignition switch ACC)

ON

Power supply position is “IGN” (Ignition switch ON with engine
stopped)

ENGINE RUN

Power supply position is “RUN” (Ignition switch ON with engine
running)

CRANKING

Power supply position is “CRANKING” (At engine cranking)

IGN Counter

0 - 39

The number of times that ignition switch is turned ON after DTC is detected
• The number is 0 when a malfunction is detected now.
• The number increases like 1

 2

 3...38

 39 after returning to the normal condition

whenever ignition switch OFF

 ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

Service item

Setting item

Description

SET R-DEF TIMER

MODE1

*

NOTE:
Do not use this function.

MODE2

MODE3
