COMPONENT PARTS

EXL-185

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Item

Type

Wattage (W)

Front combination lamp

Headlamp (Hi)

H11

55

Headlamp (LO)

H7

55

Parking lamp/
daytime running light

LED

—

Front turn signal lamp

W21W

21

Front fog lamp

H8

35

Side turn signal lamp (built in door mirror)

LED

—

Rear combination lamp
(body side)

Tail lamp

LED

—

Stop lamp

LED

—

Rear turn signal lamp

WY21W

21

Rear combination lamp
(trunk lid side)

Tail lamp

LED

—

Back-up lamp

W16W

16

Rear fog lamp (driver side only)

W21W

21

License plate lamp

W5W

5

High-mounted stop lamp

LED

—

EXL-186

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

COMPONENT PARTS

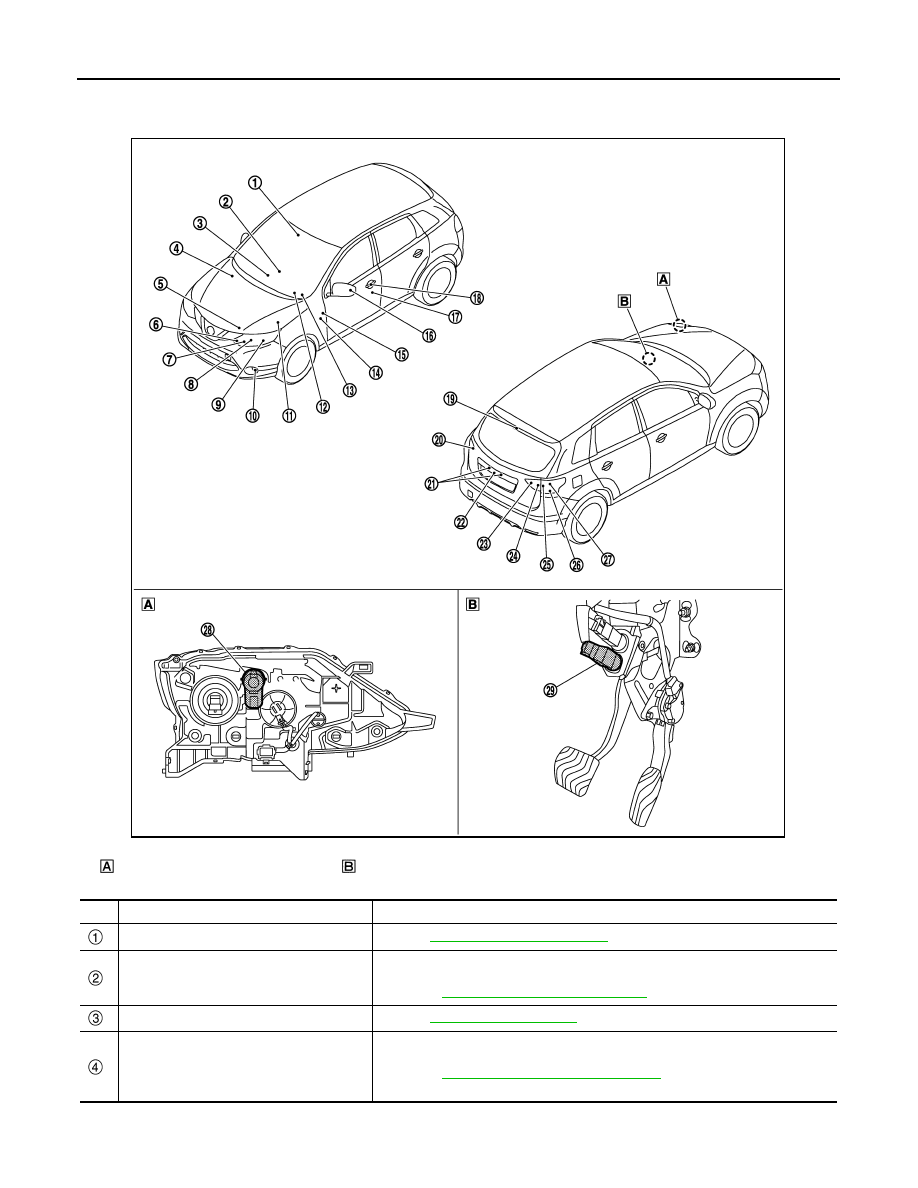

Component Parts Location

INFOID:0000000010469880

Front combination lamp (back)

Brake pedal

No.

Component

Function

Light & rain sensor*

1

Refer to

EXL-188, "Light & Rain Sensor"

.

Air bag diagnosis sensor unit

• When the air bag operates, a request is transmitted to BCM (CAN communica-

tion) to blinks the hazard lamp.

• Refer  to

SRC-6, "Component Parts Location"

 for detailed installation location.

Hazard switch

Refer to

EXL-189, "Hazard Switch"

.

ABS actuator and electric unit (control unit)

• When the Forward Emergency Braking operates, a request is transmitted to

BCM (CAN communication) to turn ON the stop lamp.

• Refer  to

BRC-148, "Component Parts Location"

 for detailed installation loca-

tion.

JMLIA5243ZZ

COMPONENT PARTS

EXL-187

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ECM

• ECM transmits engine status signal and Stop/Start status signal (with Stop/Start

system) to BCM via CAN communication.

• Refer to

ECH-12, "Component Parts Location"

 (HRA2DDT),

ECM-14, "EN-

GINE CONTROL SYSTEM : Component Parts Location"

 (MR20DD),

ECK-12,

"Component Parts Location"

 (K9K) or

EC9-12, "Component Parts Location"



(R9M) for detailed installation location.

Front combination
lamp

Parking lamp/Day-

time running light*

2

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

Front turn signal
lamp

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

Headlamp (HI)
(Halogen headlamp)

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

Headlamp (LO)
(Halogen headlamp)

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

Front fog lamp*

3

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

IPDM E/R

• Controls the integrated smart FET, and supplies voltage to the load according

to the request from BCM via CAN communication.

• Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

Combination meter

• Turns the indicator lamp and warning (information display/buzzer) ON/OFF ac-

cording to the request from BCM via CAN communication.

• Blinks the turn signal indicator lamp and outputs the turn signal operating sound

with integrated buzzer according to the request from BCM via CAN communi-
cation.

Combination switch

Refer to

BCS-13, "COMBINATION SWITCH READING SYSTEM : System De-

scription"

.

BCM

• Detects each switch condition by the combination switch reading function.
• Exterior lamp ON/OFF is judged from each signal, and then a request is trans-

mitted to IPDM E/R (CAN communication) to turn each smart FET ON/OFF.

• It also transmits a request to the combination meter (CAN communication) to

turn indicator lamp and warning (information display/buzzer) ON/OFF.

• Blinks the turn signal lamp and hazard warning lamp according to the each

switch condition.

• Requests the turn signal indicator lamp blink to the combination meter via CAN

communication.

• Requests the turn signal operating sound ON to the combination meter via CAN

communication.

• Judges the vehicle status from each signal, and illuminates the stop lamp and

high-mounted stop lamp.

• Refer  to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

 for

detailed installation location.

Headlamp aiming switch

Refer to

EXL-189, "Headlamp Aiming Switch"

.

Side turn signal lamp

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

Door switch

Refer to

DLK-30, "Component Description"

 (TYPE 1),

DLK-204,

"Component Description"

 (TYPE 2),

DLK-386, "Component Description"

 (TYPE

3),

DLK-511, "Component Description"

 (TYPE 4),

DLK-653,

"Component Description"

 (TYPE 5) or

DLK-835, "Component Description"



(TYPE 6).
NOTE:
Regarding to the vehicle type, refer to

DLK-24, "Information"

.

Door request switch*

4

Refer to

DLK-30, "Component Description"

 (TYPE 1),

DLK-204,

"Component Description"

 (TYPE 2) or

DLK-653, "Component Description"



(TYPE 5).
NOTE:
Regarding to the vehicle type, refer to

DLK-24, "Information"

.

High-mounted stop lamp

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

No.

Component

Function

EXL-188

< SYSTEM DESCRIPTION >

[HALOGEN HEADLAMP]

COMPONENT PARTS

*

1

: With auto light system

*

2

: With daytime running light system

*

3

: With front fog lamp

*

4

: With Intelligent Key system

*

5

: With rear fog lamp

FRONT COMBINATION LAMP

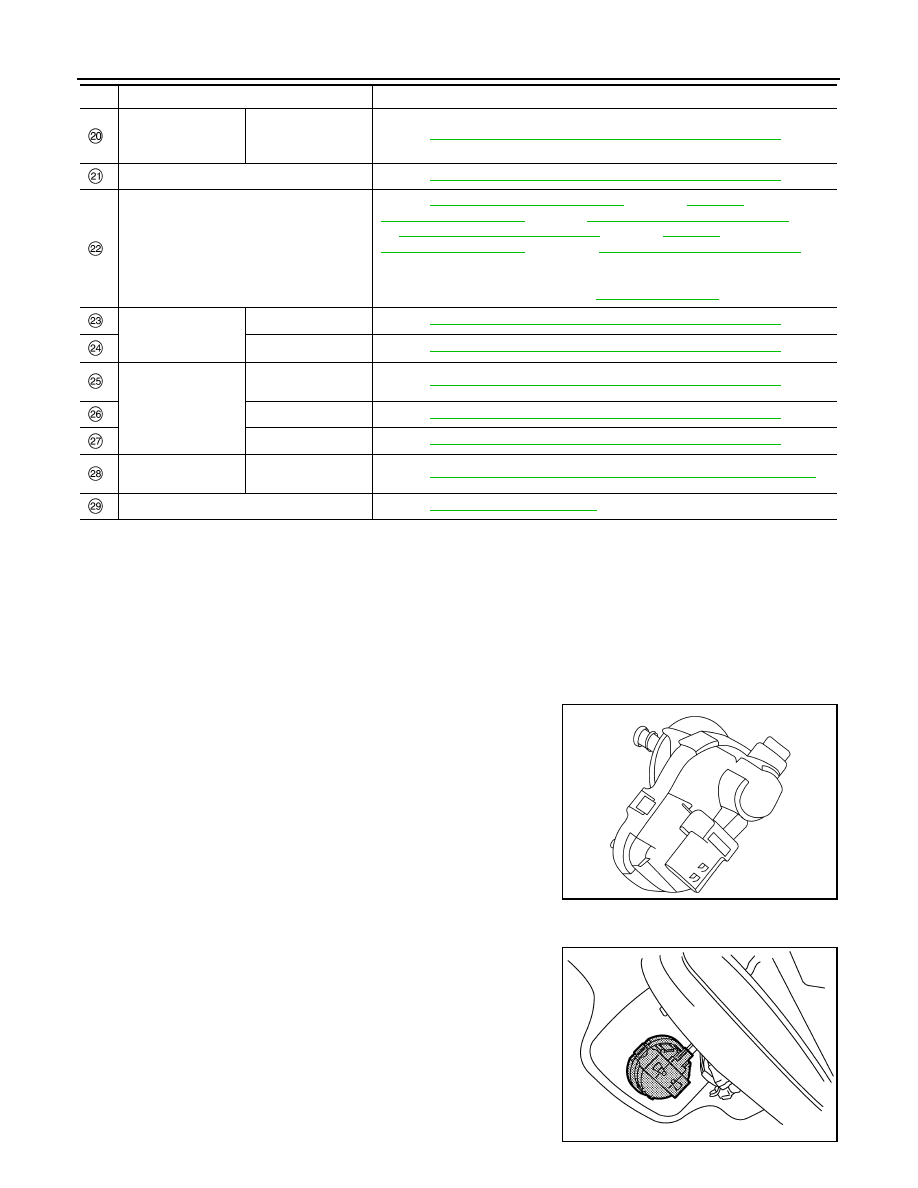

FRONT COMBINATION LAMP : Headlamp Aiming Motor

INFOID:0000000010469883

• Headlamp aiming motor is integrated in the front combination

lamp.

• Headlamp aiming motor adjusts the headlamp light axis upward

and downward according to input drive signal from headlamp aim-
ing switch.

Light & Rain Sensor

INFOID:0000000010469886

• The light & rain sensor detects the outside ambient light level, for-

ward light level and sensor conditions.

• Based on ambient light level (day/night detection), forward light

level (tunnel detection) and sensor conditions it judges ON/OFF
condition for exterior lamps.

• And it transmits exterior lamp ON/OFF request to the BCM by the

light & rain sensor serial link.

• BCM controls each function depending on the signals. And it

detects the light & rain sensor serial link error and the light & rain
sensor malfunction.

Rear combination
lamp (back door
side)

Rear fog lamp*

5

(Driver side only)

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

License plate lamp

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

Back door opener switch

Refer to

DLK-30, "Component Description"

 (TYPE 1),

DLK-204,

"Component Description"

 (TYPE 2),

DLK-386, "Component Description"

 (TYPE

3),

DLK-511, "Component Description"

 (TYPE 4),

DLK-653,

"Component Description"

 (TYPE 5) or

DLK-835, "Component Description"



(TYPE 6).
NOTE:
Regarding to the vehicle type, refer to

DLK-24, "Information"

.

Rear combination
lamp (back door
side)

Tail lamp

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

Back-up lamp

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

Rear combination
lamp (body side)

Rear turn signal
lamp

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

Stop lamp/Tail lamp

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

Tail lamp

Refer to

EXL-184, "Exterior Lamp Appearance and Bulb Specifications"

.

Front combination
lamp

Headlamp aiming
motor

Refer to

EXL-188, "FRONT COMBINATION LAMP : Headlamp Aiming Motor"

.

Stop lamp switch

Refer to

EXL-189, "Stop Lamp Switch"

.

No.

Component

Function

JMLIA3311ZZ

JSLIA0093ZZ
