COMPONENT PARTS

EXL-13

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ABS actuator and electric unit (control unit)

• When the Forward Emergency Braking operates, a request is transmitted to

BCM (CAN communication) to turn ON the stop lamp.

• Refer to

BRC-148, "Component Parts Location"

 for detailed installation loca-

tion.

ECM

• ECM transmits engine status signal and Stop/Start status signal (with Stop/Start

system) to BCM via CAN communication.

• Refer to

ECH-12, "Component Parts Location"

 (HRA2DDT),

ECM-14, "EN-

GINE CONTROL SYSTEM : Component Parts Location"

 (MR20DD),

ECK-12,

"Component Parts Location"

 (K9K) or

EC9-12, "Component Parts Location"



(R9M) for detailed installation location.

Front combination
lamp

Parking lamp/Day-

time running light*

2

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

.

Front turn signal
lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

.

Headlamp (HI)
(LED headlamp)

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

 and

EXL-

14, "FRONT COMBINATION LAMP : LED Headlamp"

.

Headlamp (LO)
(LED headlamp)

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

 and

EXL-

14, "FRONT COMBINATION LAMP : LED Headlamp"

.

Front fog lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

.

IPDM E/R

• Controls the integrated smart FET, and supplies voltage to the load according

to the request from BCM via CAN communication.

• The headlamp warning signal is input from the LED headlamp control module,

and the IPDM E/R requests the combination meter (CAN communication) to
display the headlamp warning.

• Judges the vehicle status from each signal in order to control the headlamp

aiming control.

• Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

Combination meter

• Turns the indicator lamp and warning (information display/buzzer) ON/OFF ac-

cording to the request from BCM via CAN communication.

• Turns the headlamp warning ON according to the request from IPDM E/R via

CAN communication.

• Blinks the turn signal indicator lamp and outputs the turn signal operating sound

with integrated buzzer according to the request from BCM via CAN communi-
cation.

• Combination meter transmits vehicle speed signal to BCM and IPDM E/R via

CAN communication.

Combination switch

Refer to

BCS-13, "COMBINATION SWITCH READING SYSTEM : System De-

scription"

.

BCM

• Detects each switch condition by the combination switch reading function.
• Exterior lamp ON/OFF is judged from each signal, and then a request is trans-

mitted to IPDM E/R (CAN communication) to turn each smart FET ON/OFF.

• It also transmits a request to the combination meter (CAN communication) to

turn indicator lamp and warning (information display/buzzer) ON/OFF.

• Blinks the turn signal lamp and hazard warning lamp according to the each

switch condition.

• Requests the turn signal indicator lamp blink to the combination meter via CAN

communication.

• Requests the turn signal operating sound ON to the combination meter via CAN

communication.

• Judges the vehicle status from each signal, and illuminates the stop lamp and

high-mounted stop lamp.

• Refer  to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

 for

detailed installation location.

Side turn signal lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

.

Door switch

Refer to

DLK-30, "Component Description"

 (TYPE 1),

DLK-204,

"Component Description"

 (TYPE 2),

DLK-653, "Component Description"

 (TYPE

5) or

DLK-835, "Component Description"

 (TYPE 6).

NOTE:
Regarding to the vehicle type, refer to

DLK-24, "Information"

.

No.

Component

Function

EXL-14

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

COMPONENT PARTS

*

1

: With high beam assist system

*

2

: With daytime running light system

*

3

: With Intelligent Key system

*

4

: Torsion beam rear suspension models

*

5

: With rear fog lamp

*

6

: Multi-link rear suspension models

FRONT COMBINATION LAMP

FRONT COMBINATION LAMP : LED Headlamp

INFOID:0000000010338632

OUTLINE

• Semiconductor device (Light emitting diode: LED), which is illuminated when forward bias electric voltage is

applied, is adopted as the source of light instead of halogen bulb or xenon bulb.

• Comparing to halogen headlamp or xenon headlamp, LED headlamp is electrically power saving, durable,

and is illuminated in the similar color to the sunlight. Bright, natural, and eye-friendly visibility can be
obtained.

PRECAUTIONS FOR TROUBLE DIAGNOSIS

Representative malfunction examples are; “Light does not turn ON”, “Light blinks”, and “Brightness is inade-
quate.” Such malfunctions, however, occasionally by occur LED control module malfunction or lamp case mal-
function. Specify the malfunctioning part with diagnosis procedure.

CAUTION:

• Never touch the harness, LED headlamp control module, the inside and metal part of lamp when

turning the headlamp ON or operating the lighting switch, for preventing electrical shock.

Door request switch*

3

Refer to

DLK-30, "Component Description"

 (TYPE 1),

DLK-204,

"Component Description"

 (TYPE 2) or

DLK-653, "Component Description"



(TYPE 5).
NOTE:
Regarding to the vehicle type, refer to

DLK-24, "Information"

.

Height sensor*

4

Refer to

EXL-15, "Height Sensor"

.

High-mounted stop lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

.

Rear combination
lamp (back door
side)

Rear fog lamp*

5

(Driver side only)

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

.

License plate lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

.

Back door opener switch

Refer to

DLK-30, "Component Description"

 (TYPE 1),

DLK-204,

"Component Description"

 (TYPE 2),

DLK-653, "Component Description"

 (TYPE

5) or

DLK-835, "Component Description"

 (TYPE 6).

NOTE:
Regarding to the vehicle type, refer to

DLK-24, "Information"

.

Rear combination
lamp (back door
side)

Tail lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

.

Back-up lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

.

Rear combination
lamp (body side)

Rear turn signal
lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

.

Stop lamp/Tail lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

.

Tail lamp

Refer to

EXL-10, "Exterior Lamp Appearance and Bulb Specifications"

.

Height sensor*

6

Refer to

EXL-15, "Height Sensor"

.

Front combination
lamp

Headlamp aiming
motor

Refer to

EXL-15, "FRONT COMBINATION LAMP : Headlamp Aiming Motor"

.

LED headlamp con-
trol module

Refer to

EXL-15, "FRONT COMBINATION LAMP : LED Headlamp Control Mod-

ule"

.

Stop lamp switch

Refer to

EXL-16, "Stop Lamp Switch"

.

No.

Component

Function

COMPONENT PARTS

EXL-15

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

• Never work with wet hands, for preventing electrical shock.
• Never perform LED headlamp control module circuit diagnosis with a circuit tester or an equivalent.
• Temporarily install the headlamps on the vehicle. Always connect power supply to the connector

(vehicle side) when checking ON/OFF status.

• Disconnect the battery negative terminal before disconnecting the lamp socket connector or the har-

ness connector.

• Check for fusing of the fusible link(s), open around connector, short, disconnection if the symptom

is caused by electric error.

• Always check for deformation or hole of headlamp housing and engagement of bulb cover. Other-

wise, water may enter into headlamp because of damage of headlamp housing and contact to LED
headlamp control module connector. The normal operation may be inhibited when short circuit to
power supply is detected.

NOTE:
Turn the switch OFF once before turning ON, if the ON/OFF is inoperative.

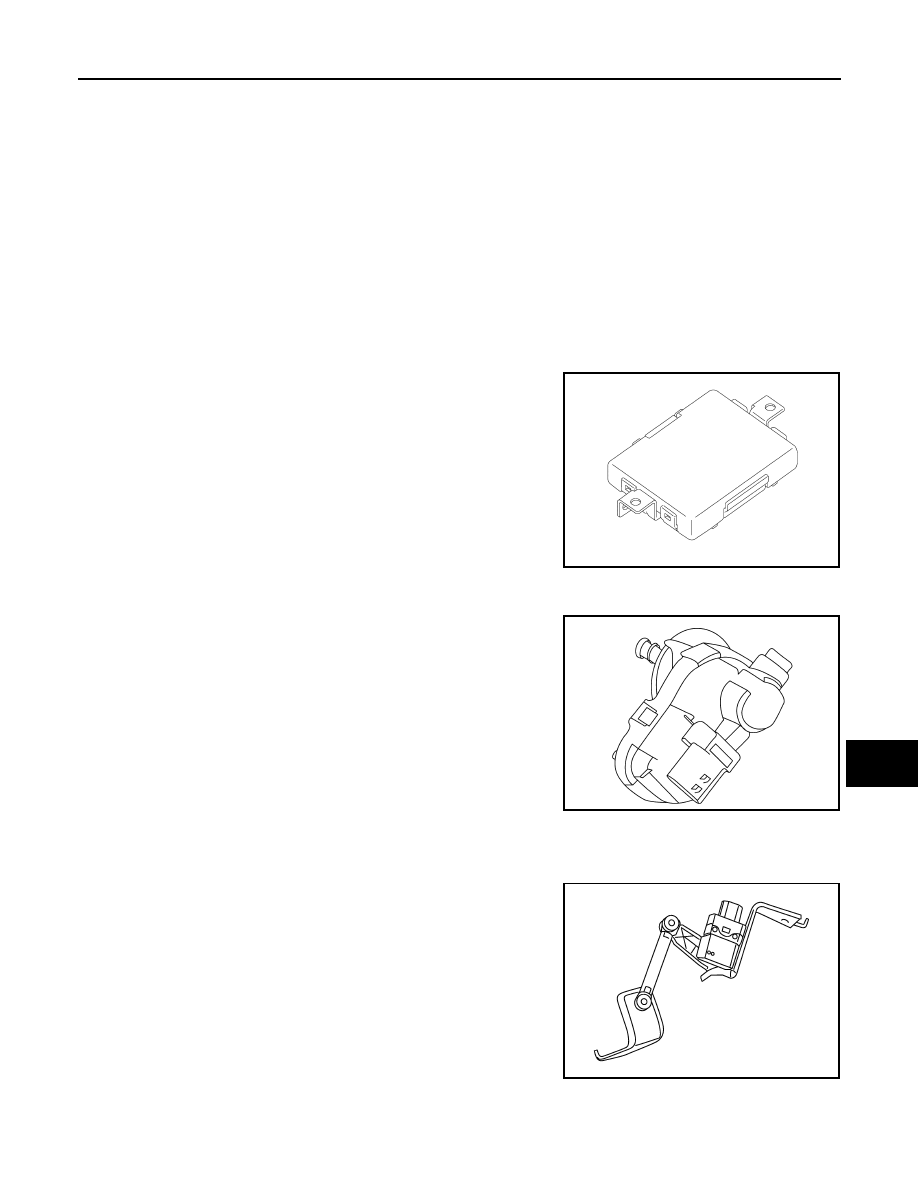

FRONT COMBINATION LAMP : LED Headlamp Control Module

INFOID:0000000010338633

• LED headlamp control module is integrated in the front combina-

tion lamp and turns the LED headlamp ON according to the
request from IPDM E/R.

• Outputs the headlamp warning signal to the IPDM E/R.

FRONT COMBINATION LAMP : Headlamp Aiming Motor

INFOID:0000000010338635

• Headlamp aiming motor is integrated in the front combination

lamp.

• Headlamp aiming motor adjusts the headlamp light axis upward

and downward according to input drive signal from IPDM E/R.

Height Sensor

INFOID:0000000010338639

MULTI-LINK REAR SUSPENSION MODELS

• Height sensor is installed in lower link.
• Height sensor detects the vehicle height deviation with sensor

lever, and transmits the detected value as a height sensor signal to
IPDM E/R.

TORSION BEAM REAR SUSPENSION MODELS

JMLIA4307ZZ

JMLIA3311ZZ

JMLIA5244ZZ

EXL-16

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

COMPONENT PARTS

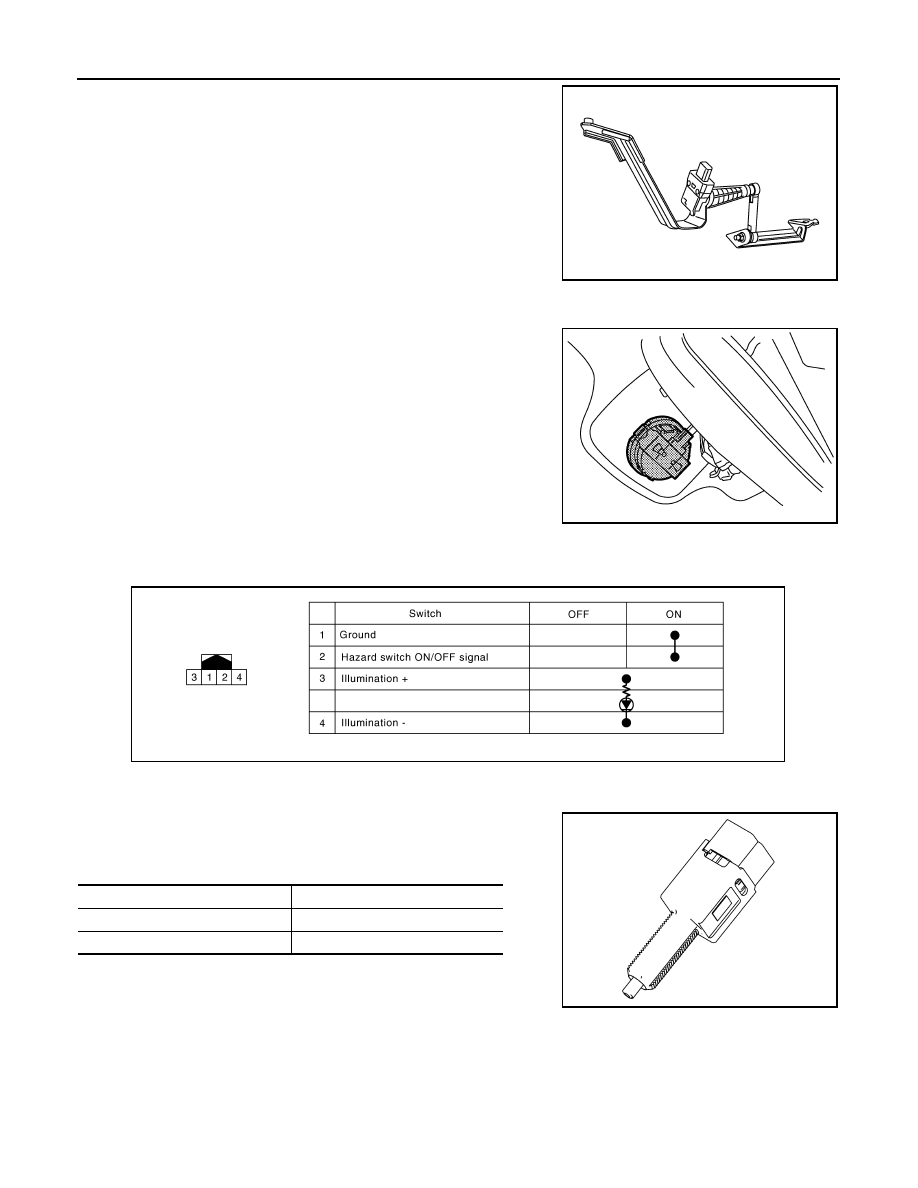

• Height sensor is installed in rear suspension beam.
• Height sensor detects the vehicle height deviation with sensor

lever, and transmits the detected value as a height sensor signal to
IPDM E/R.

Light & Rain Sensor

INFOID:0000000010452405

• The light & rain sensor detects the outside ambient light level, for-

ward light level and sensor conditions.

• Based on ambient light level (day/night detection), forward light

level (tunnel detection) and sensor conditions it judges ON/OFF
condition for exterior lamps.

• And it transmits exterior lamp ON/OFF request to the BCM by the

light & rain sensor serial link.

• BCM controls each function depending on the signals. And it

detects the light & rain sensor serial link error and the light & rain
sensor malfunction.

Hazard Switch

INFOID:0000000010338641

Inputs the hazard switch ON/OFF signal to BCM.

Stop Lamp Switch

INFOID:0000000010452406

• Stop lamp switch is installed to brake pedal bracket.
• BCM detects the brake pedal status from the ON/OFF signal that is

input from the switch.

JMLIA5245ZZ

JSLIA0093ZZ

JMLIA5226GB

Brake pedal

Stop lamp switch

Released

OFF

Depressed

ON

JSBIA0308ZZ
