PRECAUTIONS

EXL-9

< PRECAUTION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

EXL-10

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

Exterior Lamp Appearance and Bulb Specifications

INFOID:0000000010338630

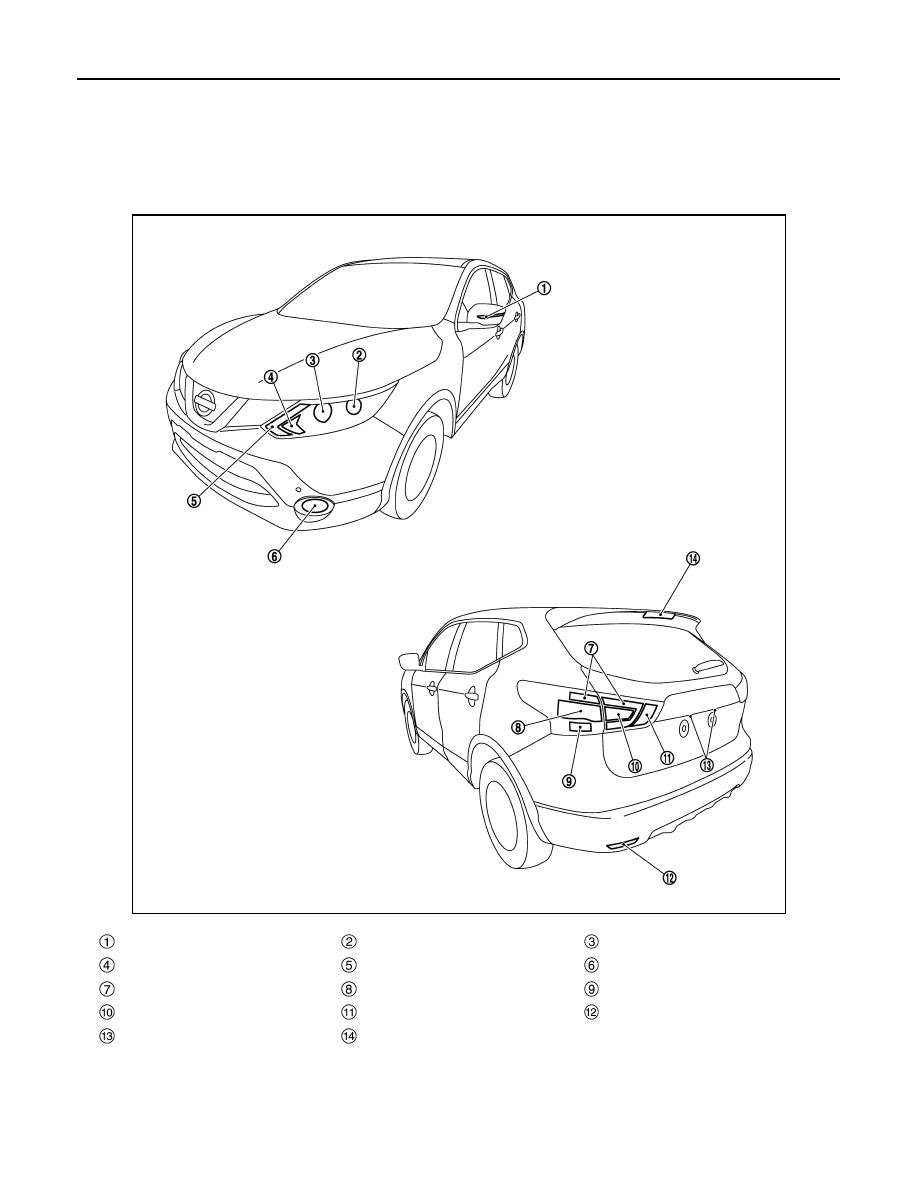

Exterior Lamp Appearance

Bulb Specifications

JMLIA5116ZZ

Side turn signal lamp

Headlamp (LO)

Headlamp (HI)

Front turn signal lamp

Parking lamp/daytime running light

Front fog lamp

Tail lamp

Rear turn signal lamp

Stop lamp

Back-up lamp

Rear fog lamp (driver side only)

Rear reflex reflector

License plate lamp

High-mounted stop lamp

COMPONENT PARTS

EXL-11

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI)

LED

—

Headlamp (LO)

LED

—

Parking lamp/
daytime running light

LED

—

Front turn signal lamp

W21W

21

Front fog lamp

H8

35

Side turn signal lamp (built in door mirror)

LED

—

Rear combination lamp
(body side)

Tail lamp

LED

—

Stop lamp

LED

—

Rear turn signal lamp

WY21W

21

Rear combination lamp
(trunk lid side)

Tail lamp

LED

—

Back-up lamp

W16W

16

Rear fog lamp (driver side only)

W21W

21

License plate lamp

W5W

5

High-mounted stop lamp

LED

—

EXL-12

< SYSTEM DESCRIPTION >

[LED HEADLAMP]

COMPONENT PARTS

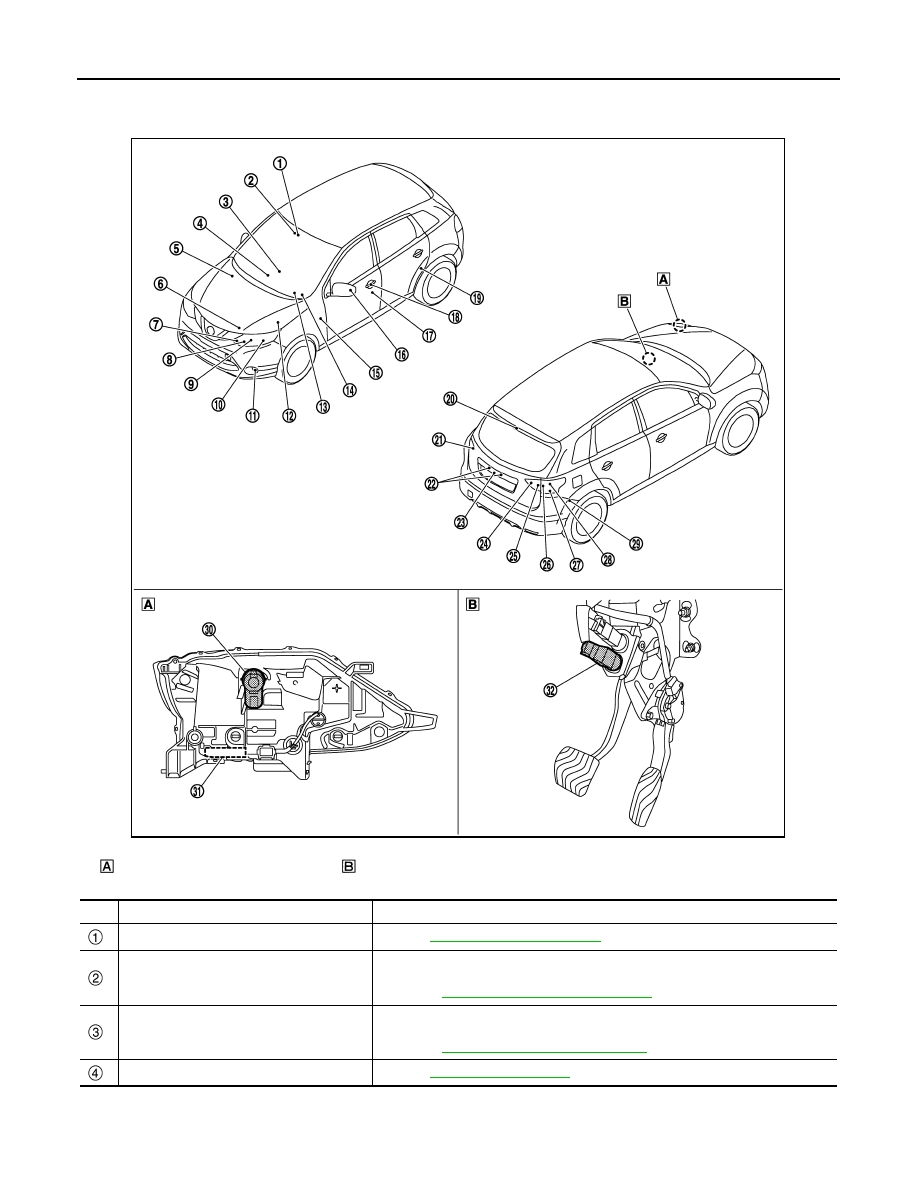

Component Parts Location

INFOID:0000000010338631

Front combination lamp (back)

Brake pedal

No.

Component

Function

Light & rain sensor

Refer to

EXL-16, "Light & Rain Sensor"

.

Front camera unit*

1

• Judges the vehicle status from each signal in order to control the high beam as-

sist control.

• Refer  to

DAS-13, "Component Parts Location"

 for detailed installation location.

Air bag diagnosis sensor unit

• When the air bag operates, a request is transmitted to BCM (CAN communica-

tion) to blinks the hazard lamp.

• Refer  to

SRC-6, "Component Parts Location"

 for detailed installation location.

Hazard switch

Refer to

EXL-16, "Hazard Switch"

.

JMLIA5242ZZ
