Nissan Qashqai J11. Manual - part 1664





DOOR MIRROR

MIR-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR

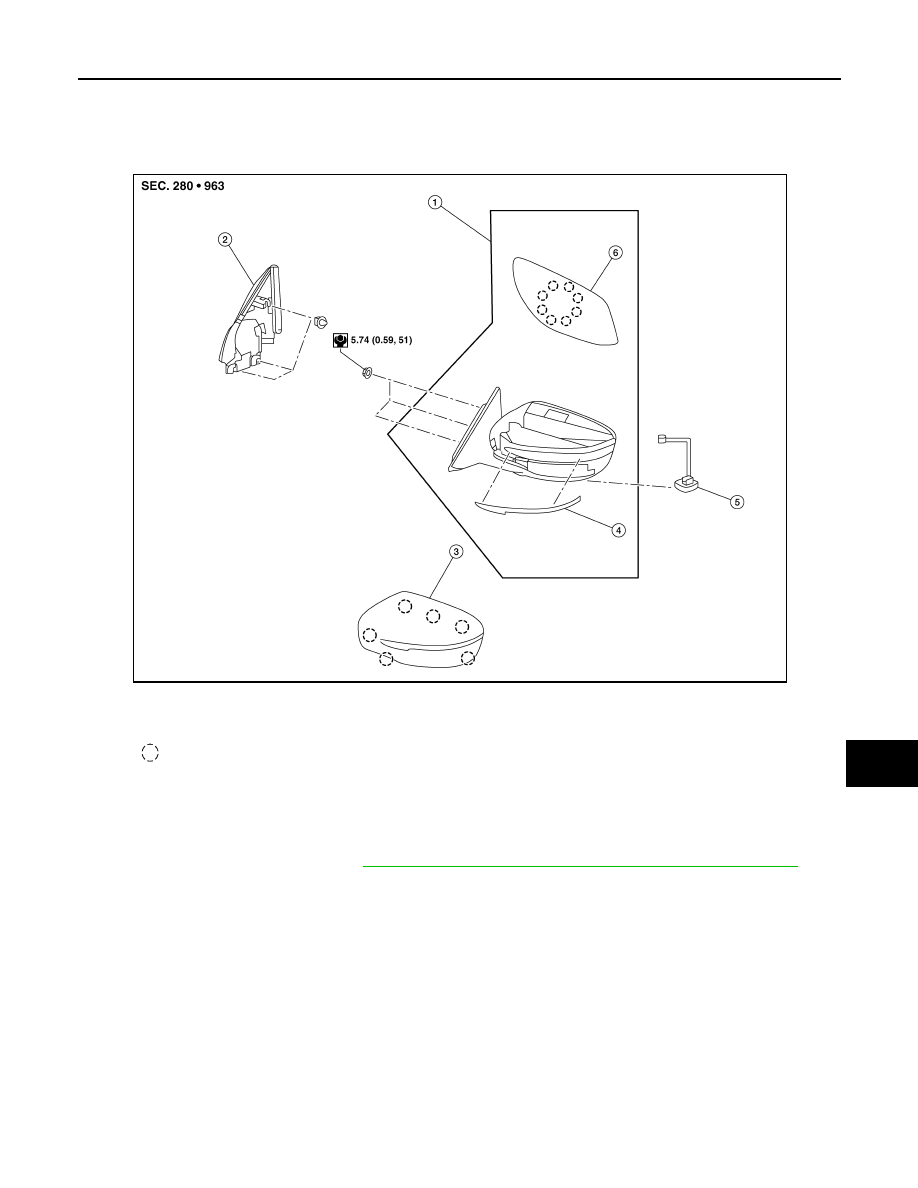

Exploded View

INFOID:0000000010478221

Removal and Installation

INFOID:0000000010478222

REMOVAL

1.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Release door mirror corner finisher clips using a suitable tool.

3.

Disconnect the harness connector from the blind spot warning indicator (if equipped), then remove the
door mirror corner finisher.

4.

Disconnect the harness connector from the door mirror.

5.

Remove door mirror nuts and door mirror.

1.

Door mirror

2.

Door mirror corner finisher

3.

Door mirror rear finisher

4.

Side turn signal lamp

5.

Side camera (if equipped)

6.

Door mirror glass

Pawl

ALLIA1382ZZ

MIR-32

< REMOVAL AND INSTALLATION >

DOOR MIRROR

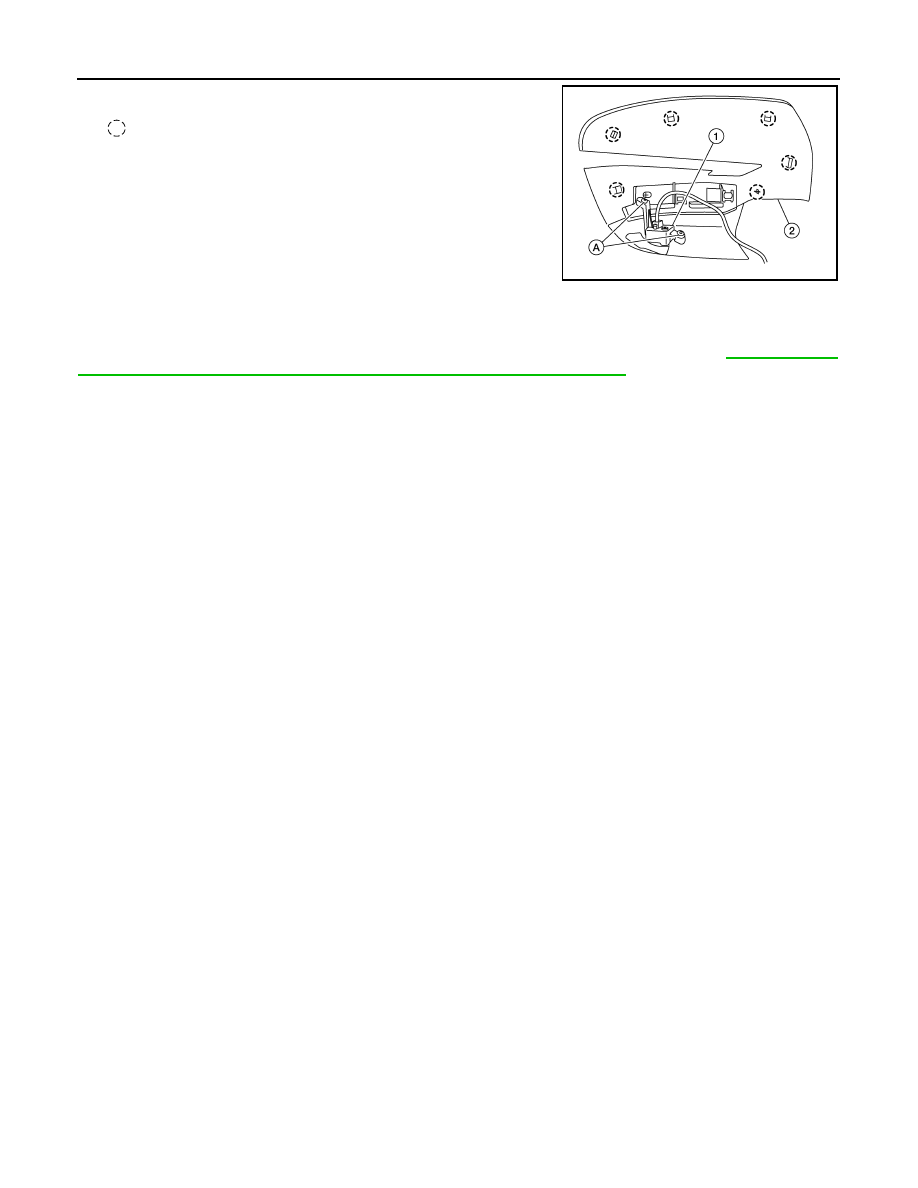

6.

Remove screws (A) and side camera (1) (if equipped) (if neces-
sary) from door mirror rear finisher (2).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform camera image calibration (if equipped with around view camera). Refer to

AV-181, "CALI-

BRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure"

.

ALLIA1383ZZ

DOOR MIRROR REMOTE CONTROL SWITCH

MIR-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR REMOTE CONTROL SWITCH

Removal and Installation

INFOID:0000000010478226

REMOVAL

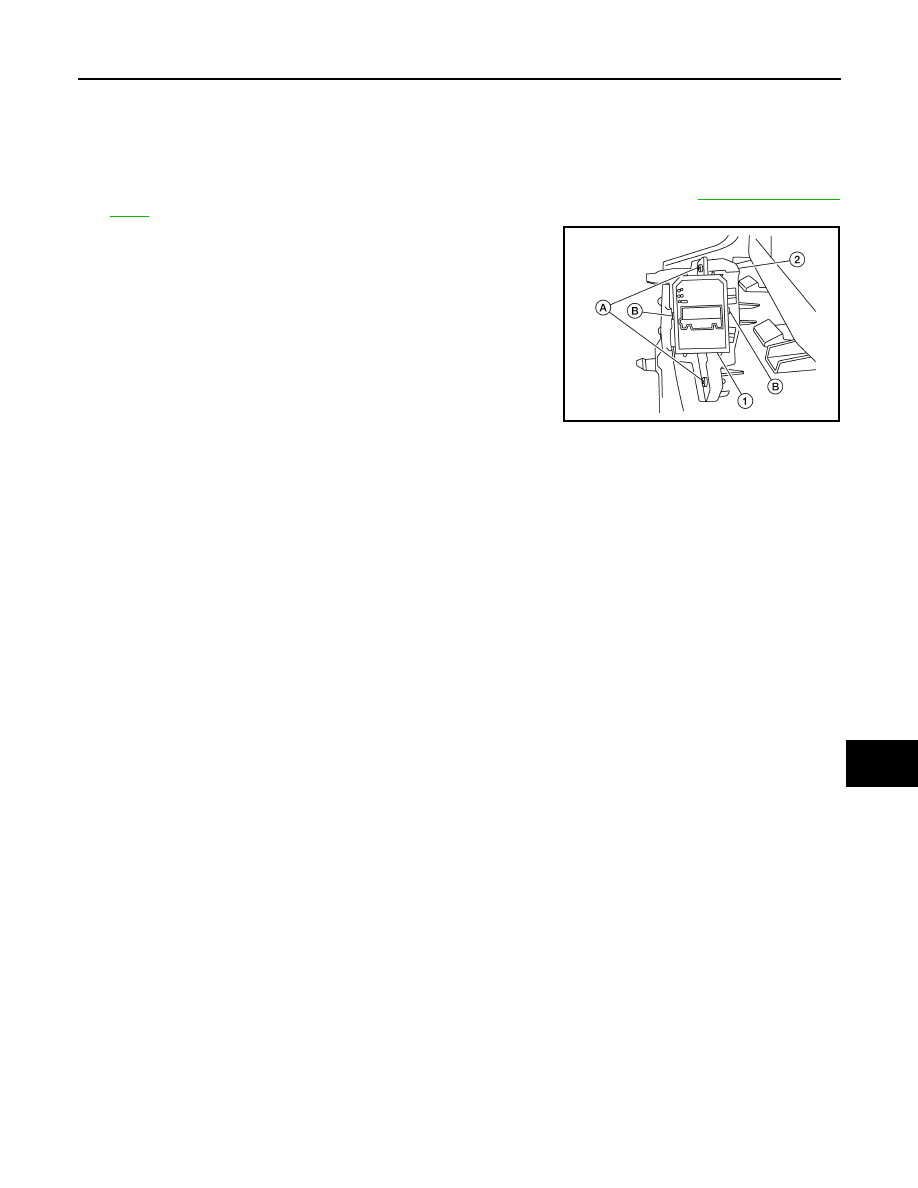

1.

Release pawls using a suitable tool and remove front door pull handle (LH). Refer to

DLK-161, "Exploded

View"

.

2.

Release pawls (B) using a suitable tool and remove door mirror
remote control switch (1).

3.

Remove screws (A) and door mirror remote control switch
bracket (2) (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

ALLIA1384ZZ

MIR-34

< WIRING DIAGRAM >

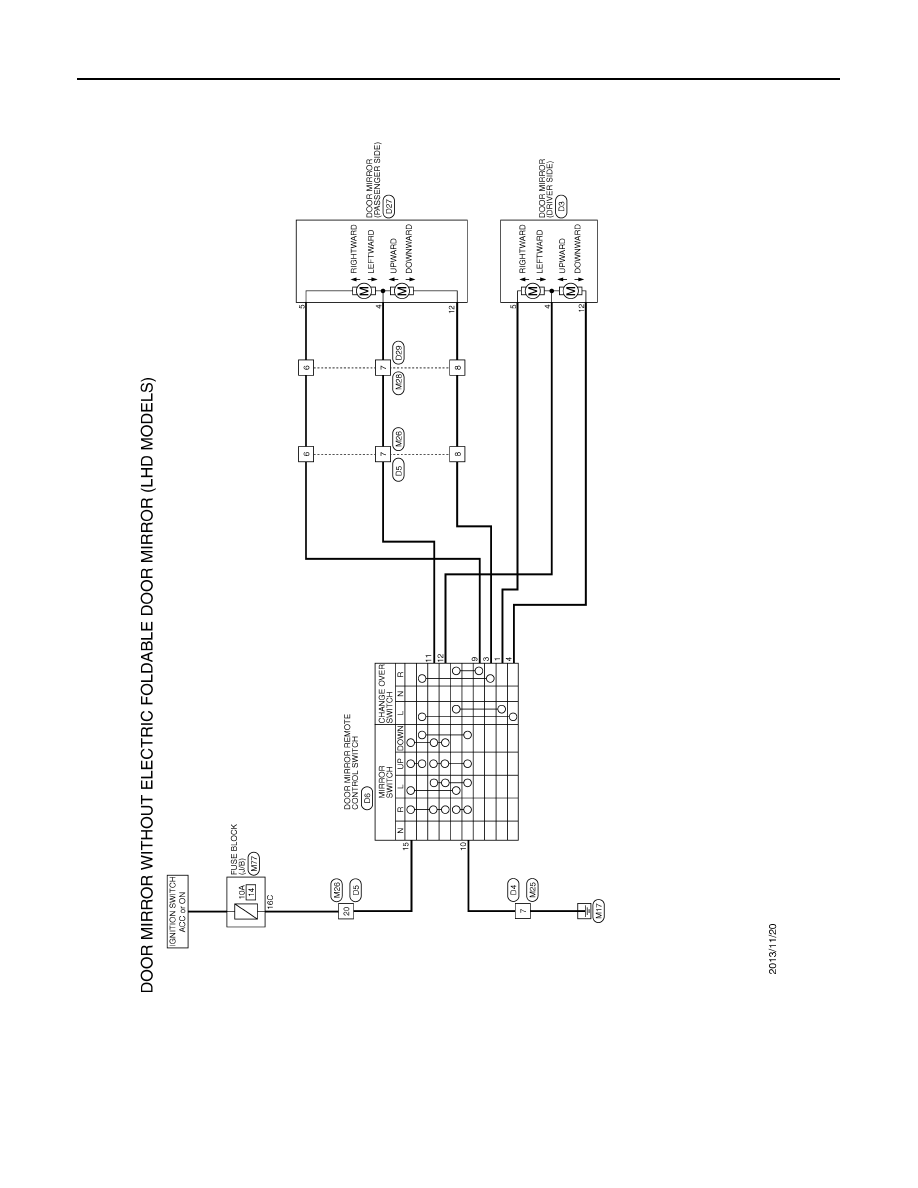

DOOR MIRROR SYSTEM

ABLE DOOR MIRROR) -

INFOID:0000000010339491

JRLWD2025GB
