DIAGNOSIS SYSTEM (BCM)

MIR-23

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

*

1

: It is displayed but does not operate on CVT models.

*

2

: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.

ACTIVE TEST

KEY SW

NOTE:
This item is displayed, but cannot be monitored

IGN SW

NOTE:
This item is displayed, but cannot be monitored

START SW

NOTE:
This item is displayed, but cannot be monitored

Monitor Item

Condition

Test item

Description

OUTSIDE BUZZER

This test is able to check Intelligent Key warning buzzer operation
• On: Operate
• Off: Non-operation

INSIDE BUZZER

This test is able to check warning chime in combination meter operation
• Buzzer 1: Combination meter buzzer sounds (pipipi...) when CONSULT screen is touched
• Buzzer 2: Combination meter buzzer sounds (pipi-pipi-...) when CONSULT screen is

touched

• Buzzer 3: Combination meter buzzer sounds (pipipipi-pipipipi-...) when CONSULT screen is

touched

• Off: Non-operation

INDICATOR

This test is able to check warning lamp operation
• KEY ON:[ Intelligent key system malfunction] displays when CONSULT screen is touched
• KEY IND: “KEY” Warning lamp blinks when CONSULT screen is touched
• Off: Non-operation

FLASHER

This test is able to check security hazard lamp operation
The hazard lamps are activated after “LH/RH/Off” on CONSULT screen is touched

HORN

This test is able to check horn operation
• On: Operates

IGN CONT2

This test is able to operate the blower relay in fuse block (J/B)
• On: Operates
• Off: Non-operation

MIRROR +5

NOTE:
This item is displayed, but cannot be used

ENGINE SW ILLUMI

This test is able to check push-ignition switch illumination operation
Push-ignition switch illumination illuminates when “ON” on CONSULT screen is touched

PUSH SWITCH INDICATOR

This test is able to check LOCK indicator in push-ignition switch operation
LOCK indicator in push-ignition switch illuminates when “ON” on CONSULT screen is touched

ENGINE START REQUEST

This test is able to check BCM sends starter request signal to IPDM E/R via CAN communi-
cation
• MODE 1: IGN ON, START request OFF
• MODE 2: IGN OFF, START request ON
• MODE 3: IGN ON, START request ON
• Off: Non-operation

IGNITION RELAY

NOTE:
This item is displayed, but cannot be used

STARTER CUT RELAY

This test is able to operate the starter control relay
• On: Operates
• Off: Non-operation

ENGINE START

NOTE:
This item is displayed, but cannot be used

TRUNK/BACK DOOR

This test is able to check back door opener actuator open operation
Back door opener actuator opens when “Open” on CONSULT screen is touched

RETRACTABLE MIRROR

NOTE:
This item is displayed, but cannot be used

MIR-24

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

REVERSE LAMP TEST

NOTE:
This item is displayed, but cannot be used

KEYFOB P/W TEST

NOTE:
This item is displayed, but cannot be used

AUTO ACC 2

This test is able to check BCM sends power supply to audio unit or NAVI control unit
• On: Operate
• Off: Non-operation

AUTOMATIC BACK DOOR

NOTE:
This item is displayed, but cannot be used

AUTO ACC 1

This test is able to check BCM sends power supply to ignition relay
• On: Operate
• Off: Non-operation

TRUNK/LUGGAGE LAMP
TEST

This test is able to check trunk room lamp operation
• On: Operates
• Off: Non-operation

Test item

Description

BCM (BODY CONTROL MODULE)

MIR-25

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000011404354

ECU

Reference

BCM

BCS-63, "Reference Value"

BCS-87, "Fail-safe"

BCS-88, "DTC Inspection Priority Chart"

BCS-89, "DTC Index"

MIR-26

< WIRING DIAGRAM >

DOOR MIRROR SYSTEM

WIRING DIAGRAM

DOOR MIRROR SYSTEM

LHD MODELS

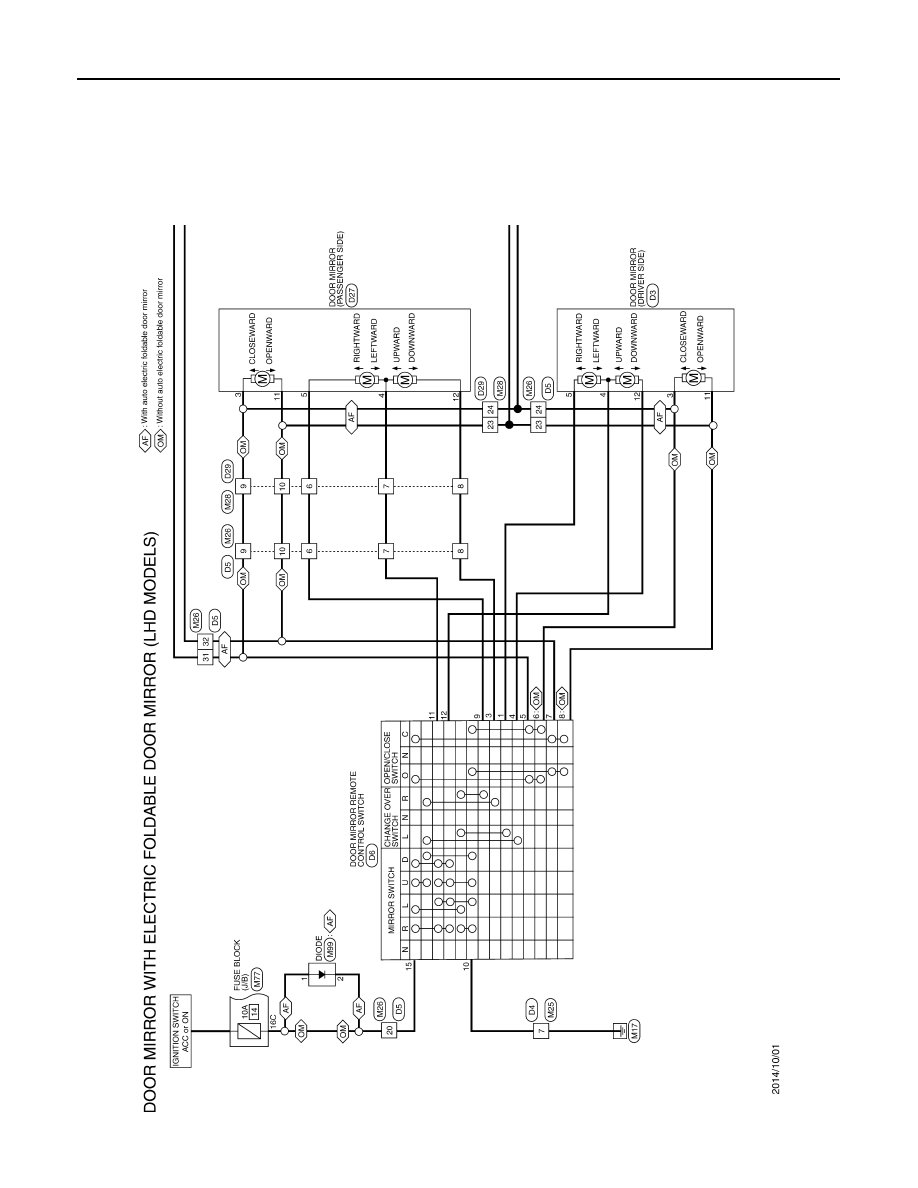

LHD MODELS : Wiring Diagram - DOOR MIRROR (WITH ELECTRIC FOLDABLE
DOOR MIRROR) -

INFOID:0000000010339490

JRLWE4120GB
