BRM-416

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPLACEMENT OPERATIONS

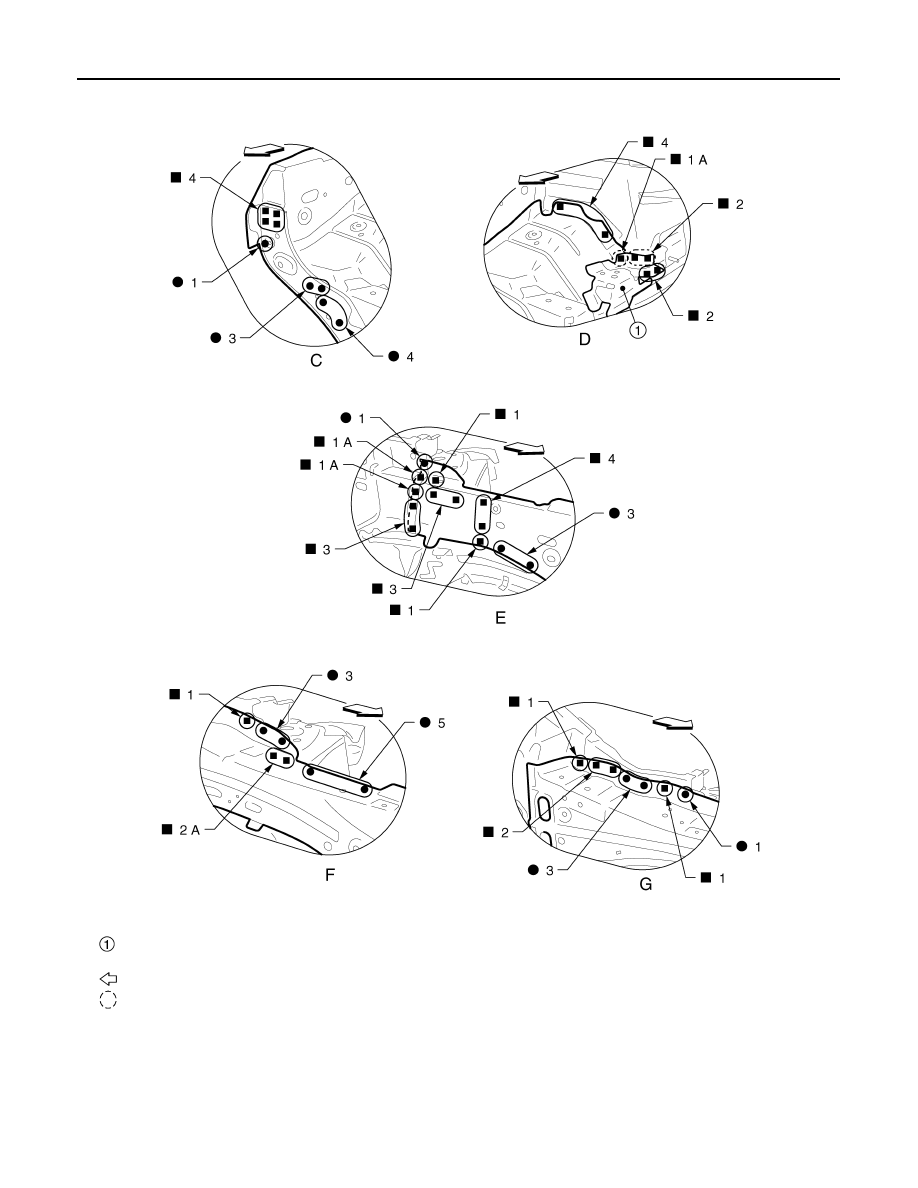

View E: Before installing hoodledge reinforcement assembly

Front Side Member

INFOID:0000000010475508

Work after radiator core support and hoodledge are removed.

Engine mounting bracket reinforce-
ment(reusable)

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA4228ZZ

REPLACEMENT OPERATIONS

BRM-417

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

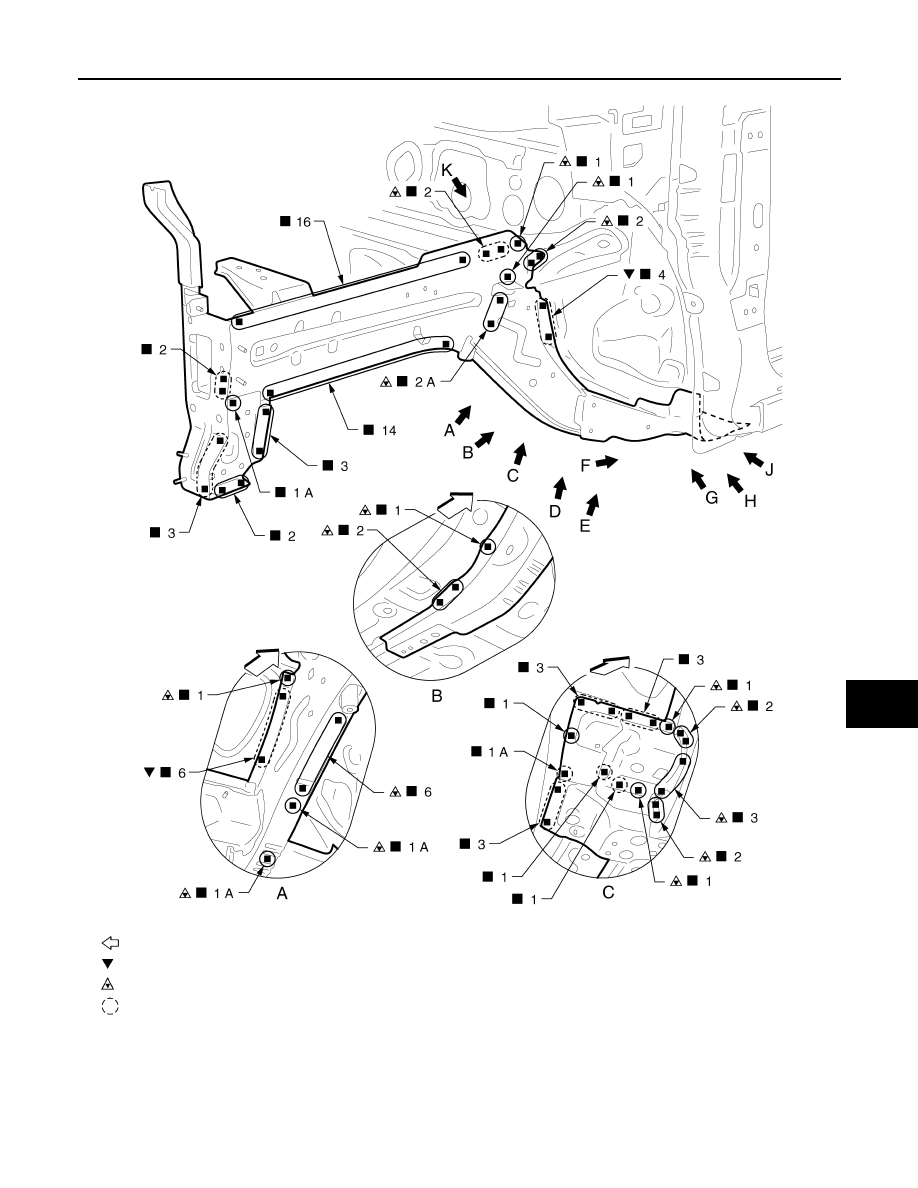

View B: Before installing front suspension mounting rear bracket assembly

: Vehicle front

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

12 mm (0.47 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

Replacement part

z

Front side member assembly

z

Side member closing plate assembly

z

Front suspension mounting rear-
bracket assembly

JSKIA4229ZZ

BRM-418

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPLACEMENT OPERATIONS

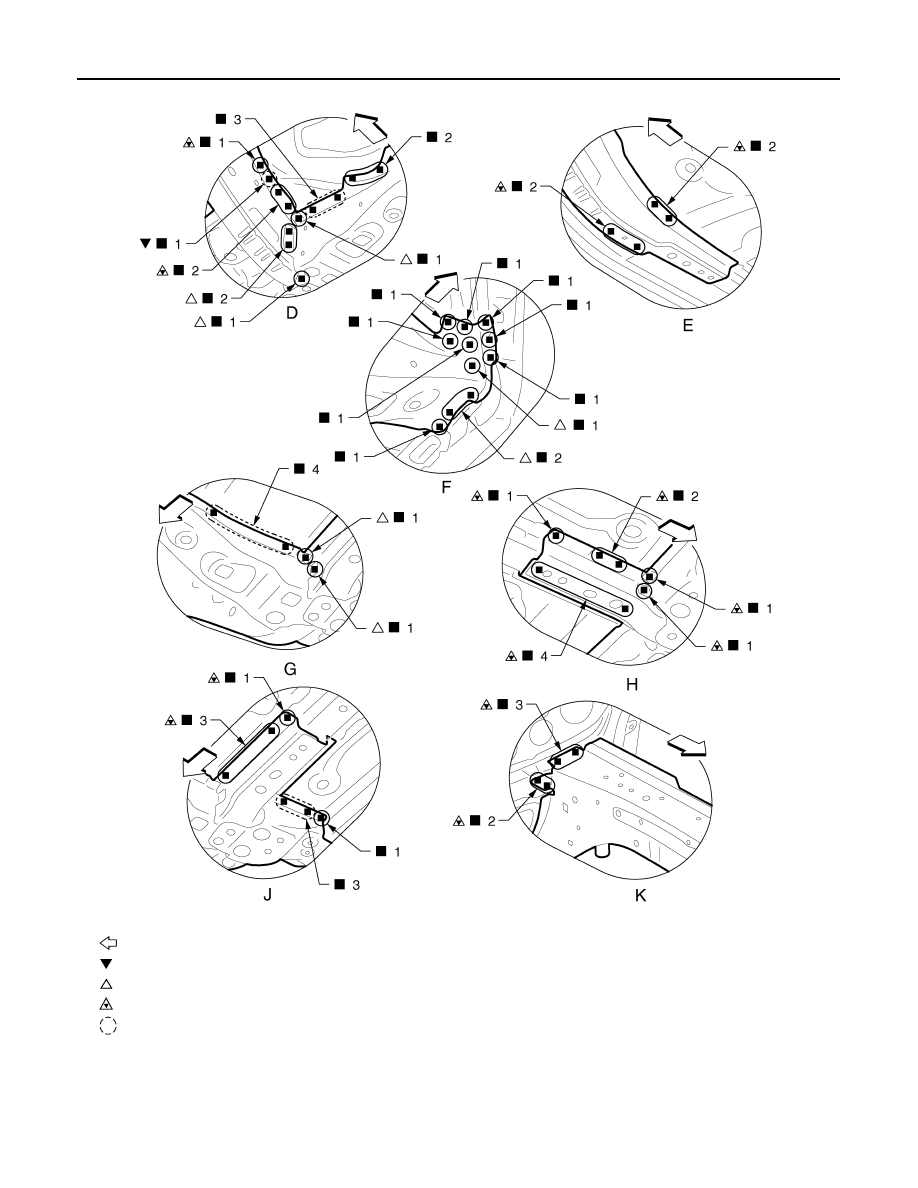

View E: Before installing front suspension mounting rear bracket assembly

Front Side Member (Partial Replacement)

INFOID:0000000010313752

Work after side radiator core support is removed.

: Vehicle front

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

12 mm (0.47 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

JSKIA4230ZZ

REPLACEMENT OPERATIONS

BRM-419

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

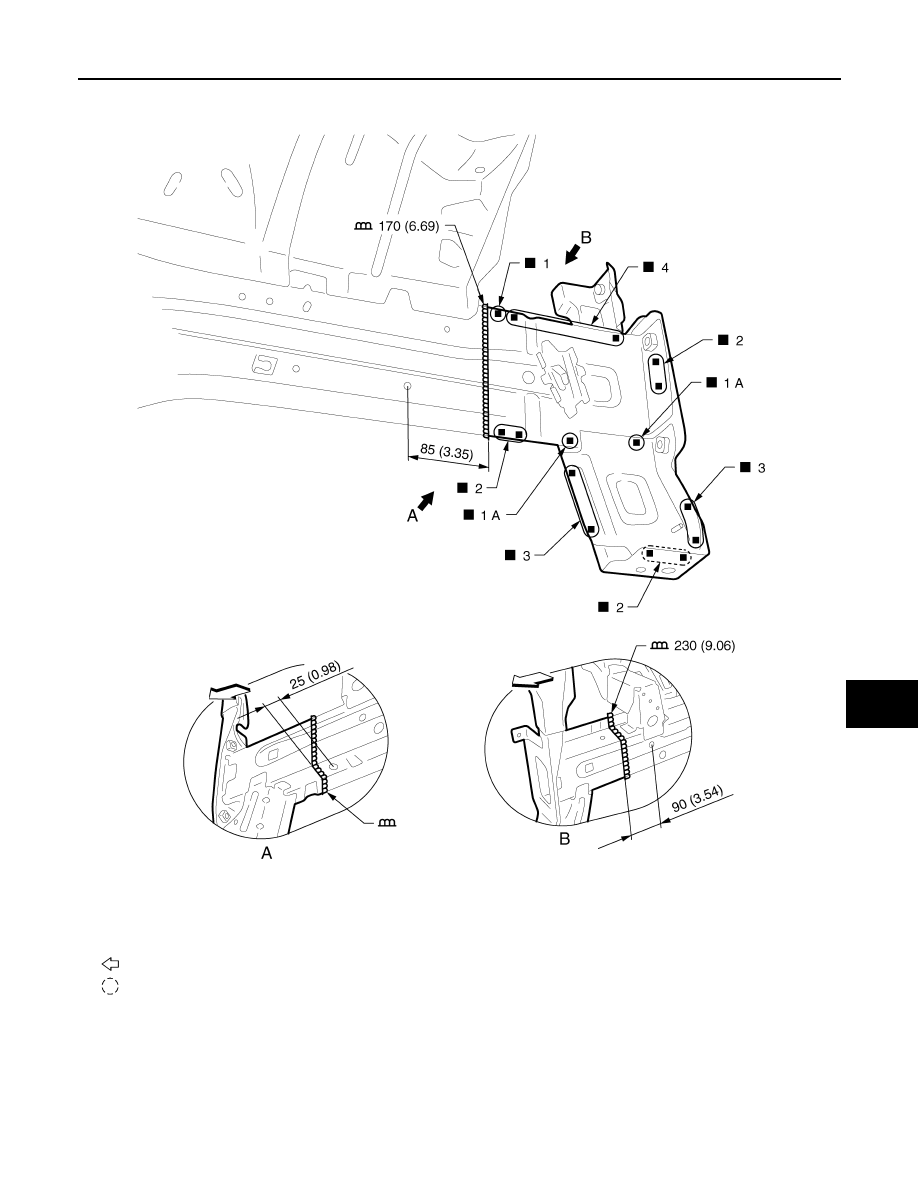

POINT

The front side member on the left can also be replaced partially by cutting at the position shown in the figure.

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement part

z

Front side member assembly (RH)

z

Side member closing plate assembly
(RH)

JSKIA4007GB
