Nissan Qashqai J11. Manual - part 1646

BRM-412

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPLACEMENT OPERATIONS

Radiator Core Support

INFOID:0000000010313748

Hoodledge

INFOID:0000000010475506

Work after radiator core support is removed.

: Vehicle front

Replacement part

z

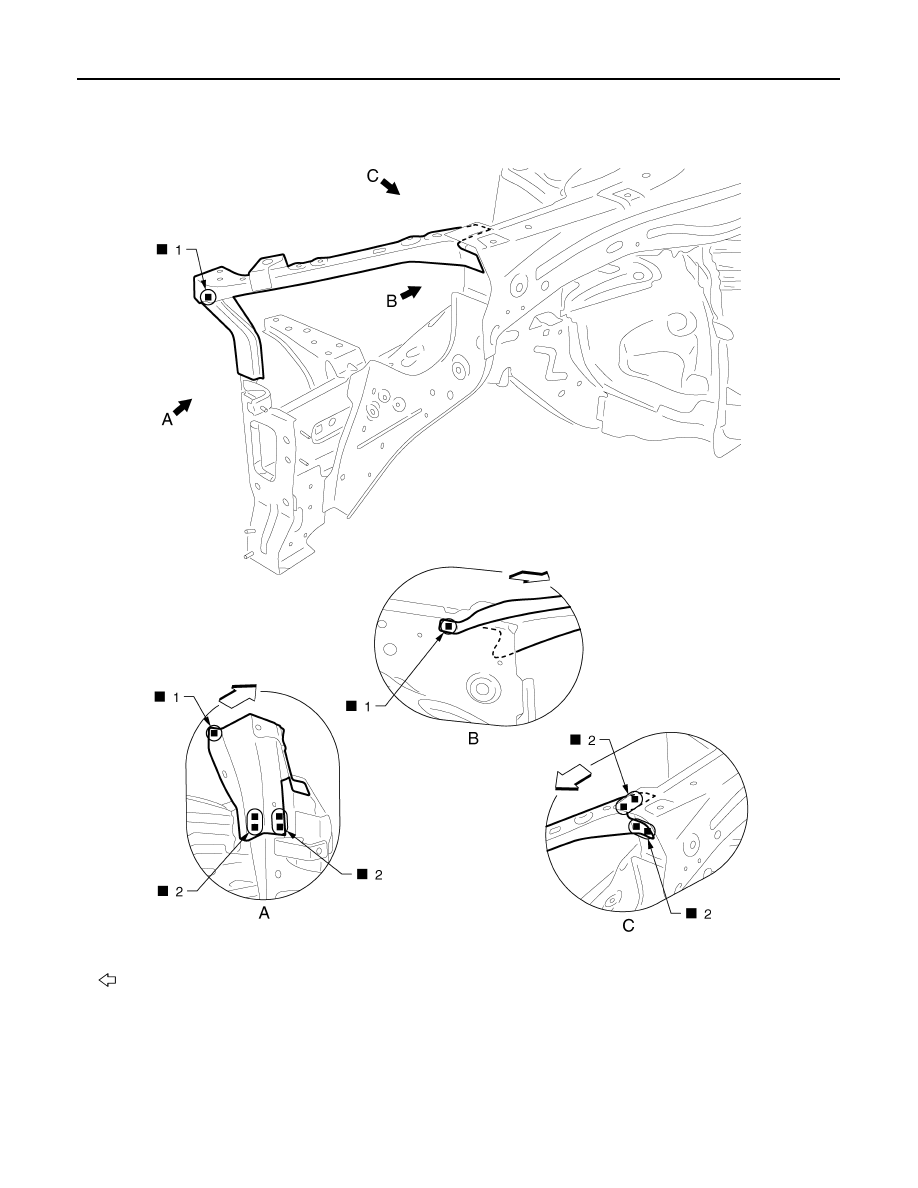

Side radiator core support assembly

z

Front side member assembly

JSKIA4000ZZ

REPLACEMENT OPERATIONS

BRM-413

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

: Vehicle front

Replacement part

z

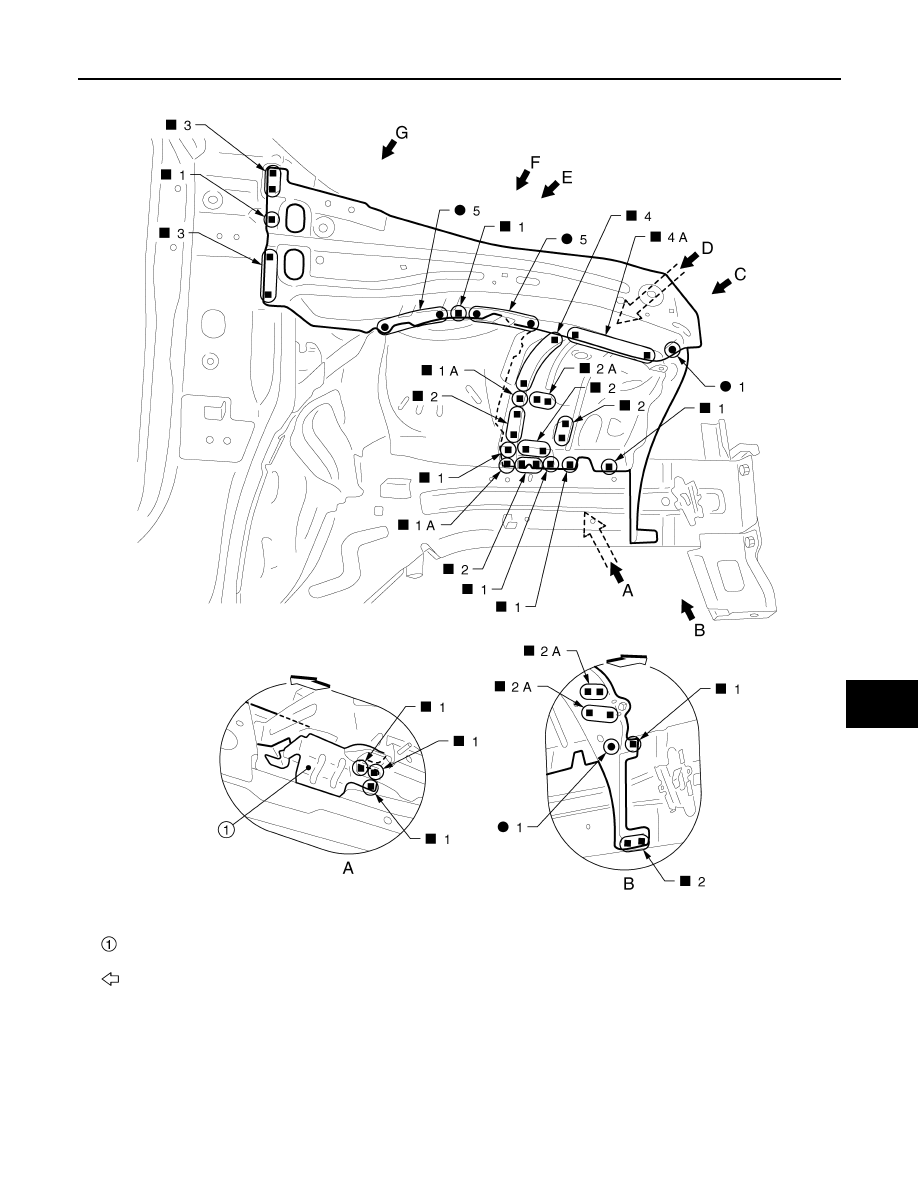

Front strut housing assembly

z

Hoodledge reinforcement assembly

JSKIA4001ZZ

BRM-414

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPLACEMENT OPERATIONS

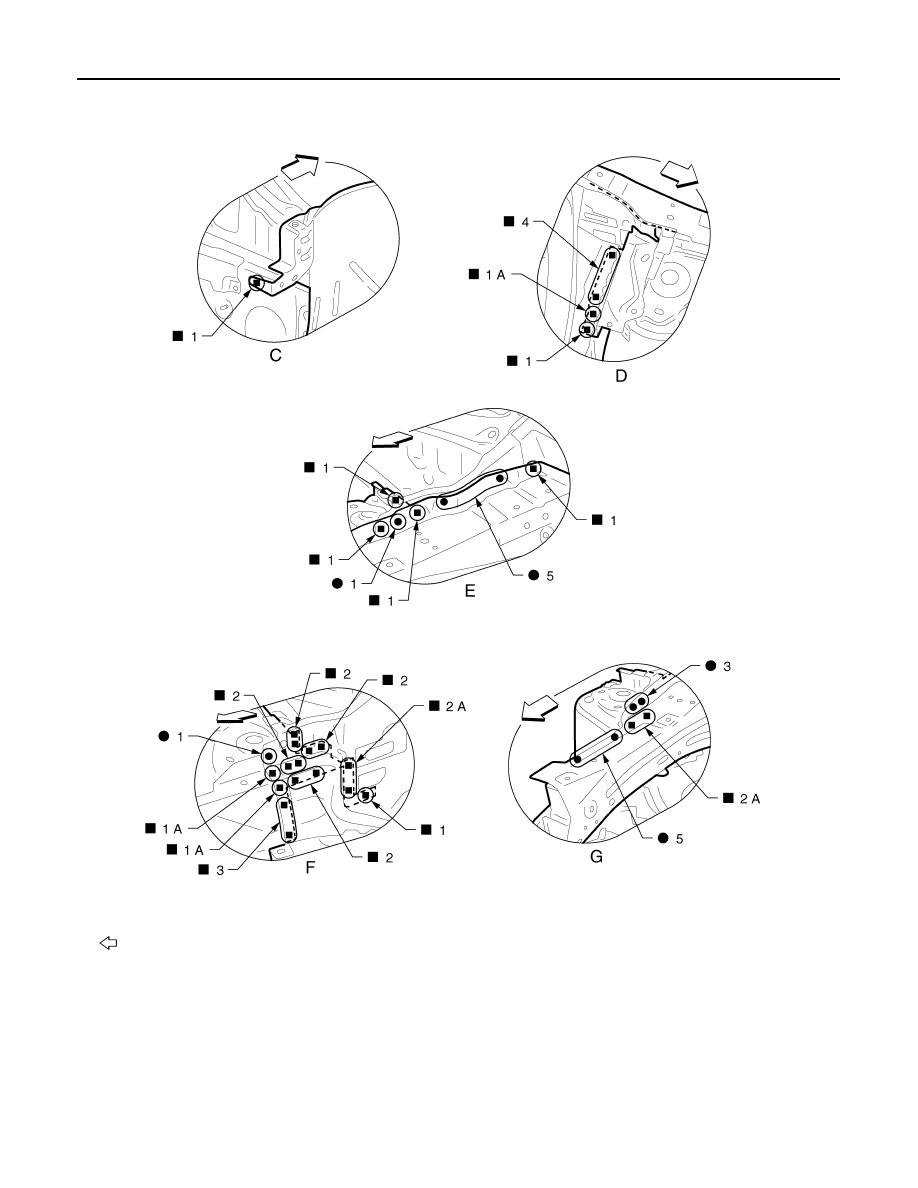

View F: Before installing hoodledge reinforcement assembly

Hoodledge (Partial Replacement)

INFOID:0000000010475507

Work after radiator core support is removed.
Remove the engine mounting bracket reinforcement (reusable) for easier installation.

: Vehicle front

JSKIA4227ZZ

REPLACEMENT OPERATIONS

BRM-415

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Engine mounting bracket reinforce-
ment(reusable)

: Vehicle front

Replacement part

z

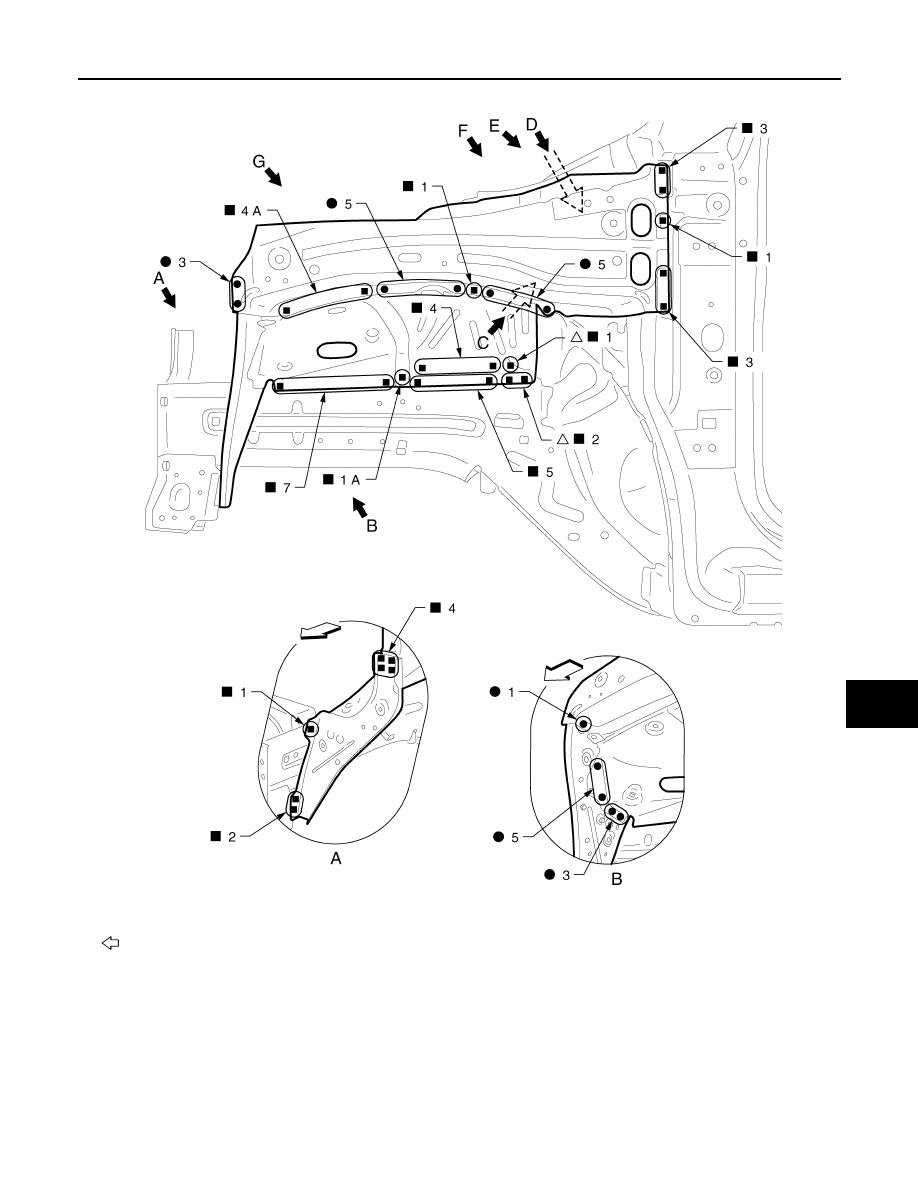

Hoodledge reinforcement assembly

z

Upper hoodledge assembly

z

Lower front hoodledge

JSKIA4003ZZ
