Nissan Qashqai J11. Manual - part 1616





BRM-292

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

REPLACEMENT OPERATIONS

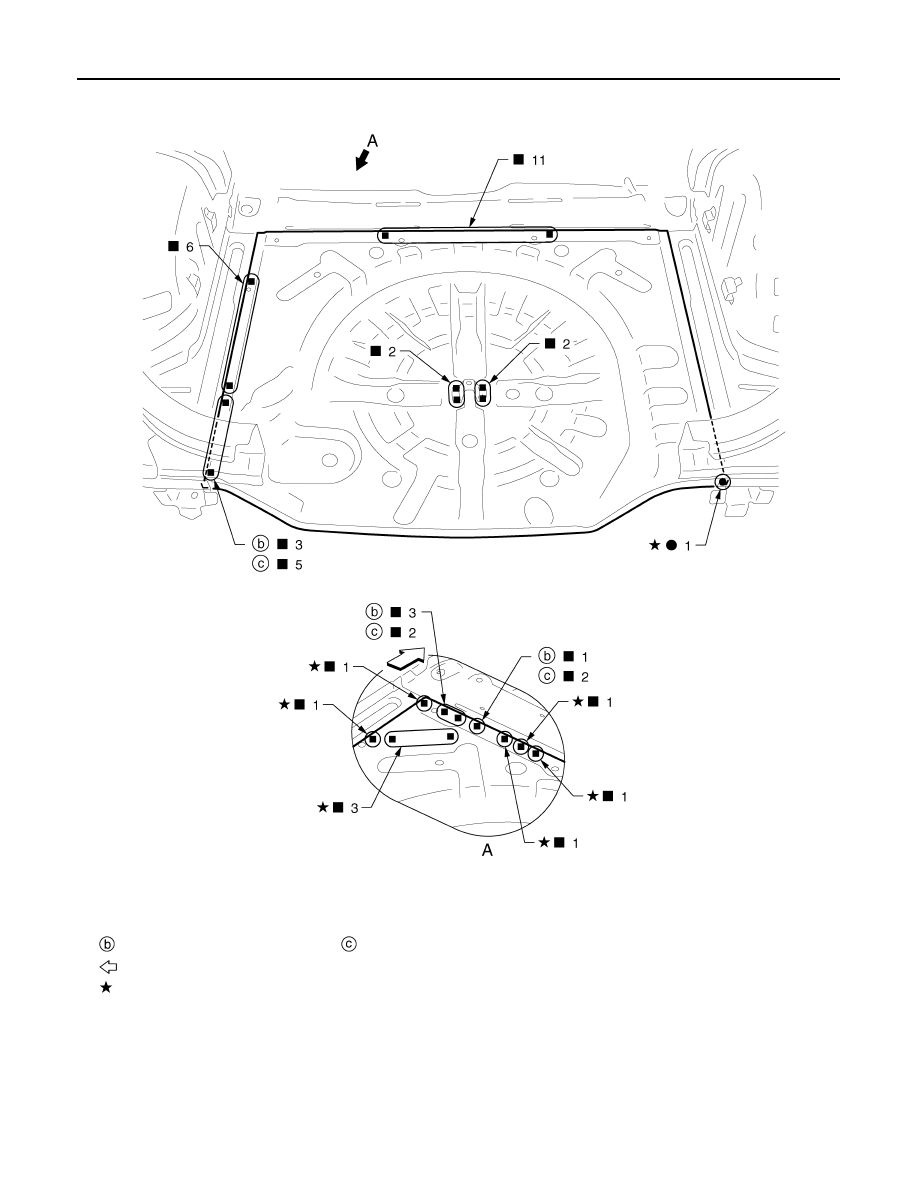

Rear Side Member Extension

INFOID:0000000010313707

Work after rear panel is removed.

Left side

Right side

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

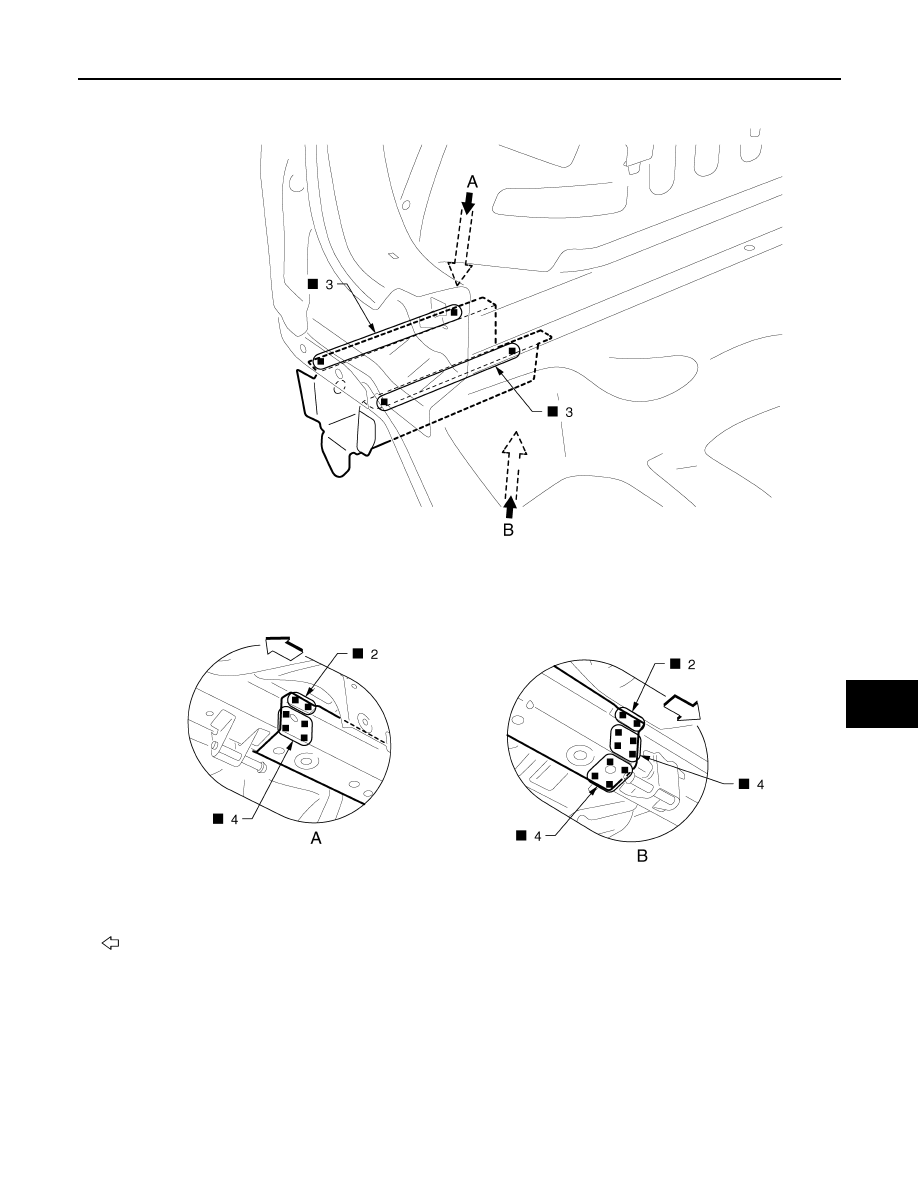

Replacement part

z

Rear floor rear

z

Spare wheel clamp bracket assem-
bly

JSKIA4030ZZ

REPLACEMENT OPERATIONS

BRM-293

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

: Vehicle front

Replacement part

z

Rear side member extension assem-
bly

JSKIA4031ZZ

BRM-294

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR RUSSIA]

BODY ALIGNMENT

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

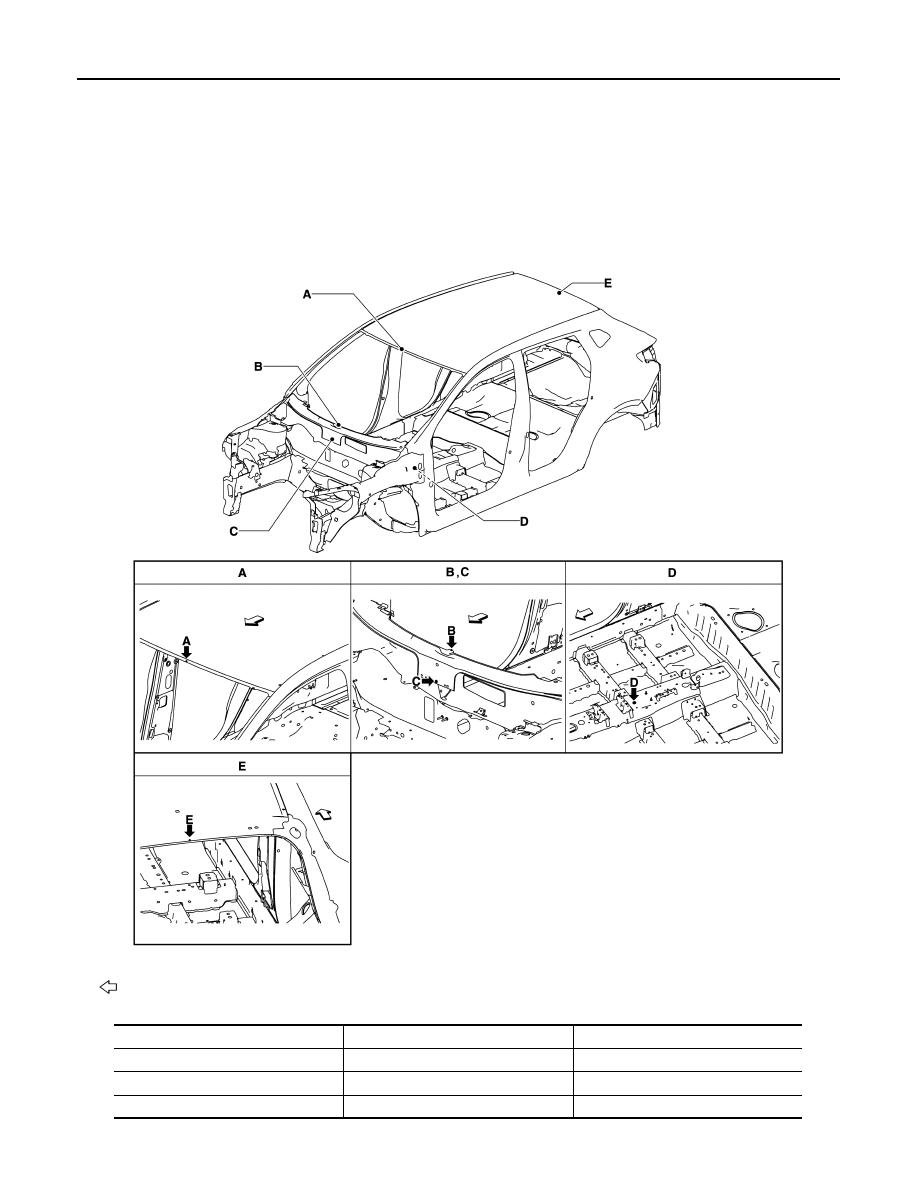

Body Center Marks (Without Sunroof Models)

INFOID:0000000010499724

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

: Vehicle front

Points

Portion

Marks

A

Front roof

Embossment

B

Cowl top

indent

C

Cowl top

Hole

φ

8 (0.31)

JSKIA3903ZZ

BODY ALIGNMENT

BRM-295

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR RUSSIA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

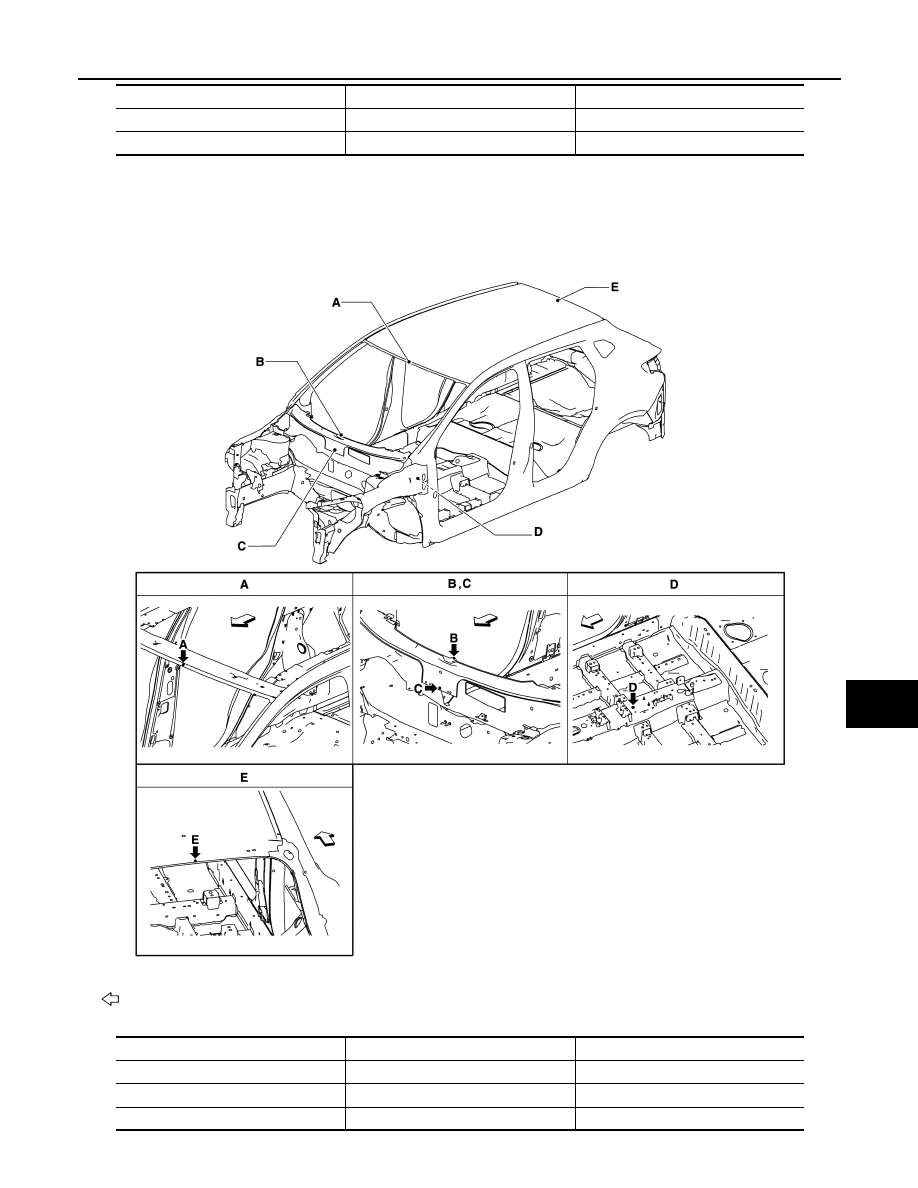

Body Center Marks (With Sunroof Models)

INFOID:0000000010499725

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

D

Trans control reinforcement

Hole 12

×

14 (0.47

×

0.55)

E

Rear roof

Embossment

Points

Portion

Marks

: Vehicle front

Points

Portion

Marks

A

Upper front roof rail

Embossment

B

Cowl top

indent

C

Cowl top

Hole

φ

8 (0.31)

JSKIA3904ZZ
