Nissan Qashqai J11. Manual - part 1614

BRM-284

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

REPLACEMENT OPERATIONS

Replacement part

z

Outer front side body

z

Center pillar hinge brace assembly

z

Inner center pillar assembly

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

JSKIA4013GB

REPLACEMENT OPERATIONS

BRM-285

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

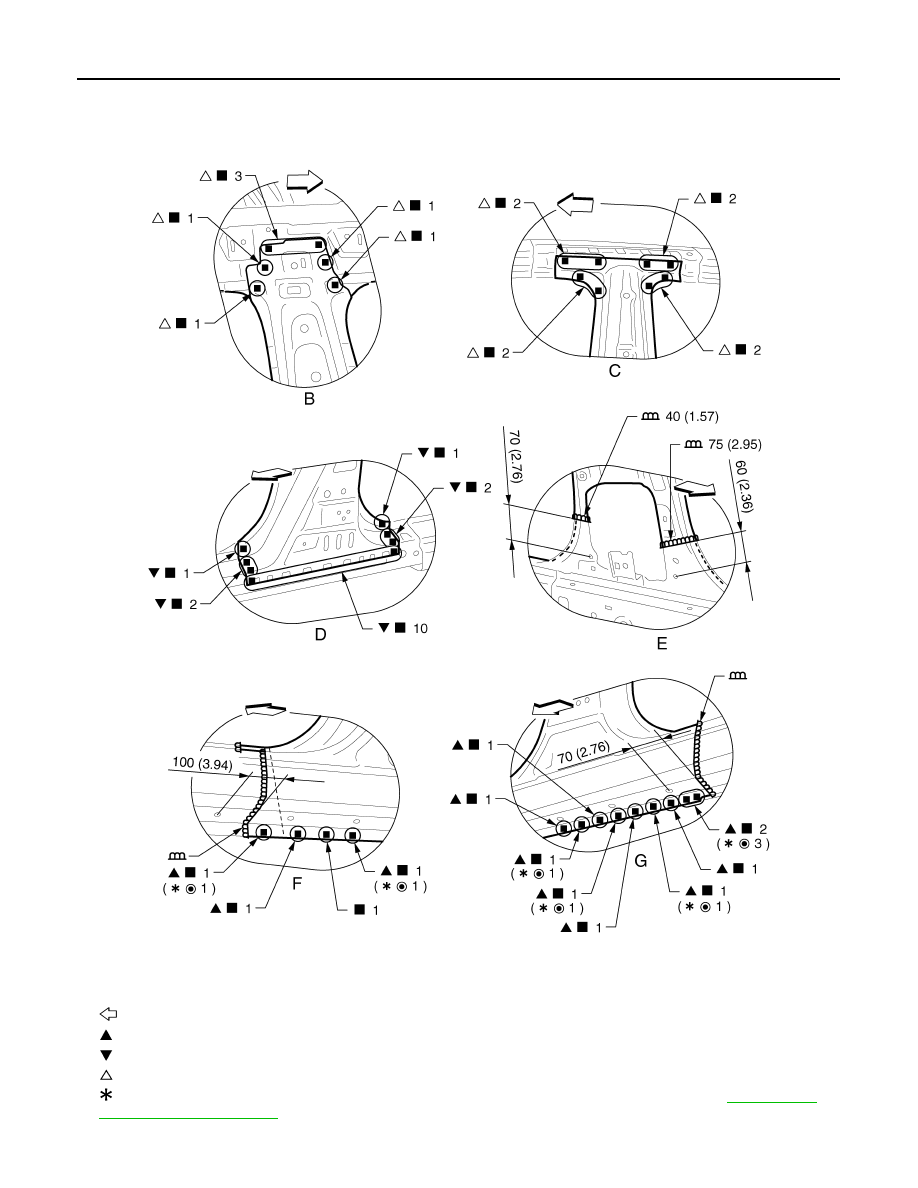

View C and D: Before installing outer front side body

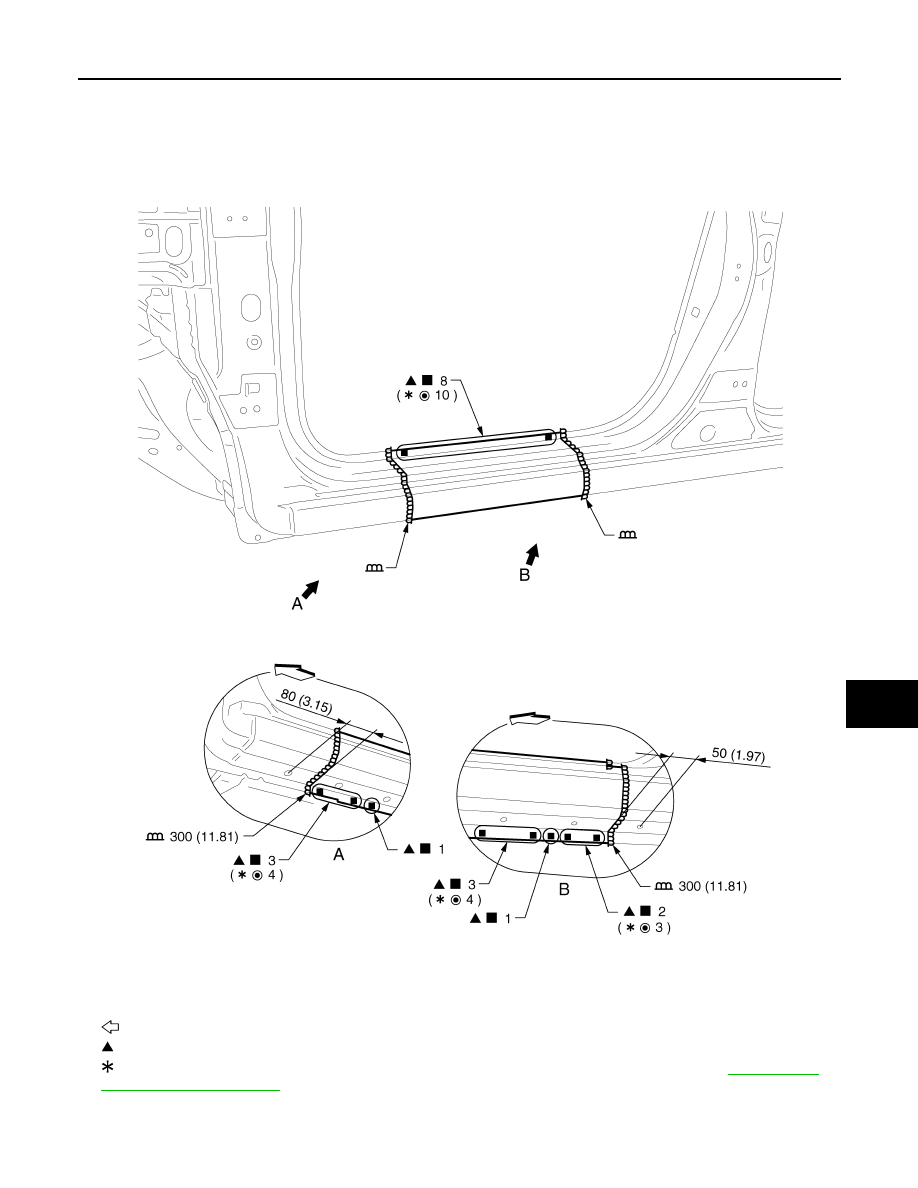

Outer Sill (Partial Replacement)

INFOID:0000000010313695

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

Replacement part

z

Outer sill assembly

JSKIA4014GB

BRM-286

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

REPLACEMENT OPERATIONS

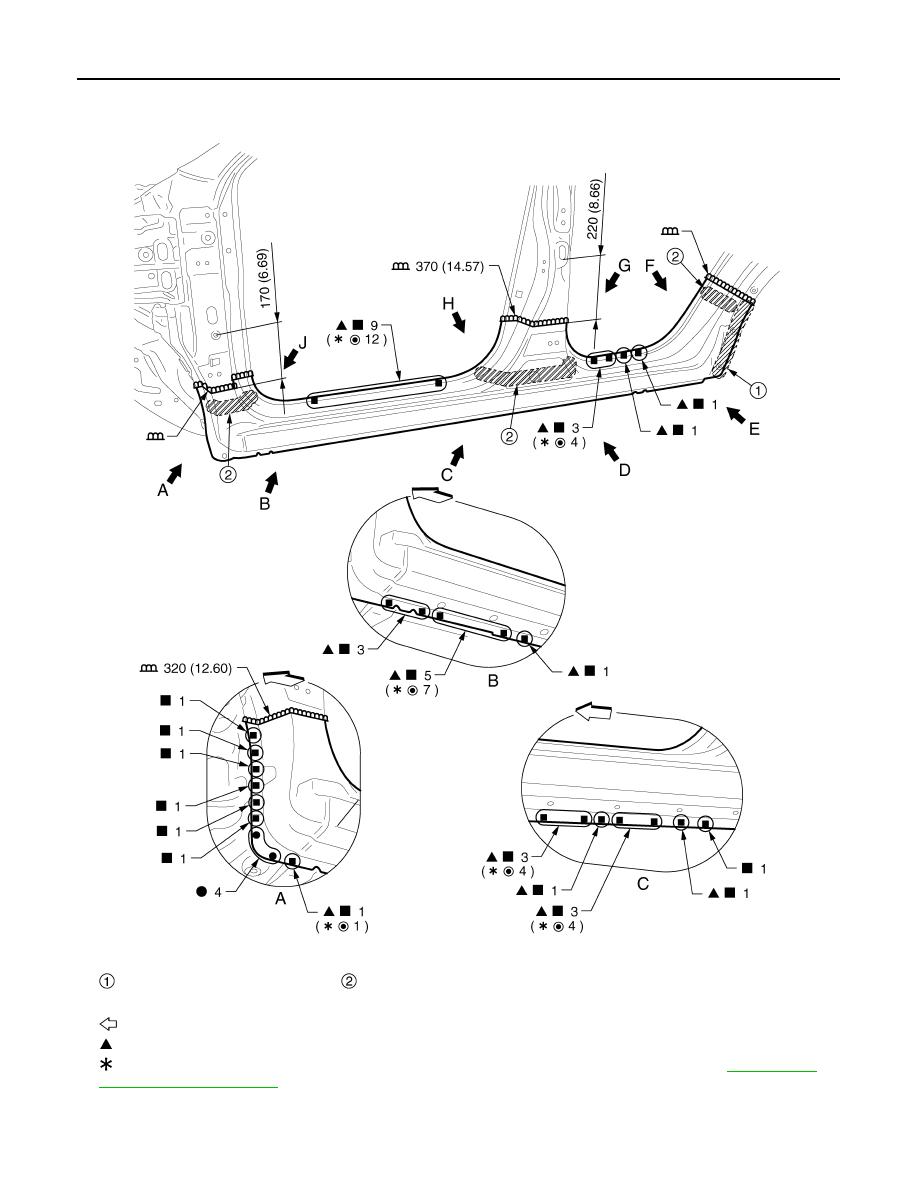

Outer Sill

INFOID:0000000010313696

Body sealing

Urethane foam

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

Replacement part

z

Outer sill assembly

JSKIA4015GB

REPLACEMENT OPERATIONS

BRM-287

< REMOVAL AND INSTALLATION >

[FOR RUSSIA]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

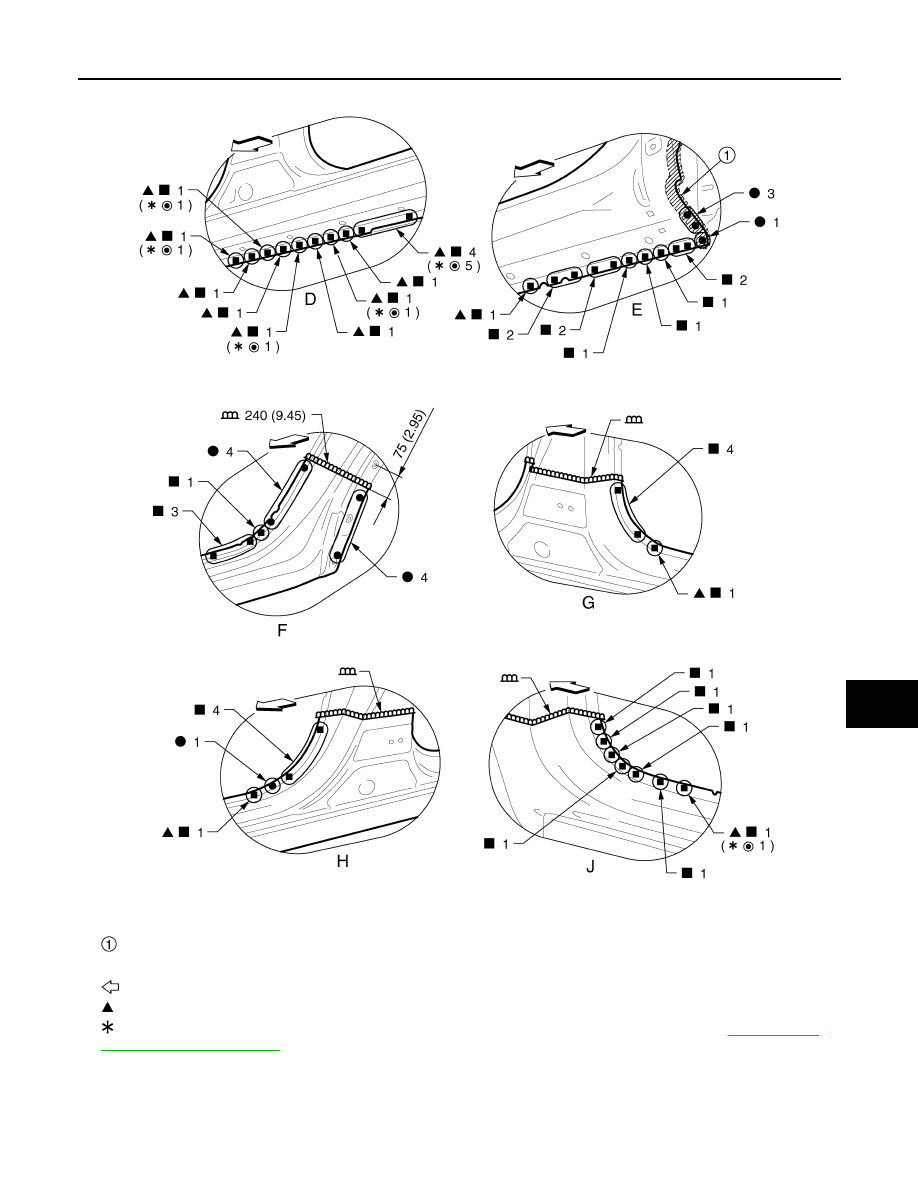

Body sealing

Unit: mm (in)

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-48, "Weld-

ing of Ultra High Strength Steel"

JSKIA4016GB
