< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (LHD)]

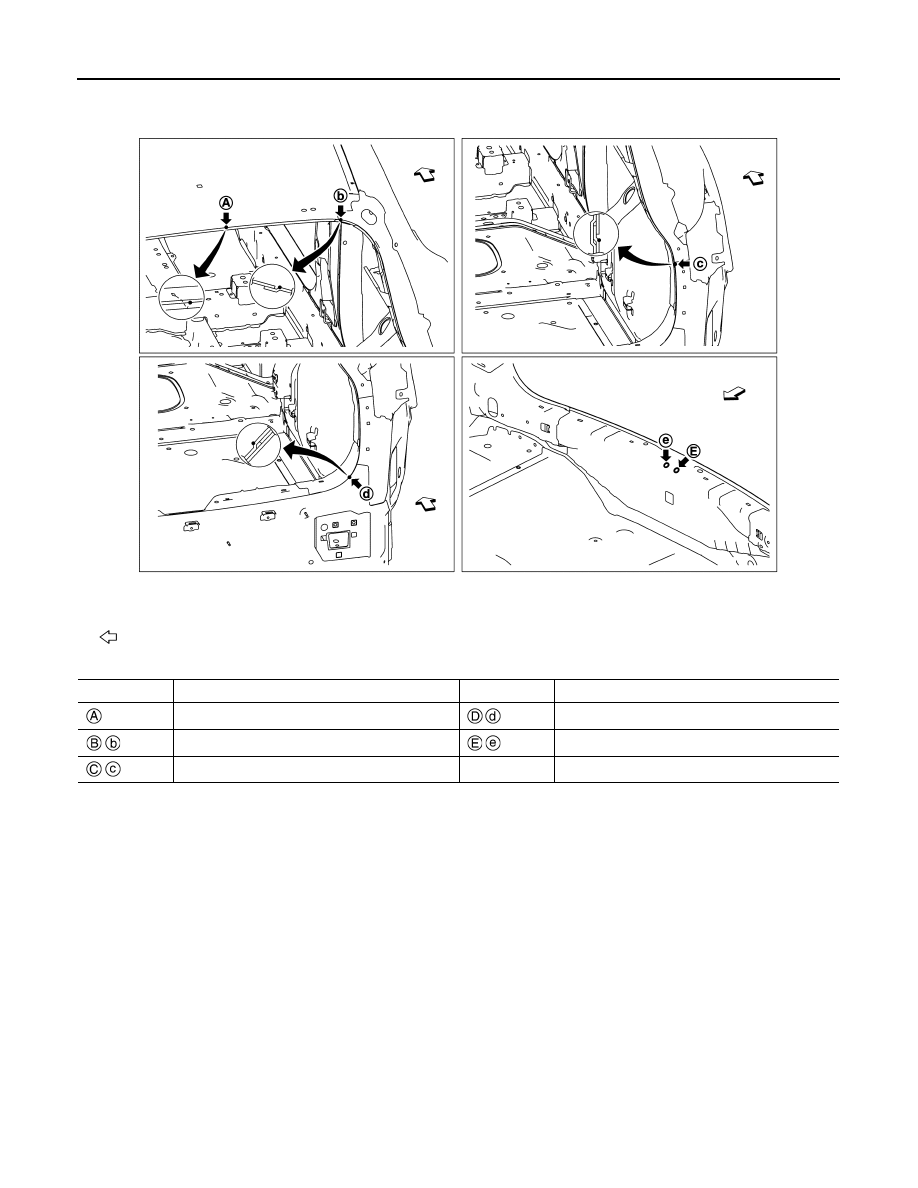

BODY ALIGNMENT

Unit: mm (in)

: Vehicle front

JSKIA3916ZZ

Point

Material

Point

Material

Roof flange end of center positioning mark



Lower rear pillar reinforcement joggle



Rear fender extension joggle



Back door lock support hole center

φ

14 (0.55)



Lower back pillar main joggle

LOCATION OF PLASTIC PARTS

BRM-121

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

LOCATION OF PLASTIC PARTS

Precautions for Plastics

INFOID:0000000010288011

CAUTION:

• When repairing and painting a portion of the body adjacent to plastic parts, consider their characteristics (influence of heat

and solvent) and remove them if necessary or take suitable measures to protect them.

• Plastic parts should be repaired and painted using methods suiting the materials

,

 characteristics.

Abbre-

viation

Material name

Heat resisting

temperature

°

C (

°

F)

Resistance to gasoline and

solvents

Other cautions

PE

Polyethylene

60 (140)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

ABS

Acrylonitrile Butadiene Styrene

80 (176)

Avoid gasoline and solvents.

—

AES

Acrylonitrile Ethylene Styrene

80 (176)

↑

—

EPM/
EPDM

Ethylene Propylene (Diene) co-
polymer

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable

PS

Polystyrene

80 (176)

Avoid solvents.

Flammable

PVC

Poly Vinyl Chloride

80 (176)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Poisonous gas is emitted
when burned.

TPO

Thermoplastic Olefine

80 (176)

↑

Flammable

AAS

Acrylonitrile Acrylic Styrene

85 (185)

Avoid gasoline and solvents.

—

PMMA

Poly Methyl Methacrylate

85 (185)

↑

—

EVAC

Ethylene Vinyl Acetate

90 (194)

↑

—

PP

Polypropylene

90 (194)

Gasoline and most solvents are
harmless if applied for a very
short time (wipe out quickly).

Flammable, avoid bat-
tery acid.

PUR

Polyurethane

90 (194)

Avoid gasoline and solvents.

—

UP

Unsaturated Polyester

90 (194)

↑

Flammable

ASA

Acrylonitrile Styrene Acrylate

100 (212)

↑

Flammable

PPE

Poly Phenylene Ether

110 (230)

↑

—

TPU

Thermoplastic Urethane

110 (230)

↑

—

PBT+
PC

Poly Butylene Terephthalate +
Polycarbonate

120 (248)

↑

Flammable

PC

Polycarbonate

120 (248)

↑

—

POM

Poly Oxymethylene

120 (248)

↑

Avoid battery acid.

PA

Polyamide

140 (284)

↑

Avoid immersing in wa-
ter.

PBT

Poly Butylene Terephthalate

140 (284)

↑

—

PAR

Polyarylate

180 (356)

↑

—

PET

Polyethylene terephthalate

180 (356)

↑

—

PEI

Polyetherimide

200 (392)

↑

—

BRM-122

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (LHD)]

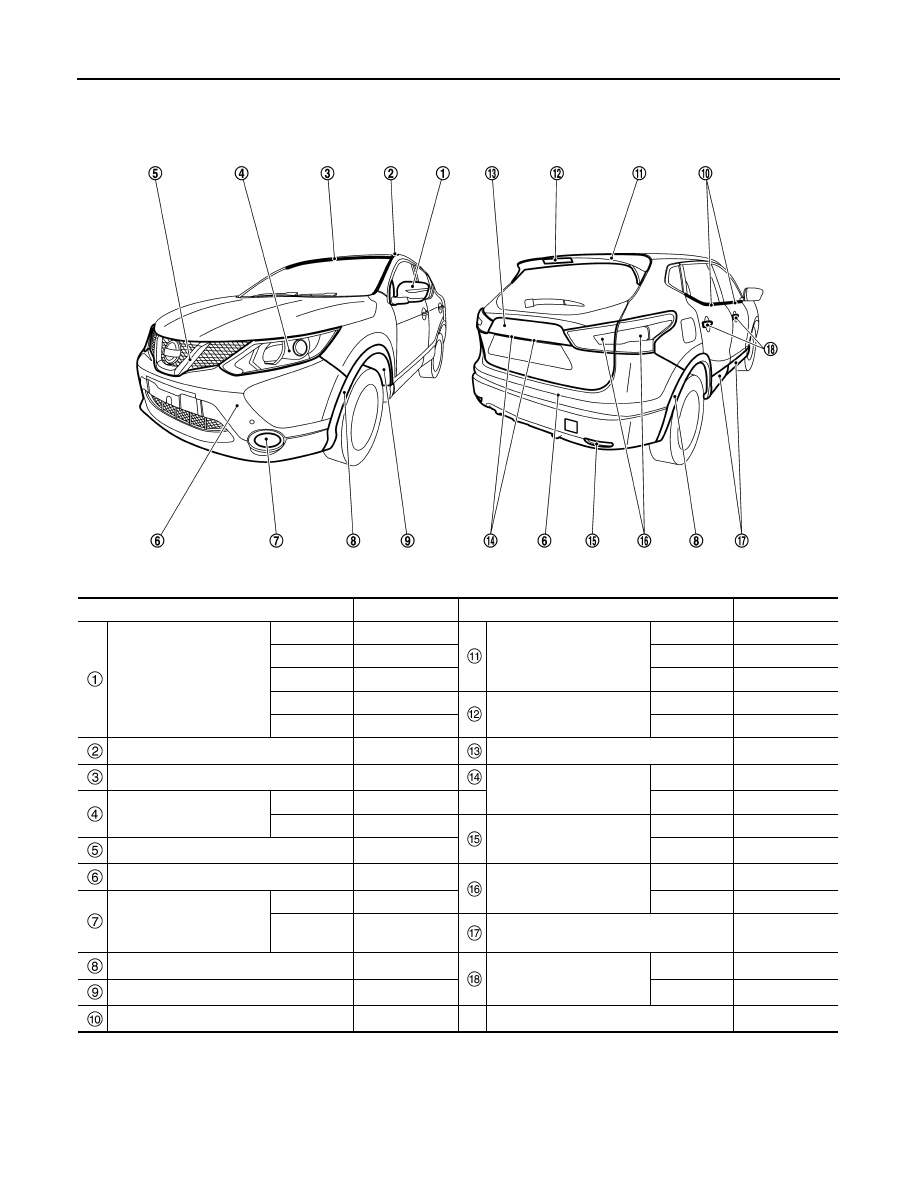

LOCATION OF PLASTIC PARTS

Location of Plastic Parts

INFOID:0000000010288012

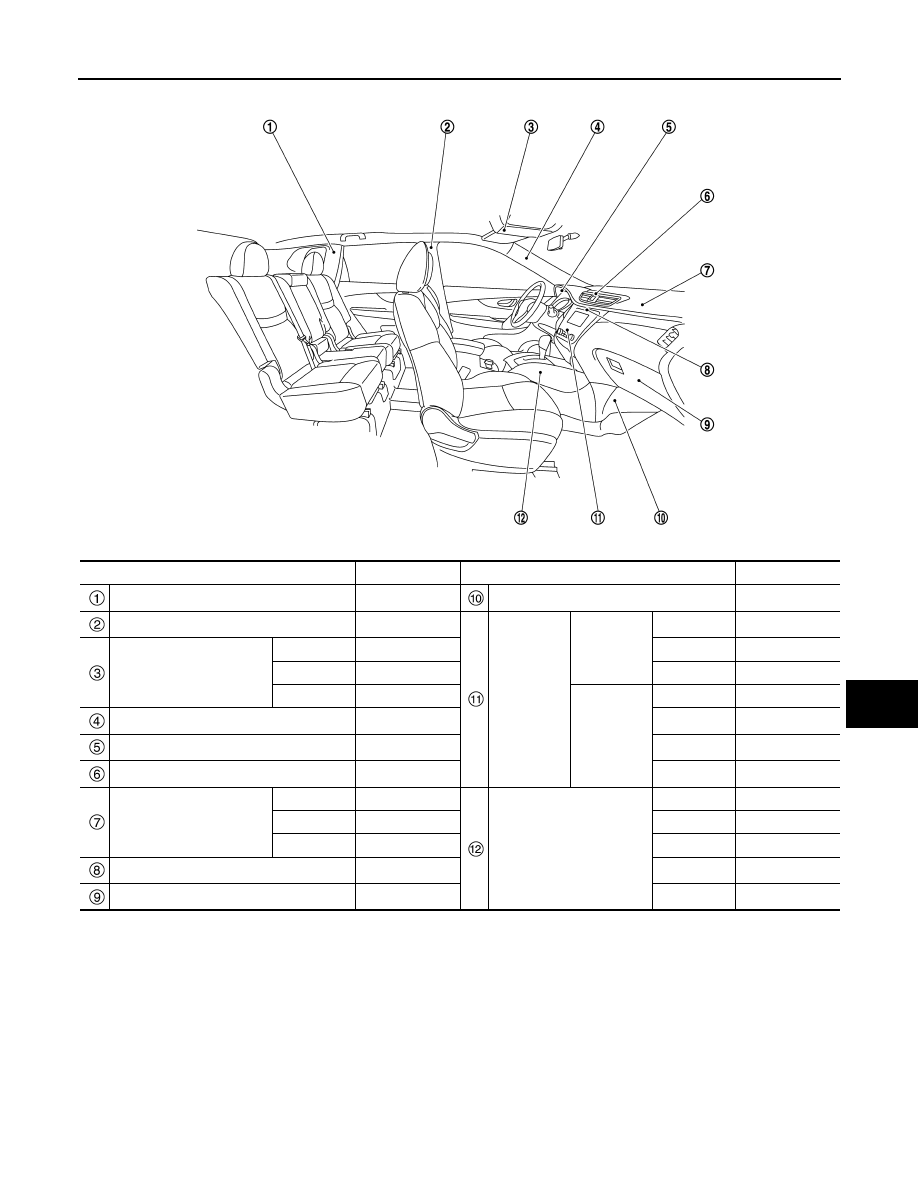

Component

Material

Component

Material

Door mirror

Case

ASA

Rear spoiler

Upper

PC + PET

Lower case

ASA

Lower

ASA

Base

Aluminum

Side

PMMA

Base cover

ASA

High mount stop lamp

Lens

PMMA

Cover

ABS

Housing

ABS

Side roof molding

PVC + Stainless

Back door finisher

ABS

Wind shield molding

PVC

License plate lamp

Lens

PC

Front combination lamp

Lens

PC

Housing

PC

Housing

PP

Reflex reflector

Lens

PMMA

Front grille

ABS

Housing

ABS

Bumper fascia

PP + EPM

Rear combination lamp

Lens

PMMA

Front fog lamp

Lens

Glass

Housing

ABS

Housing

PBT + ASA +

Glass fiber

Door outside lower molding

PP + EPDM

Fillet molding

PP + EPDM

Door outside handle

Grip body

PA + Glass fiber

Front fender protector

PP

Grip cover

PA + Glass fiber

Door outside molding

PVC + Stainless

JSKIA3931ZZ

LOCATION OF PLASTIC PARTS

BRM-123

< SERVICE DATA AND SPECIFICATIONS (SDS)

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Component

Material

Component

Material

Rear pillar finisher

PP

Instrument lower cover

PP + EPDM

Center pillar garnish

PP

A/C Control

Manual A/C

Finisher

PC + ABS

Map lamp

Lens

PC

Switch

PC

Housing

PP

Case

ABS

Finisher

PP

Auto A/C

Finisher

PC + ABS

Front pillar garnish

PP

Switch

PC

Cluster lid A

PP

Case

PC + ABS

Center ventilator finisher

PC + ABS

Lens

PC

Instrument panel

Skin

TPO

Center console

Body

PP + EPDM

Pad

PUR

Console box

PP

Core

PP + EPDM

Inner lid

PP + EPDM

Cluster lid C

PC + ABS

Insert lid

PC + ABS

Glove box

PP

Cup holder

PP + EPDM

JSKIA3932ZZ
