Nissan Qashqai J11. Manual - part 153





RESERVOIR TANK CAP

CO-15

< PERIODIC MAINTENANCE >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

RESERVOIR TANK CAP

Inspection

INFOID:0000000010450963

• Fit the adapter to the reservoir tank cap tester [SST: — (M.S. 554-

07)] (A) as shown.

• When connecting the reservoir tank cap to the reservoir tank cap

tester, apply water or LLC to the reservoir tank cap seal part.

• Check reservoir tank cap relief pressure.

• Replace the reservoir tank cap if the engine coolant passes

through it, or if any fur signs is detected.

CAUTION:

When installing reservoir tank cap, thoroughly wipe out the res-
ervoir tank filler neck to remove any waxy residue or foreign
material.

Standard: Refer to

CO-106, "Radiator"

.

E1BIA0057ZZ

CO-16

< PERIODIC MAINTENANCE >

[HRA2DDT]

RADIATOR

RADIATOR

Inspection

INFOID:0000000010416346

Check radiator for mud or clogging. If necessary, clean radiator as follows.

CAUTION:

• Never bend or damage radiator fins.
• When radiator is cleaned without removal, remove all surrounding parts such as radiator cooling fan

assembly and horns. Then tape harness and harness connectors to prevent water from entering.

1.

Apply water by hose to the back side of the radiator core vertically downward.

2.

Apply water again to all radiator core surfaces once per minute.

3.

Stop washing if any stains no longer flow out from radiator.

4.

Blow air into the back side of radiator core vertically downward.
• Use compressed air lower than 490 kPa (4.9 bar, 5 kg/cm

2

, 71 psi) and keep distance more than 30 cm

(11.81 in).

5.

Blow air again into all the radiator core surfaces once per minute until no water sprays out.

RADIATOR

CO-17

< REMOVAL AND INSTALLATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

REMOVAL AND INSTALLATION

RADIATOR

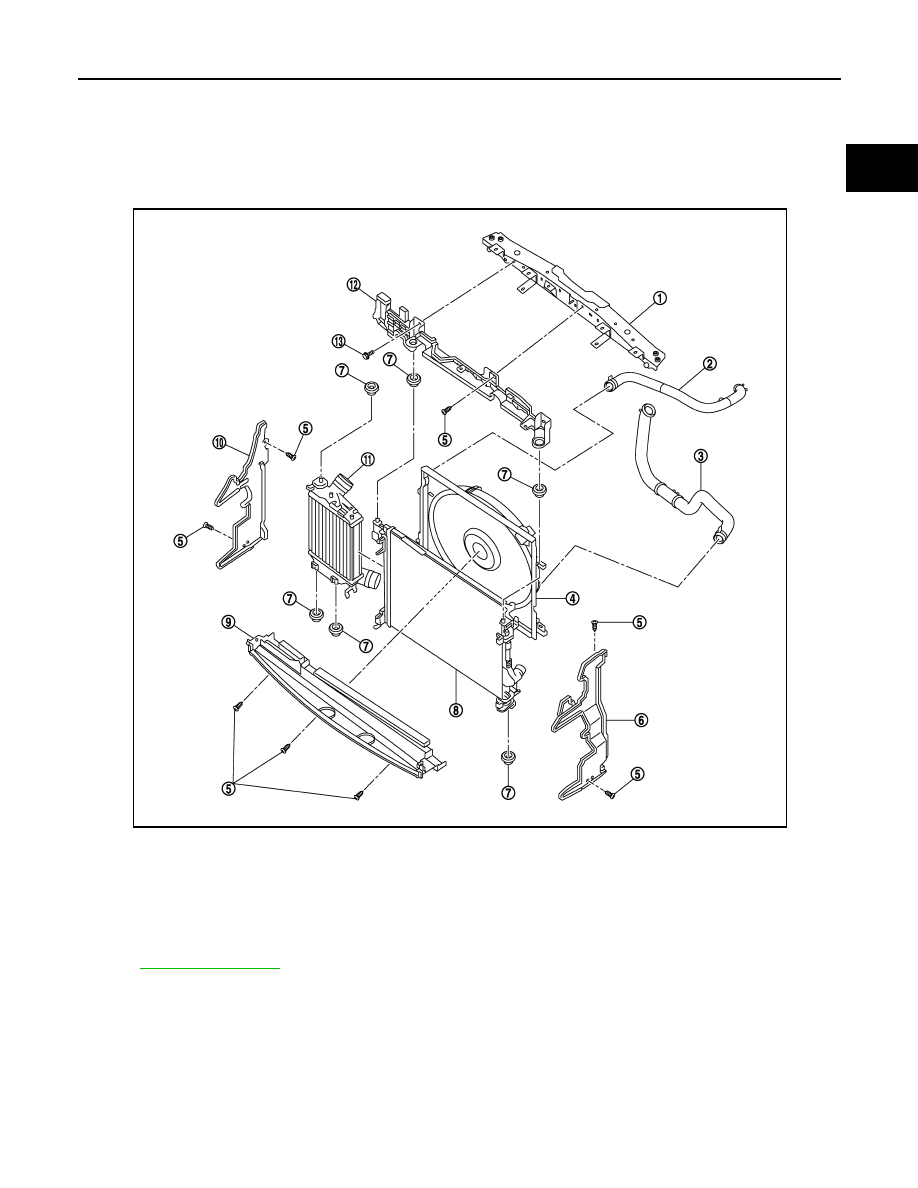

Exploded View

INFOID:0000000010416347

Refer to

GI-4, "Components"

 for symbol marks in the figure.

Removal and Installation

INFOID:0000000010416348

REMOVAL

WARNING:

• Never remove reservoir tank cap when engine is hot. Serious burns may occur from high-pressure

engine coolant escaping from radiator.

• Wrap a thick cloth around the reservoir tank cap. Slowly turn it a quarter of a turn to release built-up

pressure. Then turn it all the way.

1.

Radiator core support

2.

Radiator hose (upper)

3.

Radiator hose (lower)

4.

Cooling fan assembly

5.

Clip

6.

Air guide (LH)

7.

Mounting rubber

8.

Radiator

9.

Air guide (Lower)

10. Air guide (RH)

11.

Intercooler

12. Radiator mounting bracket

13. Bolt

E1BIA1116GB

CO-18

< REMOVAL AND INSTALLATION >

[HRA2DDT]

RADIATOR

NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

1.

Drain engine coolant from radiator. Refer to

CO-11, "Draining"

.

CAUTION:

• Perform this step when the engine is cold.
• Never spill engine coolant on drive belt.

2.

Remove front bumper. Refer to

EXT-19, "Removal and Installation"

.

3.

Remove air inlet tube and air inlet hose. Refer to

EM-27, "Removal and Installation"

.

4.

Remove charge air cooler. Refer to

EM-27, "Removal and Installation"

.

5.

Separate condenser from radiator.

6.

Remove radiator hose (upper and lower).

7.

Disconnect harness connectors from cooling fan, and move harness aside.

8.

Remove radiator and cooling fan assembly.

CAUTION:

Be careful not to damage radiator core and condenser  core.

NOTE:
In case of lower pin radiator is damaged, it can be repaired instead of replacing the radiator.

9.

Separate radiator from condenser.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Do not reuse O-rings.

Radiator

NOTE:
When installing radiator core support (upper), check that both upper and lower mounts of radiator are inserted
in the mounting holes of radiator core support (upper, lower).

CAUTION:

Use genuine mounting bolts for the cooling fan assembly and strictly observe the tightening torque.
(Breakage prevention for radiator)

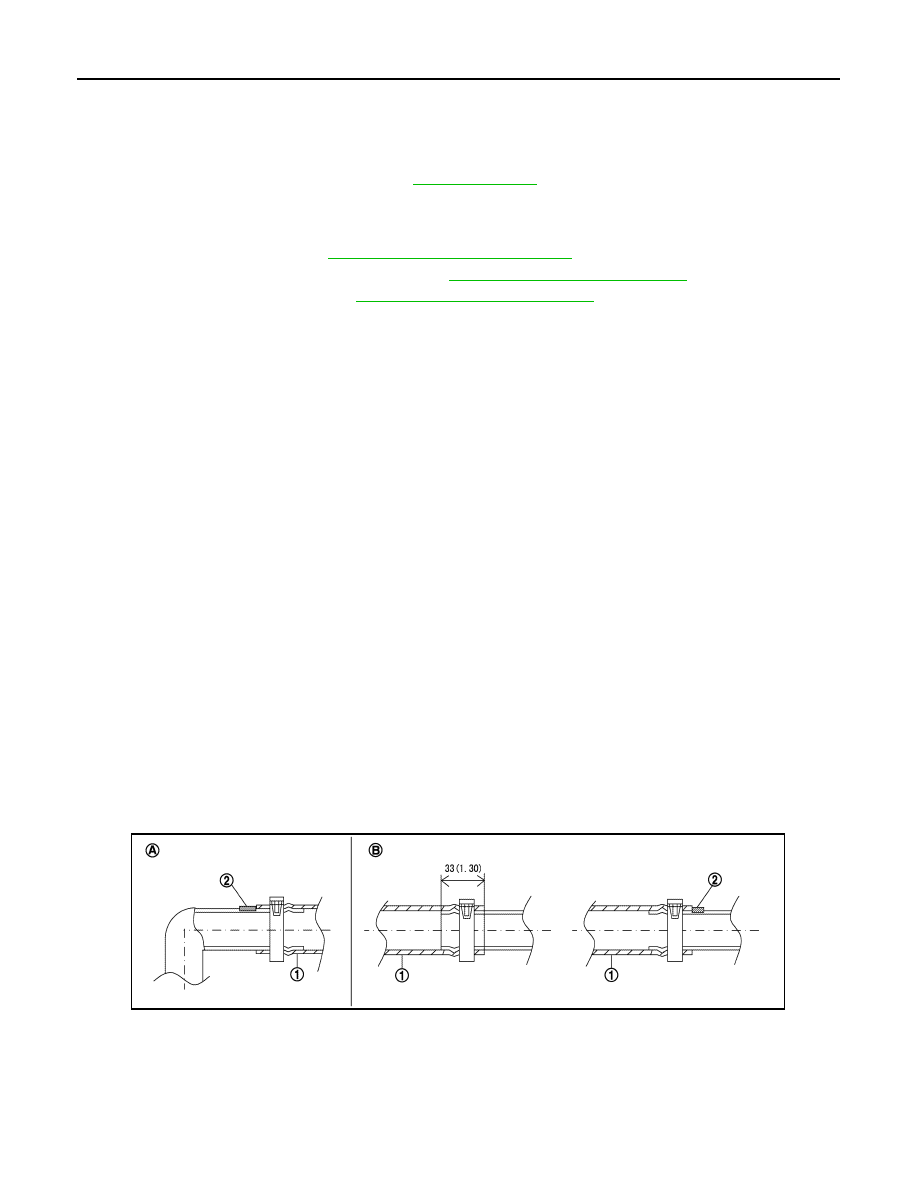

Radiator hose

NOTE:
Insert the radiator hose (1) all the way to the stopper (2) or by 33 mm (1.30 in) (hose without a stopper).

• For the orientation of the hose clamp pawl, refer to the figure.

Unit:  mm (in)

A.

Radiator side

B.

Engine side

JPBIA4294GB
