PREPARATION

CO-7

< PREPARATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

PREPARATION

PREPARATION

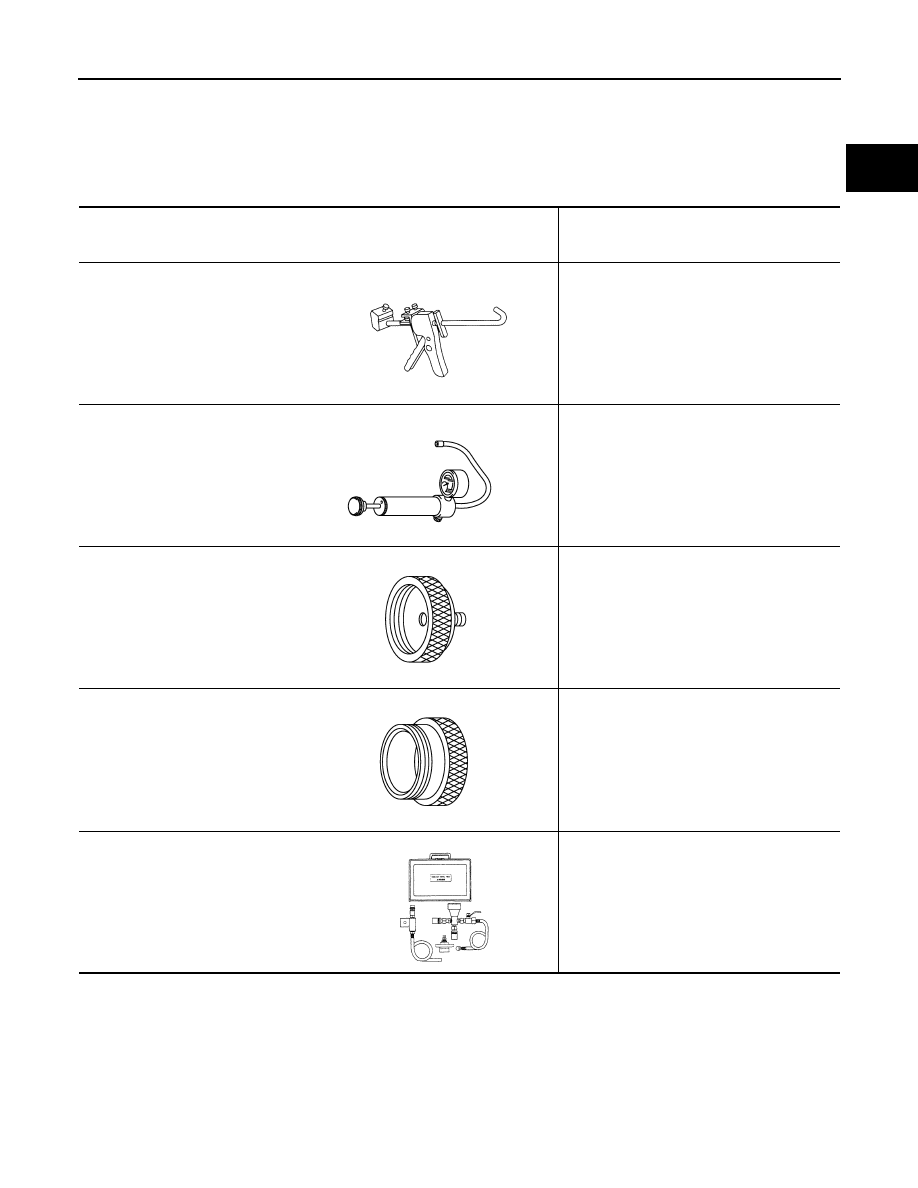

Special Service Tool

INFOID:0000000010505225

NISSAN tool number
(RENAULT too number)
Tool name

Description

WS39930000
(        —       )
Tube pressure

Pressing the tube of liquid gasket

 —
(M.S. 554-07)
Tester

Leak checking
Checking reservoir tank cap

 —
(M.S. 554-01)
Reservoir tank cap tester adapter A

Adapting tester to reservoir tank

 —
(M.S. 554-06)
Reservoir tank cap tester adapter B

Adapting tester to reservoir tank cap

NI. 205
 —
Coolant refill tool

Refilling engine cooling system

S-NT052

MLIA0012E

MLIA0013E

MLIA0014E

LMA053

CO-8

< SYSTEM DESCRIPTION >

[HRA2DDT]

DESCRIPTION

SYSTEM DESCRIPTION

DESCRIPTION

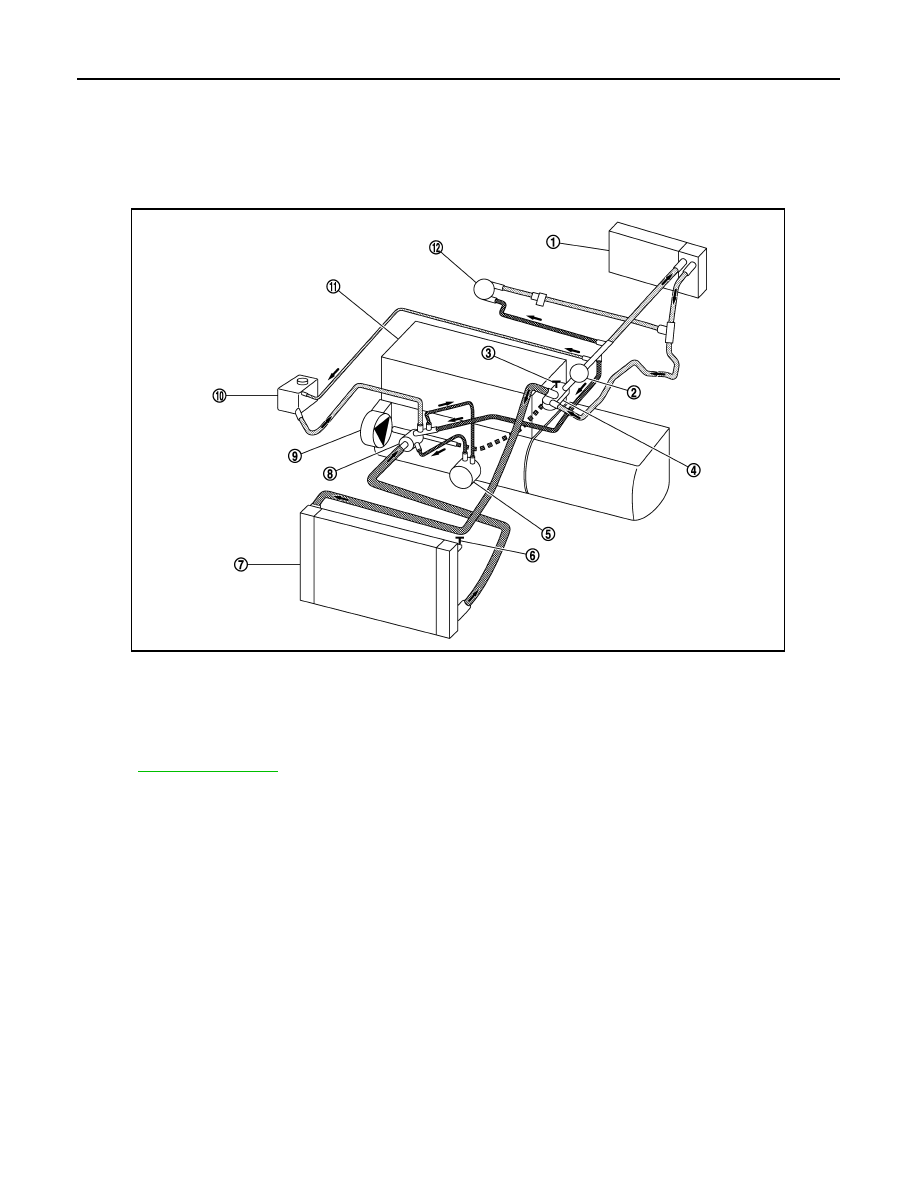

Engine Cooling System

INFOID:0000000010416338

Refer to

GI-4, "Components"

 for symbol marks in the figure.

1.

Heater core

2.

Water outlet valve

3.

Water outlet air relief plug

4.

Water outlet

5.

Oil cooler

6.

Radiator air relief plug

7.

Radiator

8.

Water inlet and thermostat assembly 9.

Water pump

10. Reservoir tank

11.

Engine

12. Turbocharger

E1BIA1143ZZ

OVERHEATING CAUSE ANALYSIS

CO-9

< SYMPTOM DIAGNOSIS >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

SYMPTOM DIAGNOSIS

OVERHEATING CAUSE ANALYSIS

Troubleshooting Chart

INFOID:0000000010416340

Symptom

Check items

Cooling sys-
tem parts
malfunction

Poor heat transfer

Water pump malfunction

Worn or loose drive belt

Thermostat stuck closed

Damaged fins

Dust contamination or pa-
per clogging

Physical damage

Clogged radiator cooling
tube

Excess foreign material
(rust, dirt, sand, etc.)

Reduced air flow

Cooling fan does not oper-
ate

Fan assembly

High resistance to fan rota-
tion

Damaged fan blades

Damaged radiator shroud

Improper engine coolant
mixture ratio

Poor engine coolant quality

Engine coolant viscosity

Insufficient engine coolant

Engine coolant leakage

Cooling hose

Loose clamp

Cracked hose

Water pump

Poor sealing

Radiator cap

Loose

Poor sealing

Radiator

O-ring for damage, deterio-
ration or improper fitting

Cracked radiator tank

Cracked radiator core

Reservoir tank

Cracked reservoir tank

Overflowing reservoir tank

Exhaust gas leakage into
cooling system

Cylinder head deterioration

Cylinder head gasket deteri-
oration

CO-10

< SYMPTOM DIAGNOSIS >

[HRA2DDT]

OVERHEATING CAUSE ANALYSIS

Except cool-
ing system
parts mal-
function

Overload on engine

Abusive driving

High engine rpm under no
load

Driving in low gear for ex-
tended time

Driving at extremely high
speed

Power train system mal-
function

Installed improper size
wheels and tires

Dragging brakes

Improper ignition timing

Blocked or restricted air
flow

Blocked bumper

Blocked radiator grille

Installed car brassiere

Mud contamination or paper
clogging

Blocked radiator

Blocked condenser

Blocked air flow

Installed large fog lamp

Symptom

Check items
