COMPONENT PARTS

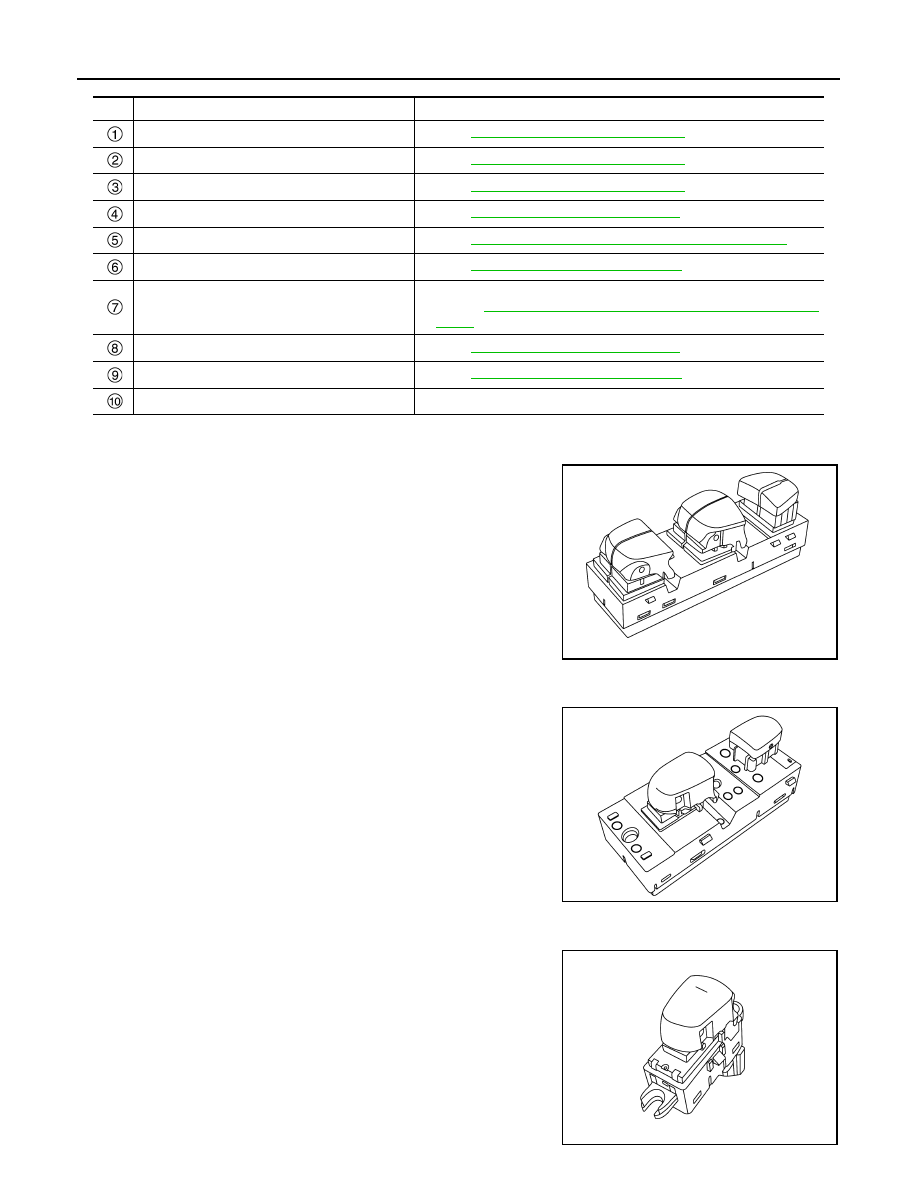

Power Window Main Switch

INFOID:0000000010286476

• Power window main switch controls all power windows.
• Power window main switch integrates UP/DOWN switch, power

window lock switch, and door lock/unlock switch.

• Power window main switch controls power window lock function,

AUTO UP/DOWN function, and anti-pinch function.

Front Power Window Switch (Passenger side)

INFOID:0000000010310099

• Front power window switch (passenger side) transmits UP/DOWN

signal to front power window motor (passenger side).

• Front power window switch (passenger side) transmits UP/DOWN

signal from power window main switch to front power window
motor (passenger side).

Rear Power Window Switch

INFOID:0000000010286477

• Each power window switch transmits UP/DOWN signal to each

motor.

• Each power window switch transmits UP/DOWN signal from power

window main switch to each power window motor.

No.

Component parts

Function

Rear power window switch LH

Refer to

PWC-8, "Rear Power Window Switch"

Power window main switch

Refer to

PWC-8, "Power Window Main Switch"

Rear power window switch RH

Refer to

PWC-8, "Rear Power Window Switch"

Rear power window motor RH

Refer to

PWC-9, "Rear Power Window Motor"

Front power window switch (Passenger side)

Refer to

PWC-8, "Front Power Window Switch (Passenger side)"

Front power window motor (Passenger side)

Refer to

PWC-9, "Front Power Window Motor"

BCM

• Controls power window relay
• Refer  to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Lo-

cation"

 for detailed installation location

Rear power window motor LH

Refer to

PWC-9, "Rear Power Window Motor"

Front power window motor (driver side)

Refer to

PWC-9, "Front Power Window Motor"

Power window relay

Supplies power supply to power window switch

JMKIB1375ZZ

JMKIB1377ZZ

JMKIB1379ZZ

COMPONENT PARTS

PWC-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

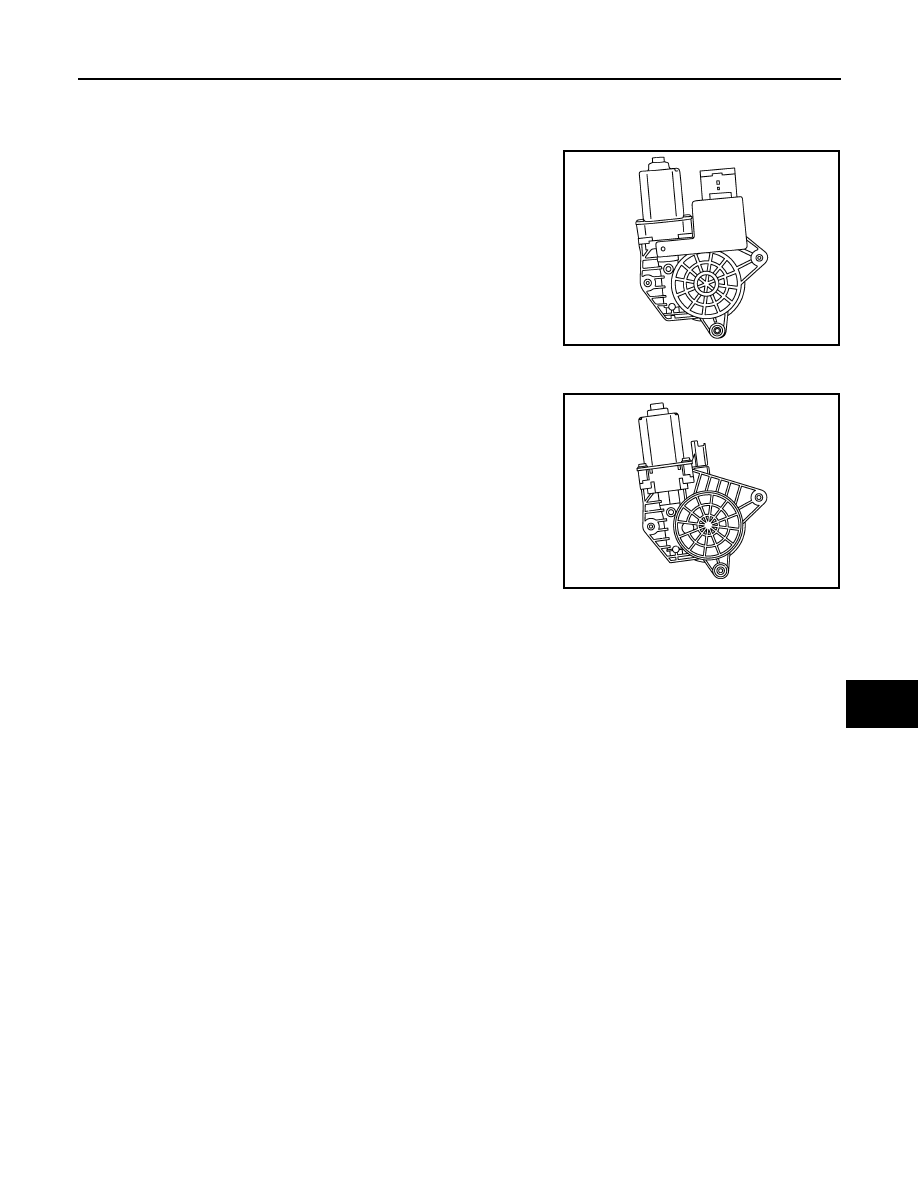

Front Power Window Motor

INFOID:0000000010286478

DRIVER SIDE

• Integrates the encoder and power window motor (driver side).
• Front power window motor (driver side) starts operation according

to signals from power window main switch.

• Transmits front power window motor (driver side) rotation as a

pulse signal to power window main switch.

PASSENGER SIDE

• Front power window motor (passenger side) starts operation

according to signals from power window main switch or front
power window switch (passenger side).

Rear Power Window Motor

INFOID:0000000010339807

• Starts operation according to signals from power window main

switch or each power window switches.

JMKIB3106ZZ

JMKIB2998ZZ

PWC-10

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

System Description

INFOID:0000000010286479

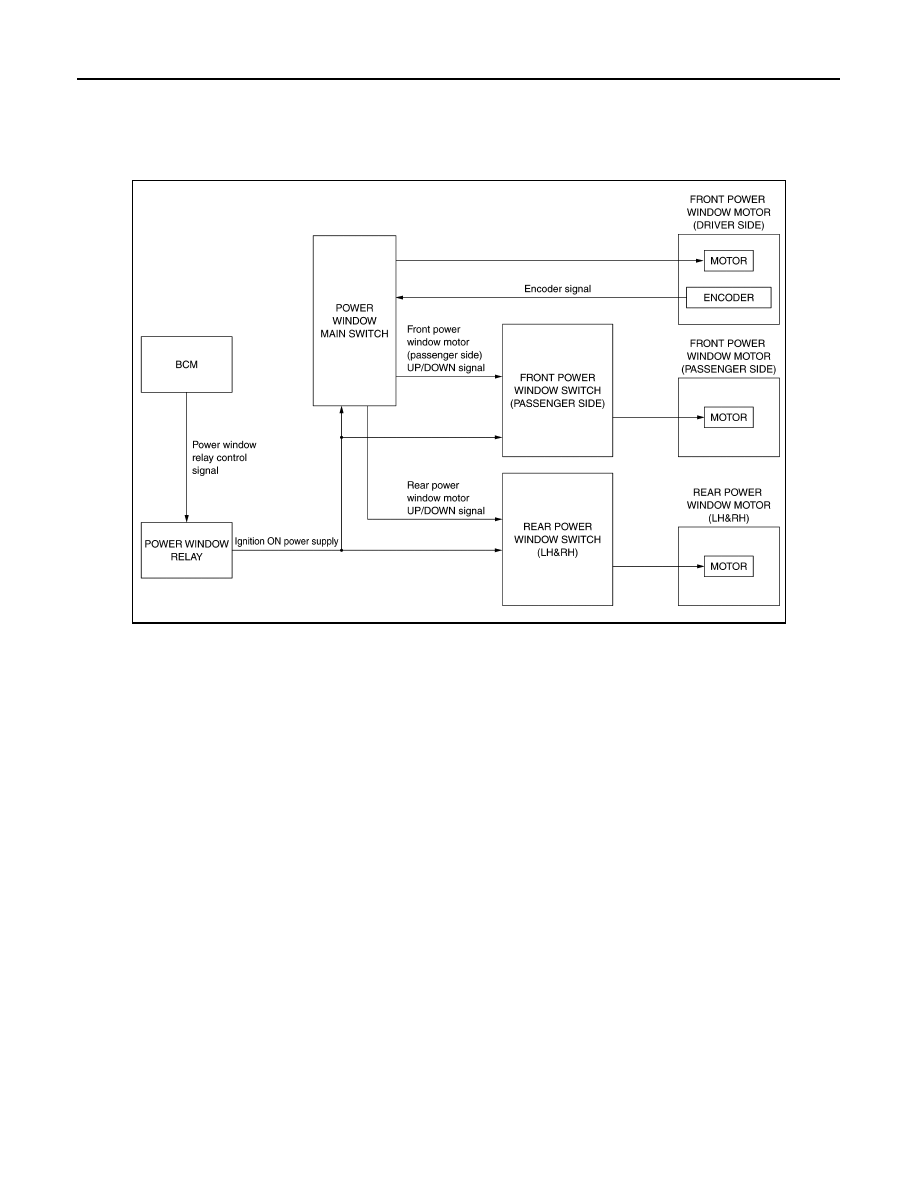

SYSTEM DIAGRAM

POWER WINDOW OPERATION

• BCM controls the power window relay, and controls the ignition ON power source supplied to each power

window switch.

• Power window system is activated by power window switch when ignition switch turns ON.
• Power window main switch opens/closes all door glass.
• Front and rear power window switch opens/closes the corresponding door glass.
• AUTO UP/DOWN operation can be performed when power window main switch turns to AUTO.
• Power window lock switch can lock all power windows other than driver seat.
• If door glass receives resistance that is the specified value or more while power window of driver seat is in

AUTO-UP operation, power window of driver seat operates in the reverse direction.

POWER WINDOW AUTO-OPERATION (FRONT DRIVER SIDE)

• AUTO UP/DOWN operation can be performed when power window main switch turns to AUTO.
• Encoder continues detecting the movement of power window motor and transmits to power window switch

as the encoder signal while power window motor is operating.

• Power window switch reads the changes of encoder signal and stops AUTO operation when door glass is at

fully opened/closed position.

• Power window motor is operable in case encoder is malfunctioning.

POWER WINDOW LOCK

Ground circuit inside power window main switch shuts off when power window lock switch is ON. This inhibits
power window switch operation except with the power window main switch.

ANTI-PINCH SYSTEM (FRONT DRIVER SIDE)

• Pinch foreign material in the door glass during AUTO-UP operation, and it is the anti-pinch function that low-

ers the door glass 120 – 150 mm (4.7 – 5.9 in) when detected.

• Encoder continues detecting the movement of front power window motor (driver side) and transmits to

power window main switch as the encoder signal while front power window motor (driver side) is operating.

• Resistance is applied to the front power window motor (driver side) rotation that changes the frequency of

encoder signal if foreign material is trapped in the door glass.

JMKIB3542GB

SYSTEM

PWC-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

• Power window main switch controls to lower the window glass for 120 – 150 mm (4.7 – 5.9 in) after it detects

encoder signal frequency change.

OPERATION CONDITION
• When front door glass (driver side) AUTO-UP operation is performed (anti-pinch function does not operate

just before the door glass closes and is fully closed)

NOTE:
Depending on environment and driving conditions, if a similar impact or load is applied to the door glass, it
may lower.

Fail Safe

INFOID:0000000010286481

FAIL-SAFE CONTROL

Power window main switch to fail-safe control when malfunction is detected in encoder signal that detects up/
down speed and direction of door glass. Power window main switch to fail-safe control when error beyond reg-
ulation value is detected between the fully closed position and the actual position of the glass.

It changes to condition before initialization and the following functions do not operate when power window
main switch to fail-safe control.
• Auto-up operation
• Anti-pinch function

Perform initial operation to recover when power window main switch to fail-safe mode. However, it power win-
dow main switch back to fail-safe control when malfunction is found in power window main switch or front
power window motor (driver side).

Error

Error condition

Pulse sensor malfunction

When only one side of pulse signal is detected for more than the specified time during glass open/
close operation

Both pulse sensors mal-
function

When both pulse signals are not detected for more than the specified time during glass open/close
operation.

Pulse direction malfunc-
tion

When the pulse signal detected during glass open/close operation continues in the condition that the
drive direction of power window motor is operating in the opposite direction for the specified time or
longer

Glass recognition position
malfunction

When it detects the error between glass fully closed position in power window main switch memory
and actual fully closed position during glass open/close operation is more than the specified value.
