Nissan Qashqai J11. Manual - part 1504

GW-26

< REMOVAL AND INSTALLATION >

FRONT REGULATOR

5.

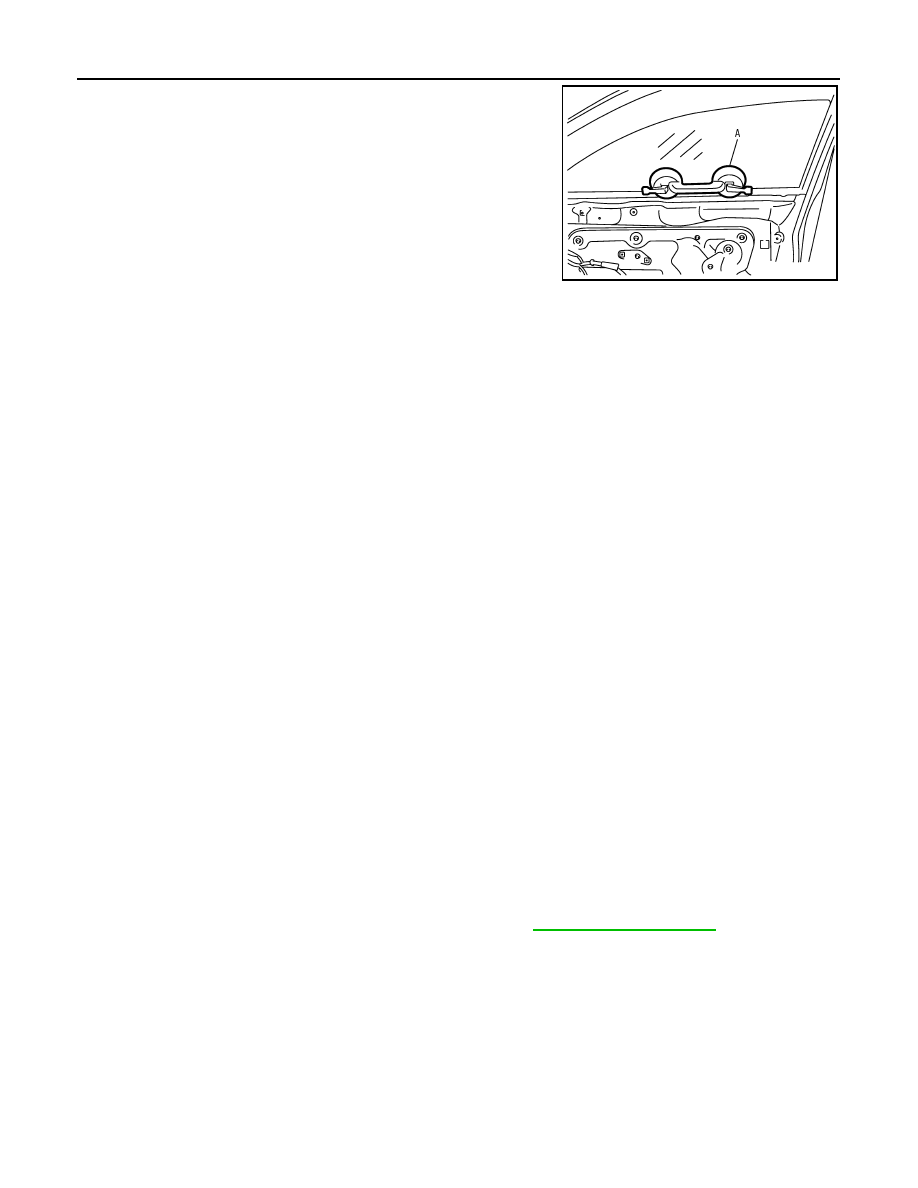

Raise the front door glass and hold in place using a suitable tool
(A).

6.

Disconnect the harness connector from the front power window motor.

7.

Remove the bolts and remove the front door glass regulator.

INSPECTION AFTER REMOVAL

Check the front door glass regulator for the following items:
• Wire wear
• Front door glass regulator deformation
• Grease condition for each sliding part
If a malfunction is detected, replace or grease it.

Disassembly and Assembly

INFOID:0000000010502002

DISASSEMBLY

1.

Remove screws and front power window motor from front door glass regulator.

2.

Remove front power window motor.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. Replace or grease it if a malfunction is detected.
• Wire wear
• Regulator deformation

ASSEMBLY

Assemble in the reverse order of disassembly.

INSTALLATION

Installation is in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000010478430

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When the main power window and door lock/unlock switch or front power window and door lock/

unlock switch RH is removed it is necessary to perform the initialization procedure.

• Tighten front door regulator bolts to specification. Refer to

GW-25, "Exploded View"

.

FITTING INSPECTION

• Check that the front door glass is fit securely into the glass run groove.
• Lower the front door glass slightly [approximately 10 to 20 mm (0.39 to 0.79) and check that the clearance to

the run is parallel.If the clearance between the glass and sash is not parallel, loosen the front door glass reg-
ulator bolts, front door glass run channel bolts, and glass and run rail bolts to correct the glass position.

PIIB3510J

REAR DOOR GLASS

GW-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR DOOR GLASS

Exploded View

INFOID:0000000011504000

Removal and Installation

INFOID:0000000010478433

REMOVAL

1.

Remove rear door finisher. Refer to

INT-15, "REAR DOOR FINISHER : Removal and Installation"

.

2.

Remove rear door reinforcement.

3.

Remove rear door vapor barrier (1).

4.

Temporarily reconnect the rear power window switch.

5.

Operate the rear power window switch to raise/lower the rear door glass until the rear door glass regulator
to rear door glass bolts can be seen and remove.

6.

Remove screws and rear door corner finisher.

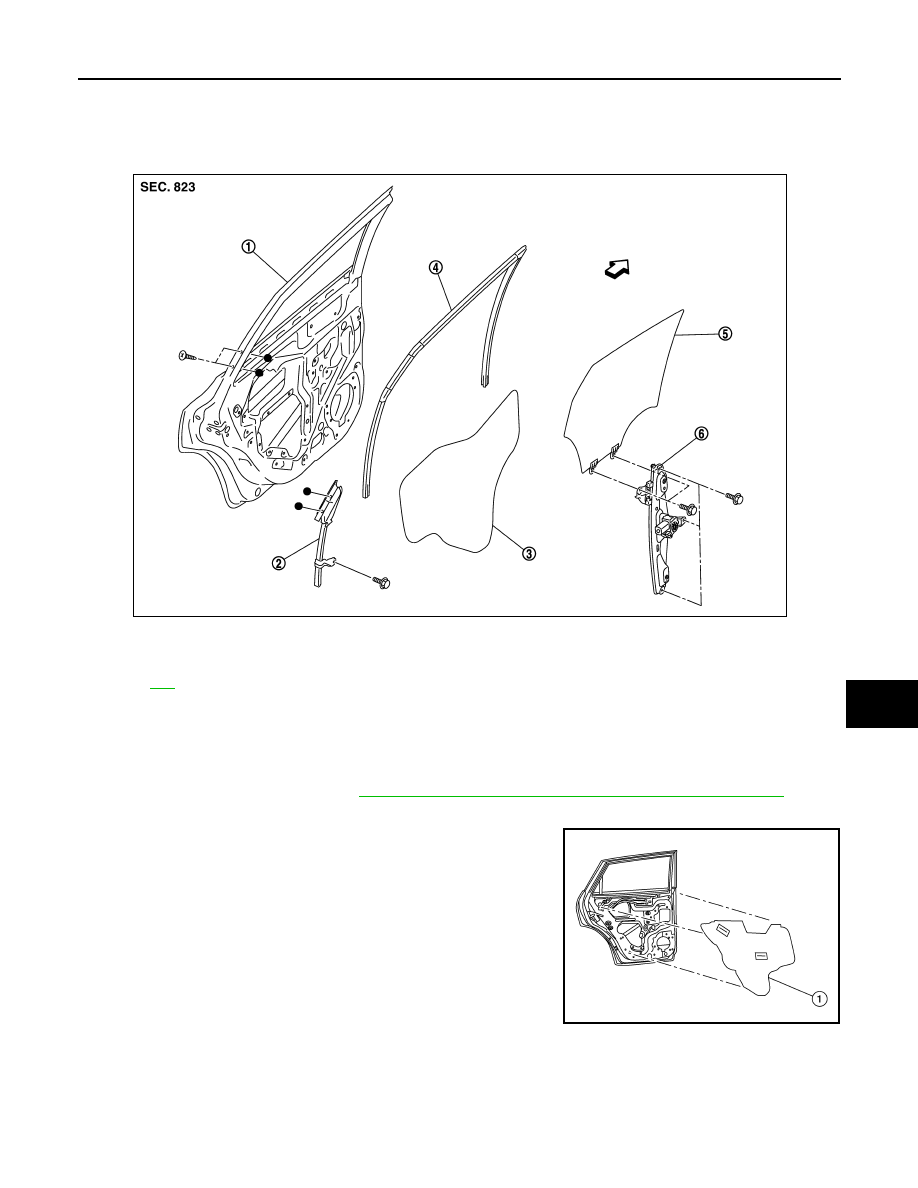

1.

Rear door panel

2.

Rear door corner piece

3.

Rear door sealing screen

4.

Rear door glass run

5.

Rear door glass

6.

Rear door regulator

Refer to

GI-4

 for symbols in the figure.

E1KIA0166ZZ

ALKIA3481ZZ

GW-28

< REMOVAL AND INSTALLATION >

REAR DOOR GLASS

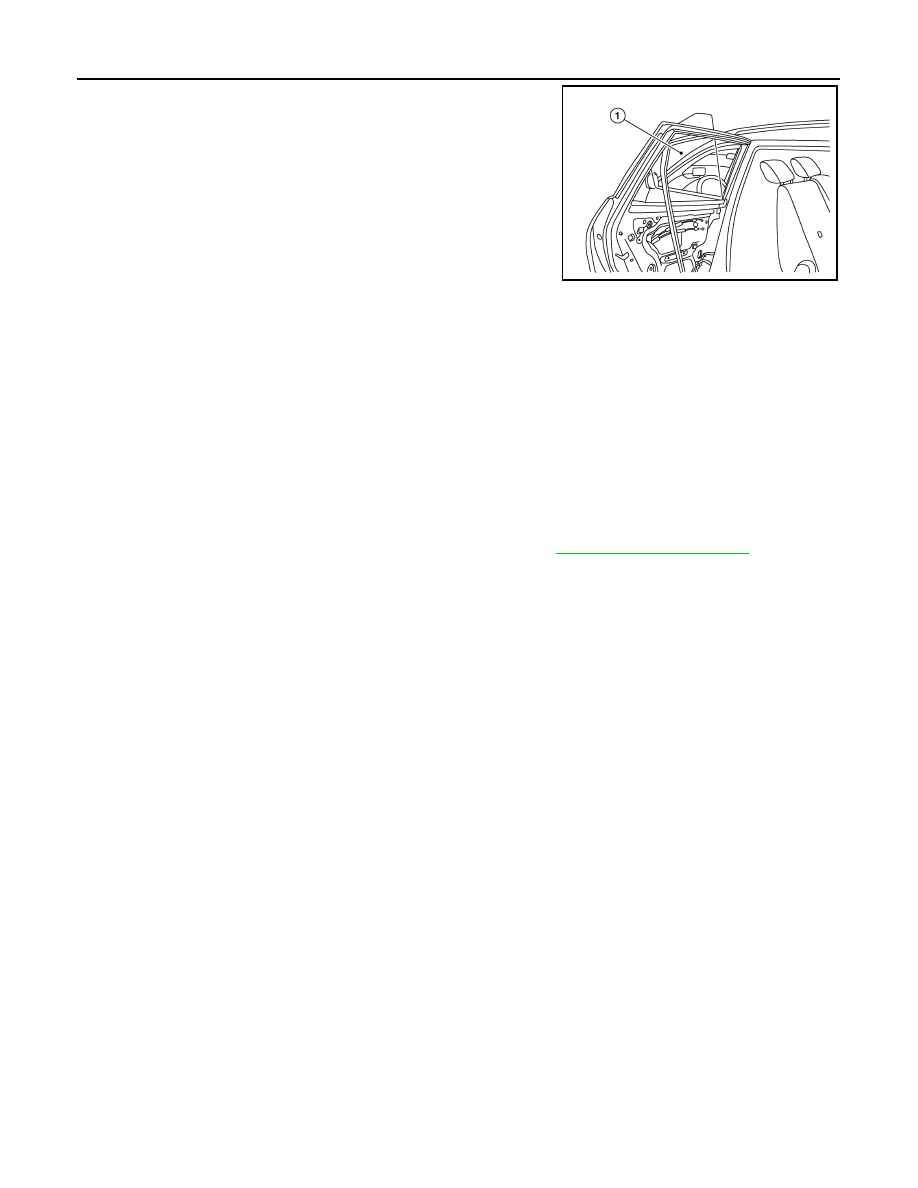

7.

Remove the rear door glass (1).

INSTALLATION

Installation is in the reverse order of removal.

FITTING INSPECTION

• Check that the rear door glass is securely fit into the rear door glass run channel.
• Lower the rear door glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clear-

ance to the sash is parallel. If the clearance between the rear door glass and sash is not parallel, loosen the
rear door regulator to glass bolts, rear door run channel bolts, and rear door glass bolts to correct the rear
door glass position.

Inspection and Adjustment

INFOID:0000000010502008

SYSTEM INITIALIZATION

Initialize the system if any of the following work is complete. Refer to

PWC-31, "Work Procedure"

.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

ALKIA3484ZZ

REAR REGULATOR

GW-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

REAR REGULATOR

Exploded View

INFOID:0000000011504001

Removal and Installation

INFOID:0000000010478435

REMOVAL

1.

Remove rear door finisher. Refer to

INT-15, "REAR DOOR FINISHER : Removal and Installation"

.

2.

Remove rear door reinforcement.

3.

Remove rear door vapor barrier (1).

4.

Temporarily reconnect the rear power window switch.

5.

Operate the rear power window switch to raise/lower the rear door glass until the rear door glass regulator
to rear door glass bolts can be seen and remove.

1.

Rear door panel

2.

Rear door corner piece

3.

Rear door sealing screen

4.

Rear door glass run

5.

Rear door glass

6.

Rear door regulator

Refer to

GI-4

 for symbols in the figure.

E1KIA0166ZZ

ALKIA3481ZZ
