VEHICLE SECURITY ALARM DOES NOT ACTIVATE

SEC-287

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

7.

REPLACE BCM

Replace BCM. Refer to

BCS-135, "Removal and Installation"

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

SEC-288

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

INTRUDER SENSOR CANNOT BE DEACTIVATED

INTRUDER SENSOR CANNOT BE DEACTIVATED

Diagnosis Procedure

INFOID:0000000010505376

1.

CHECK SENSOR CANCEL SWITCH

Check sensor cancel switch.
Refer to

SEC-279, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace sensor cancel switch.

2.

REPLACE SIREN CONTROL UNIT

1.

Replace siren control unit.

2.

Confirm the operation after replacement.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

REPLACE BCM

Replace BCM. Refer to

BCS-135, "Removal and Installation"

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NATS ANTENNA AMP.

SEC-289

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

REMOVAL AND INSTALLATION

NATS ANTENNA AMP.

Removal and Installation

INFOID:0000000010338090

REMOVAL

1.

Remove the steering column cover.
Refer to

IP-13, "Removal and Installation"

.

2.

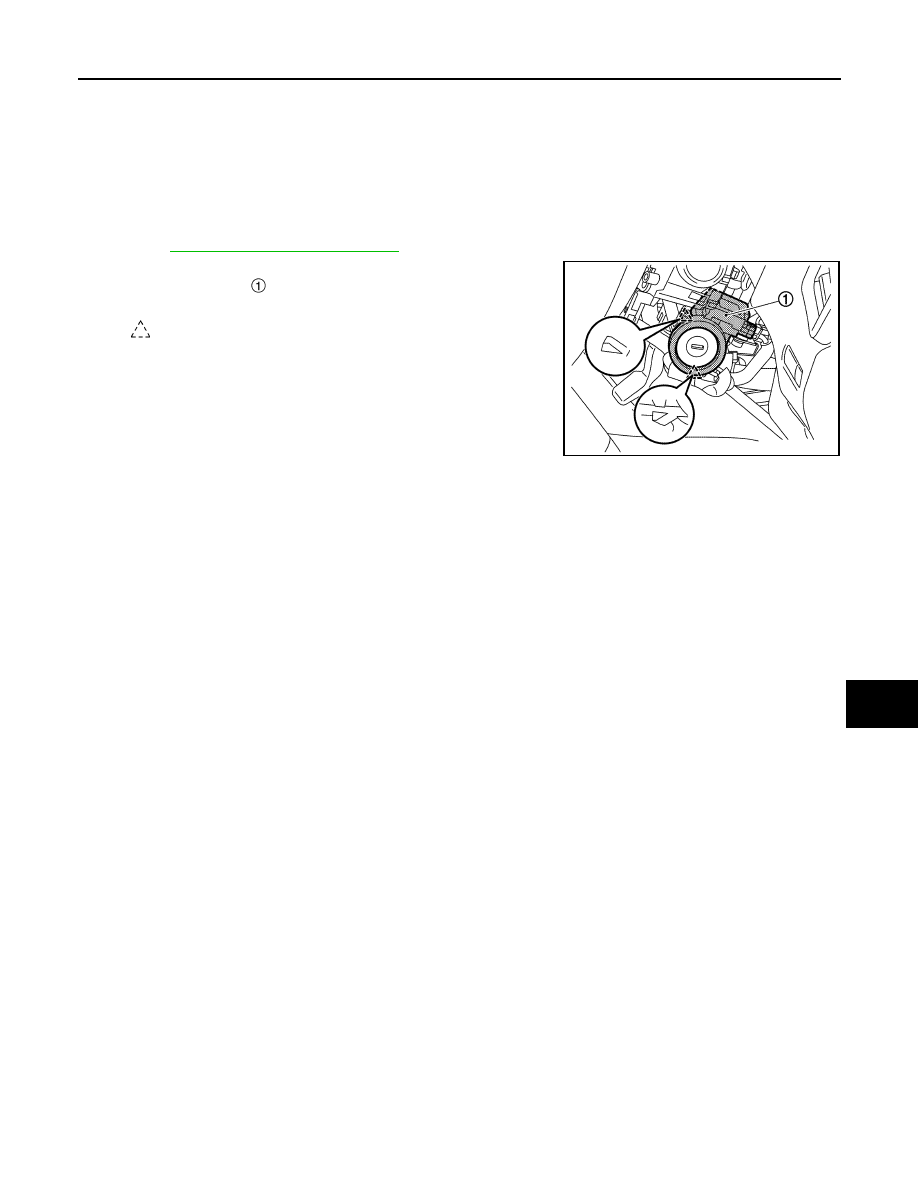

Disengage NATS antenna amp. fixing pawl and then remove
NATS antenna amp.

 from steering lock assembly.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIB2859ZZ
