SECURITY CONTROL SYSTEM

SEC-227

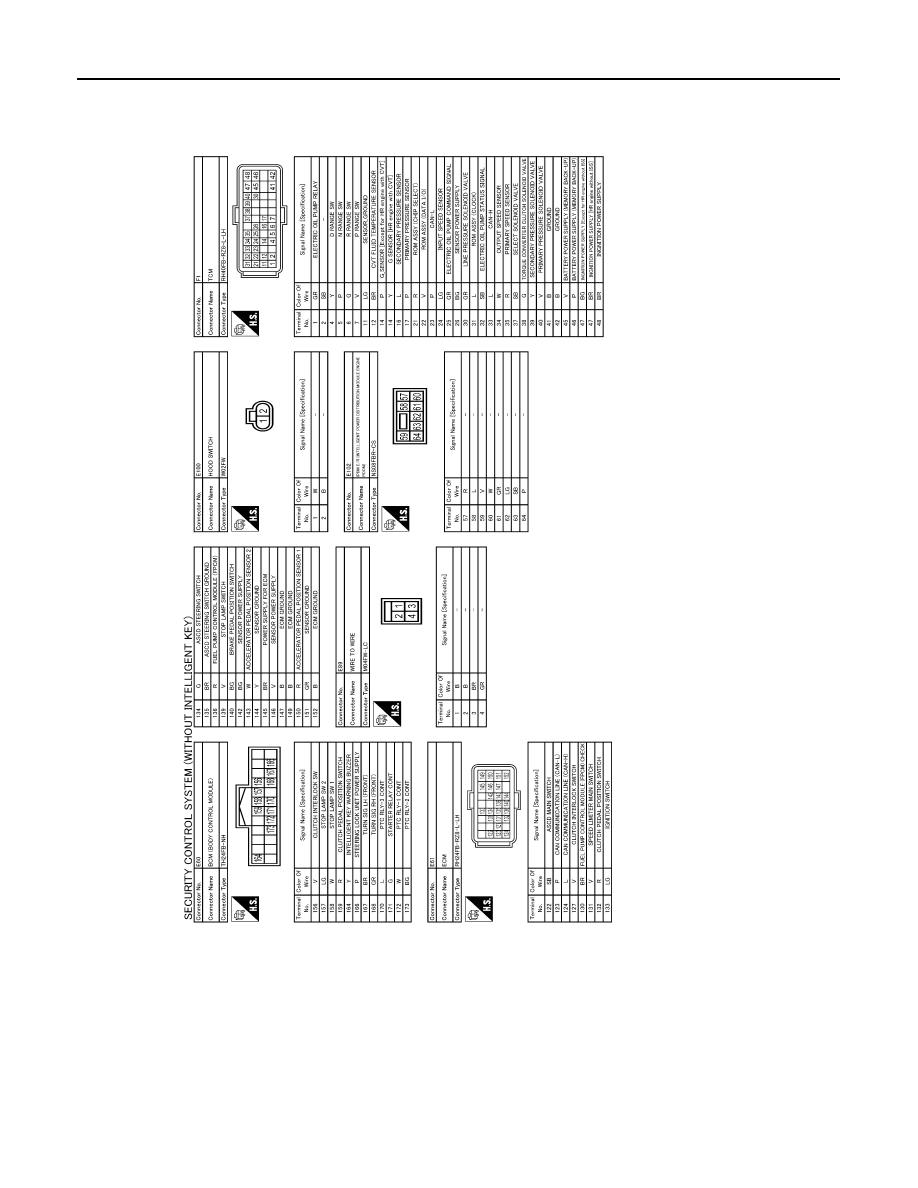

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JRKWE4023GB

SEC-228

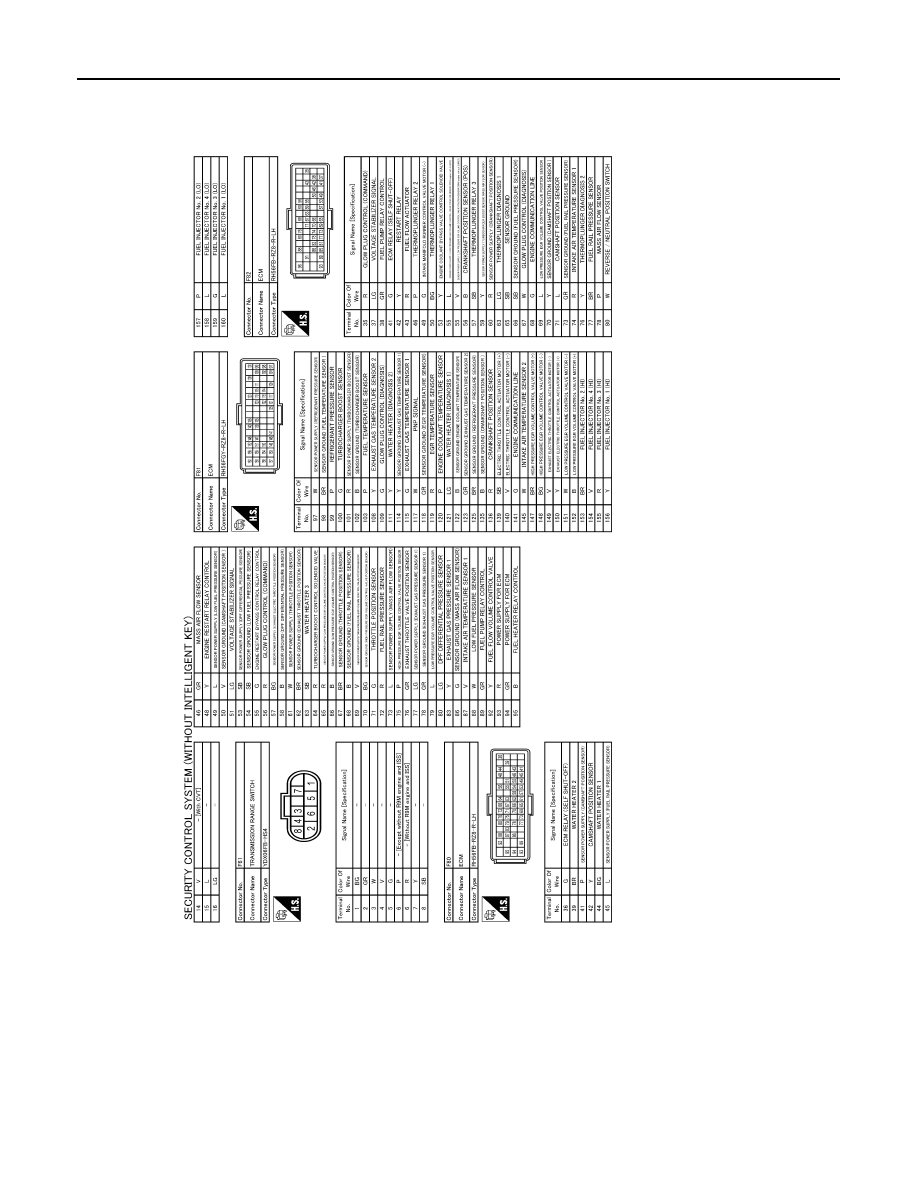

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

JRKWE4024GB

SECURITY CONTROL SYSTEM

SEC-229

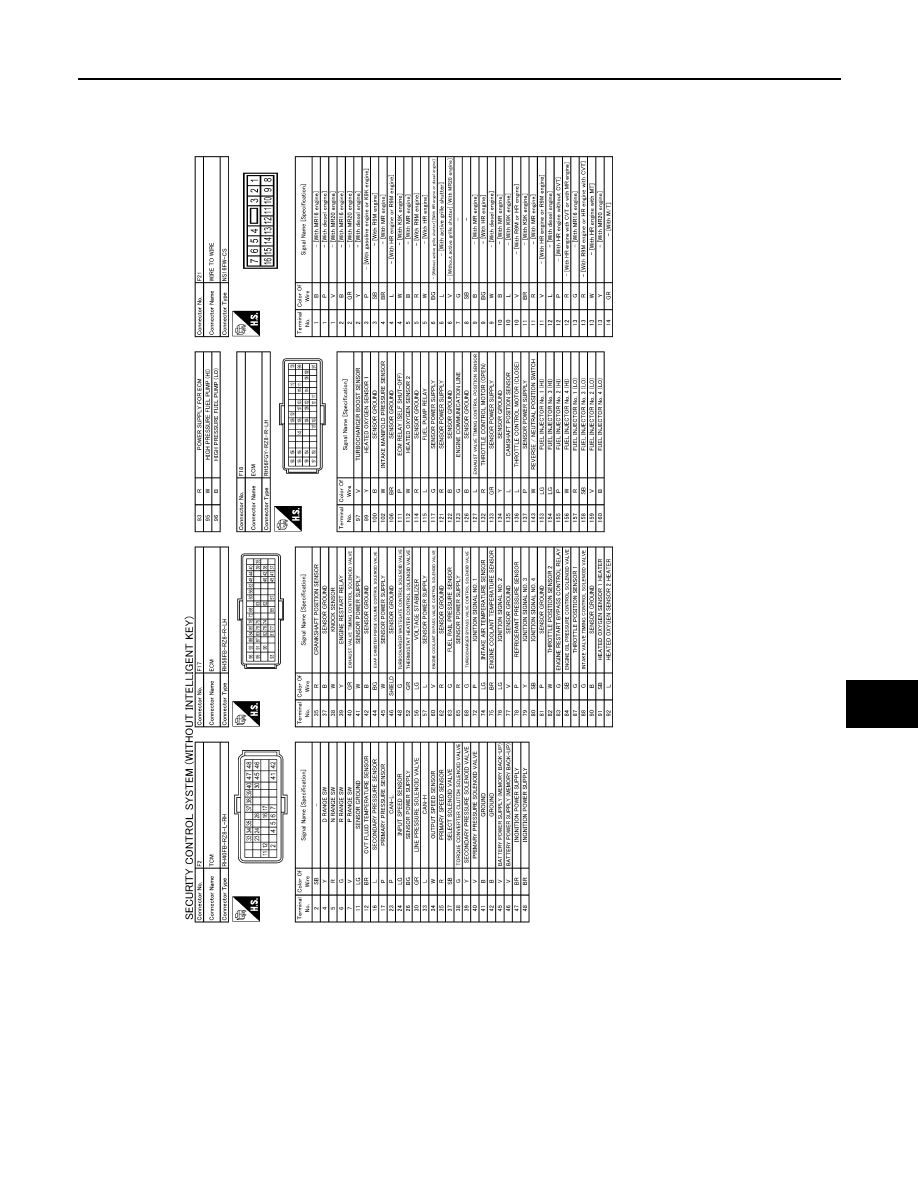

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JRKWE4025GB

SEC-230

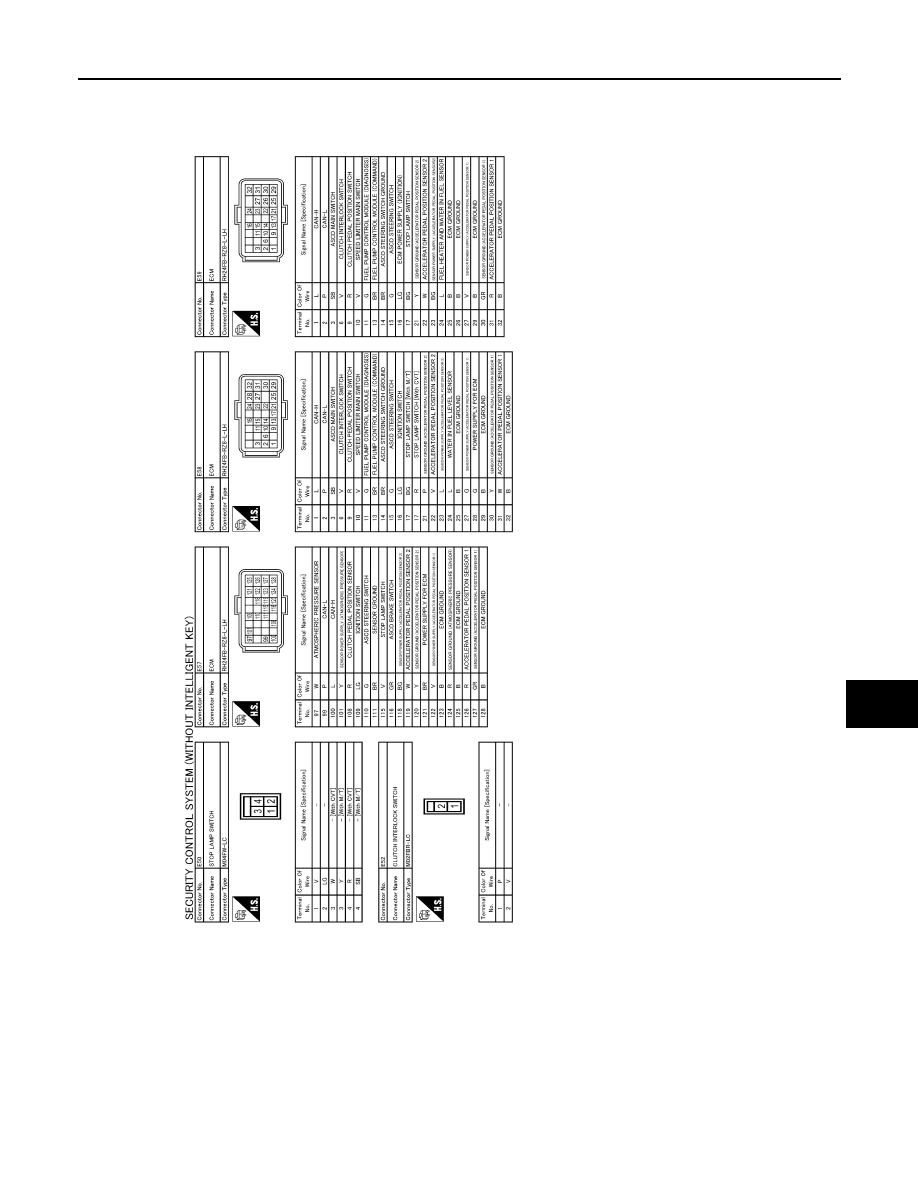

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

JRKWE4026GB
