SECURITY CONTROL SYSTEM

SEC-223

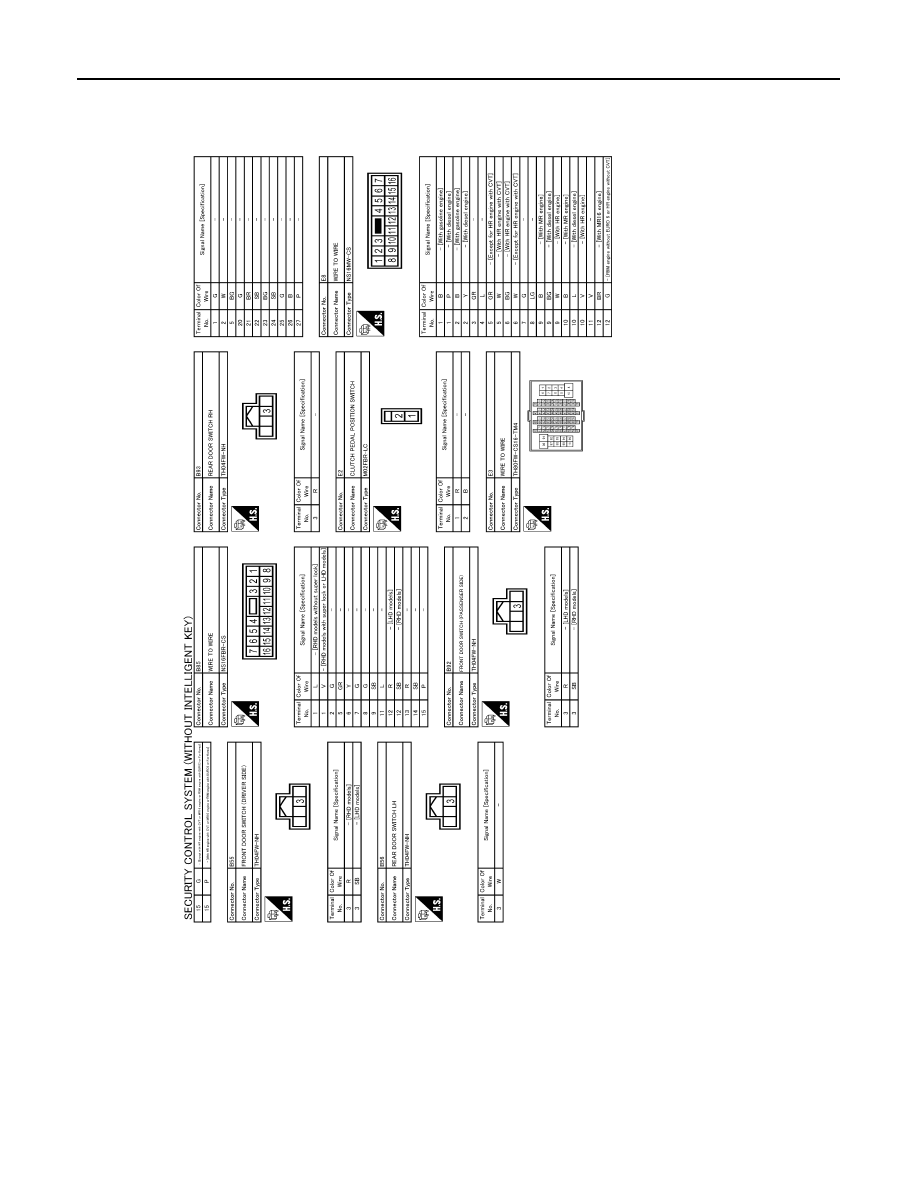

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JRKWE4019GB

SEC-224

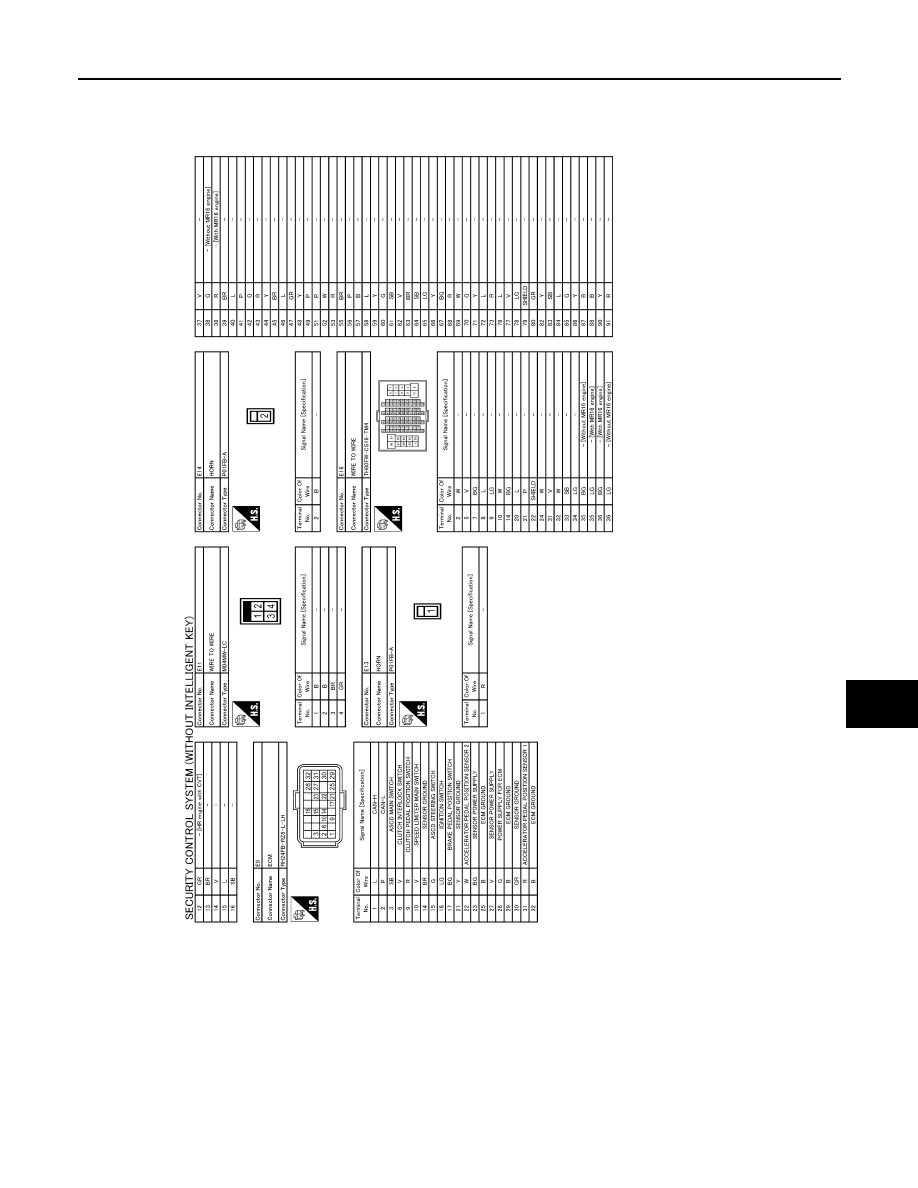

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

JRKWE4020GB

SECURITY CONTROL SYSTEM

SEC-225

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JRKWE4021GB

SEC-226

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

JRKWE4022GB
