LU-12

< REMOVAL AND INSTALLATION >

[HRA2DDT]

OIL PUMP

2.

Remove oil pan lower. Refer to

EM-46, "Removal and Installation"

.

3.

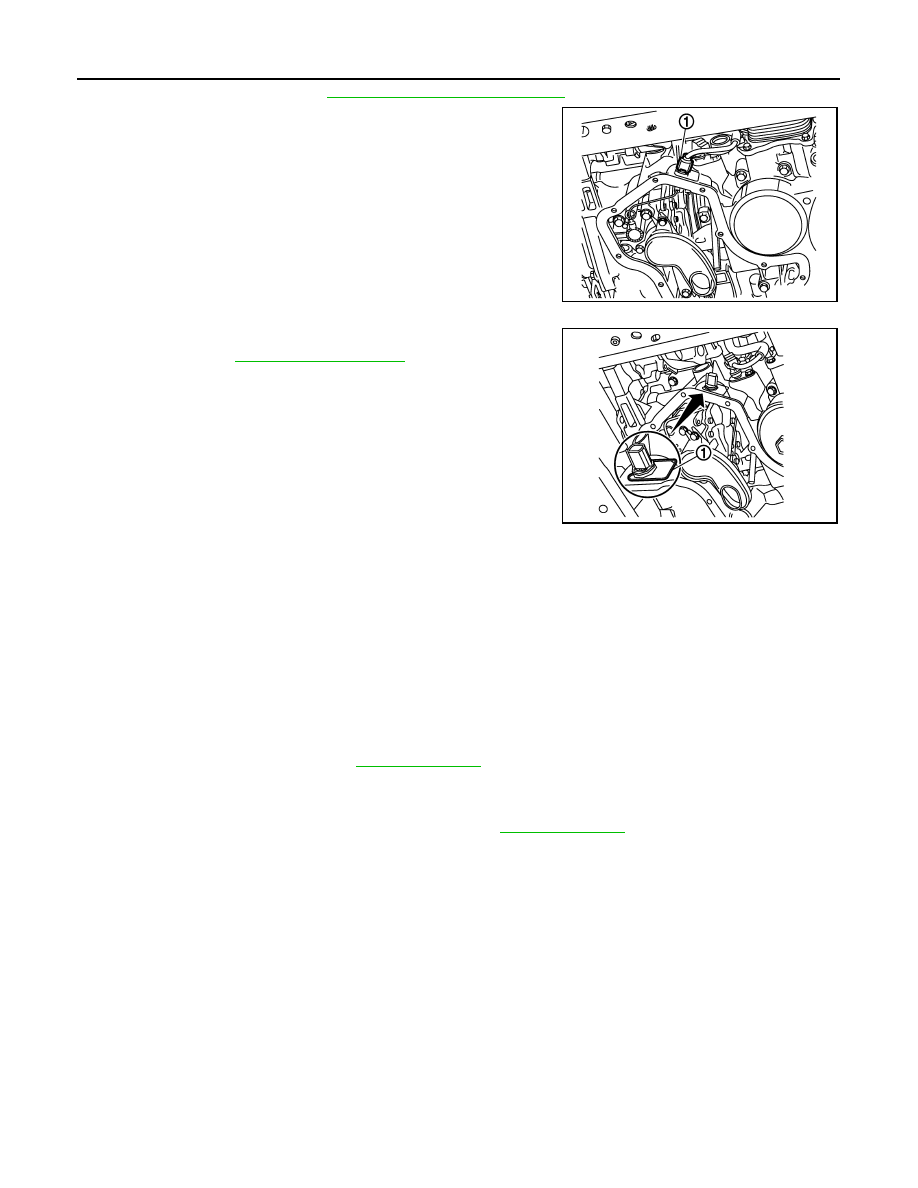

Disconnect oil pump connector (1).

4.

Remove metal clip (1) and unclip oil pump connector.

5.

Remove: Refer to

EM-89, "Exploded View"

.

• Oil pump strainer.
• Oil pump bracket.
• Oil pump from oil pump chain.
• Oil pump.

CAUTION:

Never disassemble oil pump.

INSTALLATION

Note the following and install in the reverse order as removal.
1.

Install oil pump.

CAUTION:

• Check that oil pump chain is correctly install on the oil pump sprocket.
• Before crank the engine, rotate crankshaft by hand to be sure that oil pump chain is correctly

install on the oil pump sprocket.

• Never reuse O-ring.

Inspection

INFOID:0000000010284182

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-8, "Inspection"

.

2.

Start the engine, and check that there is no leakage of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

LU-8, "Inspection"

.

E1BIA1112ZZ

E1BIA1113ZZ

OIL COOLER

LU-13

< REMOVAL AND INSTALLATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

OIL COOLER

Exploded View

INFOID:0000000010284183

Refer to

GI-4, "Components"

 for symbol marks in the figure.

Removal and Installation

INFOID:0000000010284184

REMOVAL

1.

Drain engine coolant. Refer to

CO-11, "Draining"

.

CAUTION:

Perform when engine is cold.

2.

Remove air inlet tube. Refer to

EM-27, "Exploded View"

.

3.

Remove water hose.

4.

Remove oil cooler.

INSTALLATION

Note the following and install is in reverse order of removal.

1.

Install oil cooler.

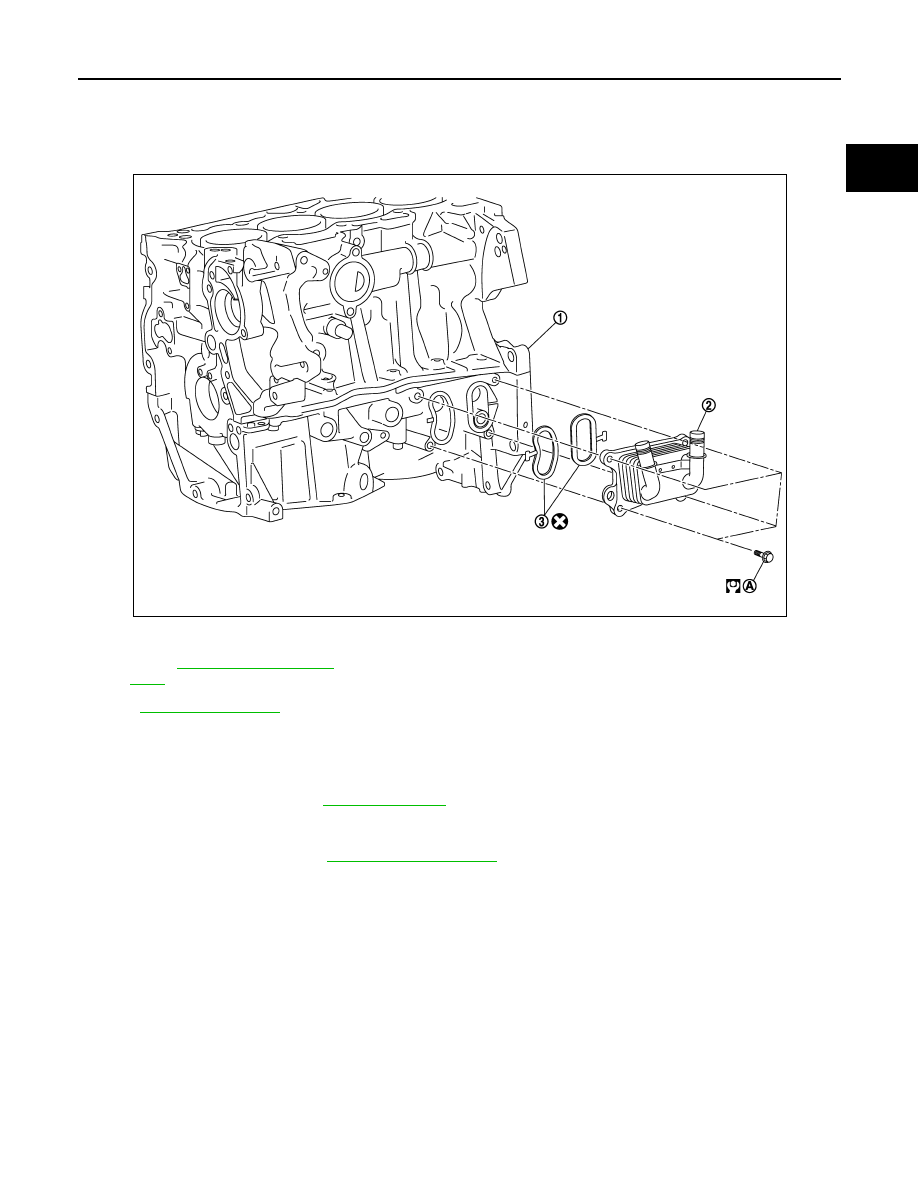

1.

Cylinder block

2.

Oil cooler

3.

Oil cooler gasket

A.

Refer to

LU-13, "Removal and Instal-

lation"

E1BIA1114GB

LU-14

< REMOVAL AND INSTALLATION >

[HRA2DDT]

OIL COOLER

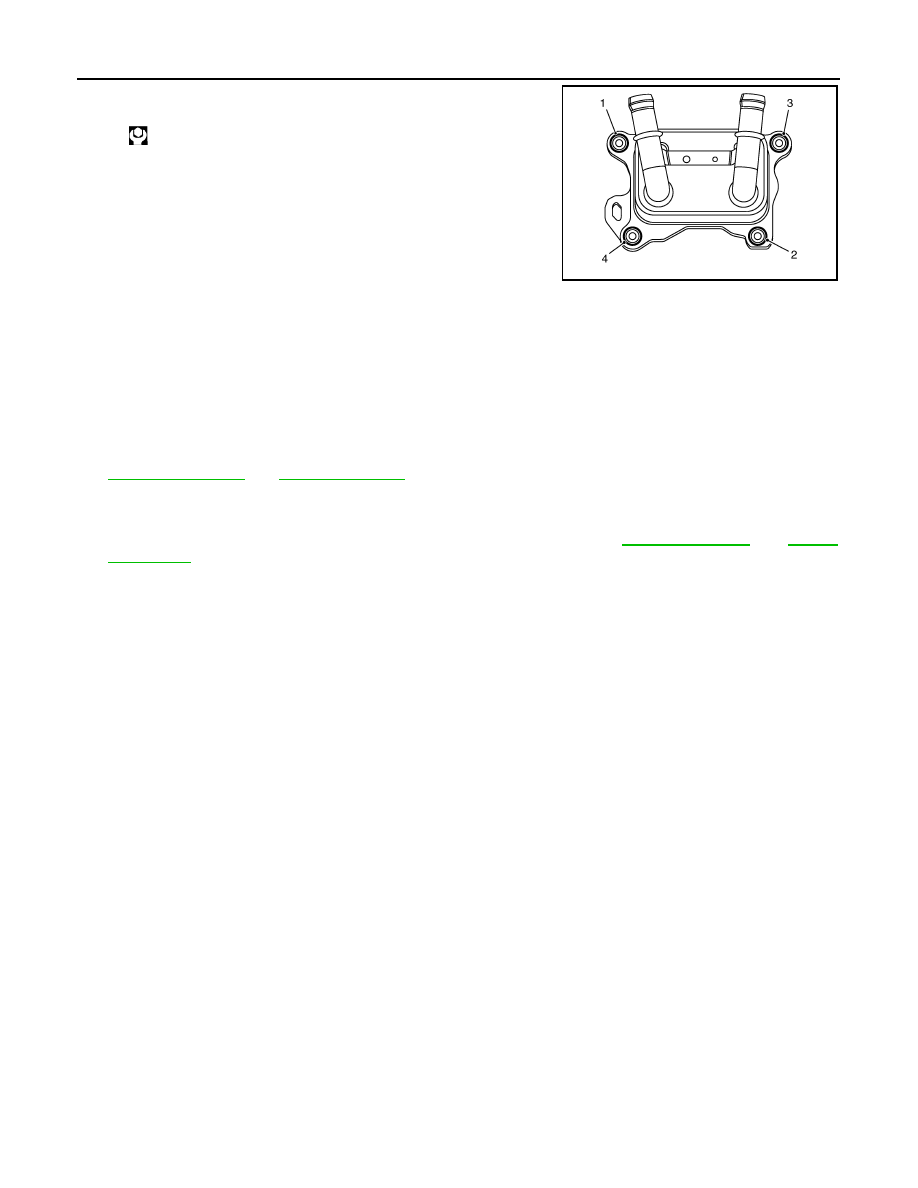

• Tighten bolts in the numerical order as shown in the figure.

Inspection

INFOID:0000000010284185

INSPECTION AFTER REMOVAL

Oil Cooler

Check oil cooler for cracks. Check oil cooler for clogging by blowing through engine coolant inlet. If necessary,
replace oil cooler assembly.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level and the engine coolant level and add engine oil and engine coolant. Refer to

CO-11, "Inspection"

 and

LU-8, "Inspection"

.

2.

Start the engine, and check that there is no leakage of engine oil or engine coolant.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level and the engine coolant level again. Refer to

LU-8, "Inspection"

 and

CO-11,

"Inspection"

.

: 10.0 N·m (1.0 kg-m, 7 ft-lb)

E1BIA1115ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

LU-15

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000010284186

ENGINE OIL CAPACITY (APPROXIMATE)

Unit:

 (lmp qt)

Engine Oil Pressure

INFOID:0000000010284187

Unit: kPa (bar, kg/cm

2

, psi)

*: Engine oil temperature at 80

°

C (176

°

F)

Drain and refill

With oil filter change

4.6 (4)

Without oil filter change

4.3 (3-3/4)

Dry engine (Overhaul)

5.6 (4-7/8)

Engine speed

Approximate discharge pressure*

Idle speed < X < 4,000 rpm

170 (1.7, 1.7, 25) < X < 250 (2.5, 2.5, 36)

4,000 rpm < X < Max rpm

350 (3.5, 3.5, 51) < X < 450 (4.5, 4.5, 62)
