OUTSIDE KEY ANTENNA

DLK-749

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1.

Disconnect BCM connector and front outside handle assembly (passenger side) connector.

2.

Check continuity between BCM harness connector and front outside handle assembly (passenger side)
harness connector.

LHD models

RHD models

3.

Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M69

118

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

119

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

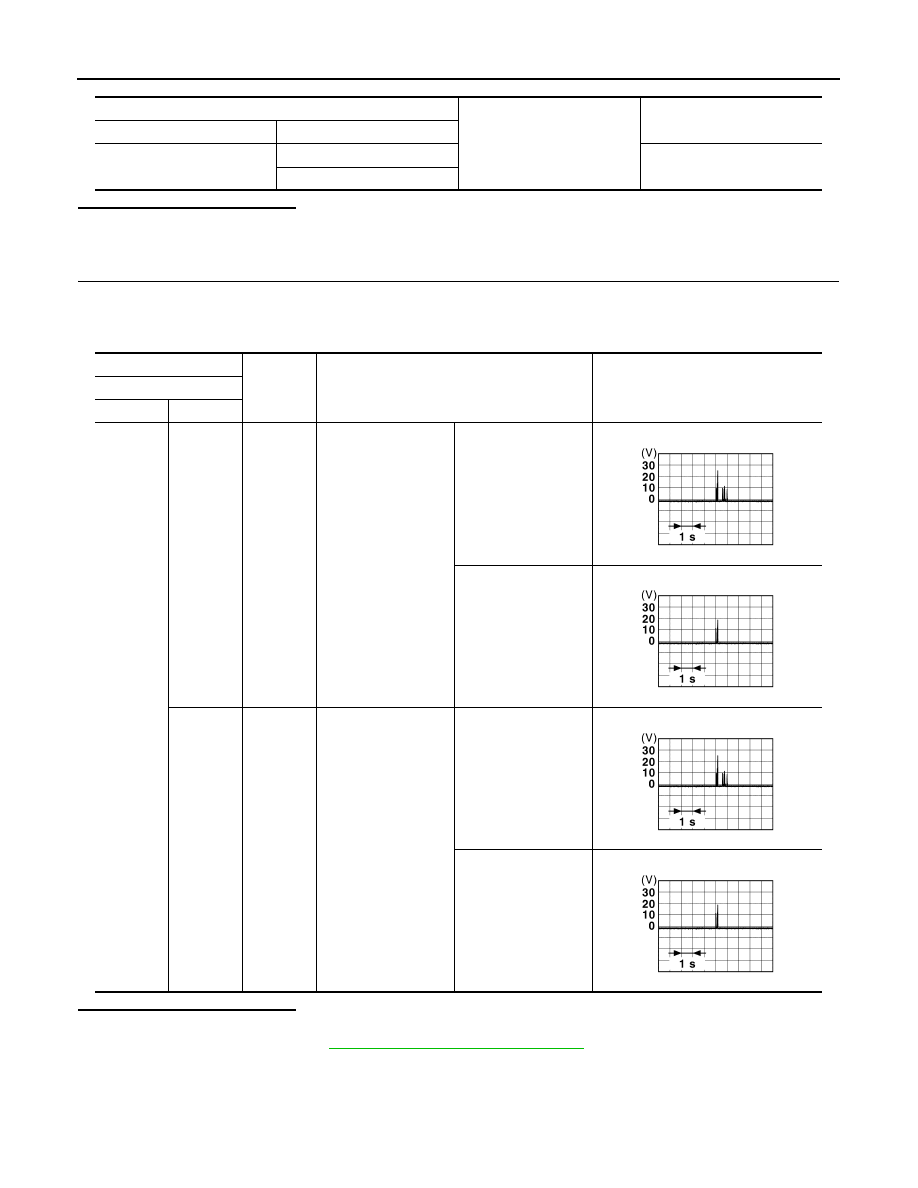

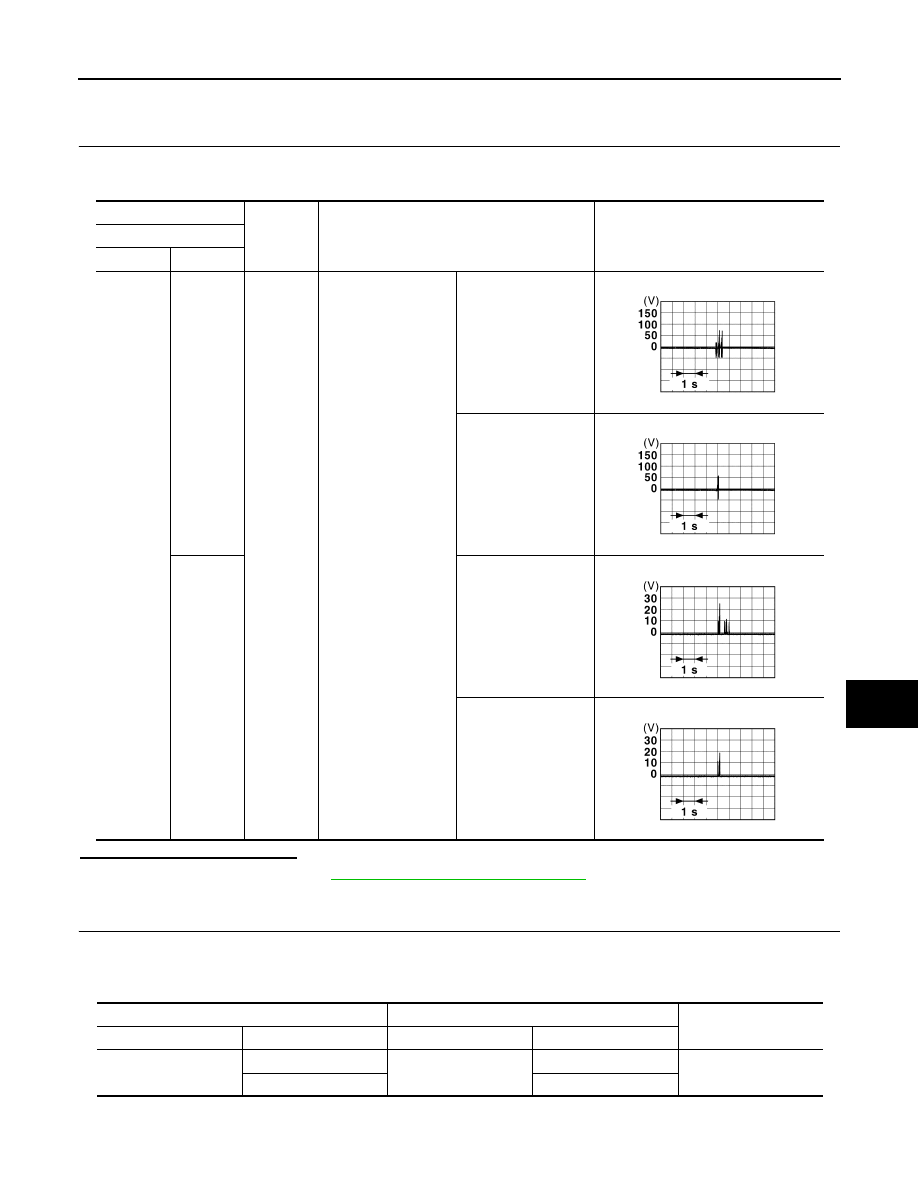

JSMIA1507GB

JSMIA1506GB

JSMIA1507GB

JSMIA1506GB

BCM

Front outside handle assembly (passenger side)

Continuity

Connector

Terminal

Connector

Terminal

M69

118

D38

2

Existed

119

1

BCM

Front outside handle assembly (passenger side)

Continuity

Connector

Terminal

Connector

Terminal

M69

118

D9

2

Existed

119

1

DLK-750

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

OUTSIDE KEY ANTENNA

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace front outside handle assembly (passenger side). (New antenna or other antenna)

2.

Connect BCM connector and front outside handle assembly (passenger side) connector.

3.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside handle grip LH.

NO

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

REAR BUMPER

BCM

Ground

Continuity

Connector

Terminal

M69

118

Not existed

119

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M69

118

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

119

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JSMIA1507GB

JSMIA1506GB

JSMIA1507GB

JSMIA1506GB

OUTSIDE KEY ANTENNA

DLK-751

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR BUMPER : Diagnosis Procedure

INFOID:0000000010672364

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1.

Disconnect BCM connector and outside key antenna (rear bumper) connector.

2.

Check continuity between BCM harness connector and outside key antenna (rear bumper) harness con-
nector.

3.

Check continuity between BCM harness connector and ground.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

B4

21

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

24

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

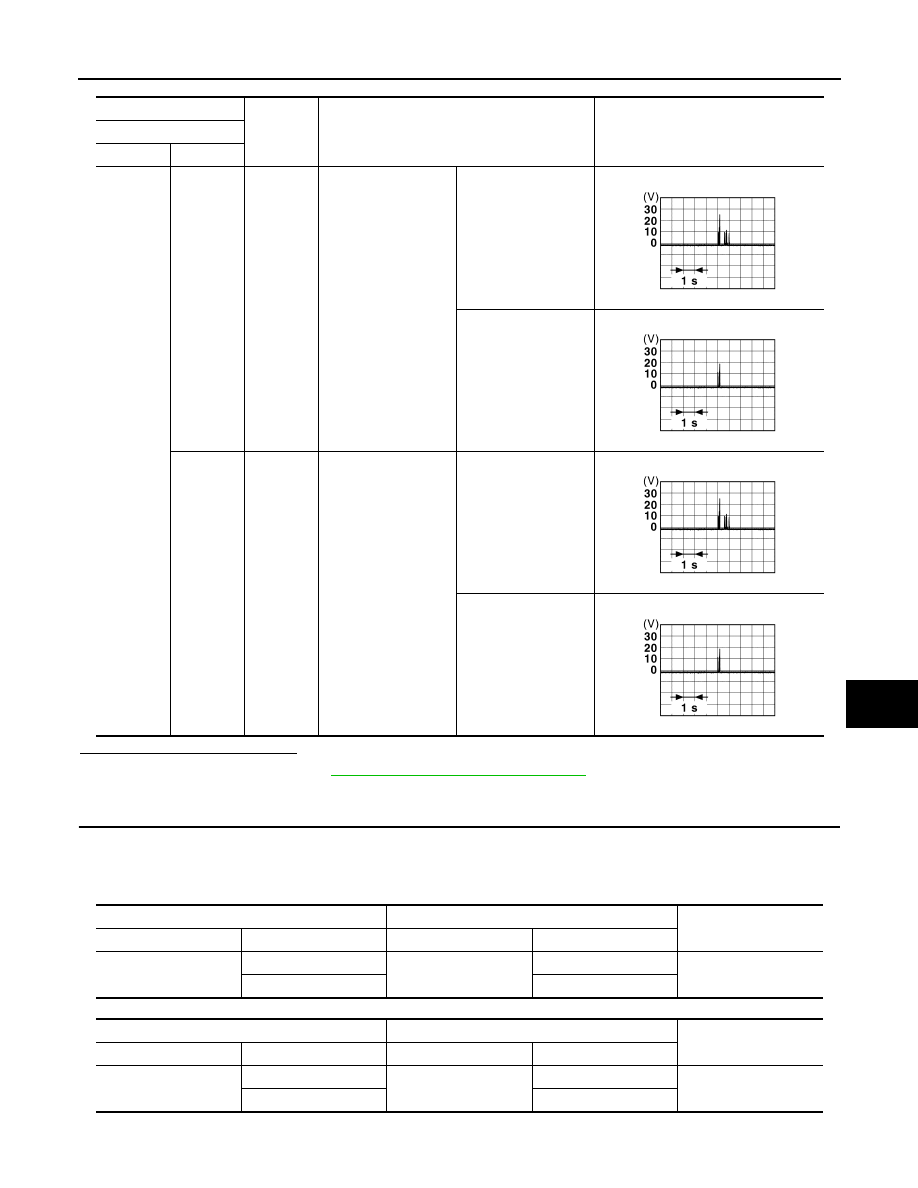

JMMIA1652GB

JMMIA1653GB

JSMIA1507GB

JSMIA1506GB

BCM

Outside key antenna (rear bumper)

Continuity

Connector

Terminal

Connector

Terminal

B4

21

B52

2

Existed

24

1

DLK-752

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 5]

OUTSIDE KEY ANTENNA

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace outside key antenna (rear bumper). (New antenna or other antenna)

2.

Connect BCM and outside key antenna (rear bumper) connector.

3.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna (rear bumper).

NO

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

BCM

Ground

Continuity

Connector

Terminal

B4

21

Not existed

24

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

B4

21

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

24

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JMMIA1652GB

JMMIA1653GB

JSMIA1507GB

JSMIA1506GB
